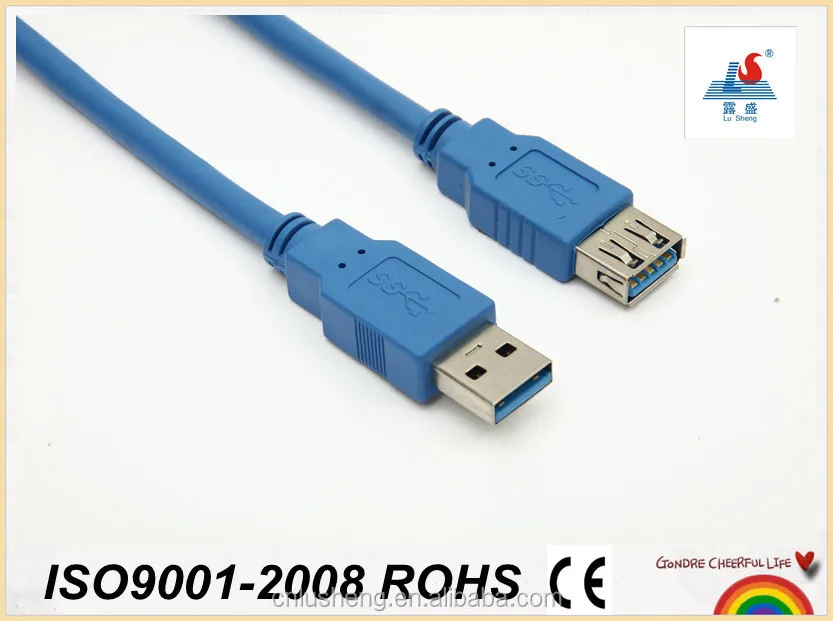

High speed 3.0 version USB extension cable AM TO AF FOC PVC material

Product Overview

Description

Product Name:

LSB003 USB3.0AM TO  AF CABLE

Connector:Nickel plated, gold plated

Edtition: USB3.0

Gauge: 28AWG 24AWG

Length:1.8m 3m 5m optional

Electrical Character:

1.100% open & short tesing.

2.Withstanding voltage: DC 200V 0.01SEC.

3. Insulation resistance: 5M OHMS MIN.

4.Conductive resistance: 3 OHMS MAX.

Cetification

Specification:

Part Number		USB3.0AM TO AF CABLE
Jacket	Diameter	5.5±0.1
	Material	PE

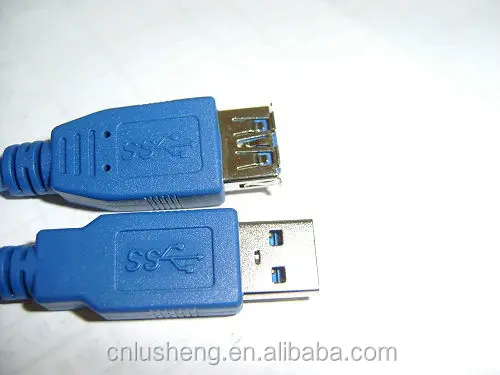

CONNECTOR	USB3.0 AM	Gold plated, shell nickel plated,bule insulator
	USB3.0 AF	Gold Plated,shell nickel plated w/top bottom shell, blue insulator

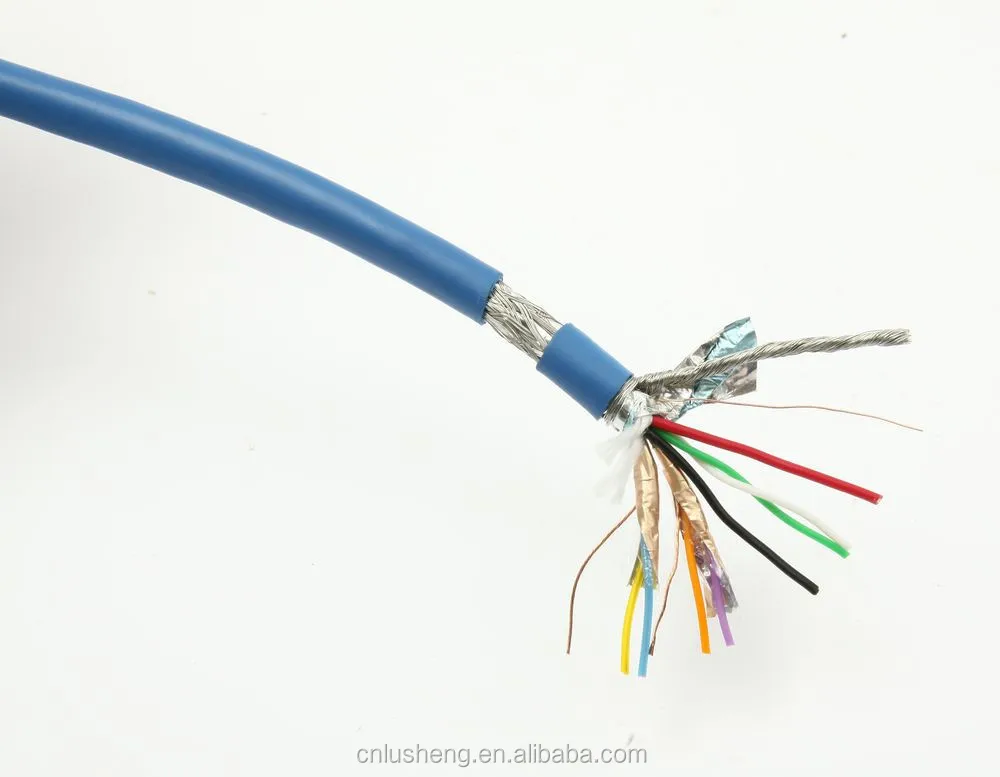

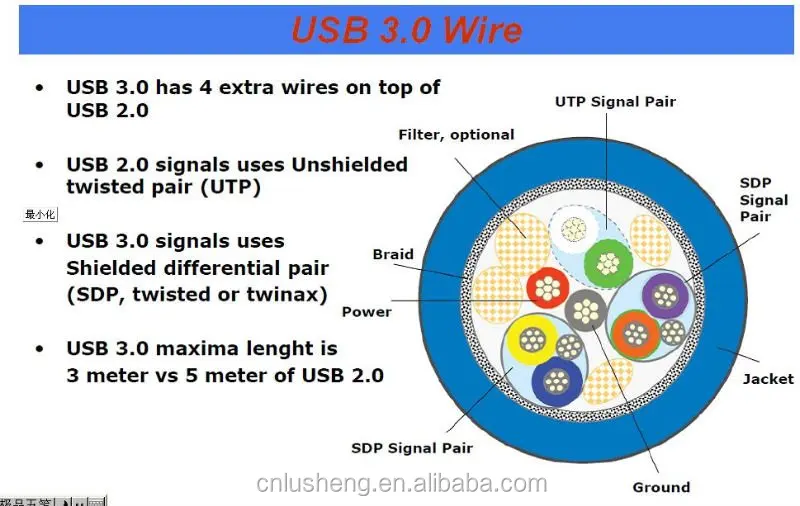

Specification	(28/1P+D)*2C+28/1P+24/2C+80X0.10TC BRAID OD5.5MM
Color		blue, black

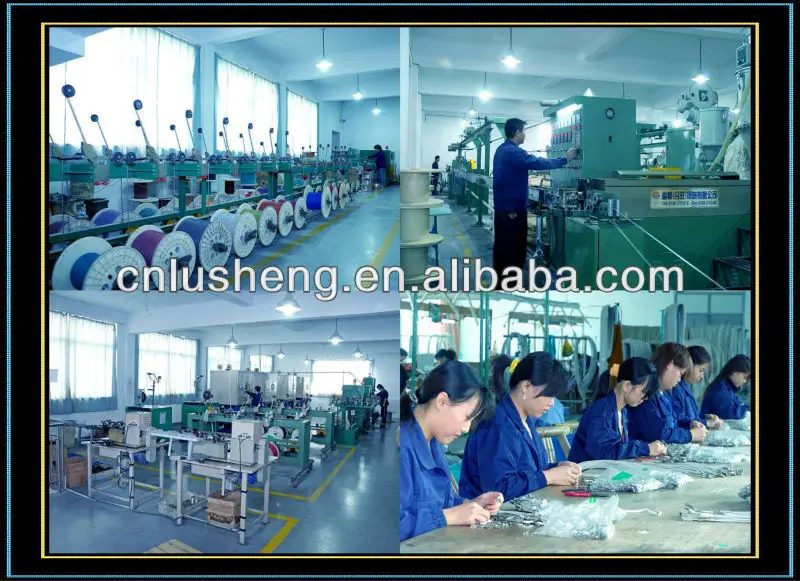

 Workshop:

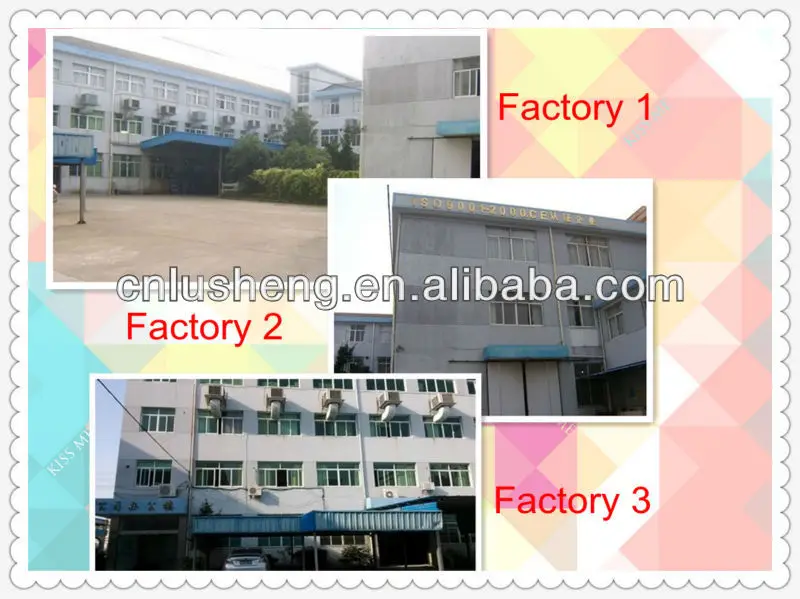

Brief introduction of  my company:



Cixi lusheng electronics Co.,Ltd is established in1988.Our main products are computer cables and plastic cover.

Such as usb cable, vga cable ,hdmi cable, dvi cable and so on. We strictly carry out ISO9001:2008 quality management system and get the CE approval.

”Quality first, credit principal” we sincerely hope to establish business relationships with you for mutual benefits!
