Saip/Saipwell high efficiency mppt solar charge controller inverter 1000w wind turbine

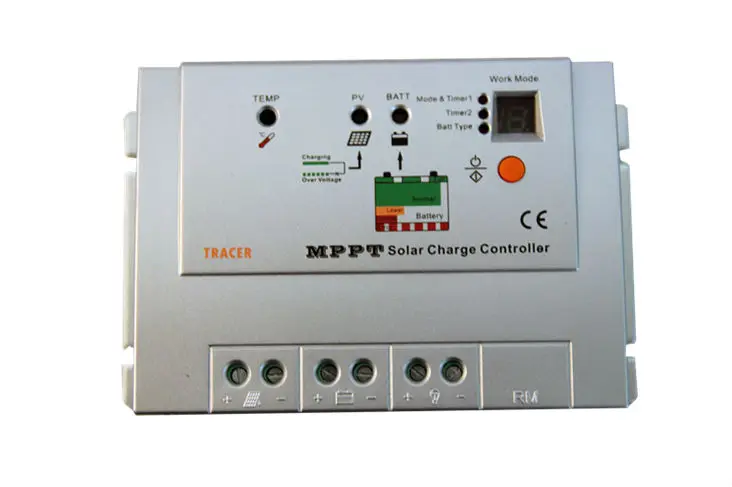

Product Description
Product Introduction:
MPPT controller is a kind of intelligent, multi-purpose solar charge controller. It uses the fixed LCD display, with a very friendly interface; Various control parameters can be flexibly set, fully meet your various application requirements. MPPT30 controller has following features:
(1) MPPT function: The most important feature of this controller is intelligently tracking input voltage from solar panels, and this can let solar panels always work at Maximum Power Point of V-A curve. Compared with normal solar charge controller, this MPPT controller can increase the generating efficiency of solar panels by 10% to 50%.
(2) Vivid LCD screen signal and precise operation.
(3) Intelligent PWM charging mode with auto temperature compensation.
(4) Adjustable charging and discharging parameters, and settable load working state.
(5) Different protection function for battery, including protection against reverse charging for battery, battery low voltage protection and protection against battery reverse connection.
Features:
Electronic protection:
MPPT technology
Peak conversion efficiency of 97%
High Tracking efficiency of 99%
Several seconds tracking speed
4-Stage charge with PWM output
Nature convection cooling
Full power output up to 45 °C
Temperature compensation
Sealed, Gel and Flooded battery option
Diversified load control
RJ45 interface &optional meter
2 years warranty
CE certificate
PV Array Short Circuit
PV Overvoltage
PV Overcurrent
Load Overload
Load short circuit
PV Reverse Polarity
Battery Reverse Polarity
High Voltage Transients
Technical Data:
Model
TRP 10A
TRP 20A
TRP 30A
TRP 40A
System Voltage
12/24V auto work
Rated battery current
10A
20A
30A
40A
Rated load current
10A
20A
Max.battery voltage
32V
Self-consumption
< 10mA(24V)
Charge Circuit Voltage Drop
≤0.26V
Discharge Circuit Voltage Drop
≤0.15V
Communication
TTL232 / 8 pin RJ45
Working temperature
-35°C~+55°C
Humidity
10%-90% NC
Enclosure
IP30
Altitude
≤3000m
Dimension (mm)
156*97*68
169*118*83
242*169*91
242*169*91
Terminal
4mm2
10mm2
25mm2
Weight
1kg
1.5kg
2kg
3kg

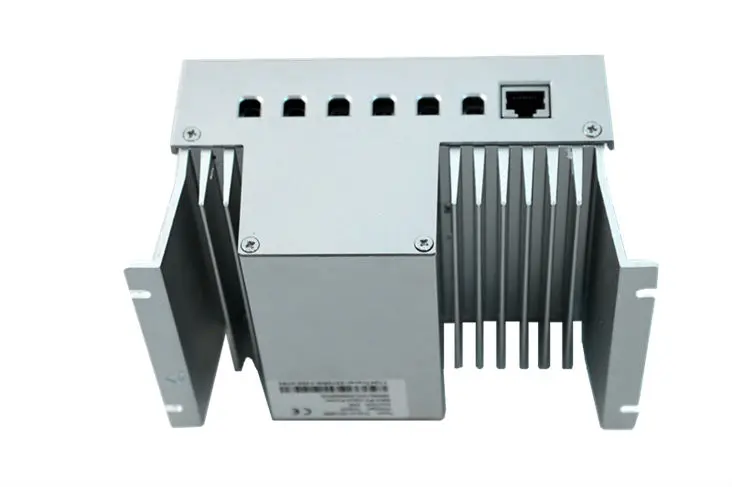

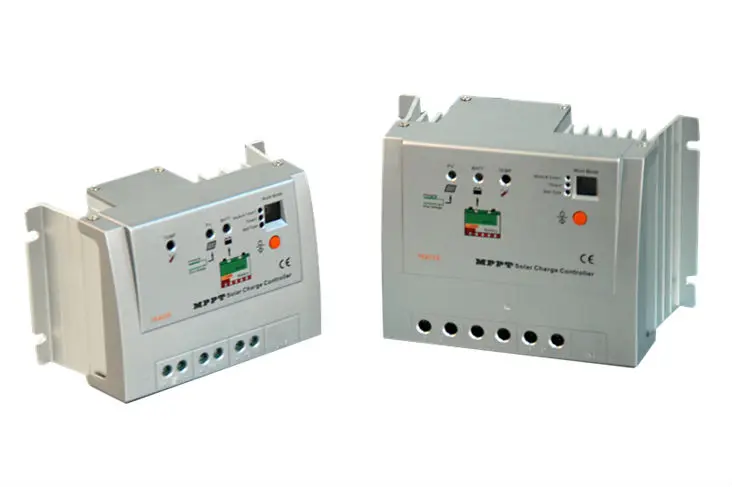

Details show:
Dimension:
Some related products:

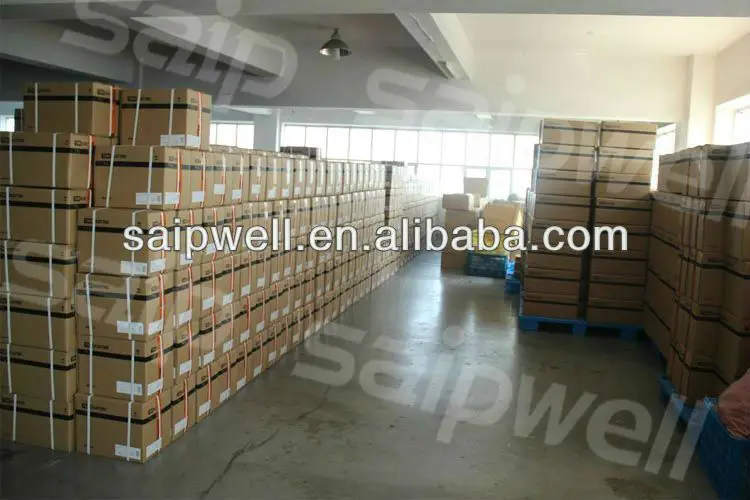

Production:

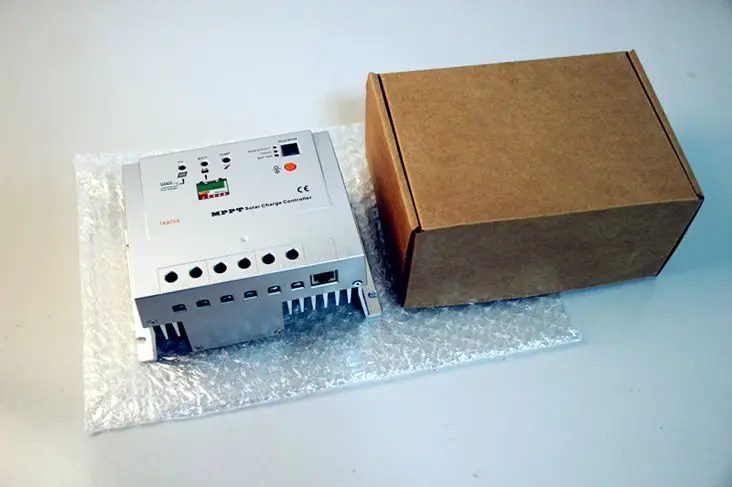

Packaging & Shipping
Packaging & Shipping:
Our Services
Our service
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be providedyou upon receipt of your new inquiry ASAP.
3.Answer your question detailed
4.Solved the problem with you during using our products
5.Samples will be offered to you for our future cooperation.
