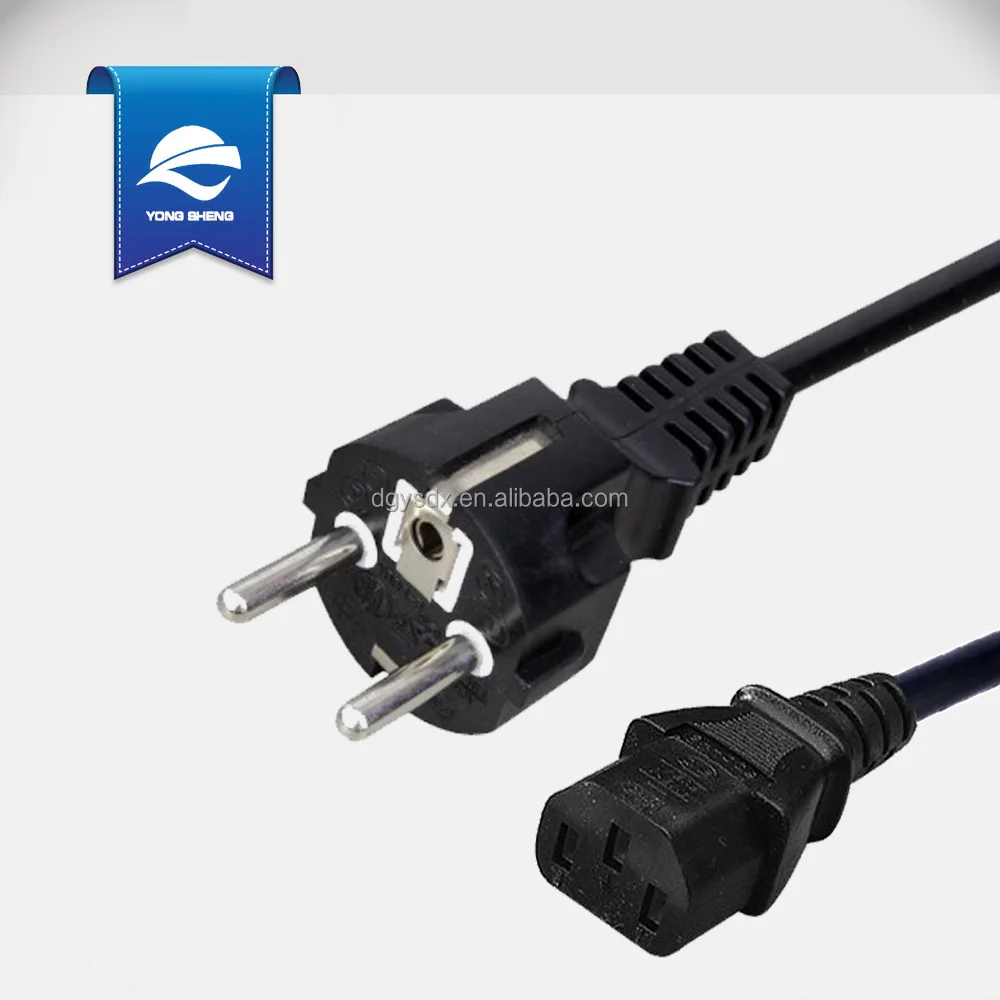

VDE approval euro schuko 250v power plug and IEC C13
- Category: >>>
- Supplier: Dongguan Yongsheng Cables Technology Co. Ltd. [Guangdong China]Dongguan
Share on (60114921556):
Product Overview
Description
Product Description

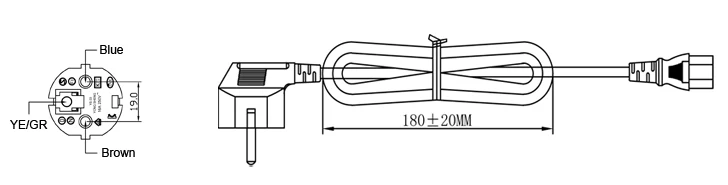

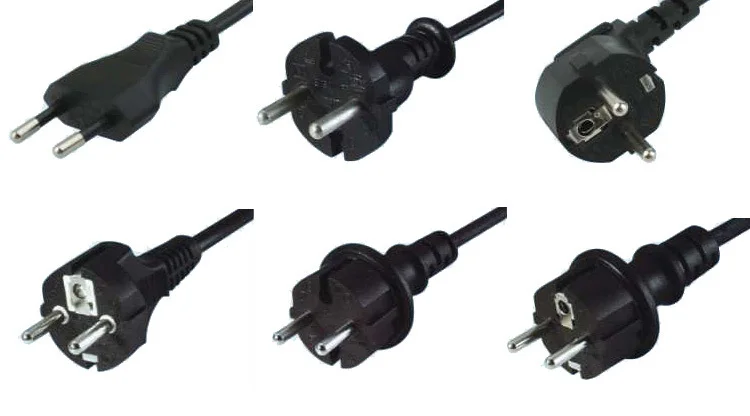

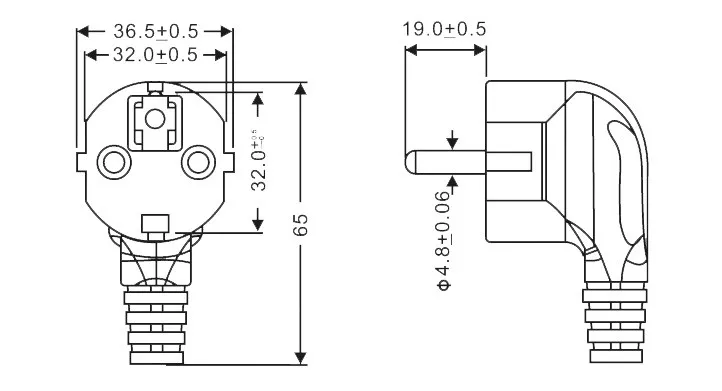

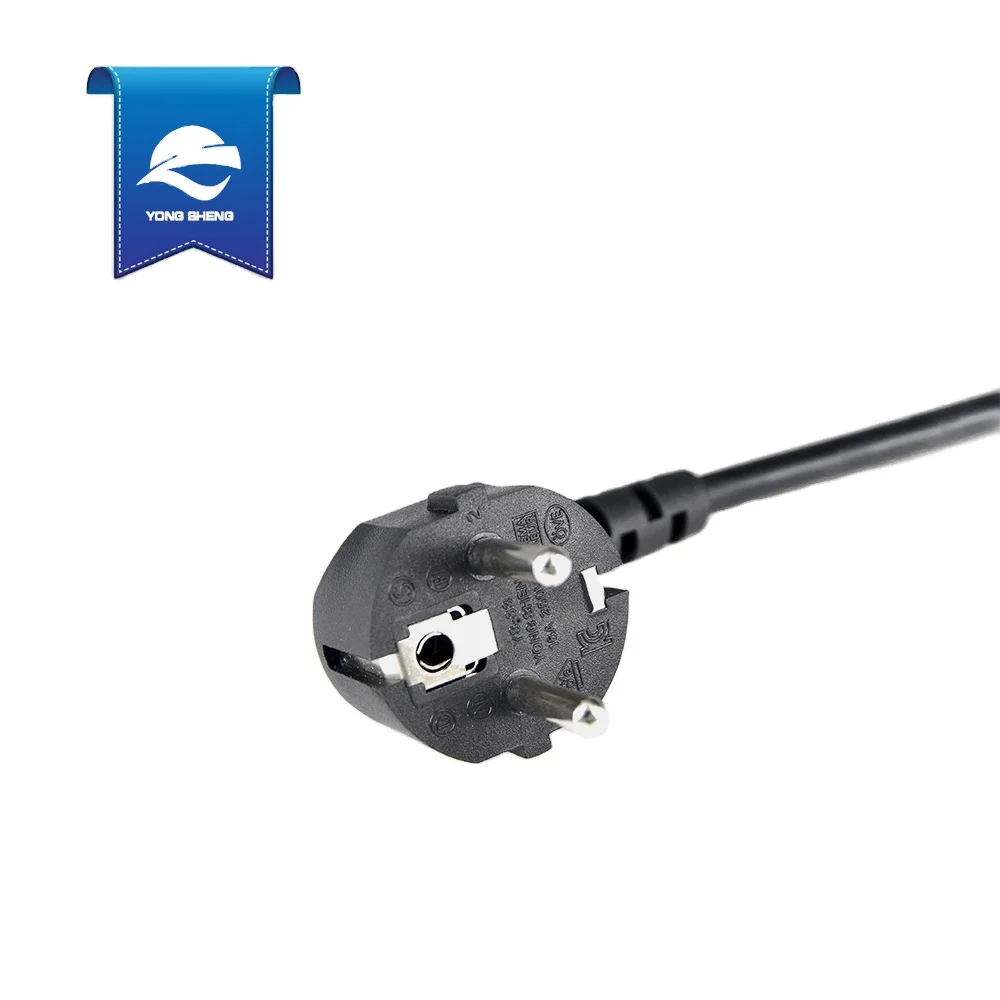

VDE approval euro schuko 250v power plug and IEC C13
Applicable flexible cord types:
| Type | Conductor's ares(mm2) | Conductor's construction(No./mm) | Insulation's Nom. Thick(mm) | Jacket's Nom. Thick(mm) | Jacket's Overall Diam.(mm) |
| H03VV-F | 2x0.5 | 28/0.15 | 0.50 | 0.6 | 5.20 |
| 2x0.75 | 24/0.20 or 42/0.15 | 0.50 | 0.6 | 5.6 | |
| 3G0.5 | 28/0.15 | 0.50 | 0.6 | 5.5 | |
| 3G0.75 | 24/0.20 or 42/0.15 | 0.50 | 0.6 | 6.15 |
| Type |
Conductor's ares(mm2) |
Conductor's construction(No./mm) | Insulation's Nom. Thick(mm) | Jacket's Nom. Thick(mm) | Jacket's Overall Diam.(mm) |
| H95VV-F | 2x0.75 | 24/0.20 or 42/0.15 | 0.60 | 0.80 | 6.50 |
| 2x1.0 | 32/0.20 | 0.60 | 0.80 | 6.80 | |
| 2x1.5 | 26/0.254 or 48/0.20 | 0.60 | 0.80 | 8.00 | |
| 3G0.75 | 24/0.20 or 42/0.15 | 0.60 | 0.80 | 6.80 | |
| 3G1.0 | 32/0.20 | 0.60 | 0.60 | 7.20 | |
| 3G1.5 | 30/0.254 | 0.60 | 0.80 | 8.50 | |
| 3G2.5 | 49/0.254 | 0.80 | 1.1 | 10.2 | |
| 3G4.0 | 80/0.254 | 0.80 | 1.2 | 12.0 | |
| 4G0.75 | 24/0.20 or 42/0.15 | 0.60 | 0.80 | 7.5 | |
| 4G1.0 | 32/0.20 | 0.60 | 0.90 | 8.6 | |
| 4G1.5 | 30/0.254 or 48/0.20 | 0.70 | 1.0 | 9.8 | |
| 4G2.5 | 49/0.254 | 0.80 | 1.1 | 11.8 | |
| 4GX4.0 | 80/0.254 | 0.80 | 1.2 | 13.0 | |
| 5G0.75 | 24/0.20 or 42/0.15 | 0.60 | 0.90 | 8.5 | |
| 5G1.0 | 32/0.20 | 0.60 | 0.90 | 9.3 | |
| 5G1.5 | 30/0.254 or 48/0.20 | 0.70 | 1.1 | 11.0 | |
| 5G2.5 | 49/0.254 | 0.80 | 1.2 | 13.0 | |
| 5G/4.0 | 80/0.254 | 0.80 | 1.4 | 14.6 |
Our products list:
(1) UL approval products:
1007, L1015, UL1028, UL1056, UL1095, UL1569, UL1571, UL1617, UL1672, UL10954, UL1185, UL1533, UL2854, UL2725, UL2733, UL2732, UL20276, UL20288, UL20862 , UL2464, UL2768, ULSPT-1, SPT-2,SPT-3, SJT, NISPT-1, NISPT-2, SVT.
(2) VDE and CE approval products:
SIingle core wire: H03VH7-H
Multiple core wire: H03VVH2-F,H03VV-F,H05VVH2-F H05VV-F

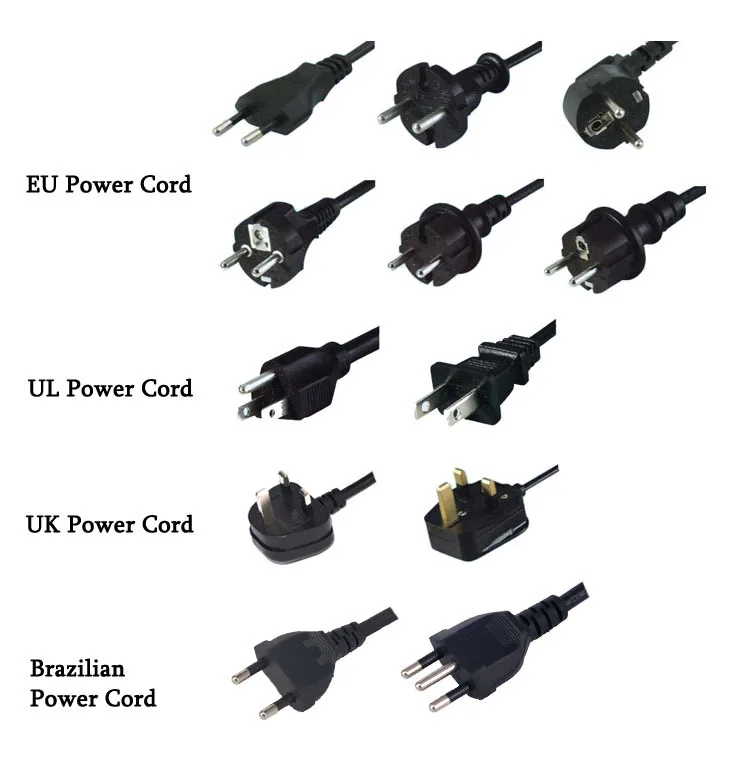

(3) Power plug : UL plug, CCC plug, VDE plug, CE plug, BS plug, SAA plug, Italy plug
