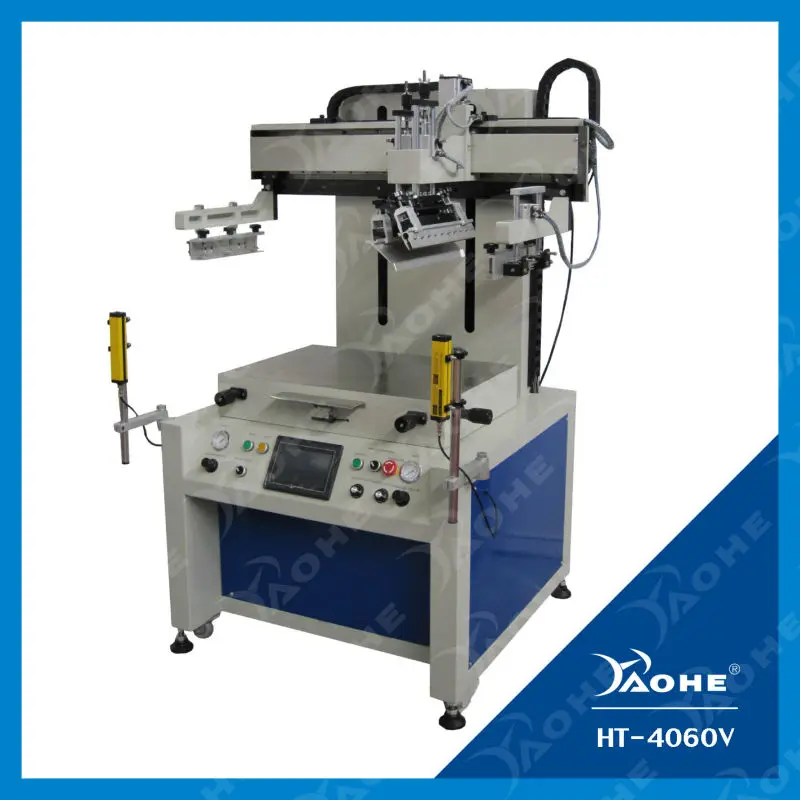

imprimante de serigraphie
- Category: >>>
- Supplier: Dongguan Howell Machinery Limited
Share on (60115061557):
Product Overview
Description
| Model No. | HT-4060V |
| Drive System | Electric DC motor |
| Control system | OMRON PLC,WEINVLEW touch screen |
| Max.print area | 400*600mm |
| Worktable size | 500*700mm |
| Vacuum table dimension | 400*600mm |
| Max.screen frame size | 600*930mm |
| Max.print speed | 800cycles/hr |
| Max.print height | 180mm |
| Left/right stroke | 600mm |
| Up/down stroke | 200mm |
| Registration accuracy tolerance | ≤0.4mm |
| Squeegee Pressure | 2 - 4 Bar |
| Electric Source | 220-110V 50-60Hz 1phase |
| Air Pressure Input | 4-6 Bar |
| Machine Weight | 325 kg |
| Dimension | L1100*W900*H1700mm |
Standard Features:
- Electrical motor driven for screen frame up/down and horizontal printing.
- OMRON PLC controlled, WEINVIEW touch screen.
- Panasonic motor and frequency converter.
- Vertical head lift with height adjustment.
- X/Y/R positioning table with vacuum table.
- Linear ball bearings on hardened shafts.
- Squeegee angle and calibrated height adjustment.
- Regulated squeegee pressure with pressure gauge.
- Floor levelers & casters, Foot switch controlled.
- Installed E-stop button and safety light curtain.
- Screen frame with auto snap off when printing.

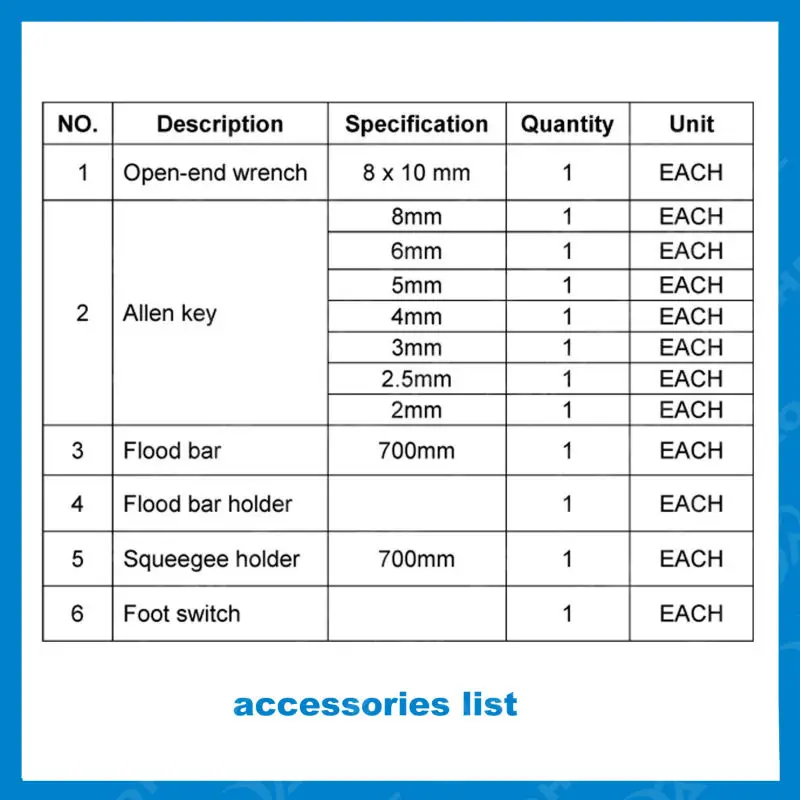

Accessoies List

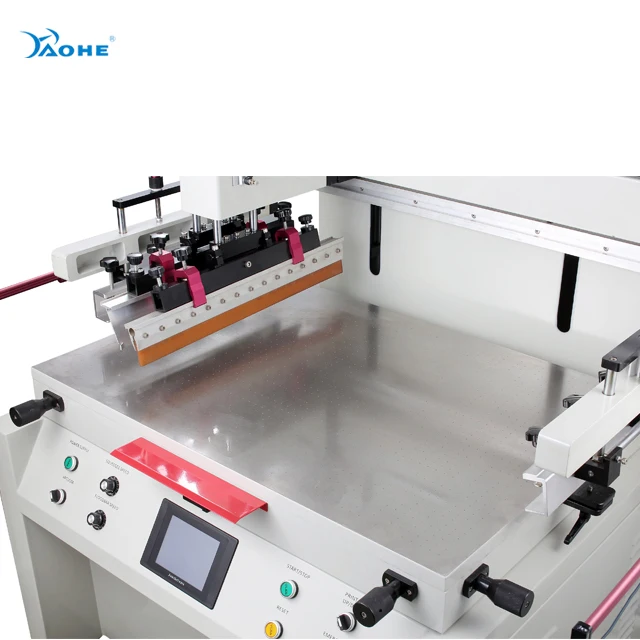

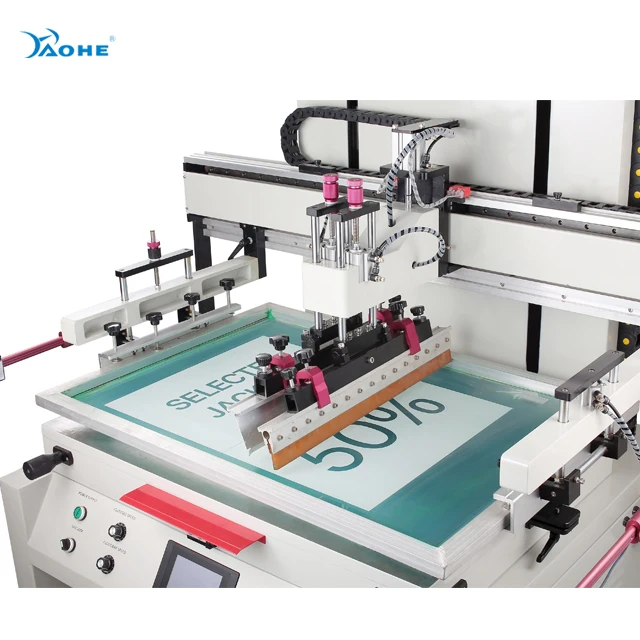

Machine Pictures
Applications
High Precision Flat Screen Printing machine of Application:
HT-4060V semi- automatic flat screen printer with vacuum table has well designed and vertisal machine.suitable for many different kinds of material flat surface prinitng,including plastic,ceramic,glass,wood metal etc.
customer visiting
Company Information
1. we are manufacturer in this area for more than 15 years, with strong design and service team.
2. precisely machining and production.
3. Experienced and Professional installation.
