TUV Anti Glare 620x620 DC24V UGR 19 LED Panel Light
- Category: >>>
- Supplier: Shenzhen Anyhope Technology Limited
Share on (60115145688):
Product Overview
Description
Product Description

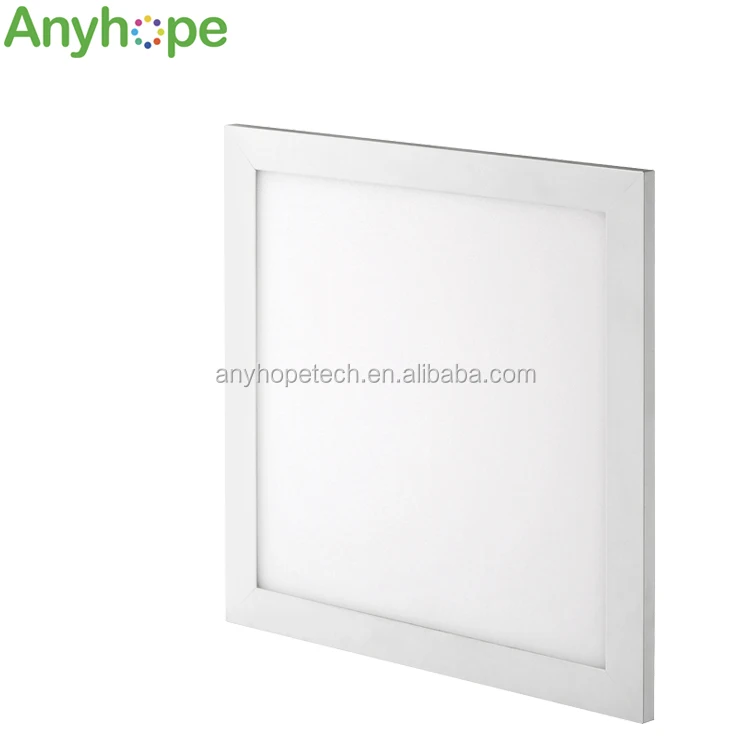

TUV Anti Glare 620x620 DC24V UGR 19 LED Panel Light
Model: AH-LP6262
Low profile LED Rectangular Flat Panel Light is made from aircraft aluminum, edge-lit design and wide beam angle, produces evenly diffused light without hot spot.
Mitsubishi Light Guide Plate (LGP), Higher Transmission optical diffuser plate
Fine polished powder coating housing by utilizing extruded Aluminum-Alloy Die 6063
Back cover: 1070 Aluminum, Corrosion Resistance, High Plasticity and Thermal conductivity.
Accurate Binning LED used, keep uniform color consistency in different project.
Anti-glare UGR<19 are available.
IC rated for direct contact with insulation
Allows to recessed into drop ceilings, suspension mounting or direct surface mount to ceilings, typically used to replace fluorescent troffer lighting fixtures.
Low maintenance and constructed without hazardous materials.
Applications: Residential and Commercial Suspended Grid Ceilings.
No mercury, UV, IR and other toxic substances, it is environment-friendly.
Details
| LED Type | SMD2835 or SMD4014 |
| Color Rendering Index (CRI) | CRI 80+, CRI 90+, CRI 95+ |
| Color Temperature | 2400K, 2700K, 3000K, 4000K, 5000K, 6000K |
| Finish Color | White |
| Beam Angle | 120 Degree |
| Dimmable | 0-100% Dimmable, 0-10V |
| Operating Temperature | -10°C ~ +40 °C / (14 °F ~ +104 °F) |
| Lifetime | 50,000 Hours |
| Warranty | 5 Years |
| IP Rating | Damp Location Rated, IP65 (Waterproof type) |
| Certifications | CE RoHS |
Constant Voltage type DC24V, Constant Current version, RGB version, Tunable White are available. Fixture tall: 10mm (0.39inch)
Constant Voltage Type | ||||||
Product Number | Dimension | Watt | Lumen | Efficacy | Voltage | Current |
| AH-LP3030-12 | 295x295mm | 12Watt | 1200lm | 100lm/w | DC24V | 500mA |
| (300x300mm/1x1ft) | ||||||
| AH-LP6030-24 | 595x295mm | 24Watt | 2400lm | 1000mA | ||
| (600x300mm/2x1ft) | ||||||
| AH-LP6060-40 | 595x595mm | 40Watt | 4000lm | 1666mA | ||
| (600x600mm/2x2ft) | ||||||
| AH-LP6262-40 | 620x620mm | 40Watt | 4000lm | 1666mA | ||
| AH-LP1230-48 | 1195x295mm | 48Watt | 4800lm | 2000mA | ||
| (1200x300mm/4x1ft) | ||||||
| AH-LP1260-85 | 1195x595mm | 85W | 8500lm | 3541mA | ||
| (1200x600mm/4x2ft) | ||||||
Constant Current Type | ||||||
Product Number | Dimension | Wattage | Lumen | Efficacy | Voltage | Current |
| AH-LP3030-12CC | 295x295mm | 12Watt | 1560lm | 130lm/w | DC26-31V | 300mA |
| (300x300mm/1x1ft) | ||||||
| AH-LP6030-24CC | 595x295mm | 24Watt | 3120lm | DC26-31V | 600mA | |
| (600x300mm/2x1ft) | ||||||
| AH-LP6060-40CC | 595x595mm | 40Watt | 5200lm | DC33-38V | 1000mA | |
| (600x600mm/2x2ft) | ||||||
| AH-LP6262-40CC | 620x620mm | 40Watt | 5200lm | DC33-38V | 1000mA | |
| AH-LP1230-48CC | 1195x295mm | 48Watt | 6240lm | DC33-38V | 1200mA | |
| (1200x300mm/4x1ft) | ||||||
LED Lumen Attenuation:
Operating time | Lumen Decrease |
5,000 | 2.3 |
10,000 | 5.4 |
20,000 | 11.5 |
50,000 | 25.2 |
Lumen maintenance at 10,000hrs: 95%
Average life time: 50,000hrs
Energy saving up to 50%, soft and even lighting output.
Instant start, no flicking, no humming.
Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
No RF interference.
Application:
- As the ceilling or wall light used in the office,hotel,restaurant,cafes,bar,warehouse lighting,supermarket,hospital and so on places.
Company Information
Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.
Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.
Our Services
Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.
Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS, FedEx, bank information and terms & conditions for detailed check.
Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)
Step (4): Production Process
Step (5): Package and Shipping
Step (6): Air Way Bill Number
