Product Overview

Description

Poly vinyl chloride Coated Polyester Mesh Tarp for sunshade



Product Description



1000DX1000D, 9X9, 7.5 oz colorful vinyl coated mesh (VCM) is made by High tenacity polyester yarn and reinforced by PVC coating. This vinyl coated mesh is rot resistant, tear resistantm flexible, breathable, and heat sealable.



Characteristic:



1. Waterproof
2. Mildew proof
3. Tear resistant
4. Acid resistant
5. Artic flexibility
6. UV treated
7. Fire retardant (B1, NPFA701 etc.)
8. Heat sealable







Specificaitons:









Yarn (Denier)	1000 Denier (Warp) 1000 Denier (Weft )
Count Warp Fill	9 ends/inch (Warp) 9 ends/inch (Weft )
Weight (oz./sq.yd.):	5-8 oz
Tensile Strength:	(ASTM D-1682) Warp - 165 lbs. min. Fill - 125 lbs. min.
Mullen Burst Strength:	ASTM D-3786 Minimum 300 lbs/sq.in
Cold Crack:	Min. -20 degrees F, 1/8" mandrel
Caliper:	(Fabric thickness) - 45-50 mils
Specific Gravity:	0.6
Fire Retardancy:	Fed.Std.T-191 Method 5903 Modified 30 degree angle. Afterflame - 7 sec. Char length- 2 in.
Other:	Available in widths up to 126" Certain properties can be modified for special requirements.

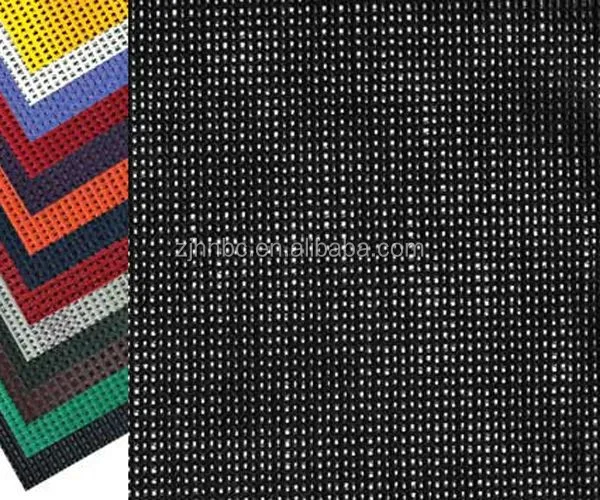

Products picture











Remarks:



Color, weight, width and softness can be customized per your requests.



(If you have any question please contact me .Free samples can be provided)







Package Details



1. Normal package: PE films+craft paper

2. Hard Tube: package: Normal package+Hard tube







Delivery Details



1.  Shipping type: by sea or by air

2. Delivery time: 20-35 days after signing the contract

3. Delivery port: SHANGHAI port
