Factory 3 phase pressure switch for compressor
- Category: >>>
- Supplier: Yueqing Fubang Industrial Co. Ltd.
Share on (60115286537):
Product Overview
Description

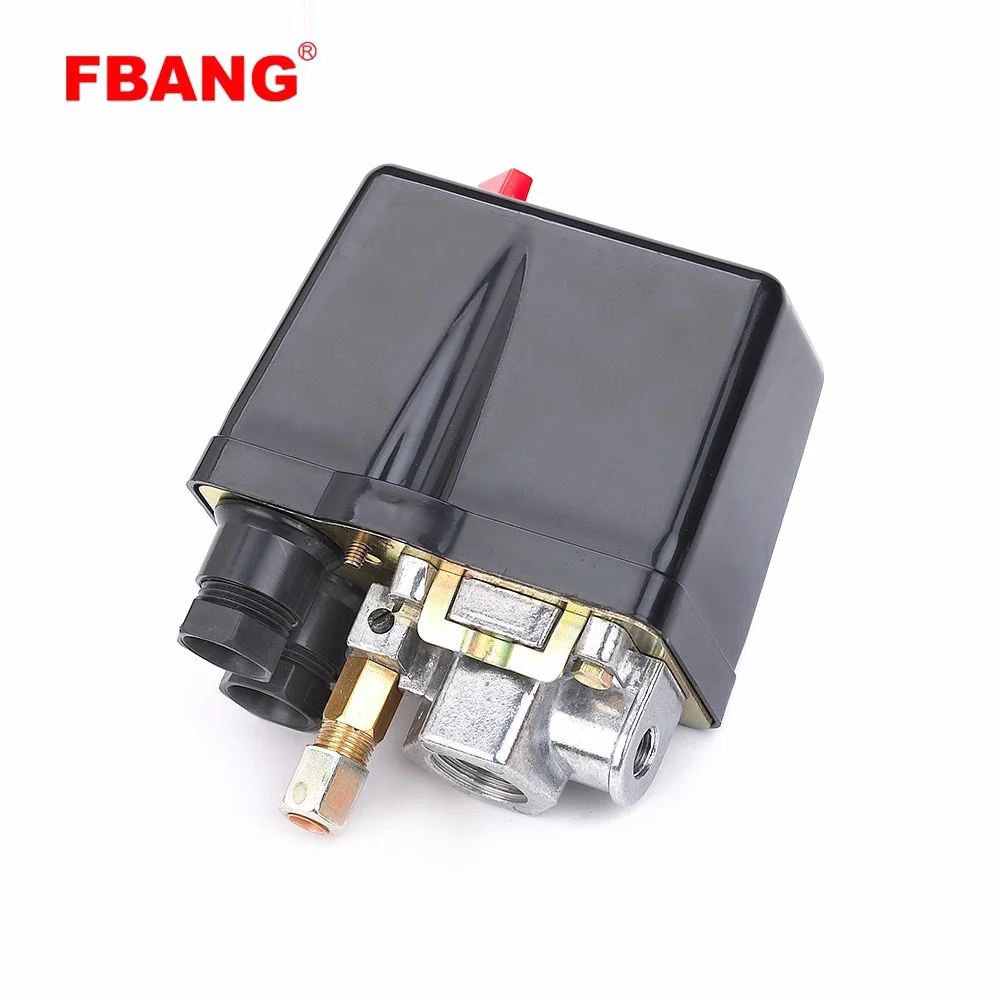

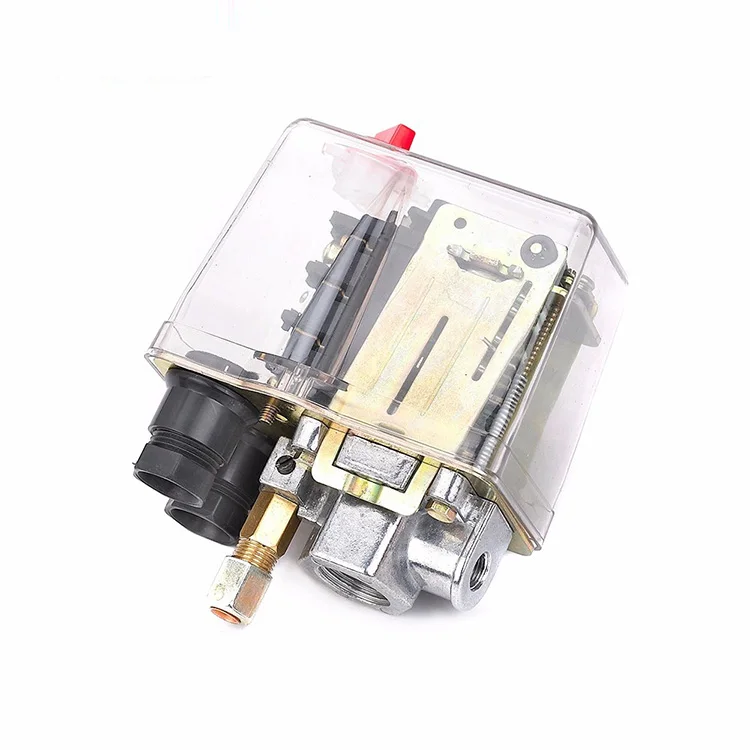

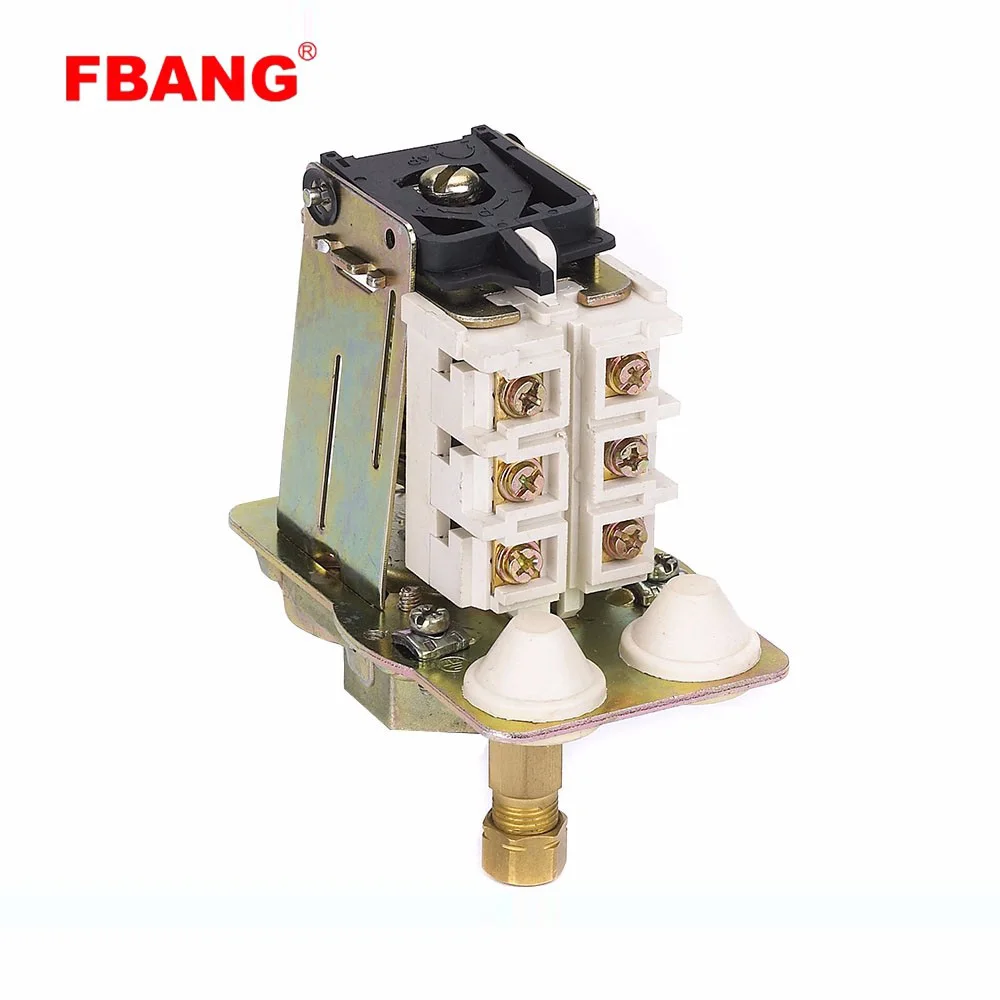

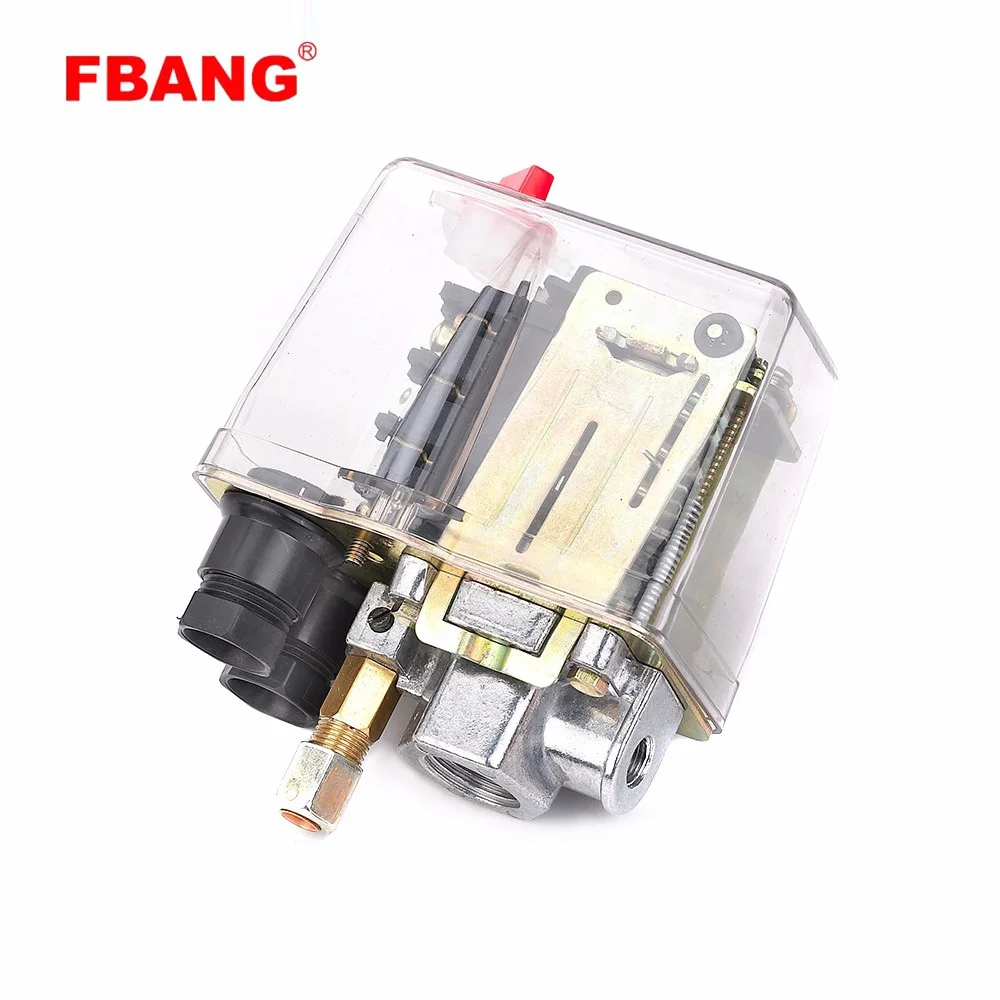

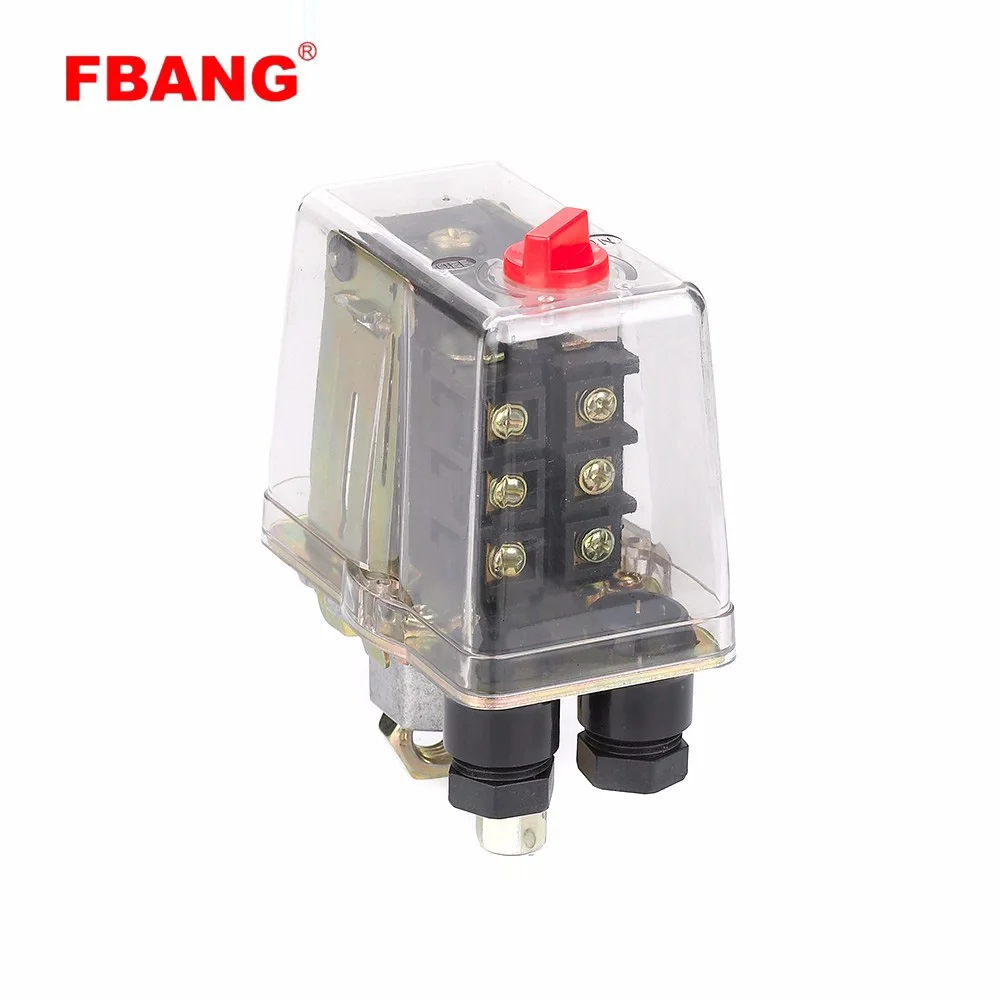

Factory custom reliable adjustable 3-phase air compressor pressure switch
Product Description
FB-18 pressure switch is specifically designed to stand up to extended duty applications. This switch is factory set but capable of field adjustment. It features different diaphragms for compatibility with a wide variety of fluids, and various terminations including a Metri-Pack connector that forms a tight seal when connected. Among the outstanding design benefits are its durable construction, compact size, and enhanced set point integrity. It can be widely used for pool and spa, anti-skid braking systems, water pump systems, and dental air compressors etc.
MODEL | Min On | Max Off | Differential | Factory Setting (Bar) | Electrical Rating | Pipe Fittings | Contact Arrangement | |
Current | Voltage | |||||||
FB18-1 | 2.0 | 8.0 | 1.2-3.5 | 3.6-5.0 | 16A | 400V | G1/4" or G1/2" Femle | N.C. |
FB18-2 | 3.0 | 11.0 | 1.2-3.0 | 5.5-7.0 | 16A | 400V | G1/4" or G1/2" Femle | N.C. |
FB18-3 | 4.0 | 16.0 | 1.4-4.0 | 8.0-10.0 | 16A | 400V | G1/4" or G1/2" Femle | N.C. |
Other Pressure Settings and Differential Pressure are available on request.
Conversion: 1Mpa =10bar,1bar = 14.5PSI,1Kgf/cm2 = 14.2PSI
