Product Overview

Description

WS2812B RGB 5050SMD Individual Addressable Flexible Black/White PCB Full Color LED Pixel Strip Dream Color Making LED Screen, LED Wall Only DC5V

• Brand: Sunrain


• IC type: WS2812B IC


• Color order: G R B(NOT RGB)


• Gray level: 256


• View angle: 120°


• Color: full-color 24-bi


• Power: 0.3W/LED 60LEDs/m


• Recommended power supply: DC5V20A (100W)


• Standard Reel Length:16.4FT/reel 5meters/reel


• Model: WS2812 strip 5050rgb chips


• Operating Temperature: -20 ~ +40°C


• Wave length(nm): Red,650nm; Green,520nm; Blue,460

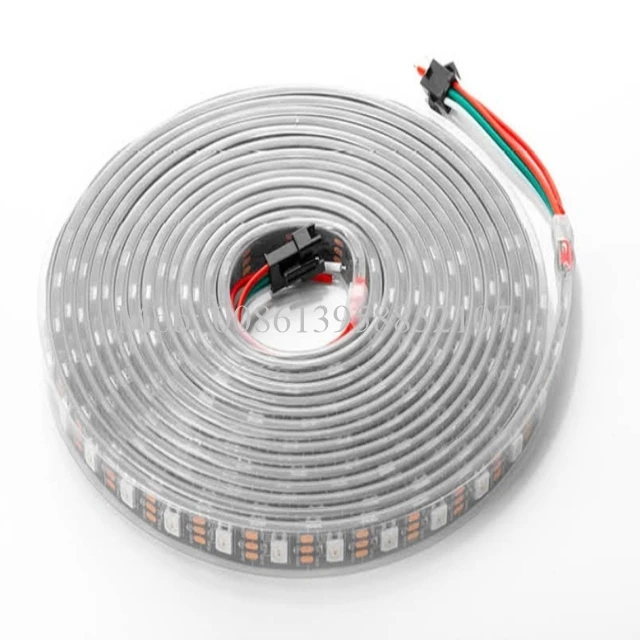

  Sunrain WS2812B Product Picture:

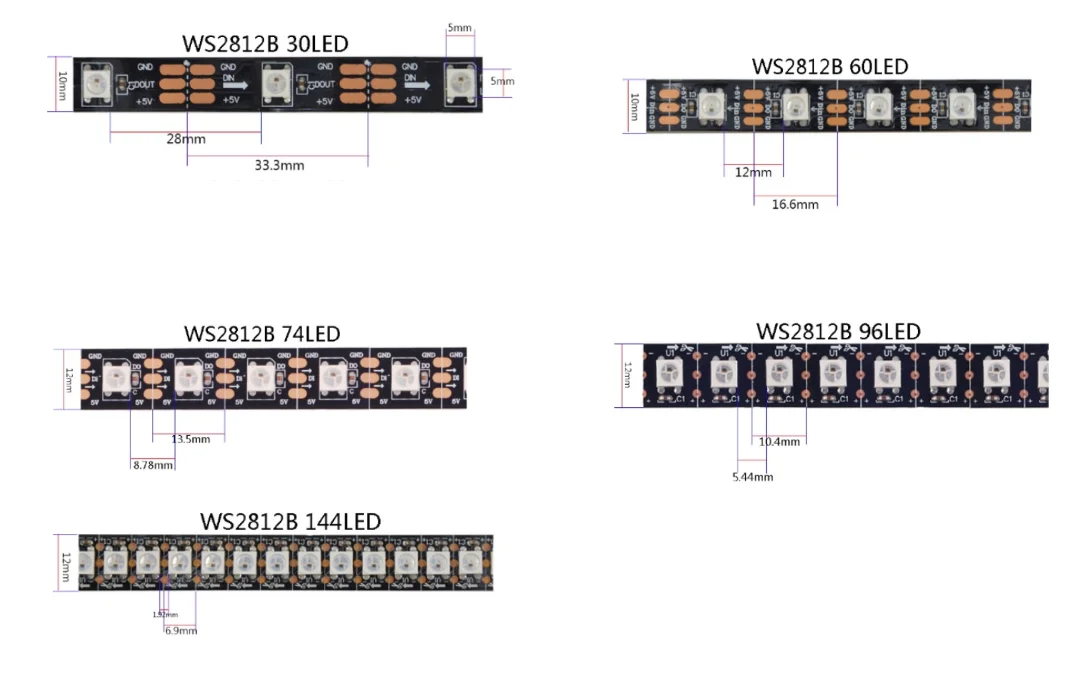

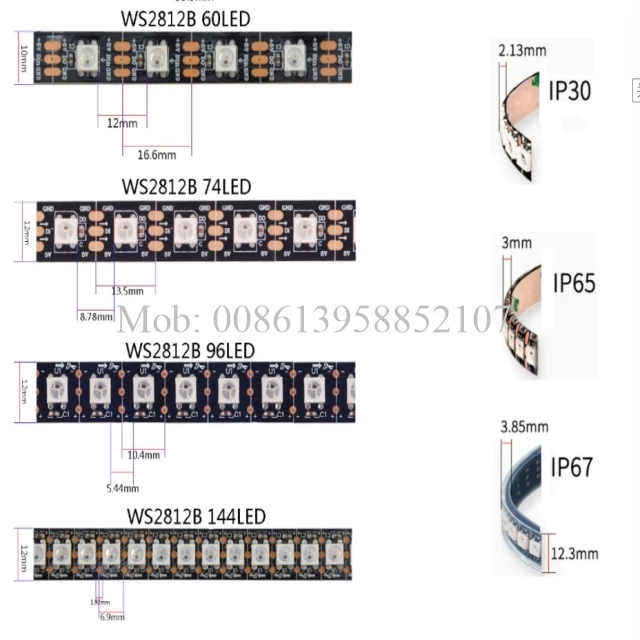

Sunrain WS2812B Specification:

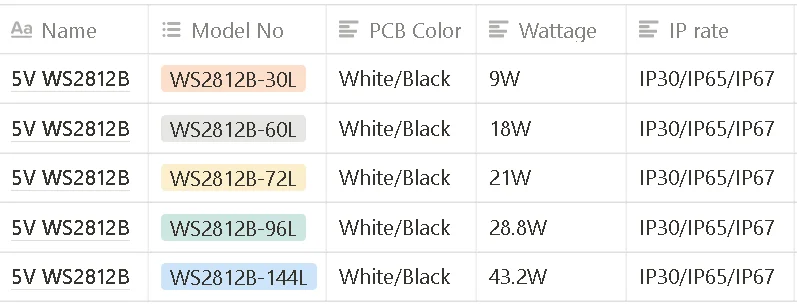

 Sunrain WS2812B Technical Data:

 Sunrain WS2812B Product Feature:

Addressable

•


  Every led has its own IC chip. One IC drives one led. The chip is built-in the LED. Built-in IC chip.




Cuttable

• Cut it to the length you just need.


• Every LED can be cut off, led strip still working after it is cut.

DIY Project

• You can use this led strip to make a LED matrix panel, TV/PC backlight, laser sword or light stick. Various DIY project.

Easy to install

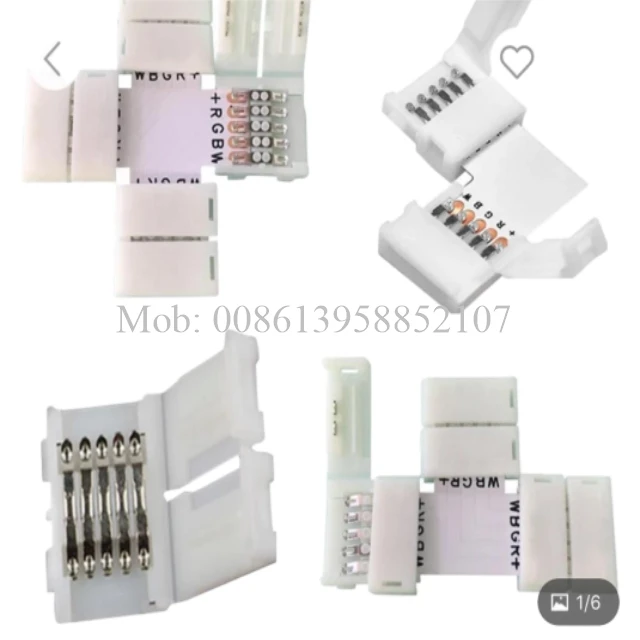

• 3 pin connectors on both ends for easy installation, you can also add another LED on both ends. Connect them in series. Technicians are available for installation. Welcome to consult

Adhesive

• They (IP30, IP65) has adhesive tape on the back. You can paste it on the bookcase, TV, wine cabinet, ceiling, windowsill easily. IP67 has NO adhesive on its back.

Application

• WS2812B LED strip can be used for decorating your home (e.g. dining room, bed room, upstairs, kitchen, porch, desk, and living rooms, especially great for holidays and events like Christmas, Halloween, Parties)

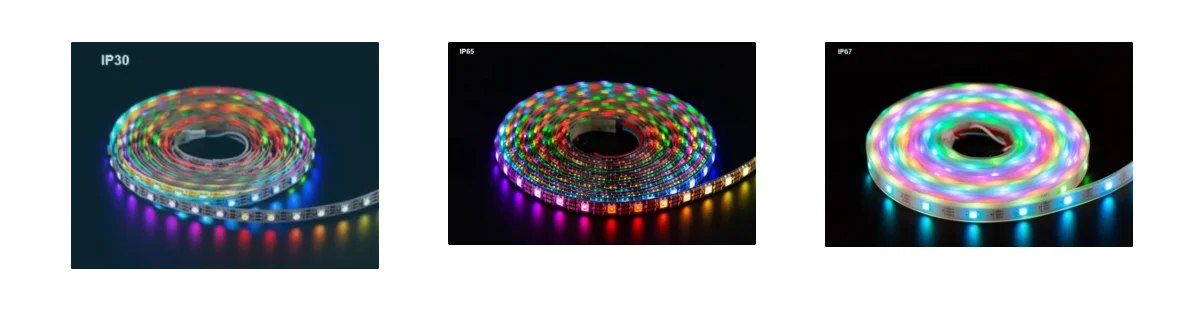

Waterproof Level

•


  IP30 : Non waterproof




   IP65:Silicone coating waterproof  IP67: Silicone Tube waterproof






  Pls note: two 3 pin connectors on two end are non-waterproof , so please don't be exposed to rain directly . IP65 and IP67 are splash proof . IP68 waterproof can work under water.We can also customize it.
