Product Overview
Description
C51 series conventional vertical lathe machine/vtl
Recommended VTL
C5110(Ø1000mm) DRO Single-column Vertical Lathe Machine

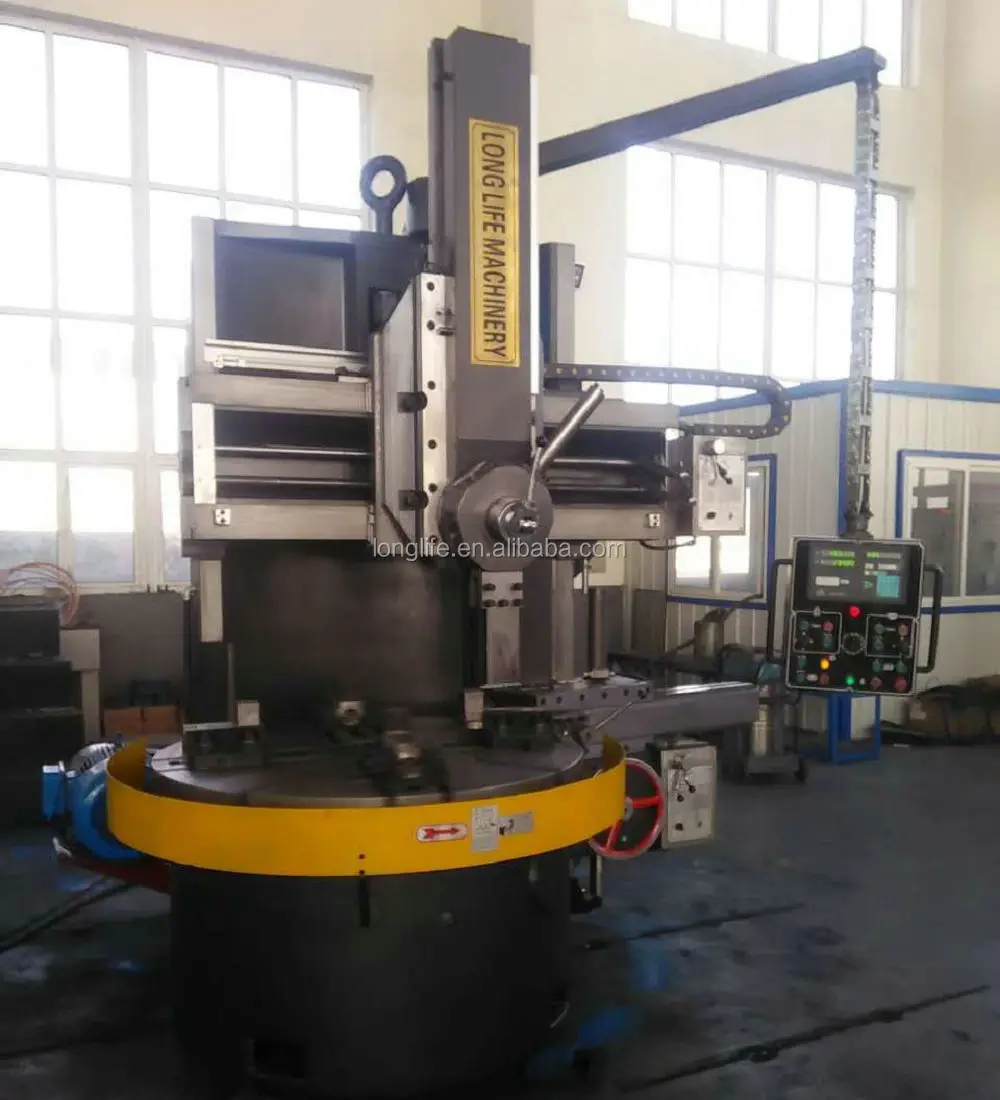

CK5116(Ø1600mm) Widely-used CNC Vertical Lathe Machine
Main Features
Such vertical lathe has following features:
suitable of the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools.
1. The single column vertical lathe is a super rigid lathe with big machining capacities, stable structure and high machining efficiency.
2.The lathe is equipped with one vertical tool head with one ram.
3. The lathe machines are designed and built to meet modern machining requirements of high speed steel cutters and carbide cutters on workpieces of ferrous, non-ferrous, composite and other materials.
4. The vertical lathe can finely and roughly for
- I.D. & O.D. cylindrical turning,
- end-facing,
- I.D. & O.D. cone turning,
- grooving,
- boring, drilling, reaming, etc.
5. Lathe Body
Main bodies of the lathes are made of high rigid resin castings with thermal stress relief aging treatment. Small cast iron bodies are hardened with high temperature. All the steel parts are thermal refined.
7. Hydrostatic Working Table of Vertical Lathe
Hydrostatic table is adopted with constant flow synchronous pumps. It features:
a). low friction for permanent life of table,
b). heavy load capacity on table,
c). oil film between machine base an d table absorbscutting vibration & loads,
d). a safety system controls the hydrostatic pressure for optimum safety.
8. with DRO and CE Certificate;
Main Usage
Suitable of the turning ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy etc.
It can make rough and accurate turning of external cylindrical surface, circular conical surface, head face, grooving, severance, and so on.
Main Technical Data
Model No. | C517A | C518A | C5110A | C5112A | C5116A | C5120D | C5123D | C5126D | C5132D |
Max. turning diameter of railhead (mm) | 700 | 800 | 1000 | 1250 | 1600 | 2000 | 2300 | 2600 | 3200 |
Max. turning diameter of sidehead (mm) | 700 | 800 | 1000 |
|
|
| 2000 | 2300 |
|
Table diameter (mm) |
|
|
|
|
| 1800 |
|
| 2830 |
Max. working height (Standard)mm ----------------------------------------------- Max. working height(Optional) mm |
700 standard |
800 standard |
800 standard | 1000 standard ----------- Optional 1200 | 1000 standard ----------- Optional 1200 1400 1600 | 1200 standard ----------- Optional 1400 | 1350 standard ----------- Optional 1600 | 1500 standard ----------- Optional 1800 | 1600 standard ----------- Optional 1800 |
Max. weight of workpiece (T) | 1.2 | 1.2 | 2 | 4 | 5 | 8 | 8 | 10 | 10/30 |
Table diameter (mm) | 600 | 720 | 900 | 1000 | 1400 | 1600 | 2000 | 2300 | 2400 |
Speed range of table (r/min) | 10~315 | 10~315 | 8~250 | 6.3~200 | 5~160 | 4~125 | 2.5~80 | 1.2~40 | 2~63 |
Speed-step of table | 16 steps | 16 steps | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Max torque of table (KN·m) | 9.8 | 9.8 | 12.25 | 17.5 | 25 | 25 | 32 | 32 | 32 |
Max cutting resistance of railhead (KN) | 19.6 | 19.6 | 19.6 | 20 | 25 | 25 | 25 | 25 | 25 |
Max cutting resistance of sidehead (KN) | 14.7 | 14.7 | 14.7 | 20 | 20 | 20 | 20 | 20 | 20 |
Travel of railhead ( Horizontal) (mm) | 420 | 570 | 670 | 700 | 915 | 1050 | 1150 | 1300 | 1800 |
