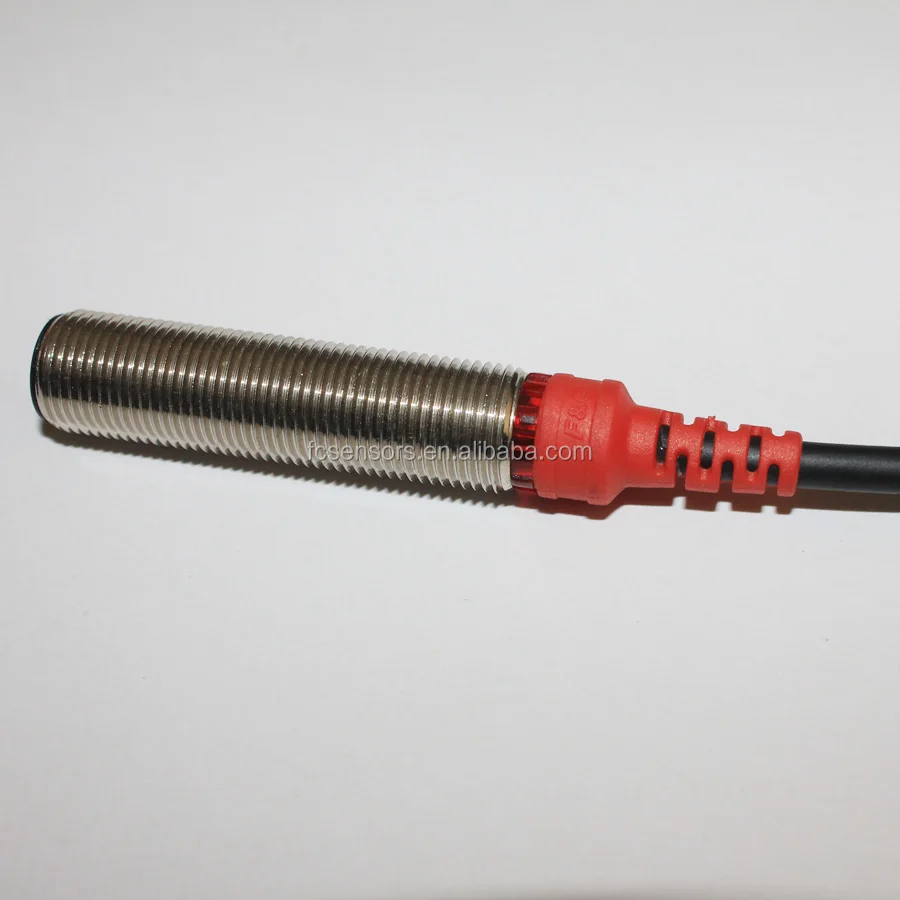

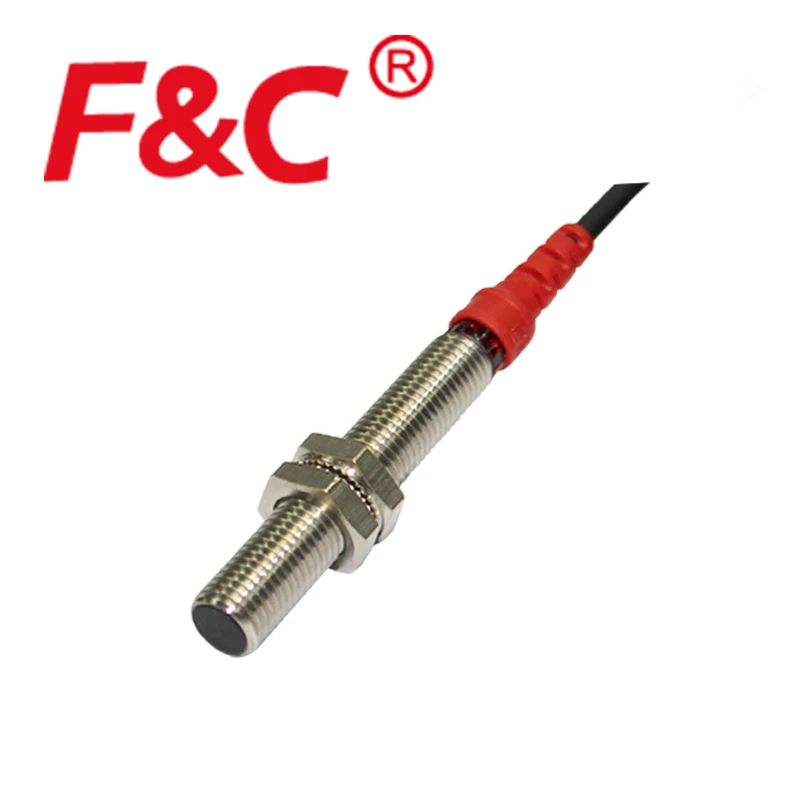

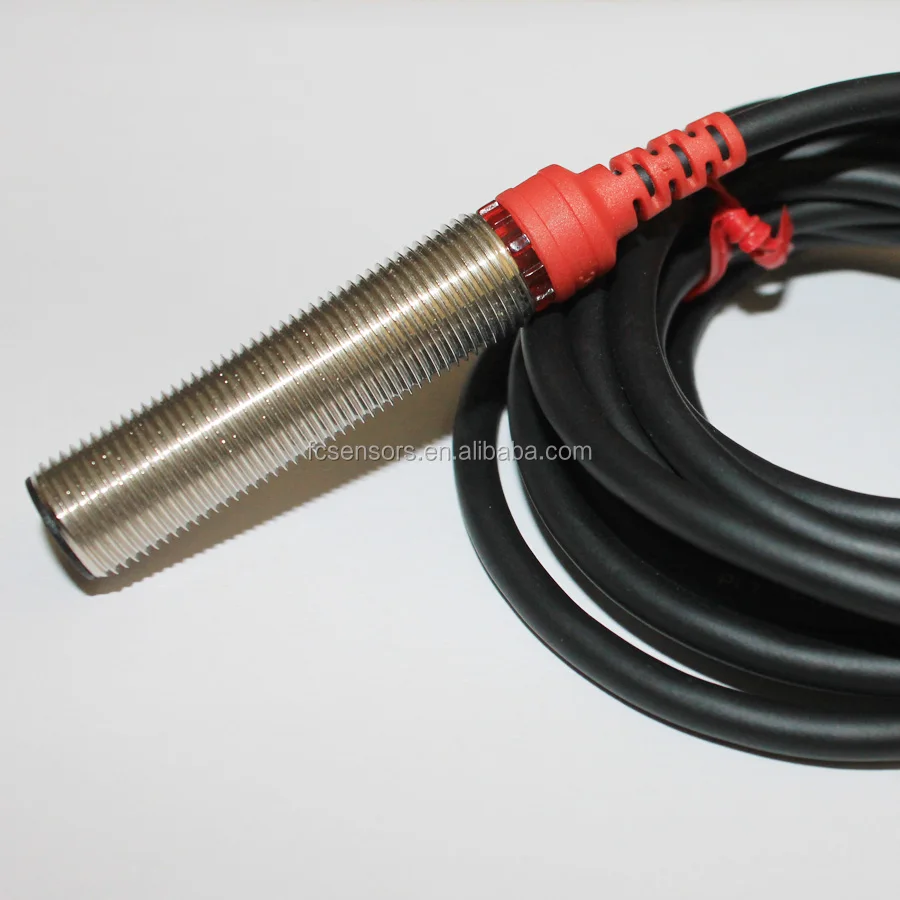

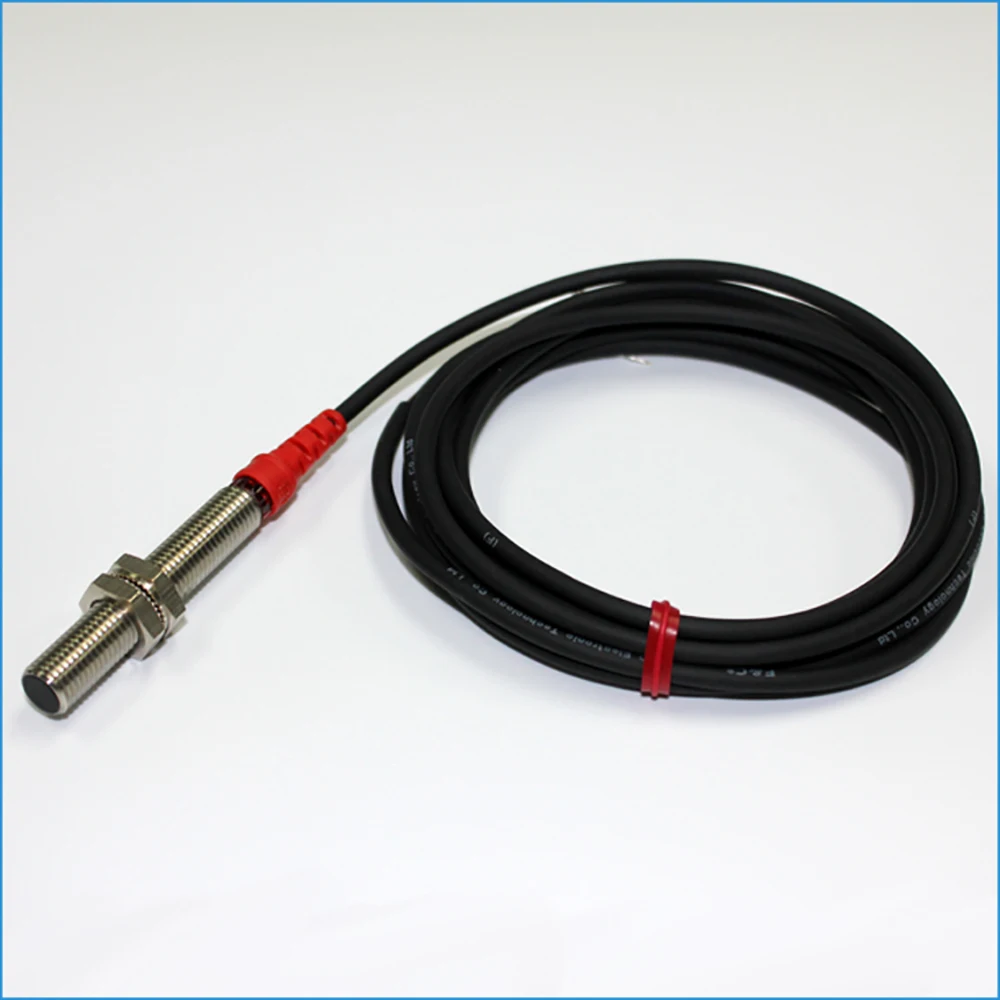

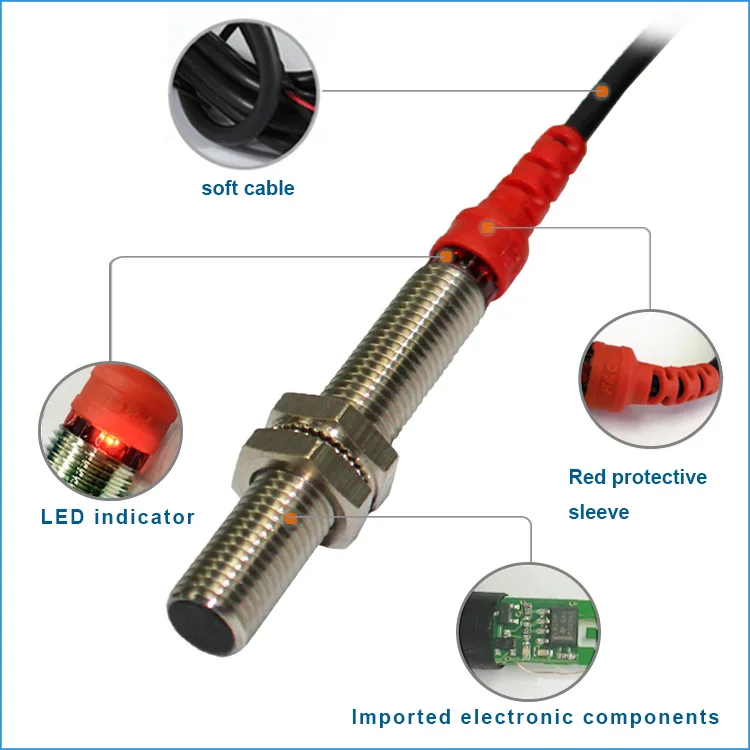

F3C 08KS01 Series M8 flush/shield 3 wires cylindrical NPN Inductance Sensors, 12~24VDC 1mm motion transducer
- Category: >>>
- Supplier: F&C Sensing Technology(Hunan) Co. Ltd.
Share on (60115557024):
Product Overview
Description
F3C-08KS01 Series M8 flush/shield 3-wires cylindrical NPN Inductance Sensors, 12~24VDC 1mm motion transducer
Product Description
| standard shell/shield | F3C-12KS02-N R2M | NPN.NO | 2mm | 12×12×1(iron) | φ4×2M/3-wires |
| F3C-12KS02-N2 R2M | NPN.NC | ||||
| F3C-12KS02-P R2M | PNP.NO | ||||
| F3C-12KS02-P2 R2M | PNP.NC | ||||
| standard shell/non-shield | F3C-12KN04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ4×2M/3-wires |
| F3C-12KN04-N2 R2M | NPN.NC | ||||
| F3C-12KN04-P R2M | PNP.NO | ||||
| F3C-12KN04-P2 R2M | PNP.NC | ||||

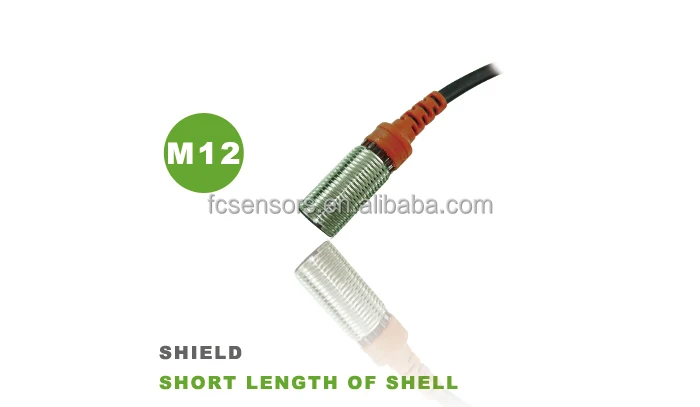

| short shell/shield | F3C-12ES02-N R2M | NPN.NO | 2mm | 12×12×1(iron) | φ4×2M/3-wires |
| F3C-12ES02-N2 R2M | NPN.NC | ||||
| F3C-12ES02-P R2M | PNP.NO | ||||
| F3C-12ES02-P2 R2M | PNP.NC | ||||

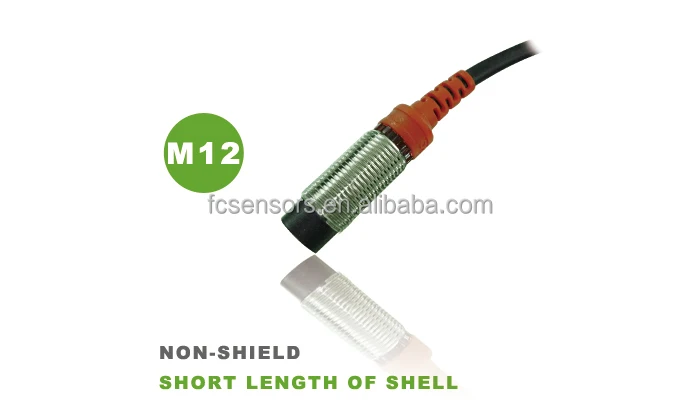

| short shell/non-shield | F3C-12EN04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ4×2M/3-wires |
| F3C-12EN04-N2 R2M | NPN.NC | ||||
| F3C-12EN04-P R2M | PNP.NO | ||||
| F3C-12EN04-P2 R2M | PNP.NC | ||||
| standard shell/shield/double sensing range | F3L-12KS04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ4×2M/3-wires |
| F3L-12KS04-N2 R2M | NPN.NC | ||||
| F3L-12KS04-P R2M | PNP.NO | ||||
| F3L-12KS04-P2 R2M | PNP.NC | ||||
| standard shell/non-shield/double sensing range | F3L-12KN08-N R2M | NPN.NO | 8mm | 24×24×1(iron) | φ4×2M/3-wires |
| F3L-12KN08-N2 R2M | NPN.NC | ||||
| F3L-12KN08-P R2M | PNP.NO | ||||
| F3L-12KN08-P2 R2M | PNP.NC | ||||
| short shell/shield/double sensing range | F3L-12ES04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ4×2M/3-wires |
| F3L-12ES04-N2 R2M | NPN.NC | ||||
| F3L-12ES04-P R2M | PNP.NO | ||||
| F3L-12ES04-P2 R2M | PNP.NC | ||||
| short shell/non-shield/double sensing range | F3L-12EN08-N R2M | NPN.NO | 8mm | 24×24×1(iron) | φ4×2M/3-wires |
| F3L-12EN08-N2 R2M | NPN.NC | ||||
| F3L-12EN08-P R2M | PNP.NO | ||||
| F3L-12EN08-P2 R2M | PNP.NC |
| Response frequency | 1000Hz/800Hz |
| Hysteresis | 10%≤sensing distance |
| Operating voltage | DC:12~24VDC±10%/ can customize 5V |
| Current consumption | DC:≤8mA No—Load |
| Load current | DC:24V 150mA Max |
| Leakage current | DC:≤0.01mA no-Load |
| Residual votage | DC:≤1.5VDC No-load |
| Operating temperature | -20°C~+70°C |
| Material | PBTand SUS304 |
| Wiring method | 2M/3-wires |
| Protection degree | IP67 |

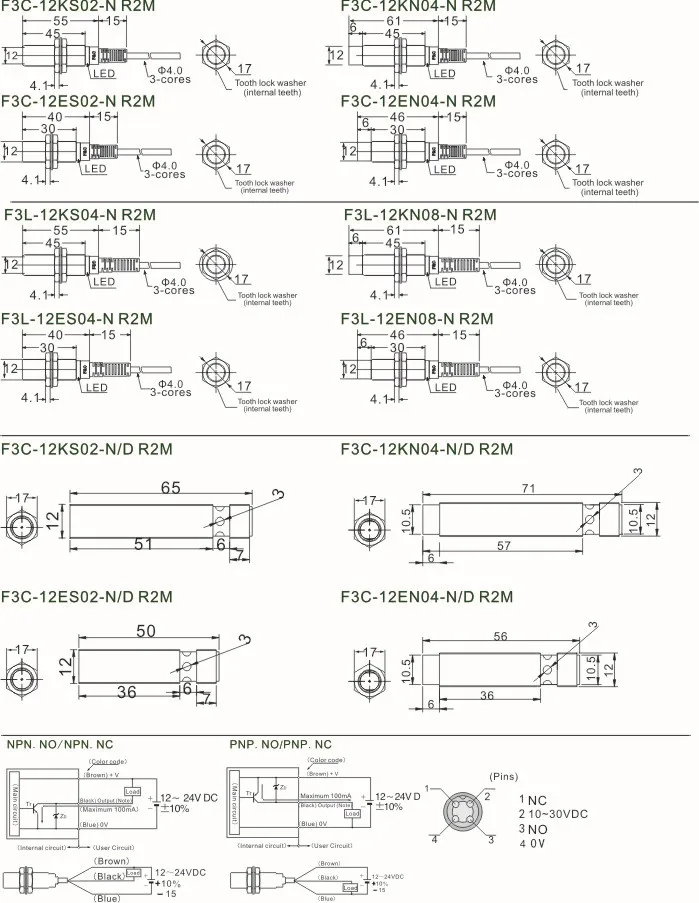

Diagram
