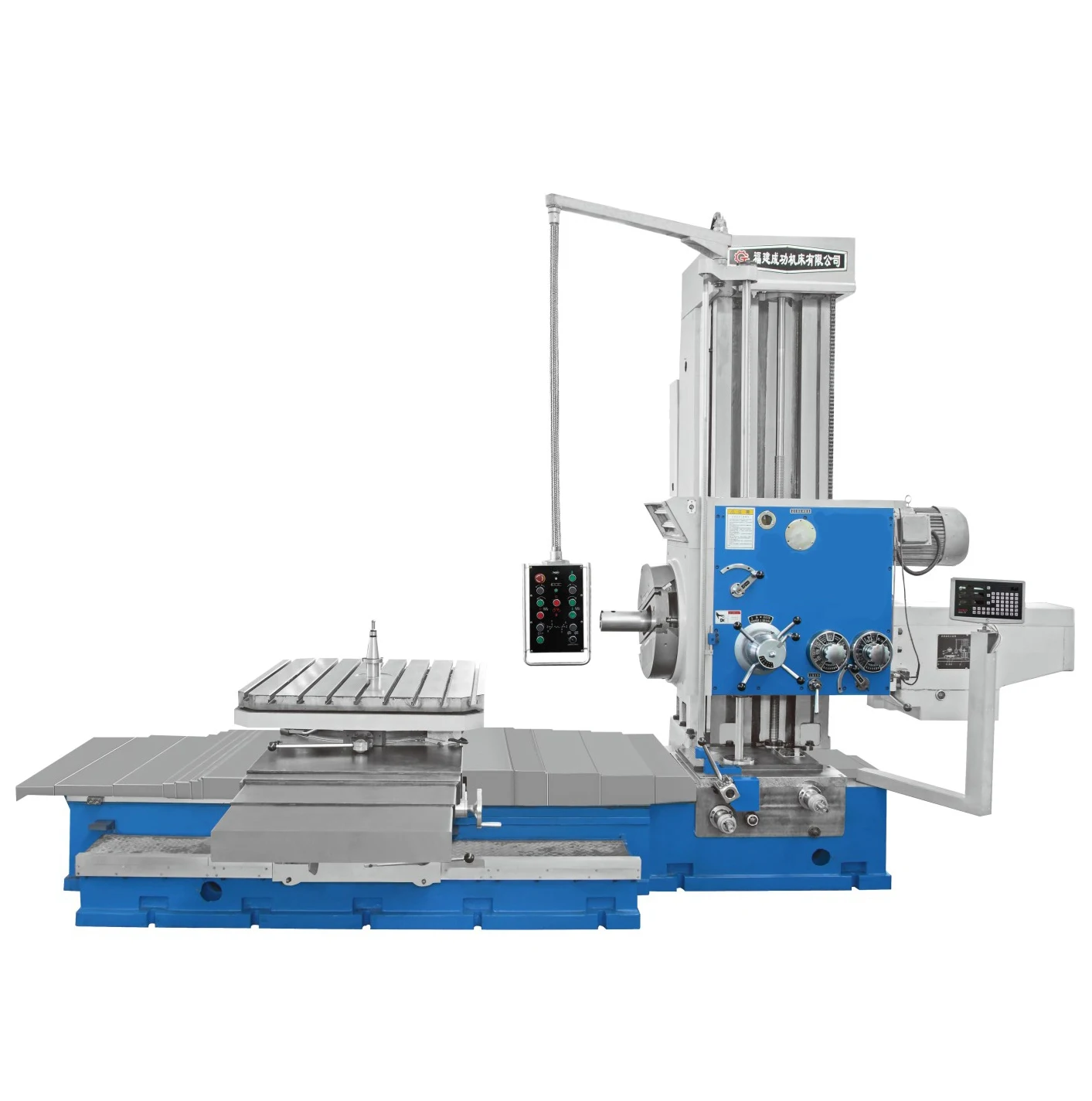

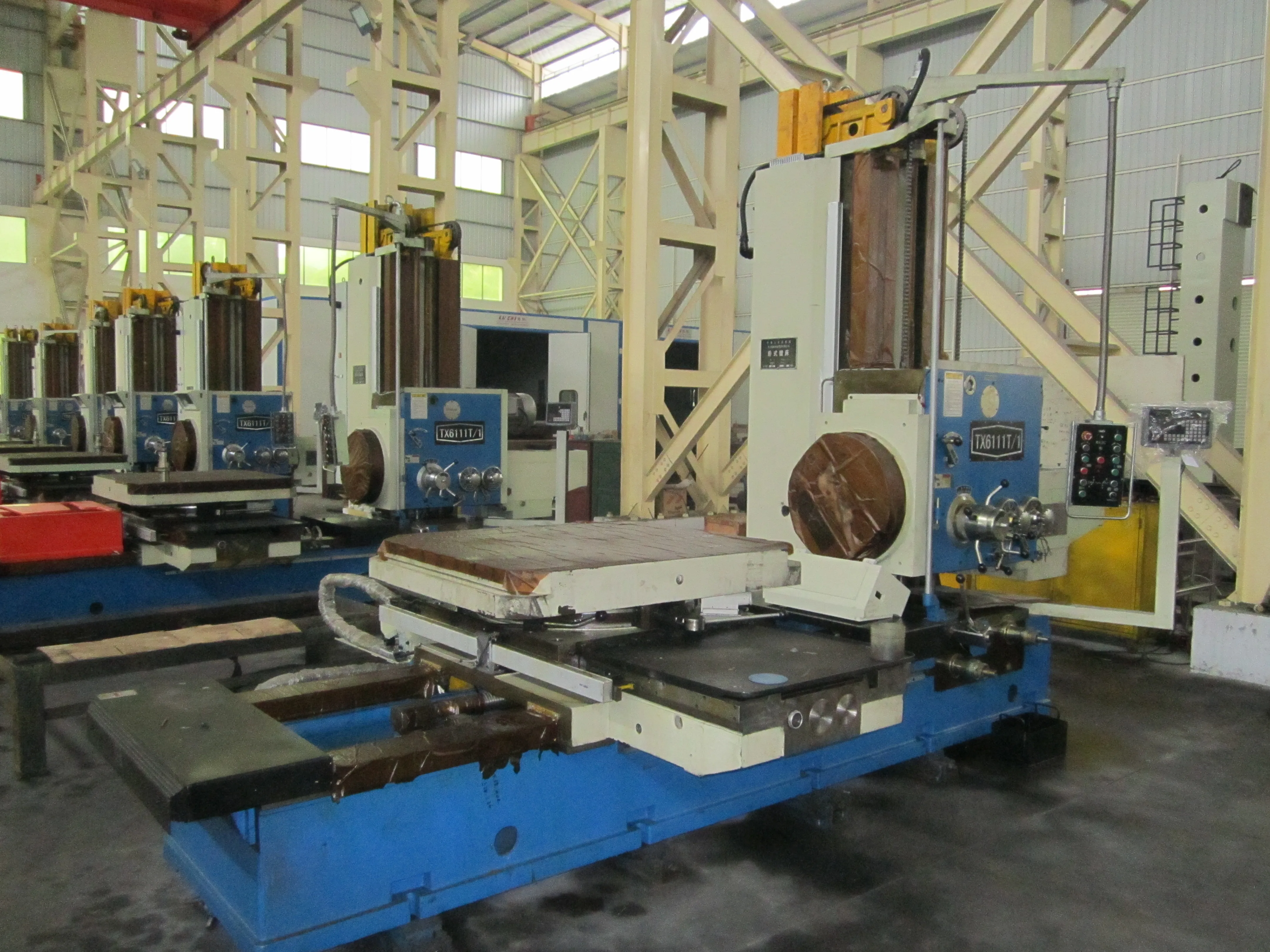

Horizontal Boring and Milling Machine

Diameter of spindle  mm

φ110

Max.torque of spindle  N.m

1225

Max.torque of facing slide  N.m

1960

Max.axial thrust of spindle  N

12250

Spindle taper

morse 6(7:24)

Worktable travel  mm

Longitudinal (z)

1400

Cross (x)

1600

Distance from spindle center line to worktable surface  mm

Max. (y)

1200

Min.

0

Max. travel of spindle  mm

600

Max. travel of radial facing slide  mm

180

Max. allowable load of table  Kg

3000

Speed number of spindle

22 steps

Speed range of spindle

8-1000 r/min

Speed number of radial facing slide

18 steps

Speed range of radial facing slide

4-200 r/min

Rapid speed (x,y,z,w)

2500 mm/min

Worktable working surface  mm

1600X1300

Rapid speed of rotary table

1 r/min

Feed number of spindle, headstock and table per spindle revolution

18 steps both in the low and high spindle speed

Feeding step of slide on facing head, headstock, cross & longitudinal travel per facing head rotation

18 steps

Feeding range of slide on facing head, headstock, cross & longitudinal travel per facing head revolution

0.08-12mm

Feed range of spindle, headstock, cross & longitudinal travel per spindle revolution

Spindle speed within 8-400rpm

0.04-6mm

Spindle speed within 500-1000rpm

0.01-1.88mm

Reading accuracy of measuring system

Metric

0.005mm

Boring accuracy

IT7

Roughness of boring hole

Ra 1.6-3.2 um

Standard

Boring diameter: ∅50-∅240 Distance between original position of spindle and tool tip ≤450mm

Overall dimension (L×W×H)

5117×3359×3079

Machine weight Kg

17000
