CE approved egg incubator controller XM 28 temperature & humiditiy controller for chicken egg incubator

Product Overview

Description



 CE approved egg incubator controller XM-28 temperature & humiditiy controller for chicken egg incubator



The XM-28 automatic multifunctional hatch controller developed and produced by our

Company,

with the world popular microcomputer control system (the latest micro-electronic technology and newly advanced parts and units) and imported digital

temperature sensor as well as French humicap humidity sensor, is miniaturized,

intelligent and in high measurement precision.



The controller works stably and reliably, being effort saving, labor saving and

easy to operate, and is an ideal hatching equipment for hatch of domestic and rare birds.



XM-28 can be used for incubator with 5280-33792 chicken eggs.



XM-28 egg incubator controller



1.XM-28 egg incubator controller usd for the 5280 pcs chickien egg incubtor to 33792 pcs chicken egg incubator



2. XM-28 egg incubator controller  working conditions 220V  200W-600W



3.XM-28 egg incubator controller specification :  23*3.5*34 mm  4 kg









Model	XM-28
Voltage	AC 1 6 0v-240v
Screen	Four screen, four display
Application	poultry eggs incubator
Certification	CE, ISO9001, SGS
Working life	More than  5 years
Temperature display range	0~99.9°C
Temperature measurement precision	Around  0.1  centigrade degree
Humidity control precision	Around  3 %RH
humidity display range	0—99%RH
Output channels	7channel (over temperature, temperature control,  low temperature, turn eggs left, turn eggs right,  humidity control and alarm).
Output current	10A for temperature control and low temperature  and 1A for others
egg turning time	180 seconds each time
Egg turning cycle	0 ~999 minutes
MOQ	1





Working conditions:



1. Working voltage: AC 160V~380V,50HZ
2. Relative humidity: below 85%
3. Ambient temperature: -10 centigrade degree~60 centigrade degree



Main Technical Index:



1.Temperature Measuring Range: 0-99°C



2.Temperature Measurement Accuracy: ±0.1°C



3.Humidity Measurement Range: 0—99%RH



4.Humidity Accuracy: ±3%RH



5.Number of signal output: 7, (overtemperature, temperature control, insufficient temperature, egg left-turning, egg right-turning, humidity control, alarm)



6.The maximum output load current: temperature control, insufficient temperature ≤ 8A/AC220V, over-temperature, egg left-turning, egg right-turning, humidity control, alarm ≤ 1A / AC22



7.Number of egg-turning: the maximum record is 999 times.



8.cycle of egg-turning: adjustment of 0 – 999 minutes (the factory default is 90 minutes)



9.eggturning time: adjustment from 0 to 999 seconds (the factory default is 180 seconds)



10.ventilation cycle: from 0 to 999 minutes (the factory default is 120 minutes)



11.ventilation time: from 0 to 999 seconds (the factory default is 30 seconds)



12.Temperature measurement length: About 2 meters

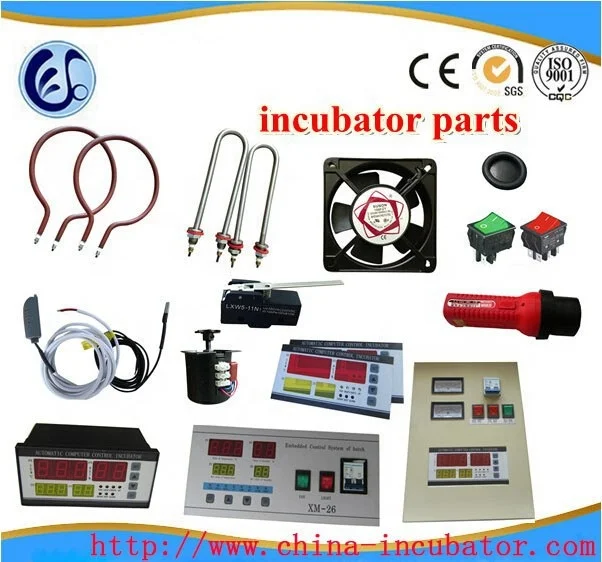

egg incubator controller pics



XM-18D egg incubator controller





XM-18D egg incubator controller









XM-26 egg incubator controller

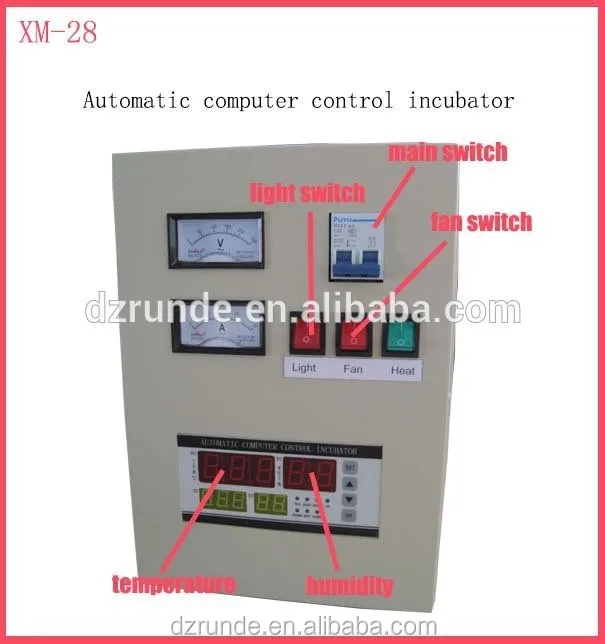

XM-28 egg incubator controller
