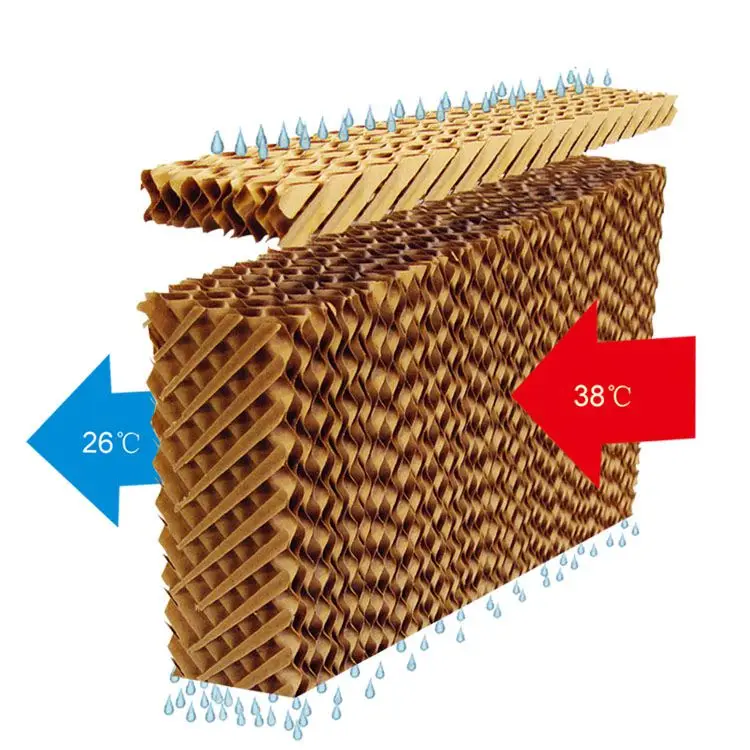

1. high quality evaporative cooling pad wall Use the new material and the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life.
2.Large evaporative area, cooling efficiency as high as 80%.

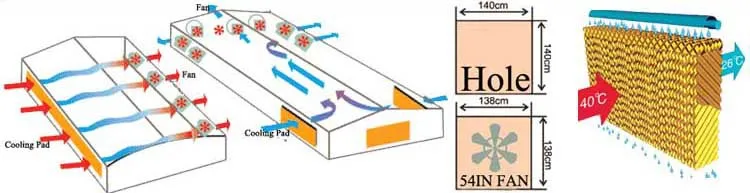

3.The greenhouse pad and fan evaporative cooling system include surface active agents, absorb water naturally, fast speed of pervasion, lasting effectiveness. A drop of water can diffuse in 4-5 seconds. Height of absorb water; 60-70mm/5seconds,200mm/1.5hours, can meet international standard.
4.Products do not include chemicals which are allergic to the skin .It is nontoxic, harmless, safe, energy saving, environment-friendly ,practical and economic.
5.When moisture evaporates, it will not only lower temperature naturally, but also produce many negative oxygen ions, which will effectively increase the amount of oxygen in the air.
6. Even color, good absorption and stiffness, quick diffusion, and long service life.
7.Low consumption of energy, the consumption of electricity is only one tenth of traditional air-conditioning.

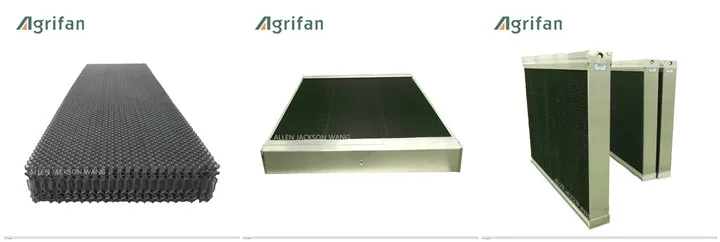

8.You may choose galvanized sheet, aluminum alloy or fiberglass for outline frame.

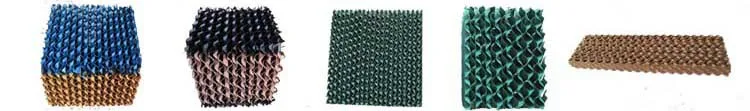

Wet pad
7060
7090
5090
Height(mm)
1000/1200/1500/1800/2000……
Width(mm)
300/600
Depth(mm)
100/150/200/300……
Flute height(mm)
7
5
Wave angle α
45°
15°
45°
Wave angle β
45°
45°
45°
Paper thickness

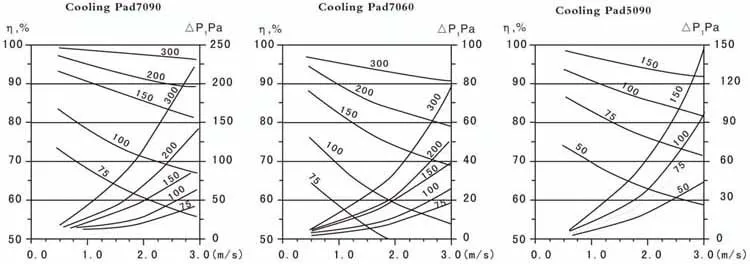

Air speed
0.6
0.8
1
1.2
1.4
1.6
1.8
2
100mm
pressure decrease
7
8
11
16
20
24
28
35
efficiency
82
80
78.3
76.5
74.9
73.3
72
70.8
150mm
pressure decrease
10
13
18
23
30
38
45
54.4
efficiency
92.5
91.3
90
88.7
87.5
86.5
85.4
84.5
ZRmachinery Packaging
Evaporative Wet Cooling Pad Air Cooler Packaging Detail: Inner package:Plastic flimOuter package: Standard Export Carton.Carton has two types:1.Greenhouse fan two with packaging-carton.2.Overall packagingDelivery Detail: General within 7 days on receipt of deposit,of course as soon as possible we can.

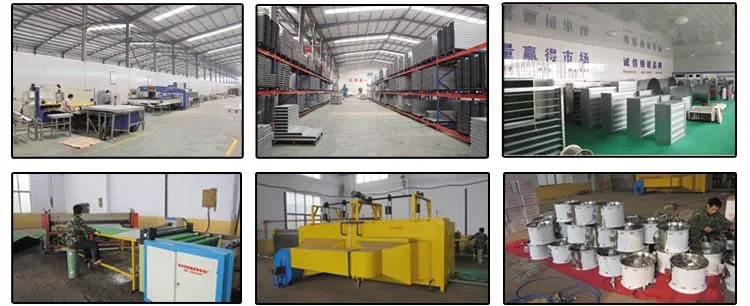

ZRmachinery Factory

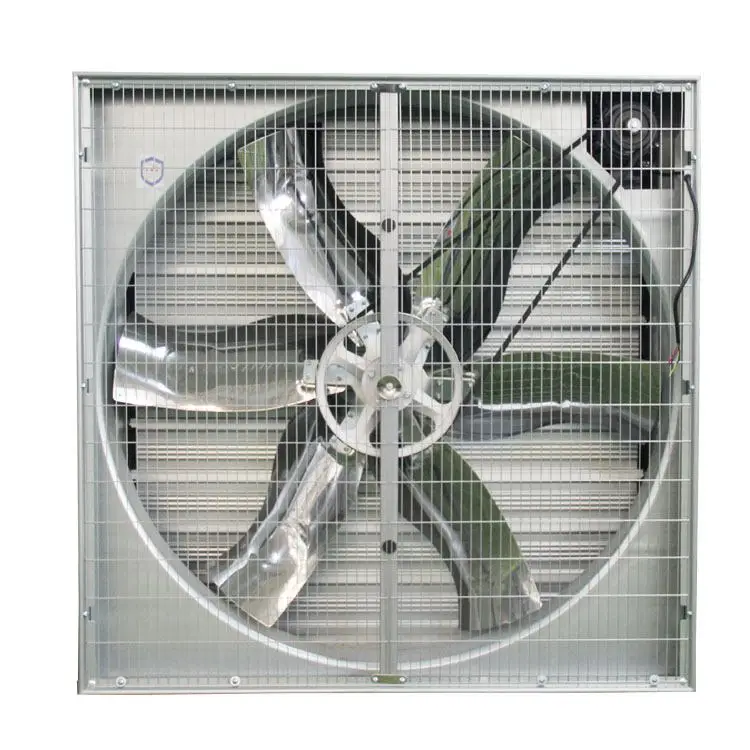

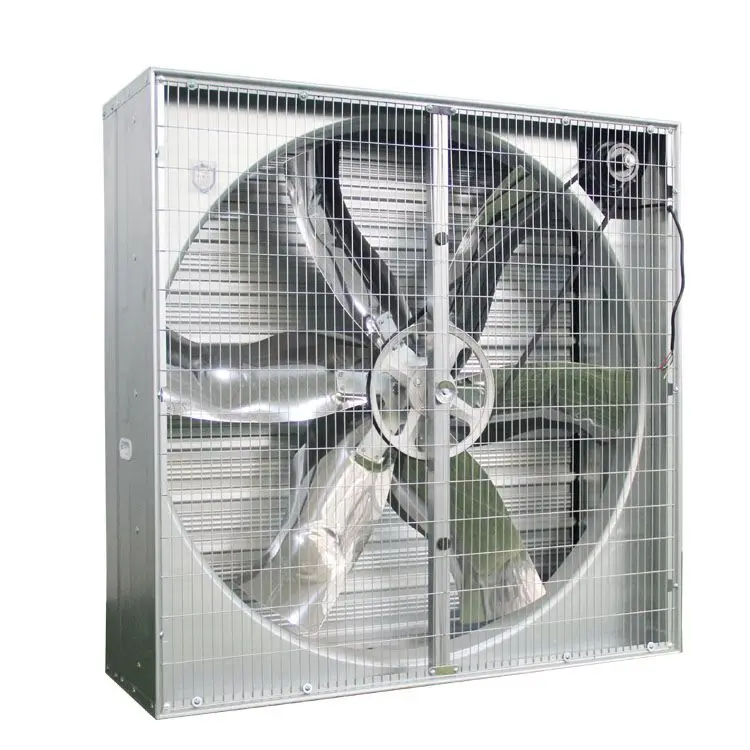

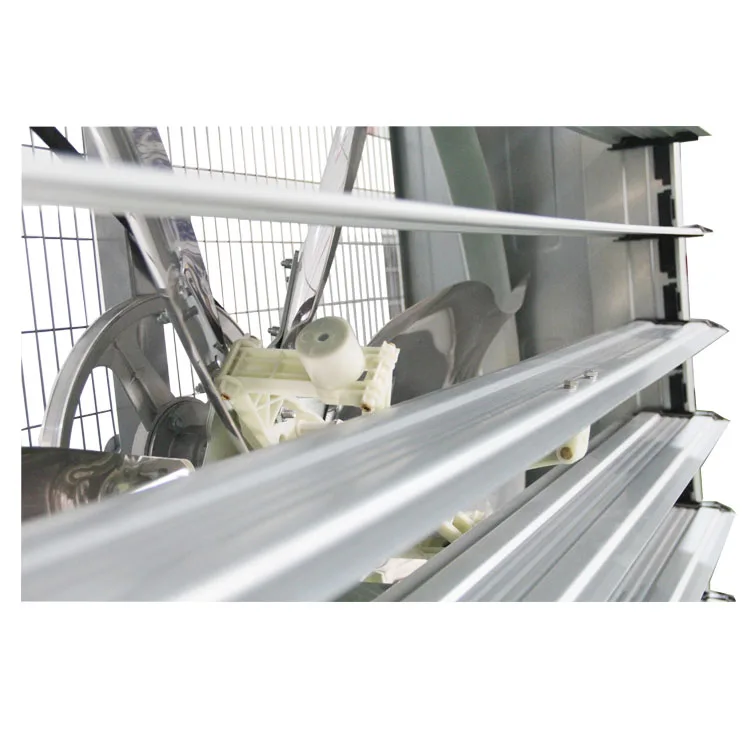

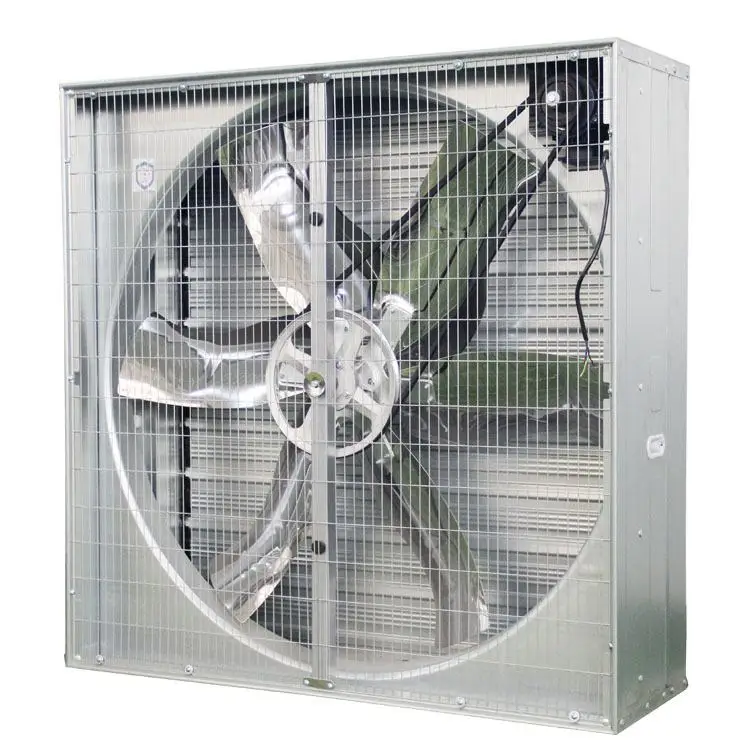

Our company has established an production system including the product exploitation, development, project design, type chosen, installation and service. All the new products are stringently tested and repeatedly experimented with to guarantee product quality. It is produces a wide range of the external axial flow fan,centrifugal fan, heavy hammer fan, roof fan, high quality evaporative cooling pad wall and heat boiler etc. The products are extensively applied to industrial and cow chicken greenhouse,ventilation, exhaust, air conditioner.
Our factory has got ISO9001:2008 quality certificate system,the Europe CE certificate and China CCC certificate.we guarantees to its customers products and services compatible with the international quality norms, in every equipment produced by it.
Our products have been sold well in more than 20 provinces in China, exported to more than 50 countries covering Southeast Asia, South America, Middle East ,Africa and European Union. Our company is always in pursuit of optimum product performance, top product quality, first class after-sale service.
