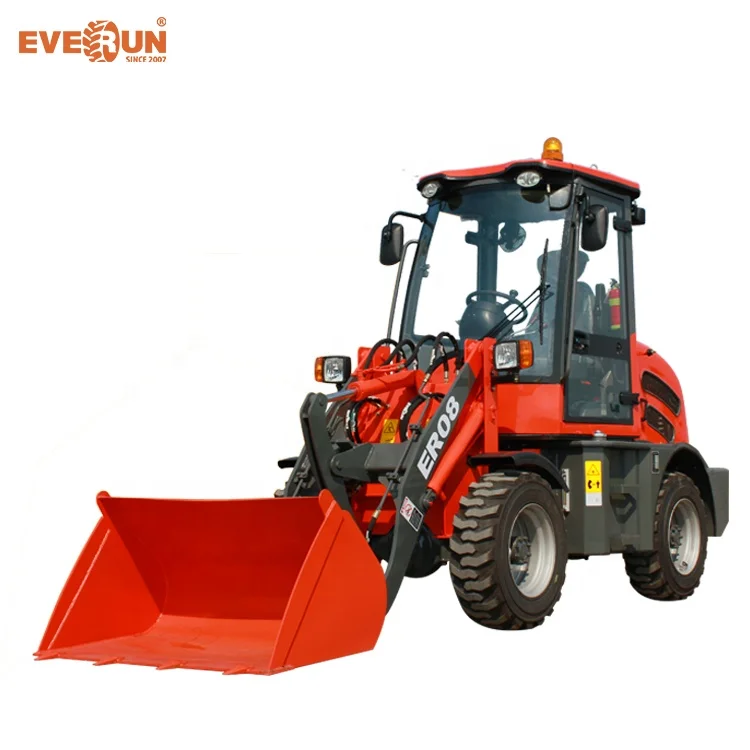

EVERUN CE Approved Articulated 0.8 Ton Multifunction Front End Loader with standard bucket
- Category: >>>
- Supplier: Qingdao Everun Machinery Co. Ltd.
Share on (60116462525):
Product Overview
Description
EVERUN
EVERUN brand CE garden work mini wheel loader ER06 with quick hitch
Product Description

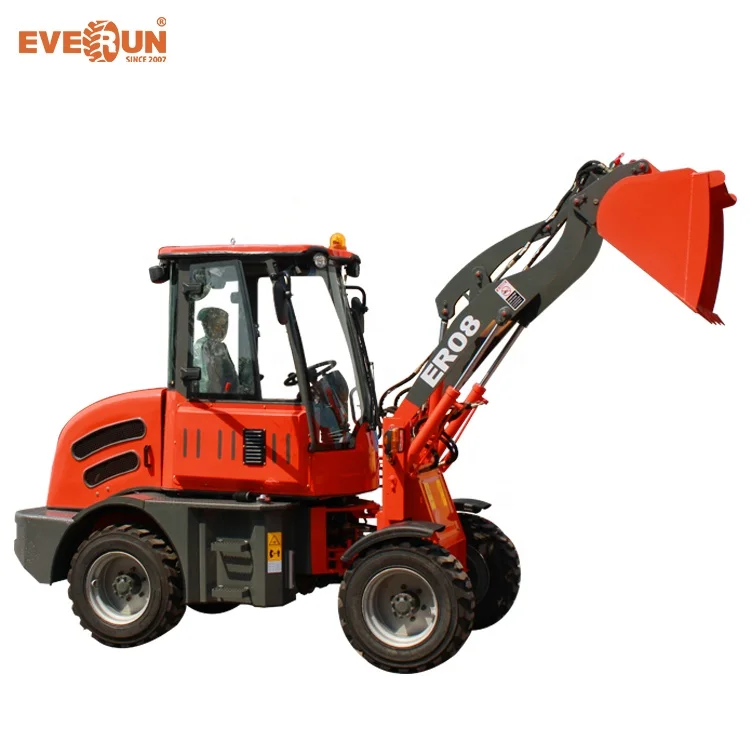

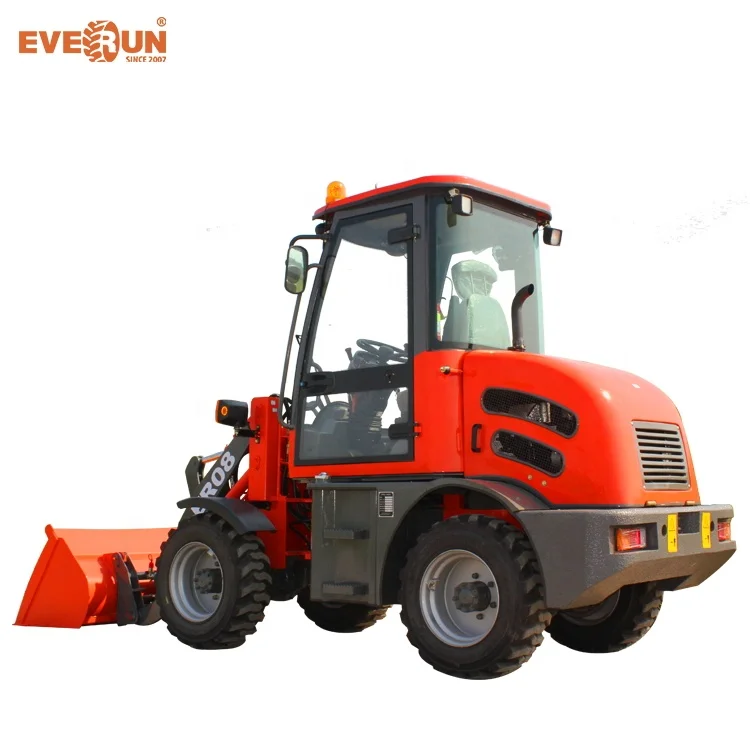

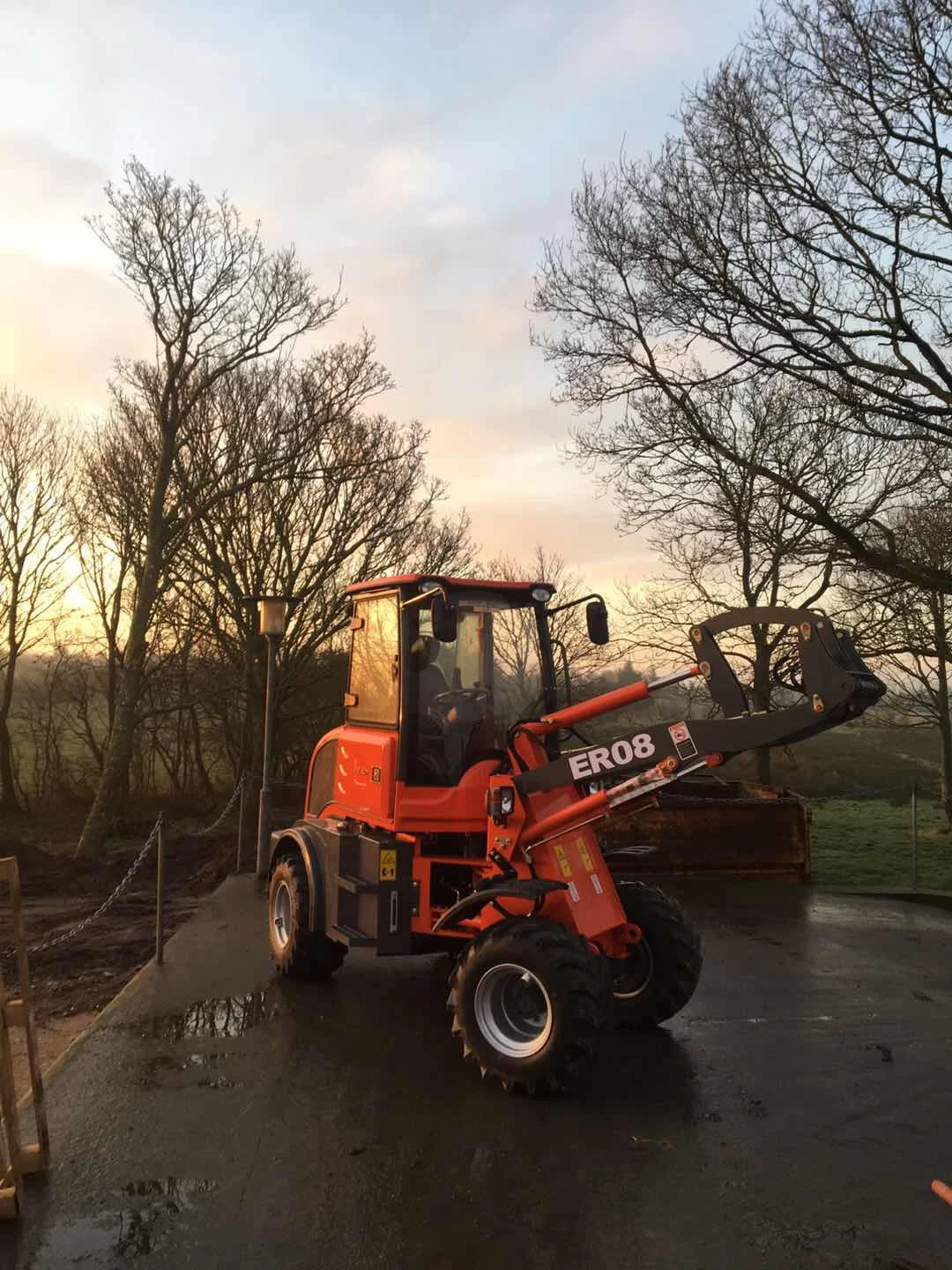

Everun ER08
- -Compacted Streamline Design
- -With Changchai engine
- -Standard configurated with mechanical
gearshift, engine heater, cabin heater
- -With ROPS & FOPS cabin
- -With wheel reducer alxe, hydraulic Spread-shoed brake, 31*15.5-15 tyre
- -With Changchai engine
- -Standard configurated with mechanical
gearshift, engine heater, cabin heater
- -With ROPS & FOPS cabin
- -With wheel reducer alxe, hydraulic Spread-shoed brake, 31*15.5-15 tyre
Performance | rated loading (kg) | 800 |
overall weight (kg) | 2850 | |
rated bucket capacity (CBM) | 0.38 | |
maximum tractive force (kN） | 20 | |
maximum breakout force (kN） | 22 | |
maximum grade ability（°） | 20 | |
maximum dump height（mm） | 2100 | |
maximum dump reach（mm） | 735 | |
overall dimension (L×W×H) （mm） | 4550*1570*2480 | |
minimum turning radius（outside of wheels）（mm） | 4406 | |
Oscillation angle | 8° | |
Engine | model | CHANGCHAI ZN390Q |
type | lnline water cooled, four stroke | |
No. of cylinder-bore/stroke （mm） | 4—90×95 | |
displacement （L） | 1.813 | |
rated power（kW） | 25 | |
idel speed (r/min) | 850-900 | |
rated speed (r/min) | 2400 | |
maximum torque N.m @speed r/min | 109@1680 | |
min fuel-consume ratio | ≤265g/kw.h | |
Transmission system | torque converter | 265 |
gearbox mode | Power shift normally engaged straight gear | |
gear shift | Mechanical, 2 forward shift 2 reverse shift | |
maximum speed | 23km/h | |
Drive axles | main reducing mode | Bevel gear grade l reduction |
wheel base (mm) | 2050 | |
wheel tread(mm) | 1200 | |
ground clearance(mm) | 380 | |
Hydraulic system | system working pressure (Mpa) | 18 |
boom lifting time (s) | 3.5 | |
total time (s) | 7.4 | |
fuel tank capacity (L) | 65 | |
function of leveling automatically | yes | |
Brake system | service brake | Mechanical, drum brake |
parking brake | Manual disc brake | |
Tyre | type specification | 31*15.5-15 |
front tyre pressure （kPa） | 310 | |
rear tyre pressure （kPa） | 310 |
Detailed Images

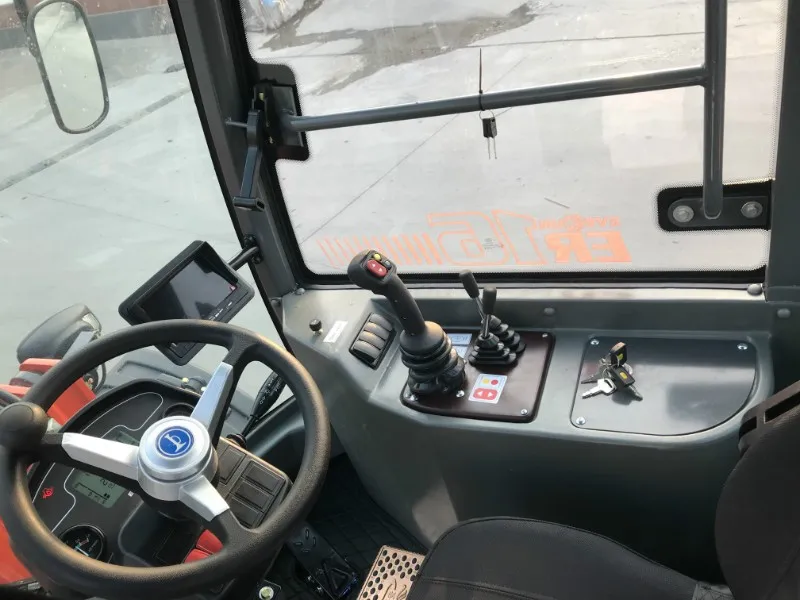

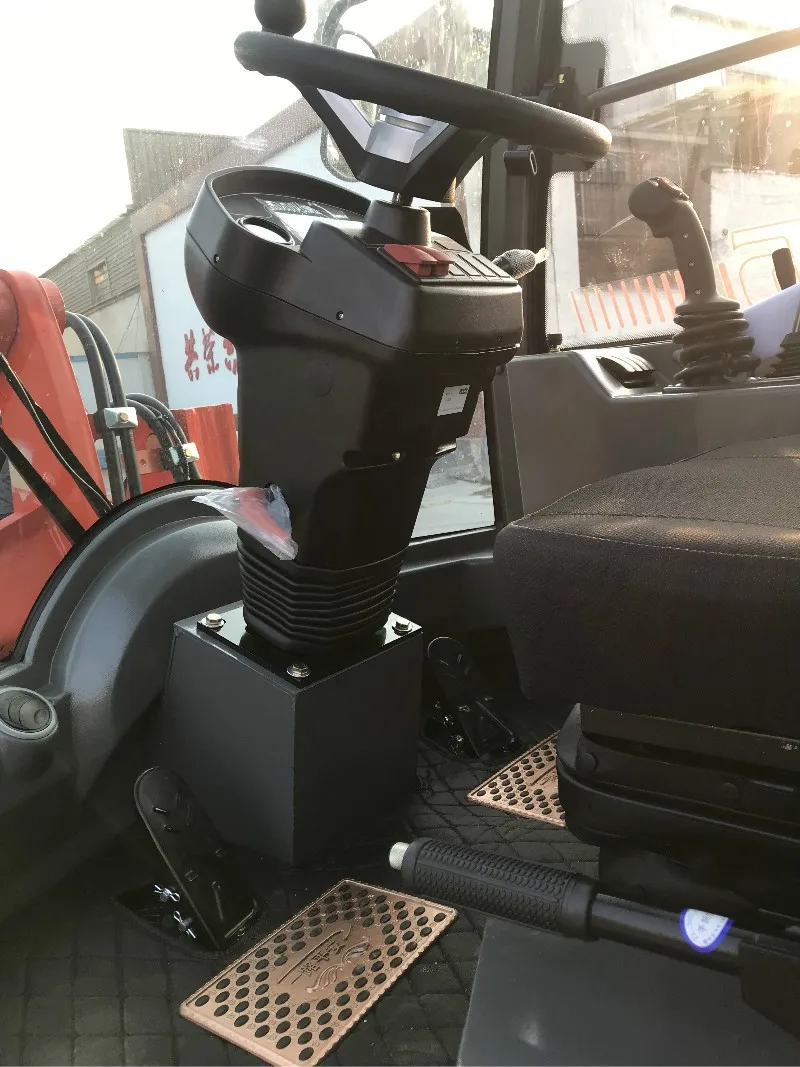

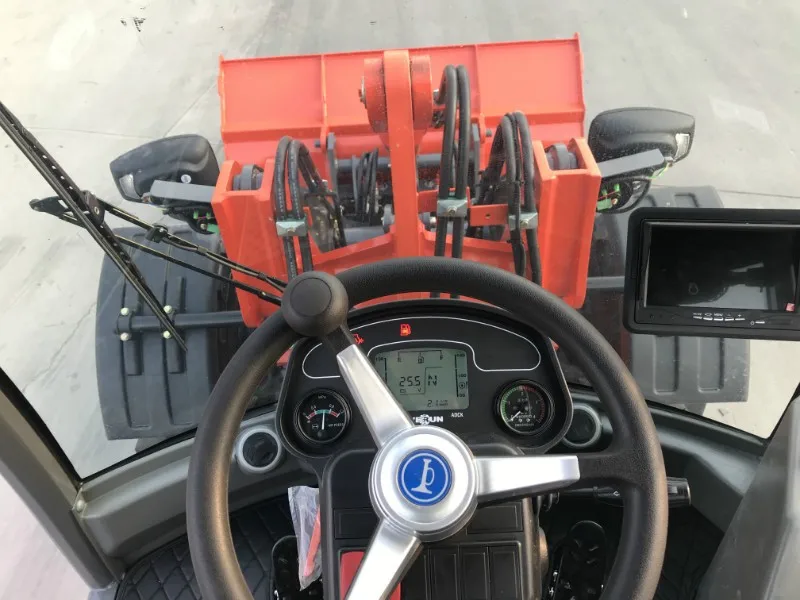

The user- friendly design of the dashboard makes the operation more efficient and convenient.
EVERUN unique dashboard design. Easy command of all working signal.
E-mark seat for operaor comfort and safety.

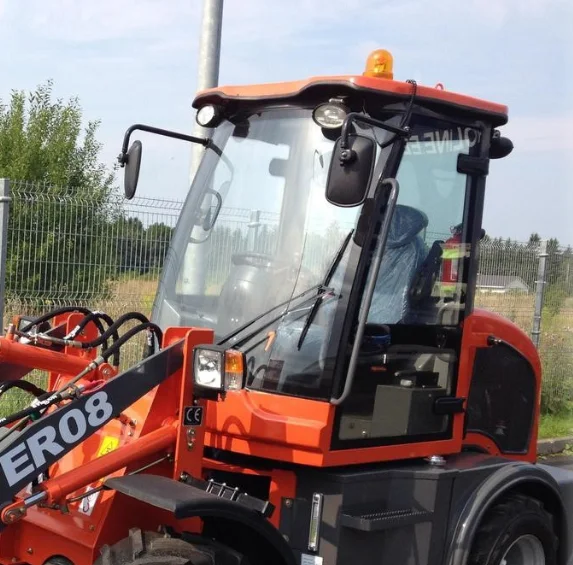

The patented EVERUN spacious cabin meets European standard for ROPS & FOPS protection.
Offer engine options to meet Euro and American emissions standards. Low fuel consumption, more powerful.
Easy-to-open engine hood

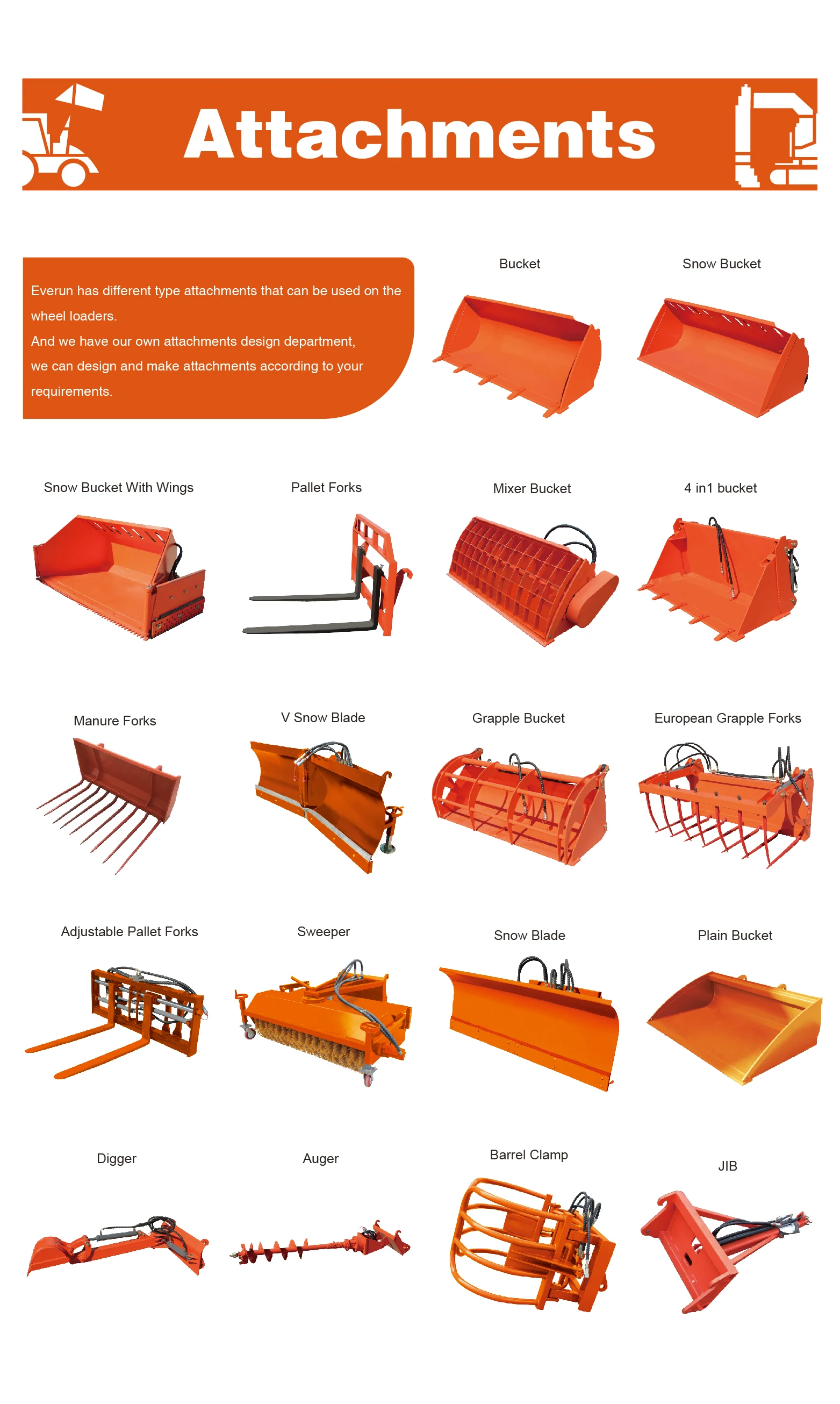

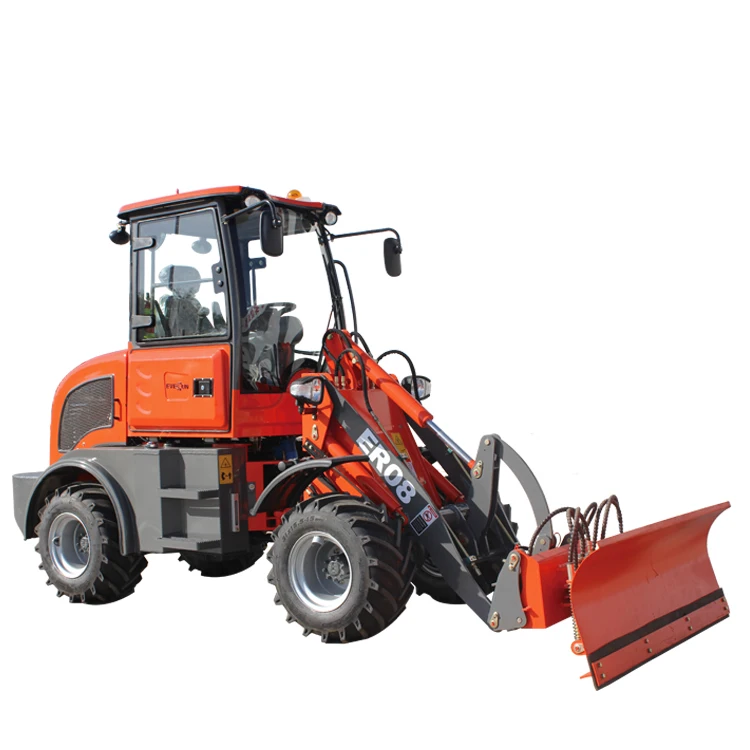

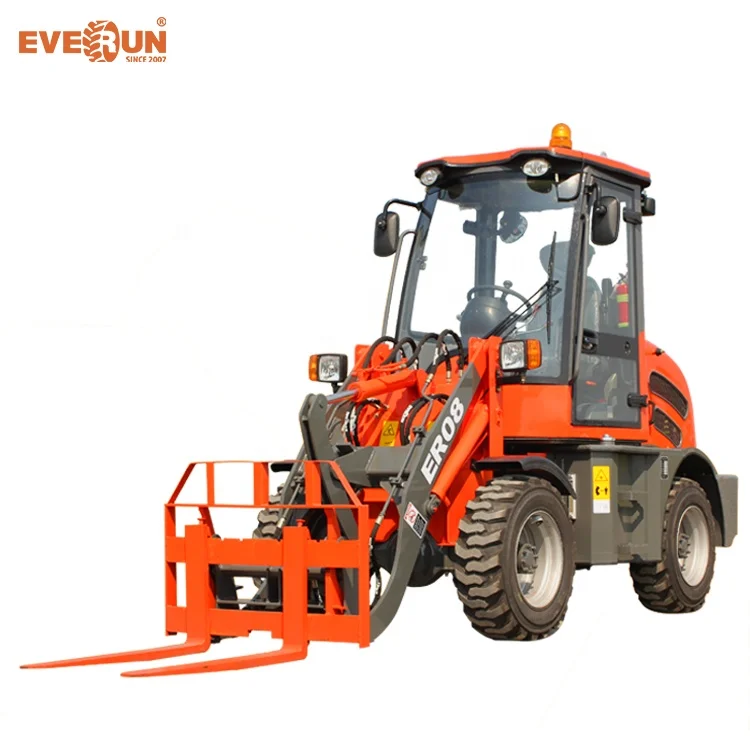

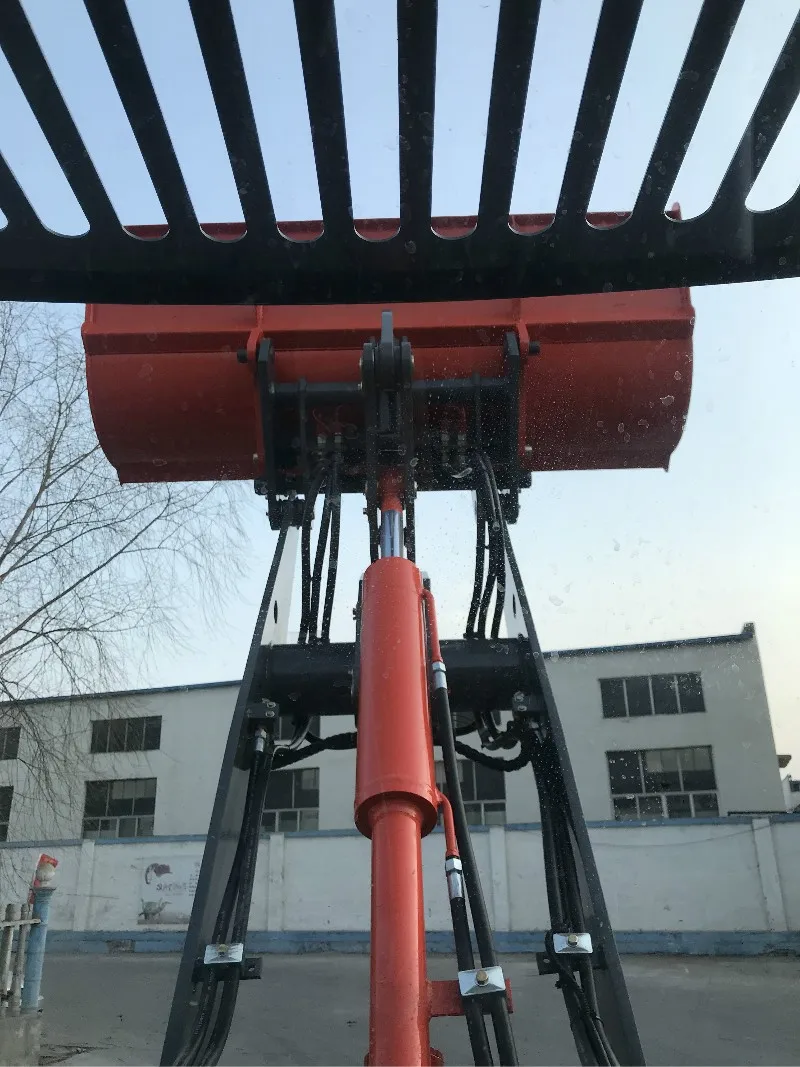

We have full range of quick hitch available with our machines, also accept customized quick hitch and attachments.
Everun unique hydraulic pressure checking valve to review pressure and trouble shoot hydraulic issues from it.
Standard configured with 31*15.5-15 tyres
More pictures
Our Company
What customer say
Packing & Delivery
FAQ
Q: What is your payment term?
A: L/C, or T/T 30% down payment, balance to be paid against BL copy and loading pictures.
Q: What is your delivery time?
A: Within 35-35days after receving the down payment (for standard configuration).
Q: What is your main market?
A: Europe, North America, South America, Oceania, Southeast Asia, Africa, Eastern Asia and so on, in more than 50 countries.
Q: If products have some quality problem, how would you deal with?
A: There is one year or 1200 working hour warranty, we will gurantee you can receive the light/ small spare parts within 5 working days. In order to make good service for our European and Oceanian customers, we have set up Europen company in Germany and Everun WA in Australia with our partner.
Any problem, please feel free to contact me.
