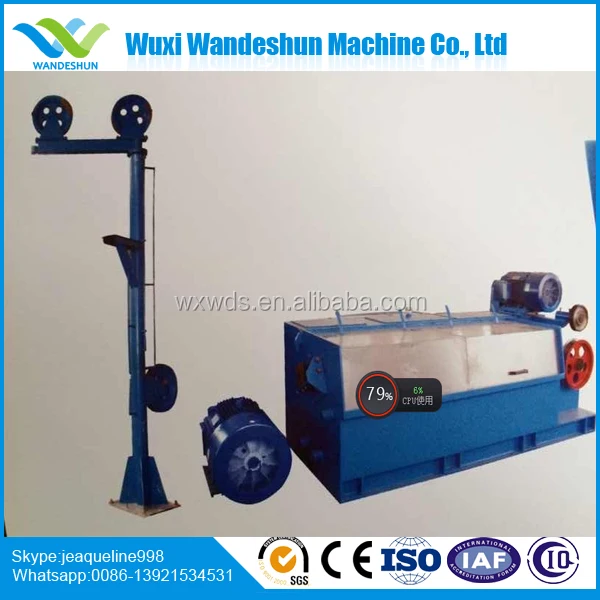

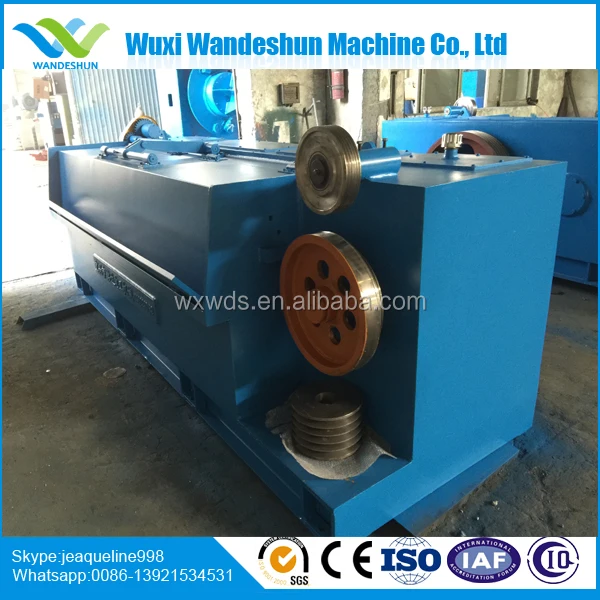

Big copper wire drawing machine

Product Overview

Description

Wuxi Wandeshun Machine Co., Ltd  (we are factory)

 our transaction level is big.





 1.    About us



Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.



Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey,Bolivia,Saudi Arabia and so on



Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.





My contact way

jeaqueline Zou

marketing manager

My mobile: 86-13921534531



Whatsapp: 86-13921534531

Skype: jeaqueline998

trademanager: wxwds

Email:sales(at)wxwds.com

QQ:349791577

Product  Details



Specifications

WDSLT-11-450 Big copper wire drawing machine
Inlet 8mm
Outlet 1.78mm-3.5mm
Speed 800m/min



 Big copper wire drawing machine









 Copper rod breakdown machine  is used to draw  single bare copper wire  from 8mm(Max.) to

1.78mm - 3.5mm.

I. Compositions of equipments:

Name	Quantity
1.Pay-off shelf	1 set
2 Copper rod breakdown machine	1 set
3Automatic dual take up machine	1 set
4.Electric cabinet	1 set
5.Operation panel	1 set
6.Wire pointer machine	1 set
7.User manual,including inverter instruction,Installation layout,etc
8.Accessories

II.Main technical parameters

1. Inlet size:8mm(Max.)

2. Outlet size:1.78mm - 3.5mm

3. Drawing speed:500m/min

4. Drum speed ratio:1.25

5. Capstan max size:450mm

6.Capstan:Iron cast

7.Pay off method:Portal type

8.Traversing unit:Free rod type

9.Lubrication type:Spray

10.Power source: Depend on customer need

11. Die No:13

12. Main motor:110KW, with AC 110KW inverter drive.

13. Spool motor:Torque motor 40N.M*2set

14. Sped adjustment:By frequency inverter

15. Spool size:500mm-630mm

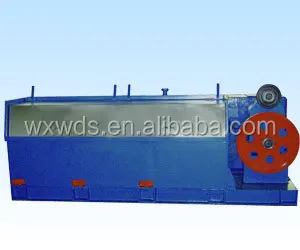

 Copper rod breakdown machine



1.Driving system for drawing part,containing main inverter(75kw),motor, take up motor with inverter.



2.Control system for intermediate m/c contains inverters,logical control,operation panel and so on.



Due to adopt dual inverters control, potentiometer presets signal of speed for inverter who controls the machine speed.

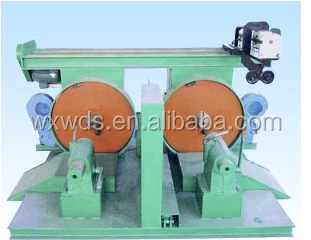

wuxi WANDESHUN -SX630 Automatic dual ake up machine

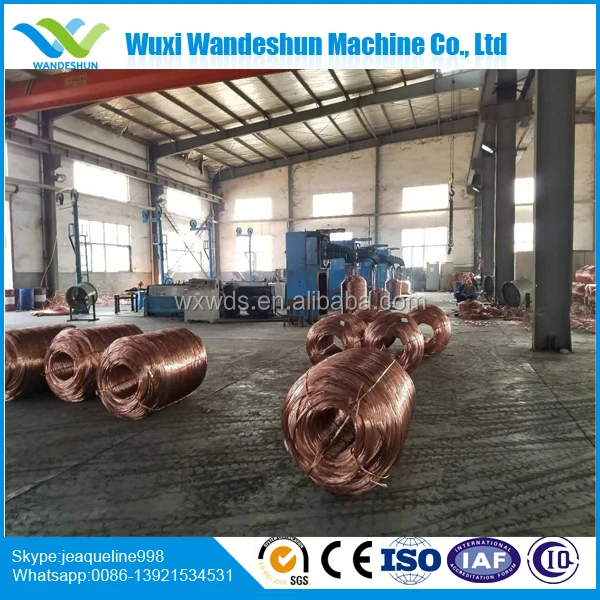

 our clients and our machine
