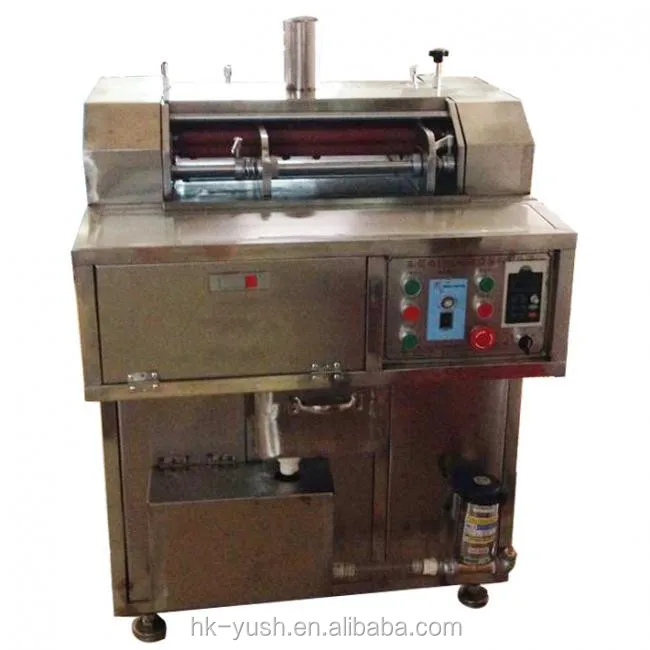

Automatic PCB V groove machine . V cut cutting machine

Product Overview

Description

Manual v-cut machine ,pcb v groove machine ,v cut scoring machine



1.    Cutting Width : 1) Longitudinal 70mm ; 2) Wide : 380mm;

2.    Thickness : 0.6~2.5 mm;

3.    Speed : 12mm / min ;

4.    Total Blades : Upper 10pcs ,Down 10pcs;



Operation Rules :



1.    V-CUT Aluminum base plate conveying shaft transmission speed adjustment is 20-30 , The thicker the slow speed transfer plate ,plate thinner speed can be adjustable speed ,Under normal circumstances , 1.6 of the plate thickness to about 25 speed ;

2.    V-CUT aluminum base plate conveying speed of cutter knife shaft speed . V-CUT ordinary plate can slow speed .

3.    V-CUT knife not ordinary plate for v-cut aluminum plate .aluminum plate with v-cut knife flash can also be used for ordinary v-cut plate .

4.    V-CUT aluminum plate must be used when cooling water ot orcohol cannot participate in cooling water.







YSV-4A 480 Alum v-cut machine



480 V-CUT aluminum plate cutting machine:







Model No.: YSV-4A 480



Cutting width: 75mm wide vertical 480MM



Thickness: 0.8-3.2 mm



Cardboard each time V≥10 pit (up and down the 10 knives)



Aluminum plate each time V≥ 5 pit (up and down the four knives)



Fiberboard each time V≥ 8 pit (up and down the eight knives)



Speed: 8 m / min.



Spindle Motor: 3KW inverter 3.7KW plastic shaft motor 120W crate motor 60W closed



Mechanical dimensions: 1200 mm x 980 mm x 1400 mm (W x D x H)



Weight: 185KG

Accessories: washer set, V-CUT knife 4. Shield bearing 10, each one the size of a wrench, a hex key set, Blades turret 1
