Sprue Removal Unit Picker Industrial Robotic Arm Manipulator For Mini Injection Molding Machine
- Category: >>>
- Supplier: Guangdong Switek Technology Co. Ltd.
Share on (60117076842):
Product Overview
Description
(1).Swing Industrial Robot Series is applicable to all types of horizontal injection machine ranges of 20-200T the removal of sprues and parts from the injection molding machine. |
(2).The Axis driven by pneumatic, fastest take-out time of 0.8 seconds, fastest dry cycle time of 3.8 seconds. |
(3).The solid construction allows fast movement with low vibration for precise removal, equipped pneumatic shock absorbers. |
(4).Handling weight max. 2 kg. |
(5).Locking cylinder to prevent the arm from drifting down into the mold in the event of air pressure loss. |
(6).The Y-axis is also equipped with a heavy-duty switch as an additional interlock before the mold can close. |
(7). Z-axis can be freely adjustable from 45°-90°,simple change over from rear side to operate side placement. |
(8). Rotation is made automatically when pivoting the Z-axis out of the press, mechanical sprue gripper with part monitoring. |
Denote-----SW255 | |
BR: Rotation function | C: Vacuum function |
Main Specification | ||
Model | SW255 | SW257 |
Type | Singe stage | |
Power Source (KVA) | 0.1 | 0.1 |
Recommended I.M.M (Tons) | 20-150 | 20-200 |
Crosswise Stroke(mm) | 100 | 100 |
Vertical Stroke(mm) | 550 | 700 |
Swing angle | 45-90° | 45-90° |
Gripper rotation angle | 90° | 90° |
Max. Loading (kg) | 2 | 2 |
Minimum Take Out Time(sec.) | 0.8 | 0.9 |
Dry Cycle Time(sec) | 3.8 | 4 |
Drive system | Pneumatic | Pneumatic |
Working air pressure | 4-6kgf/cm2 | 4-6kgf/cm2 |
Air Consumption(l/cycle) | 9 | 11 |
Power | AC220V±10% | AC220V±10% |
Net Weight(kg) | 40 | 4 |
Outer dimensions | |||||||||||
Moldel | X | X1 | X2 | Y | YM1 | YM2 | D | H1 | H2 | W1 | W2 |
SW255BR | 100 | 200 | 0 | 545 | 180 | 365 | 280 | 1320 | 460 | 570 | 550 |
SW257BR | 100 | 200 | 0 | 695 | 180 | 515 | 280 | 1470 | 510 | 570 | 550 |
SW255C | 100 | 200 | 0 | 545 | 165 | 380 | 280 | 1320 | 460 | 570 | 550 |
SW257C | 100 | 200 | 0 | 695 | 215 | 480 | 280 | 1520 | 510 | 570 | 550 |
High Quality End Of Arm Tooling Parts |
Robot Arm Application |
(1) 27 years experience in the industry of industrial Robot, products ranging from low load to high load various standards to meet the unique needs of our customers. |
(2).All components are new, main components are imported from German(Festo/Igus),Japan(NSK/THK/Omron/Panasonic),France(Schneider/Legris),Italy(Elatech) etc. |
(3).We do 100% testing before shipment. |
(4) Warranty are 12 months for all products. |
(5)Provide CE/SGS Certification. |
(6).Provide professional automation system by customize requirements, saveing time and cost for you, enjoy the one-stop shopping. |
(7). Stand by service, our engineer or technician is able to visit your esteemed company for installation and debugging of machine. |
Certifications |
Our Partners |

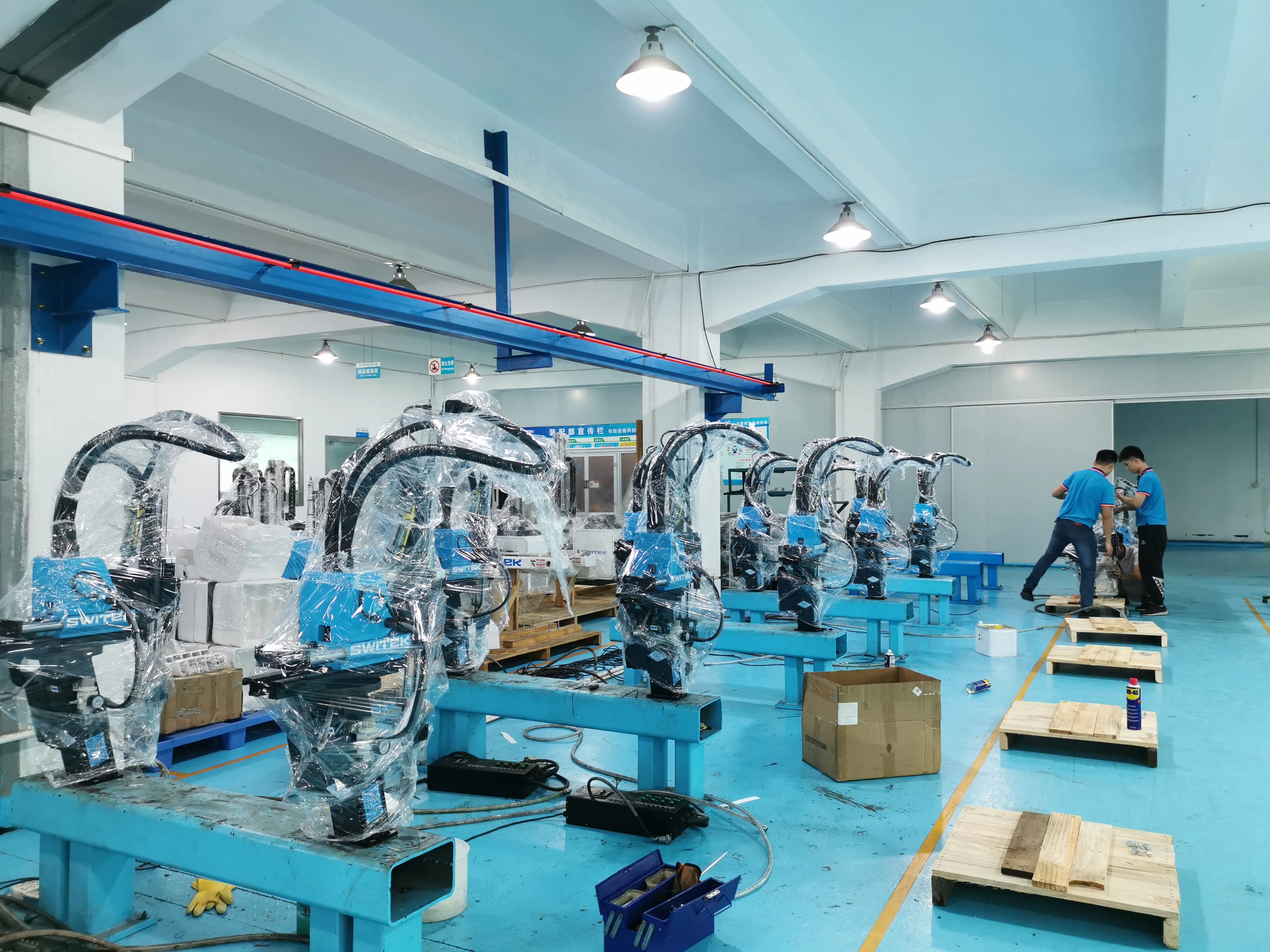

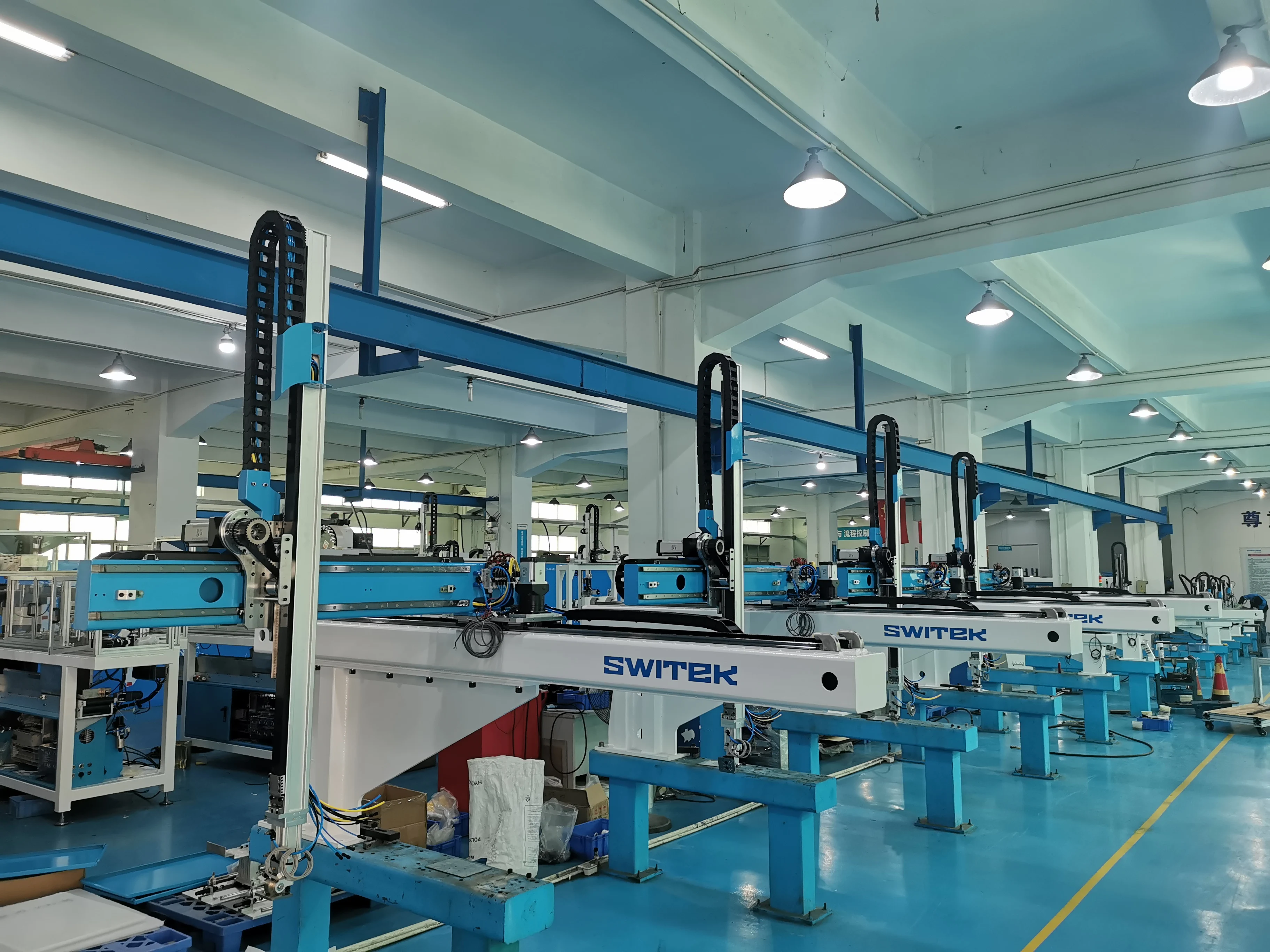

Dongguan Switek Technology Automation Co.,Ltd is specialize in manufacturing industrial robot with
27 years experiences in offering professional automation solutions, range from Automobile parts industry,
electronic industry,Household Appliance industry, Commodities & Package industry to Medical Industry.
We cooperate with companys of injection molding machine and mould companys, aiming to provide advanced
integrated automation system to meet requirement of customer from all over the world.
We have established our reputation in China, South-africa, Turkey, America, Canada, Central & South America.
Switek also owns a good after sales service team to meet our customers' requirement, We insist customers are
the first and offer total consultant, technical importing and service for our customers.

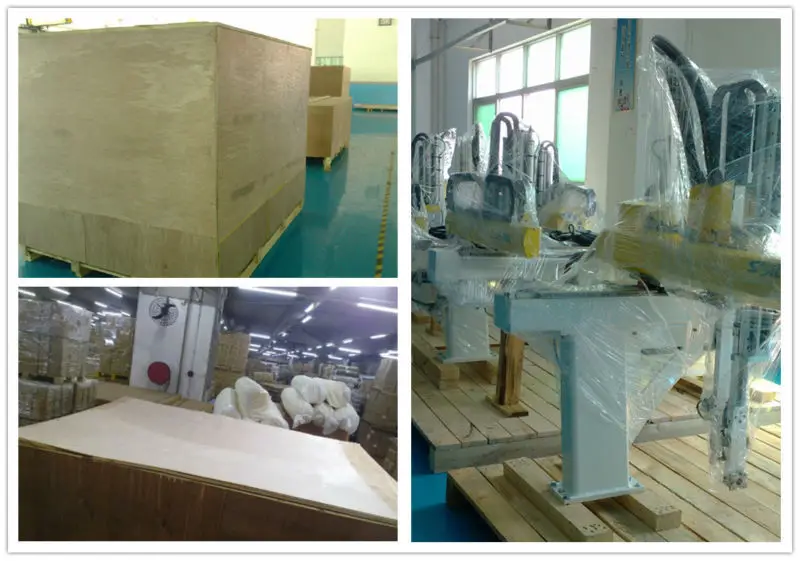

Package |
FAQ |
1.What is the industrial robot minimum order quantity?
Switek: Minimum order quantity is one set.
2. Could you advise payment terms?
Switek: We accept both LC and TT.
3. What is your quality assurance like? Do you have relevant certifications?
Switek: We are certified by CE and SGS, quality is prioritized.
4.How about your after sale service?
Switek: A.One year warranty for all our industrial robot.
B.Engineers are available to services oversea.
C.24 hours technical support by E-mail.
D.Calling or video conference communications.
E.Full set of user manual and detailed videos.
5. Are you a trader or manufacturer?
Switek:We are both, Switek produce industrial robot and is permitted to import&export products
