ZC Sensor High Precision IP65 Inclination Sensor Analog Dual Axis Inclinometer ZCT290L-LHS-17
Product Description
ZCT290L-LHS-17 is 2-axis high accuracy, reliable inclinometer sensor design and produced by ZC. It is with measuring range of -90°~+90°, and voltage output 0-10V.
What is Application of sensor inclinometer?
Platform tilt measurement
Equipment and instrument condition monitoring
Rotational orientation measurement
Solar tracking System .
What is Specifications of our sensor inclinometer?
Parameter
Condition
Min
Type
Max
Units
Supply voltage
8
36
V(DC)
Static operating current
Without load
5.7
6.5
mA
Output load
resistive
10
KΩ
capacitive
20
nF
Operating temperature
-40
+85
°C
Parameter
Condition
Min
Type
Max
Units
Measuring range
X axis,
Y axis
±90
°
Zero output voltage
4.92
5
5.08
V
Offset zero point error
1
°
Offset temperature error
0~+70°C
±0.2
±0.3
°
-25~+85°C
±0.4
±0.6
°
Sensitivity
4.5
V/g
Near 0 degree
73
79
85
mV/°
Sensitivity temperature error
0~+70°C
-0.8…0.3
%
-25~+85°C
-1.5…0.5
%
Cross axis sensitivity
3
%
What is Packing Information of our sensor inclinometer?

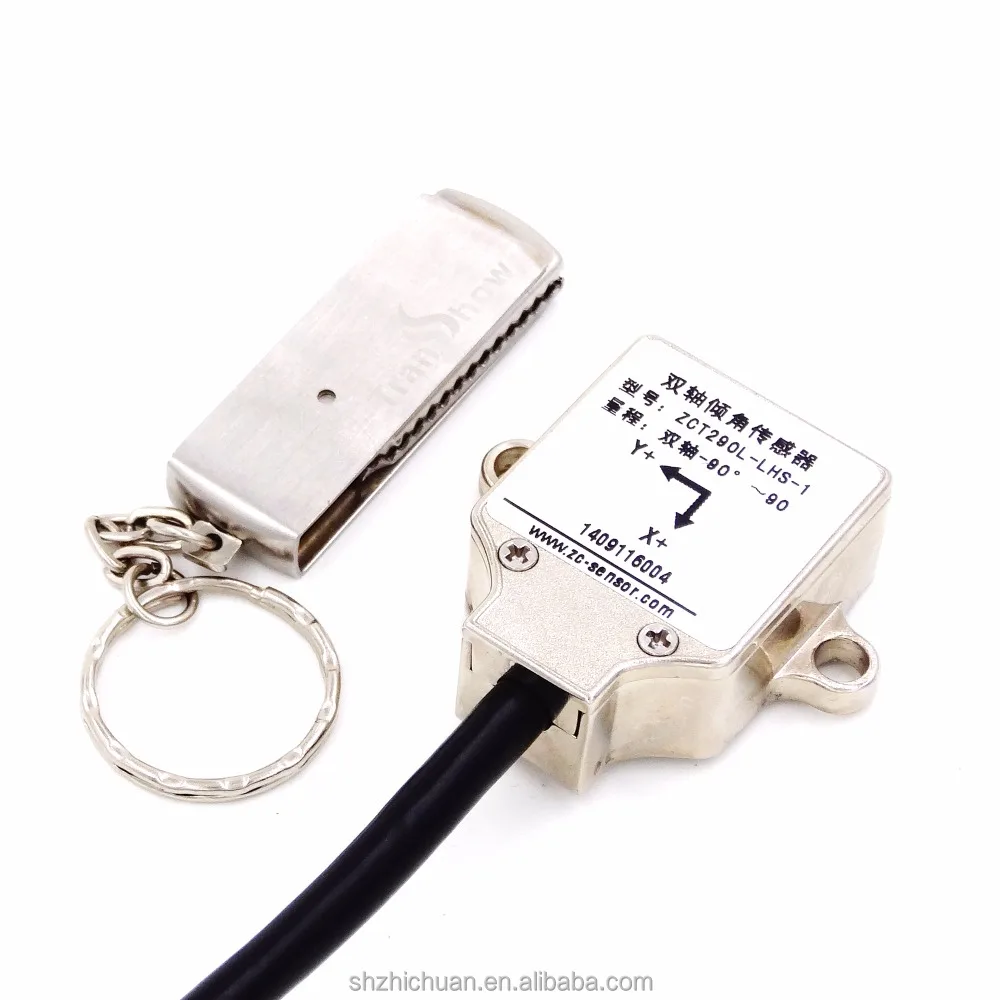

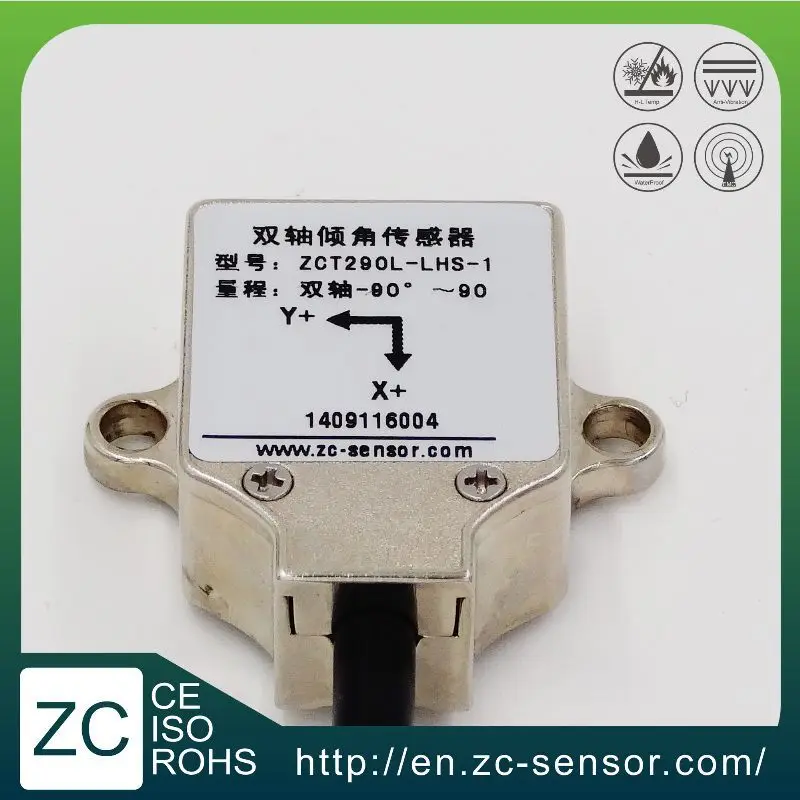

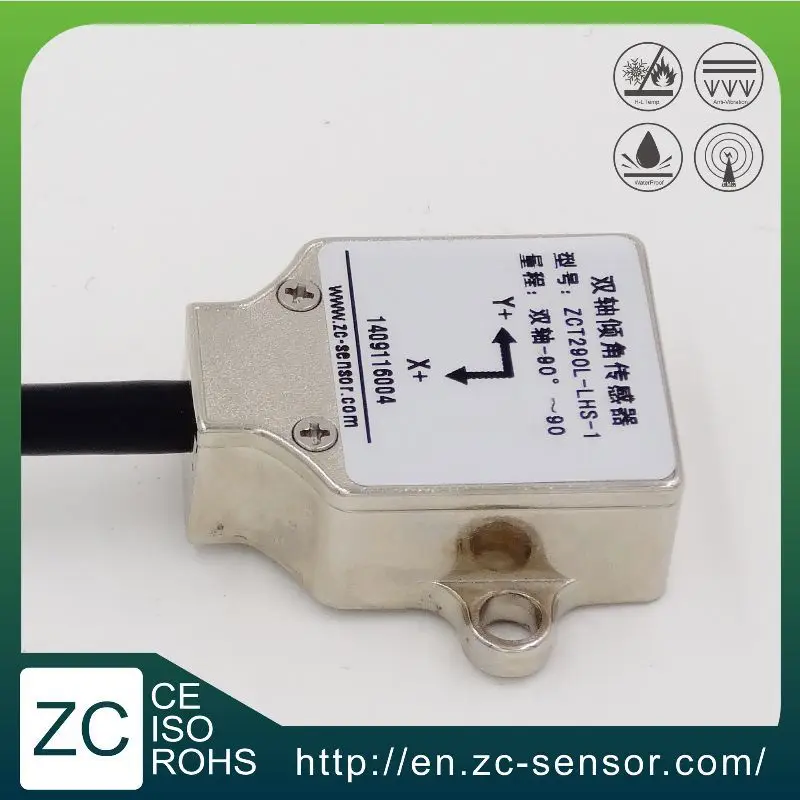

Product Photos
Our Services
1.Experienced staffs answer all your questions in fluent English.
2.Customizde design is available.OEM productsare welcomed.
3.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers

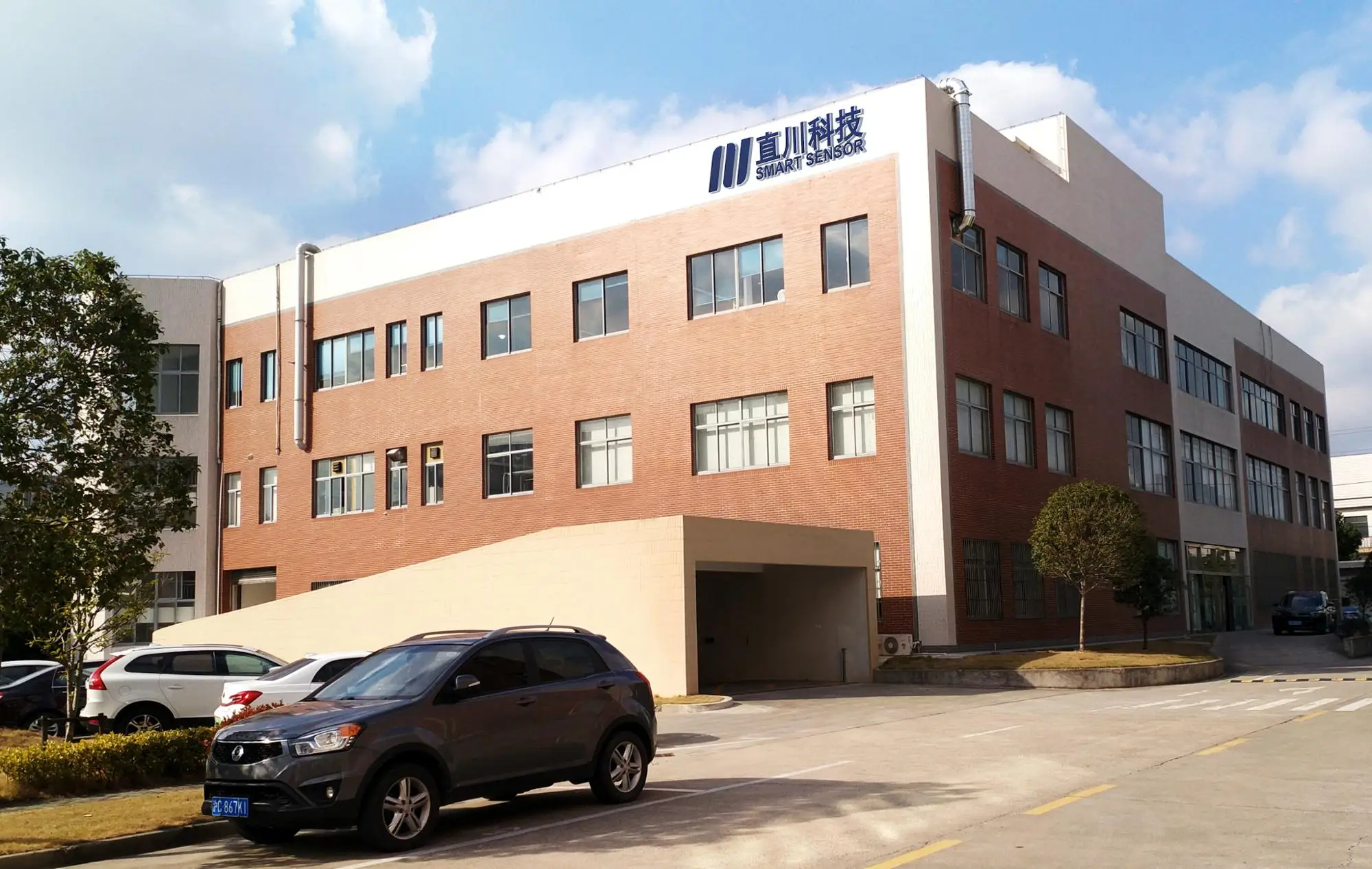

Company Information
Shanghai Zhichuan Electronic Tech Co., Ltd was established in 2002. Our company always endeavors in designing and manufacturing more accurate, sensitive and reliable inclinometers, providing customer detailed and comprehensive solutions and service, assisting customers to improve their production efficiency so as to conquer challenges in fierce market competition.
As a leader in the tilt measuring and inclinometer fields, Zhichuan satisfies customers for many application requirements in special environment by persistent technical innovations and abundant professional experiences. We keep in mind of customers’ requirement and desirability and bring this spirit to products, to customize product according to their specific requirement and provide our best technical and sales service.
