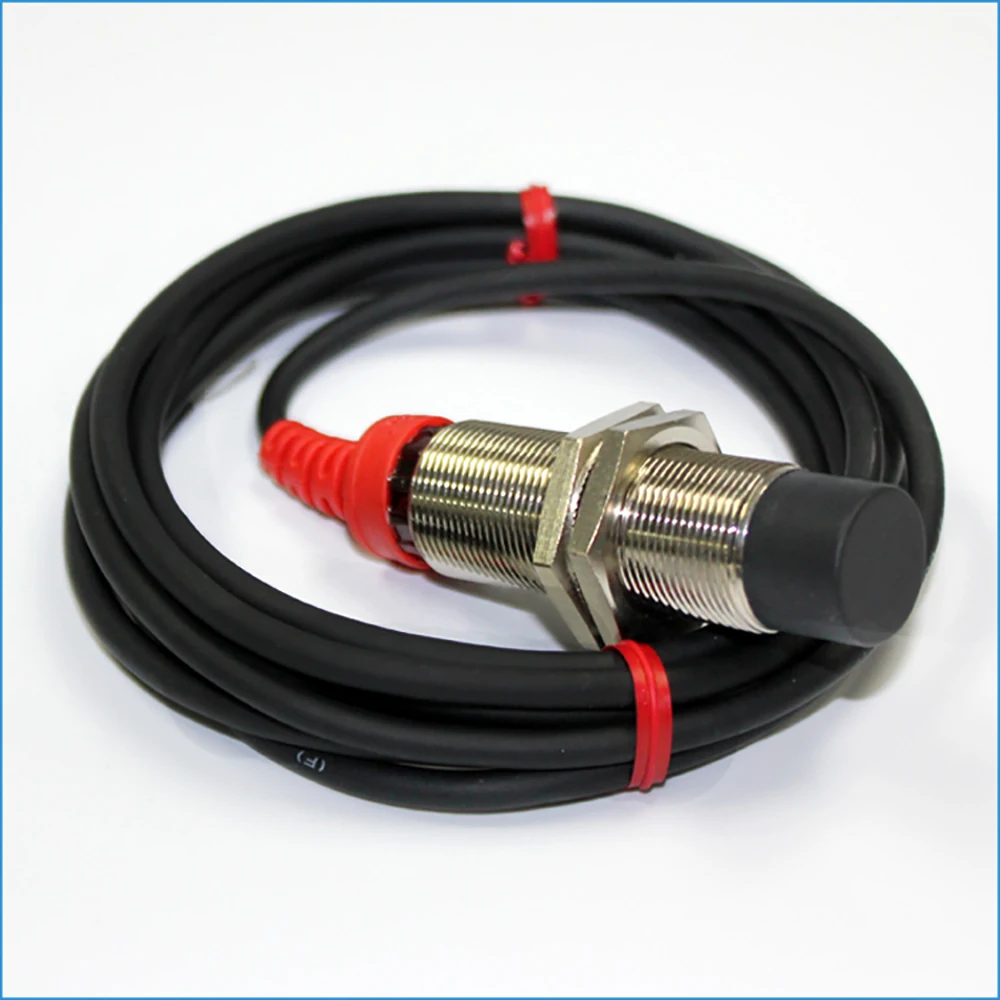

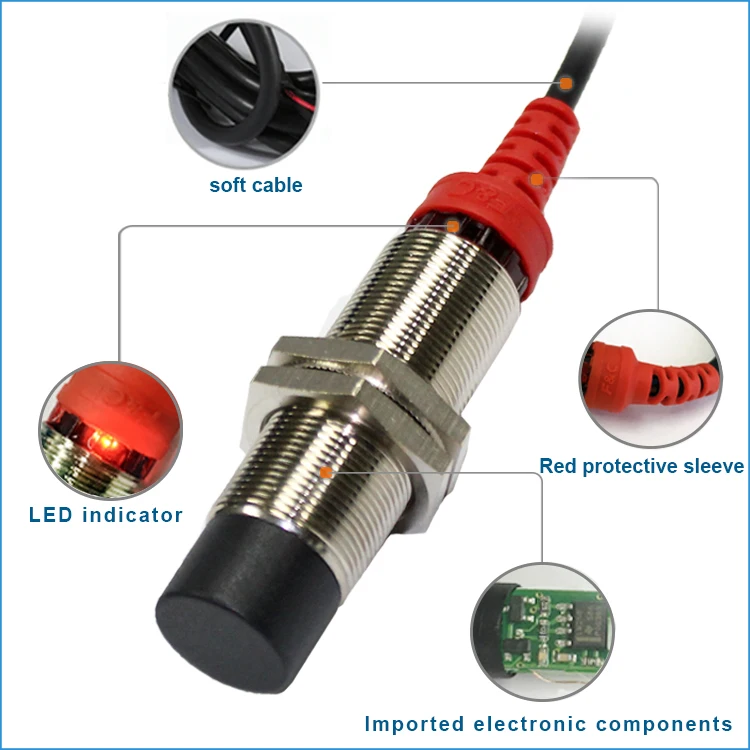

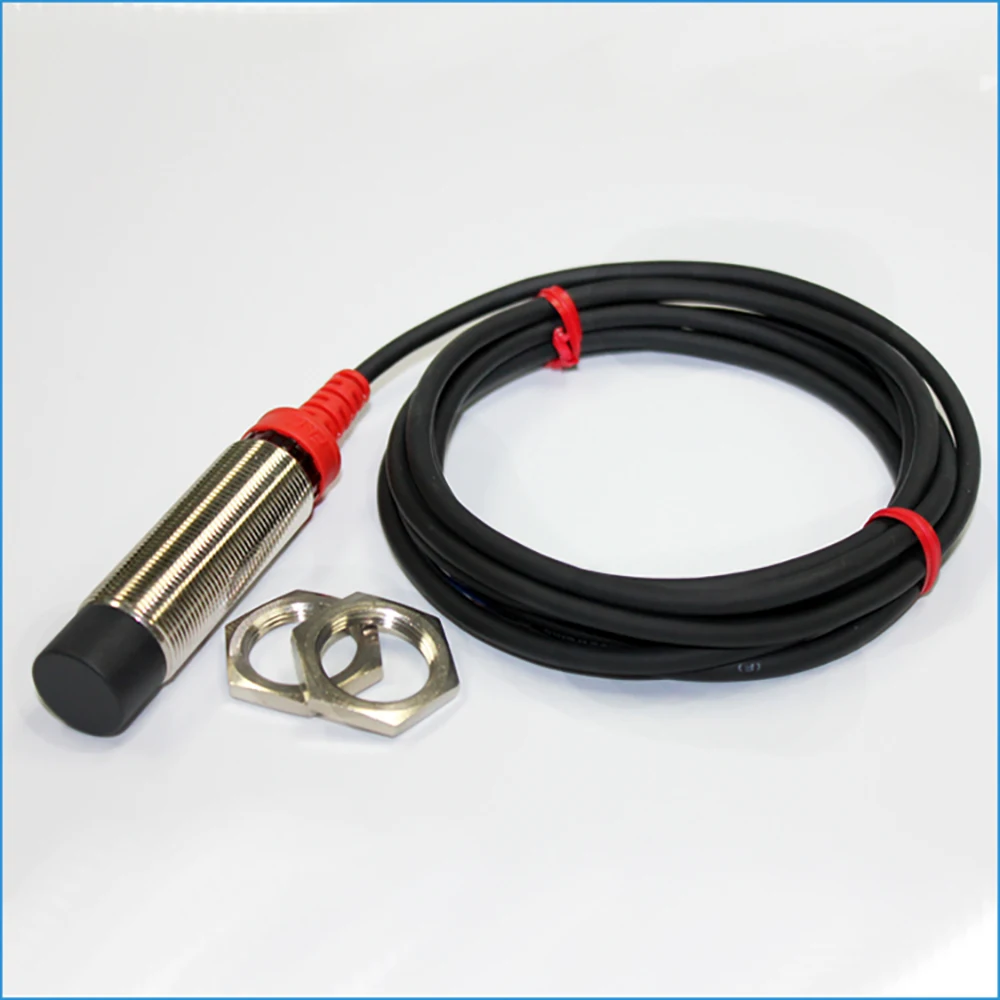

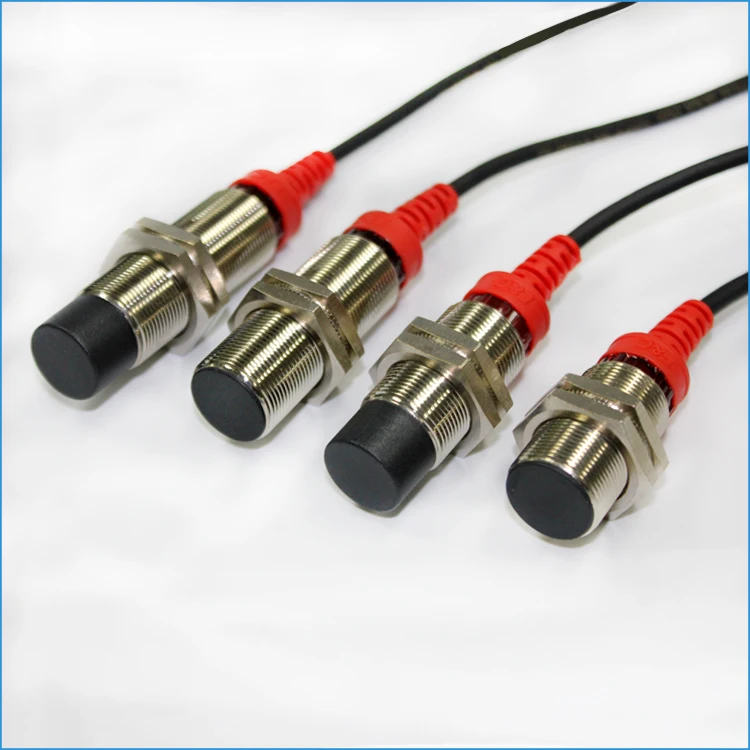

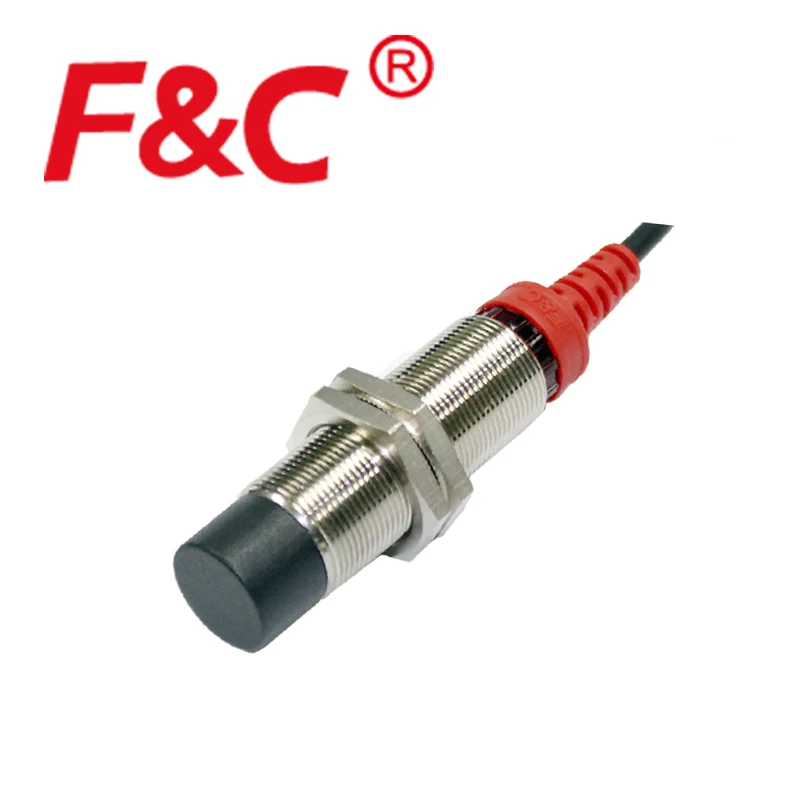

F3C series M18 5mm Flush type Inductive Proximity Switches DC12 24v, 3 wires, PNP or NPN outputs offered DC proximity switch
- Category: >>>
- Supplier: F&C Sensing Technology(Hunan) Co. Ltd.
Share on (60117463499):
Product Overview
Description
F3C series M18 5mm Flush type Inductive Proximity Switches DC12-24v, 3-wires, PNP or NPN outputs offered
Product Description
| standard shell/shield | F3C-18KS05-N R2M | NPN.NO | 5mm | 18×18×1(iron) | φ4×2M/3-wires |
| F3C-18KS05-N2 R2M | NPN.NC | ||||
| F3C-18KS05-P R2M | PNP.NO | ||||
| F3C-18KS05-P2 R2M | PNP.NC | ||||
| standard shell/non-shield | F3C-18KN08-N R2M | NPN.NO | 8mm | 24×24×1(iron) | φ4×2M/3-wires |
| F3C-18KN08-N2 R2M | NPN.NC | ||||
| F3C-18KN08-P R2M | PNP.NO | ||||
| F3C-18KN08-P2 R2M | PNP.NC | ||||
| short shell/shield | F3C-18ES05-N R2M | NPN.NO | 5mm | 18×18×1(iron) | φ4×2M/3-wires |
| F3C-18ES05-N2 R2M | NPN.NC | ||||
| F3C-18ES05-P R2M | PNP.NO | ||||
| F3C-18ES05-P2 R2M | PNP.NC | ||||
| short shell/non-shield | F3C-18EN08-N R2M | NPN.NO | 8mm | 24×24×1(iron) | φ4×2M/3-wires |
| F3C-18EN08-N2 R2M | NPN.NC | ||||
| F3C-18EN08-P R2M | PNP.NO | ||||
| F3C-18EN08-P2 R2M | PNP.NC | ||||
| standard shell/shield/double sensing range | F3L-18KS08-N R2M | NPN.NO | 8mm | 24×24×1(iron) | φ4×2M/3-wires |
| F3L-18KS08-N2 R2M | NPN.NC | ||||
| F3L-18KS08-P R2M | PNP.NO | ||||
| F3L-18KS08-P2 R2M | PNP.NC | ||||
| standard shell/non-shield/double sensing range | F3L-18KN16-N R2M | NPN.NO | 16mm | 48×48×1(iron) | φ4×2M/3-wires |
| F3L-18KN16-N2 R2M | NPN.NC | ||||
| F3L-18KN16-P R2M | PNP.NO | ||||
| F3L-18KN16-P2 R2M | PNP.NC | ||||
| short shell/shield/double sensing range | F3L-18ES08-N R2M | NPN.NO | 8mm | 24×24×1(iron) | φ4×2M/3-wires |
| F3L-18ES08-N2 R2M | NPN.NC | ||||
| F3L-18ES08-P R2M | PNP.NO | ||||
| F3L-18ES08-P2 R2M | PNP.NC | ||||
| short shell/non-shield/double sensing range | F3L-18EN16-N R2M | NPN.NO | 16mm | 48×48×1(iron) | φ4×2M/3-wires |
| F3L-18EN16-N2 R2M | NPN.NC | ||||
| F3L-18EN16-P R2M | PNP.NO | ||||
| F3L-18EN16-P2 R2M | PNP.NC |
| Response frequency | 1000Hz/800Hz |
| Hysteresis | 10%≤sensing distance |
| Operating voltage | DC:12~24VDC±10%/ can customize 5V |
| Current consumption | DC:≤8mA No—Load |
| Load current | DC:24V 150mA Max |
| Leakage current | DC:≤0.01mA no-Load |
| Residual votage | DC:≤1.5VDC No-load |
| Operating temperature | -20°C~+70°C |
| Material | PBTand SUS304 |
| Wiring method | 2M/3-wires |
| Protection degree | IP67 |
Diagram
roximity Switches DC12-24v
