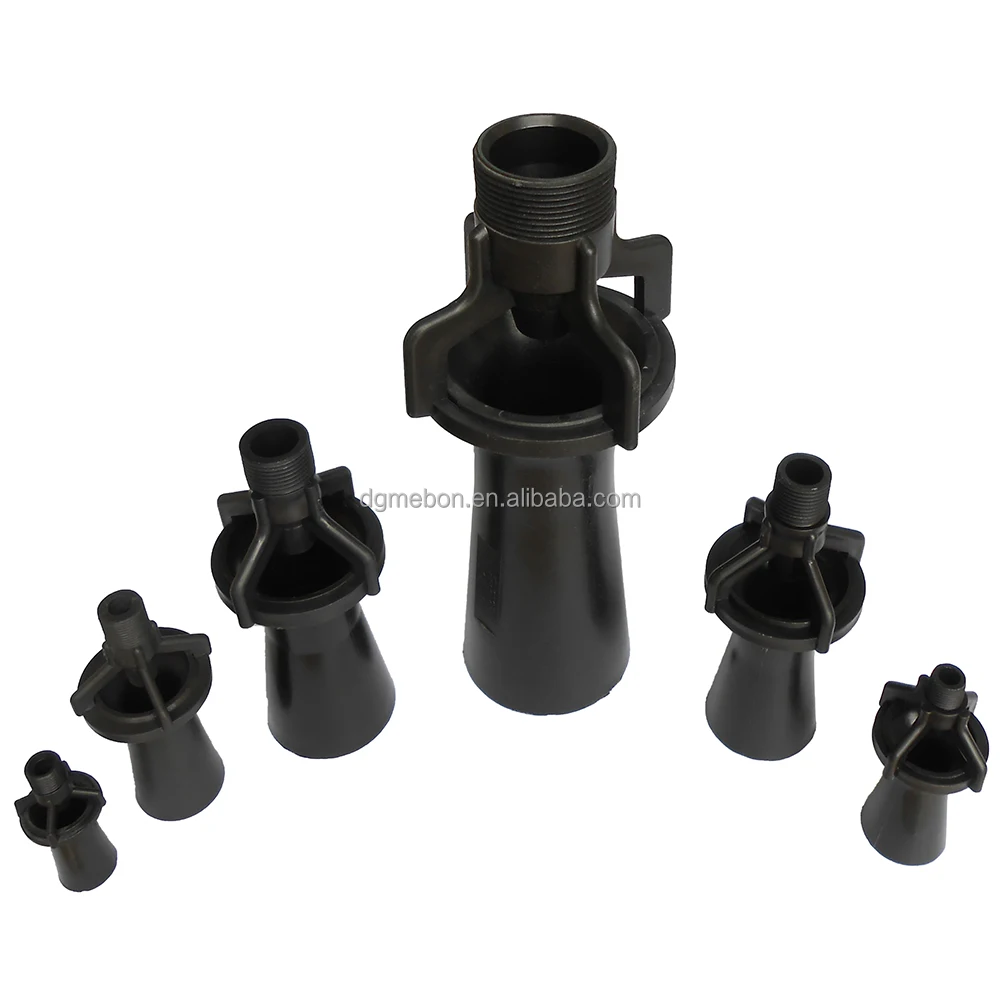

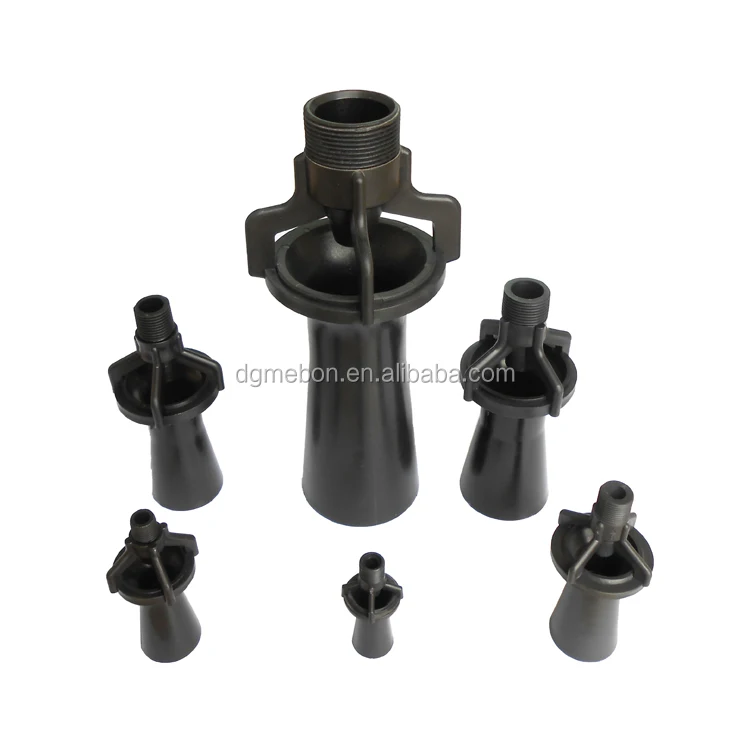

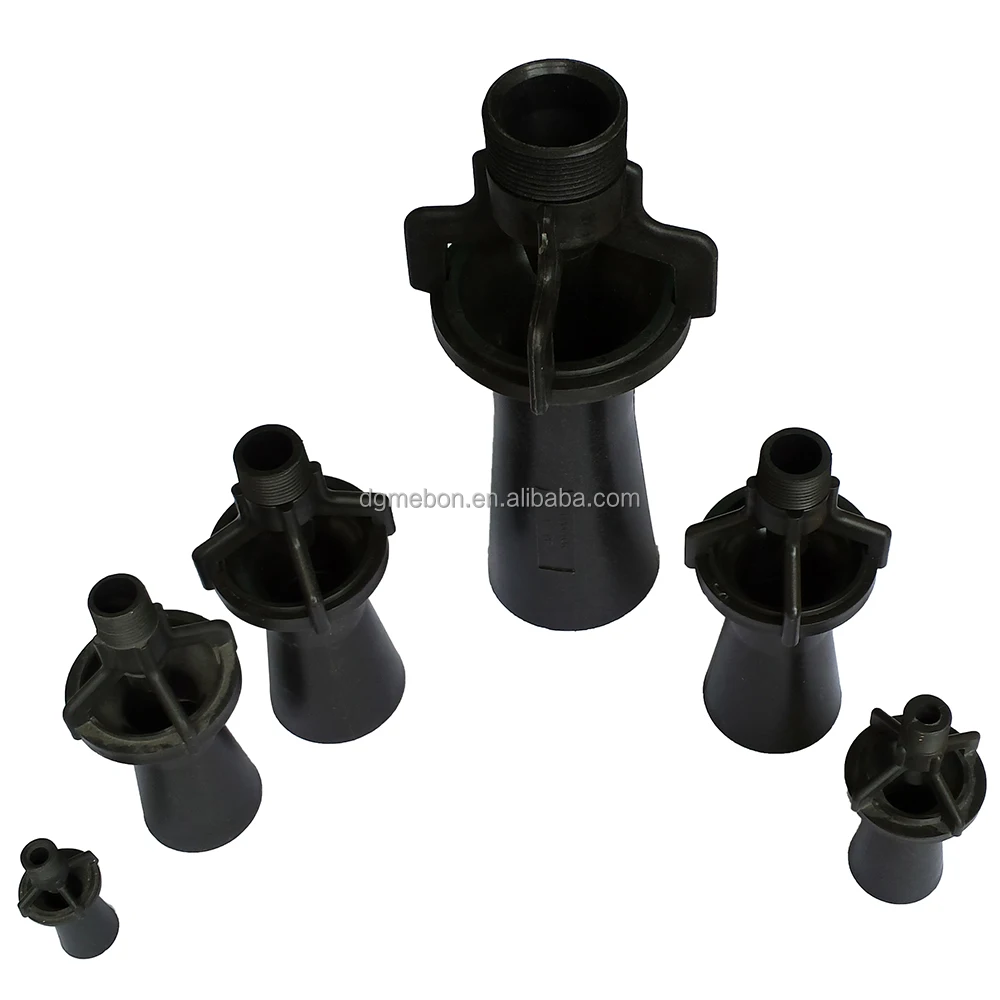

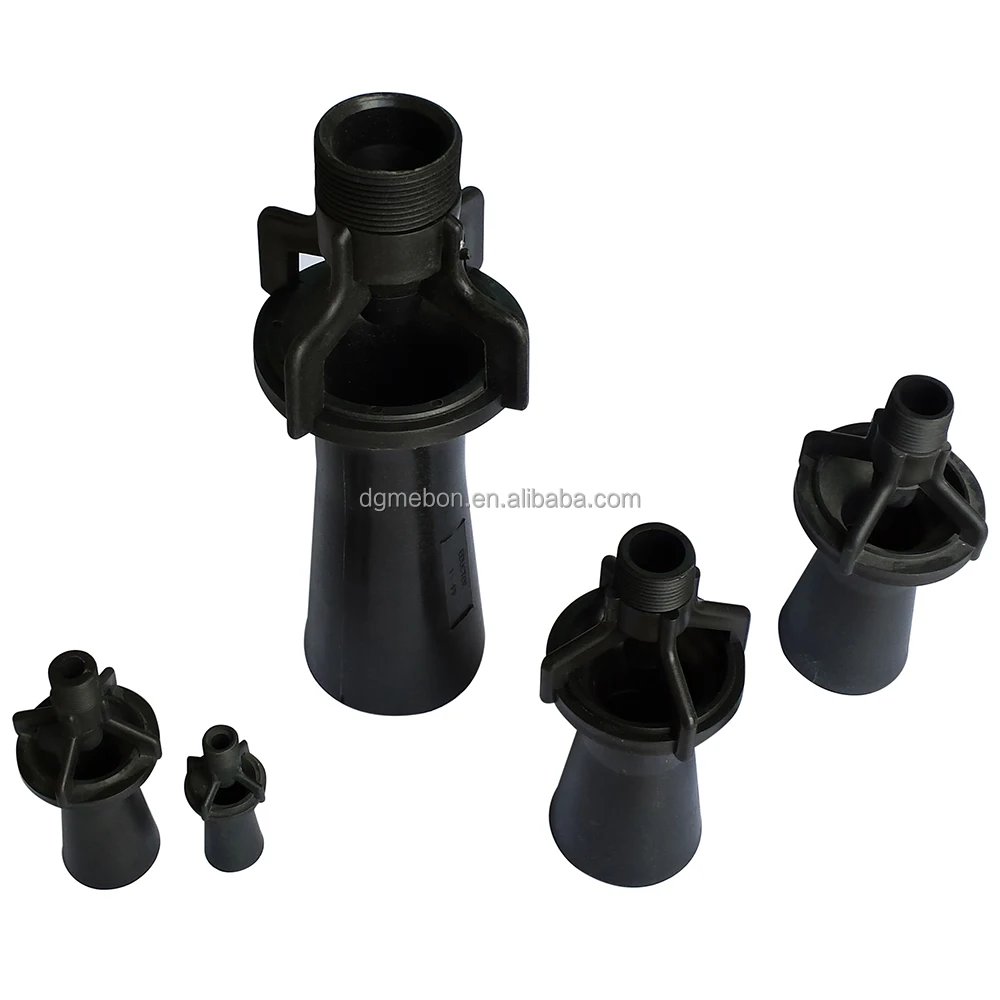

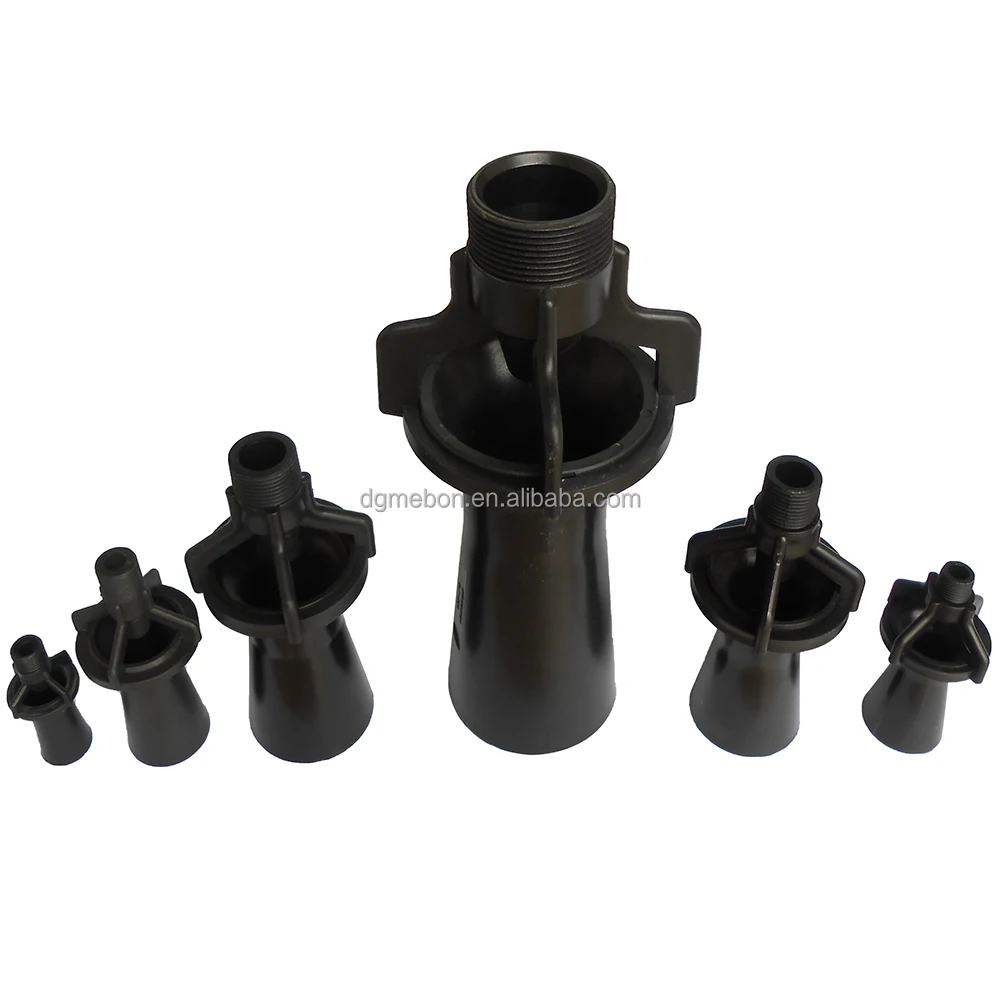

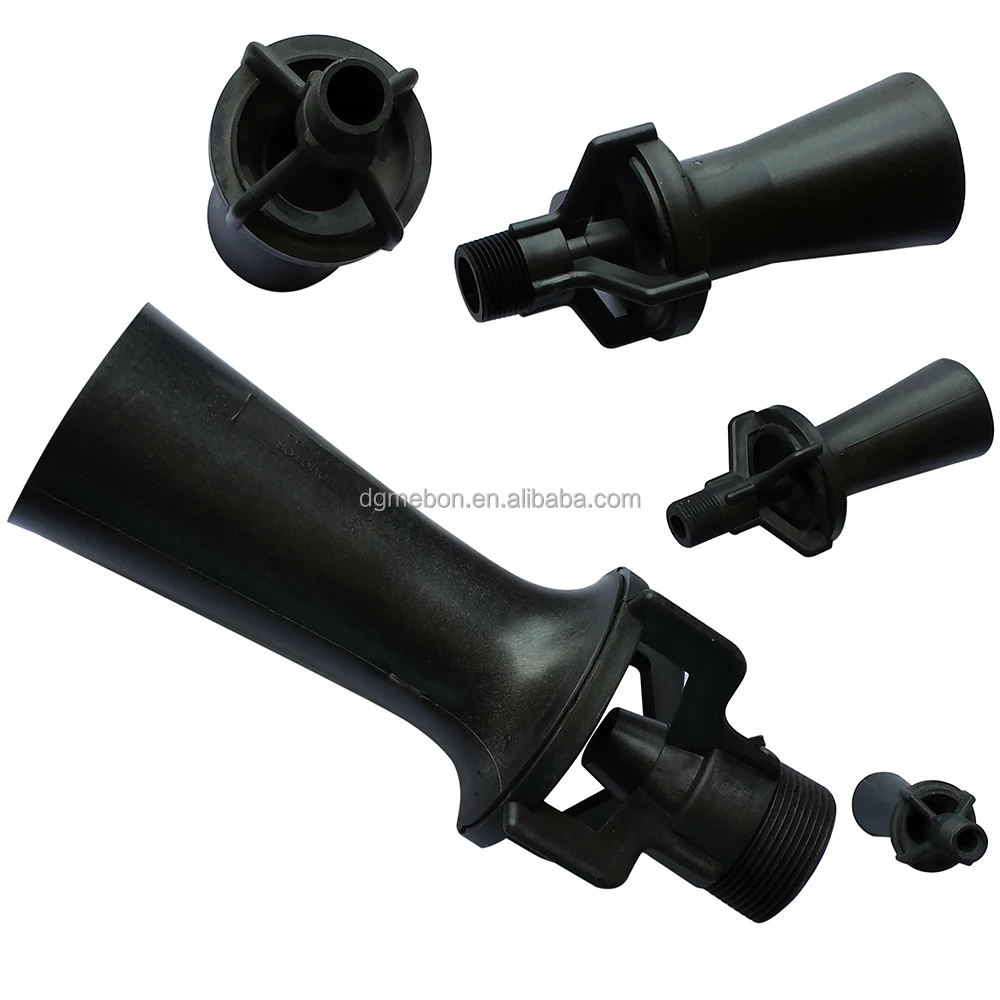

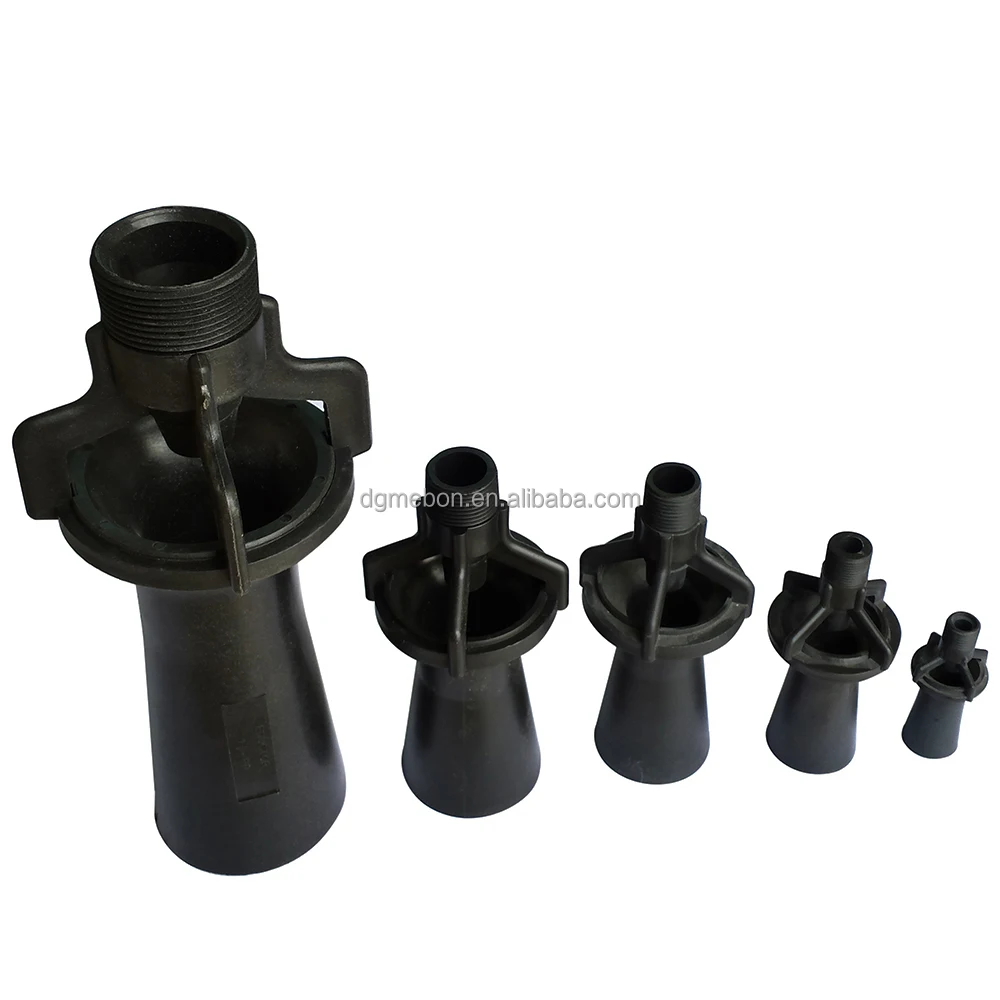

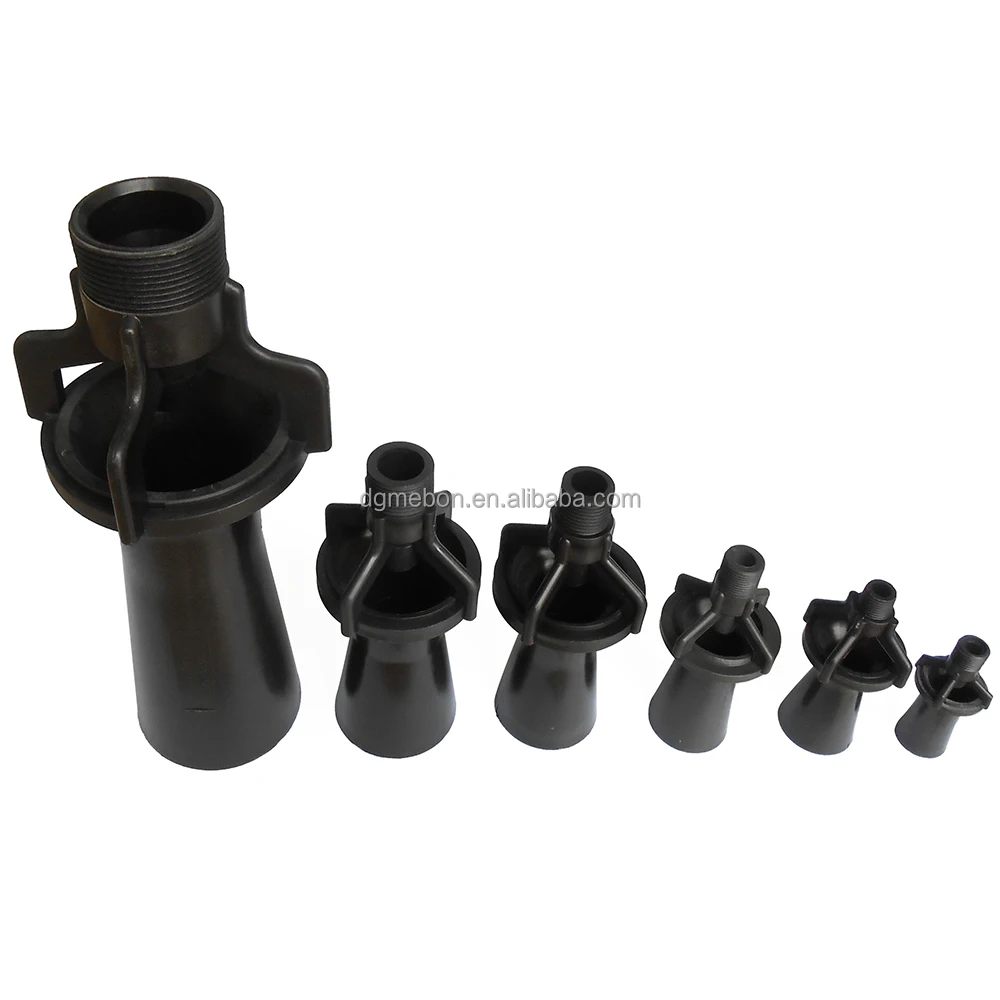

1/4,3/8,1/2 tank eductor,polypropylene mixing liquid nozzle

1/4,3/8,1/2 tank eductor,polypropylene mixing liquid nozzle

Category: Cleaning Equipment Parts >>>
Supplier: Dongguan Mebon Spraying & Purification Technology Ltd.

Price:

Quantity:

Product Overview

Description

Name	Venturi tank mixing eductor nozzle
Thread size	1/4", 3/8", 1/2", 3/4", 1", 1-1/2" inch
Material	316 stainless steel; plastic PP ;PVDF
Connection	male or Female
Pressure	0.5- 4bar

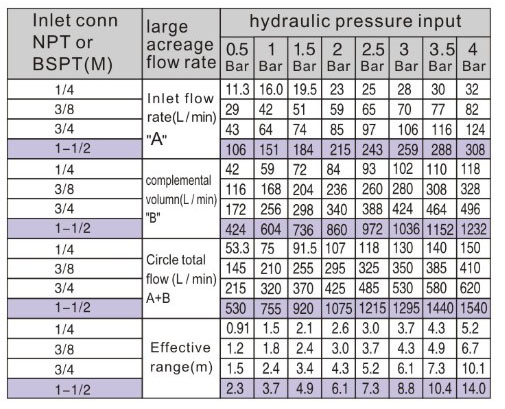

Flow rate	7.2- 620 L/min
Sample	Sample is available
Application	Stirring, circulating, mixing liquid...etc
Delivery time	1 day for plastic material; 1 day for stainless steel material
Payment method	Western union, On Alibaba, Visa, Bank transfer, CNY
Feature	1.Wearing resistance eductor nozzles are made in PP ( polypropylene ) with long glass fiber to enhance performance of wear-resistance, corrosion resistance and heat resistance. 2. Provides circulation and agitation in tank or container

Design Features of Venturi Tank Eductors

Large flow opening minimizes plugging

A cost-effective method for optimizing liquid tand performance

Allows small pumps to circulate large volumes of liquid

Compact design simplifies mounting

Material: PP (glass fiber polypropylene ), 316SS, other material on your request

Connect size: 1/4", 3/8", 1/2", 3/4" for venturi eductor.

Constructed of carbon fiber-reinforced polypropylene (fiber 20%) or SS316.

Maximum operating temperature is 120°C for PP model,300°C for SS316 model.

Corrosion resistance and aging resistance.

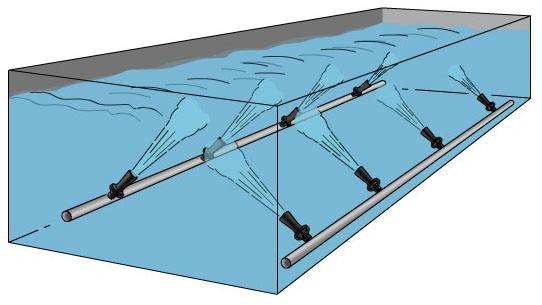

Functions
1.Improve circulation of the mixing flow and optimized mixture of the solutions.
2.Assures uniform mixture of solutions and improve product quality.
