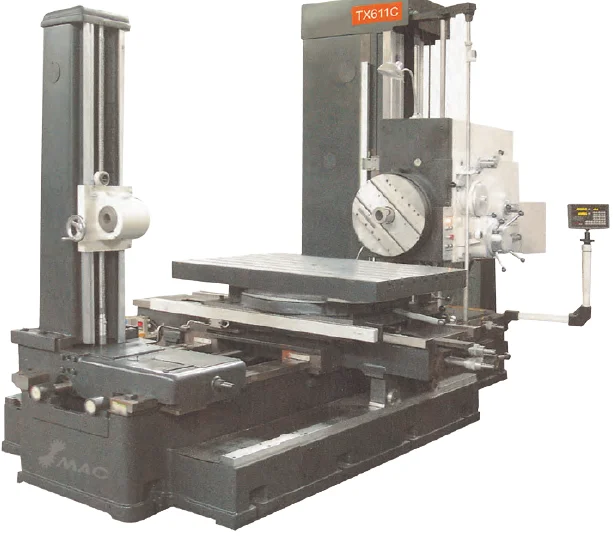

New Product 2020 Horizontal Boring Cylinder Machine
- Category: Boring Machines >>>
- Supplier: Almaco Machine Tool Co. Ltd.
Share on (60117671625):
Product Overview
Description
Product Description
Horizontal boring machine
1.Rigidity on spindle structure:full range of speed change
2.More function:not only can be used for body parts and hole milling machining but also the frame and wheels to thread process
3.More advanced design:its boring bar is much stronger than the similar kind of machine
4.More accessories: we will show you the list of the available accessories just you need
5.hydraulic pre-selection:adopted in speed change of spindle,feed rate change,convenient in operation.
6.automatic and centralized operation:adopted in elevation of head stock.
longitudinal &transverse travel of table,rotary movement distribution and clamping,reducing time and manpower,convenient and reliable.
2.More function:not only can be used for body parts and hole milling machining but also the frame and wheels to thread process
3.More advanced design:its boring bar is much stronger than the similar kind of machine
4.More accessories: we will show you the list of the available accessories just you need
5.hydraulic pre-selection:adopted in speed change of spindle,feed rate change,convenient in operation.
6.automatic and centralized operation:adopted in elevation of head stock.
longitudinal &transverse travel of table,rotary movement distribution and clamping,reducing time and manpower,convenient and reliable.
Specification
Specifications | Unit | TPX6111 | TPX6111A | TPX6111A/2 | TPX6113 | TPX6113A | TPX6113A/2 | TPX6113A/3 | ||||||
Spindle bore diameter | mm | Φ110 | Φ110 | Φ110 | Φ130 | Φ130 | Φ130 | Φ130 | ||||||
Spindle taper | MT | 6 | 6 | 6 | 80# | 80# | 80# | 80# | ||||||
Max, spindle torque | Nm | 1225 | 1225 | 1225 | 3136 | 3136 | 3136 | 3136 | ||||||
Max. spindle axial thrust | N | 12250 | 12250 | 12250 | 31360 | 31360 | 31360 | 31360 | ||||||
Steps of spindle speed | 22 | 22 | 22 | 24 | 24 | 24 | 24 | |||||||
Range of spindle speed | r/min | 8~1000 | 4~800 | |||||||||||
Power of main motor | kW | 7.5 | 7.5 | 7.5 | 15 | 15 | 15 | 15 | ||||||
Max. facing head torque | Nm | 1960 | 4900 | |||||||||||
Facing head diameter | mm | Φ600 | Φ600 | Φ600 | Φ750 | |||||||||
Range of facing head speed | r/min | 4~200 | 4~200 | 4~200 | 2.5~125 | |||||||||
Speed step of facing head speed | 18 | 18 | 19 | 18 | 18 | 18 | 18 | |||||||
Table size | mm | 1140 x1000 | 1140 x1000 | 1300 x1250 | 1600 x1400 | 1800 x1600 | ||||||||
Max. load on table | kg | 2500 | 8000 | |||||||||||
T- slot | mm | 22 | 22 | 22 | 28 | 28 | 28 | 28 | ||||||
Number of T-slot | 7 | 7 | 7 | 9 | 9 | 9 | 9 | |||||||
X- axis travel | mm | 1000 | 1350 | 1600 | 1600 | 2000 | 2000 | 3000 | ||||||
Y - axis travel | mm | 1000 | 1000 | 1300 | 1500 | 1800 | 2000 | 2000 | ||||||
Z - axis travel | mm | 1000 | 1000 | 1000 | 1500 | 1500/2000(Without Rear Column) | ||||||||
W- axis travel (Spindle travel) | mm | 600 | 600 | 600 | 900 | |||||||||
U - axis travel (facing head spindle travel) | mm | 180 | 180 | 180 | 250 | 250 | 250 | 250 | ||||||
B - axis work table rotary | 360 | 360 | 360 | 360 | 360 | 360 | 360 | |||||||
Min. distance between spindle center and table surface | mm | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||
Rapid travel (X/Y/Z) | mm/min | 2500 | ||||||||||||
Range of feed (X/Y/Z) | mm/rev | 0.04~6 | ||||||||||||
Precision of measurement accuracy (X/Y/Z) | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | ||||||
