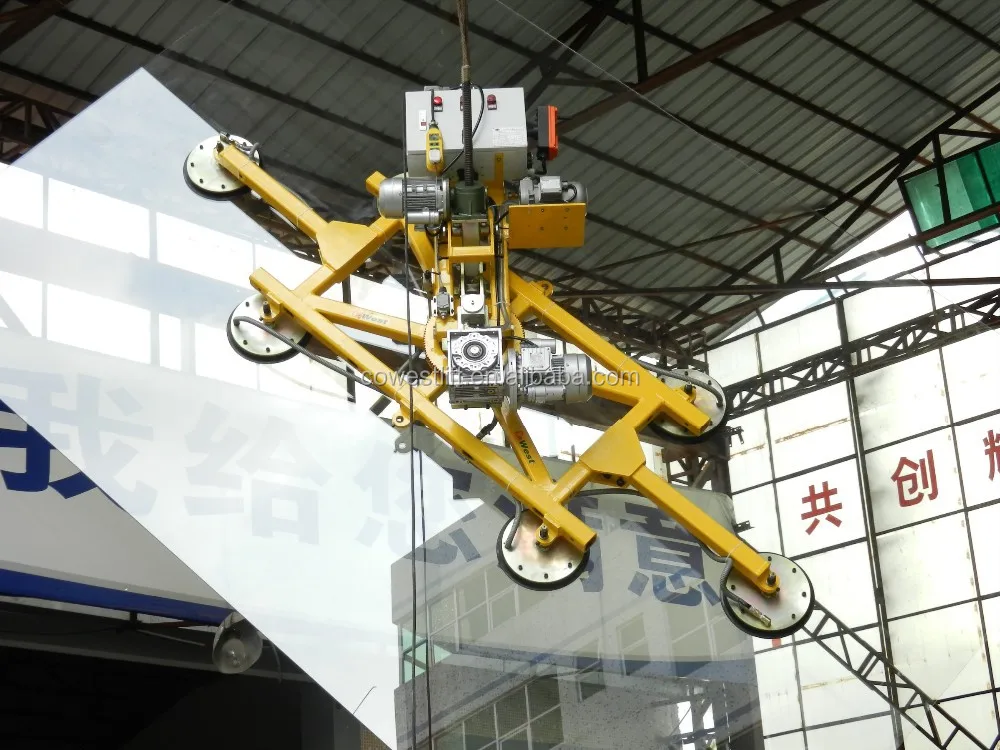

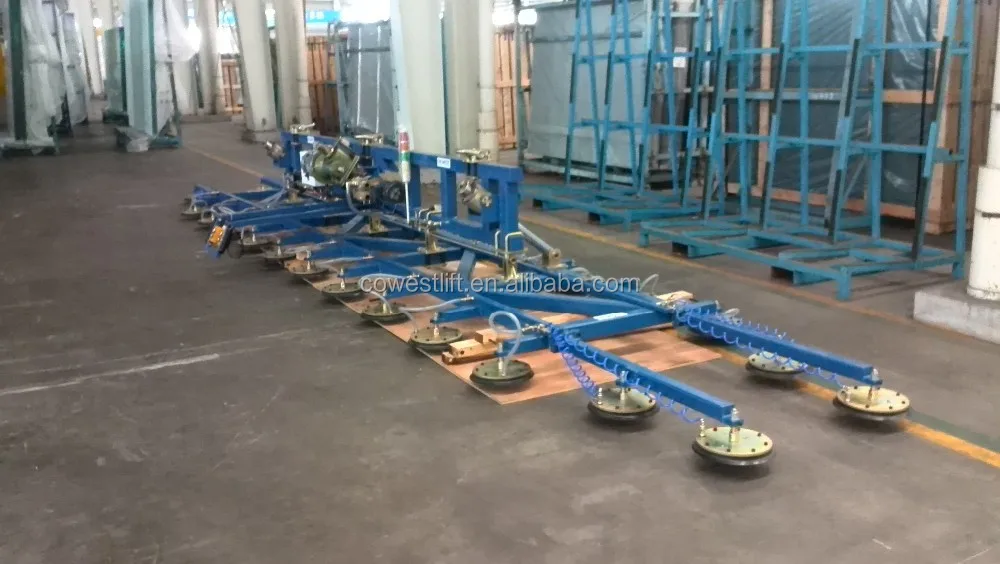

electric tilting vacuum lifter
- Category: >>>
- Supplier: Guangzhou Cowest Machinery Equipment Co. Ltd.
Share on (60118053909):
Product Overview
Description

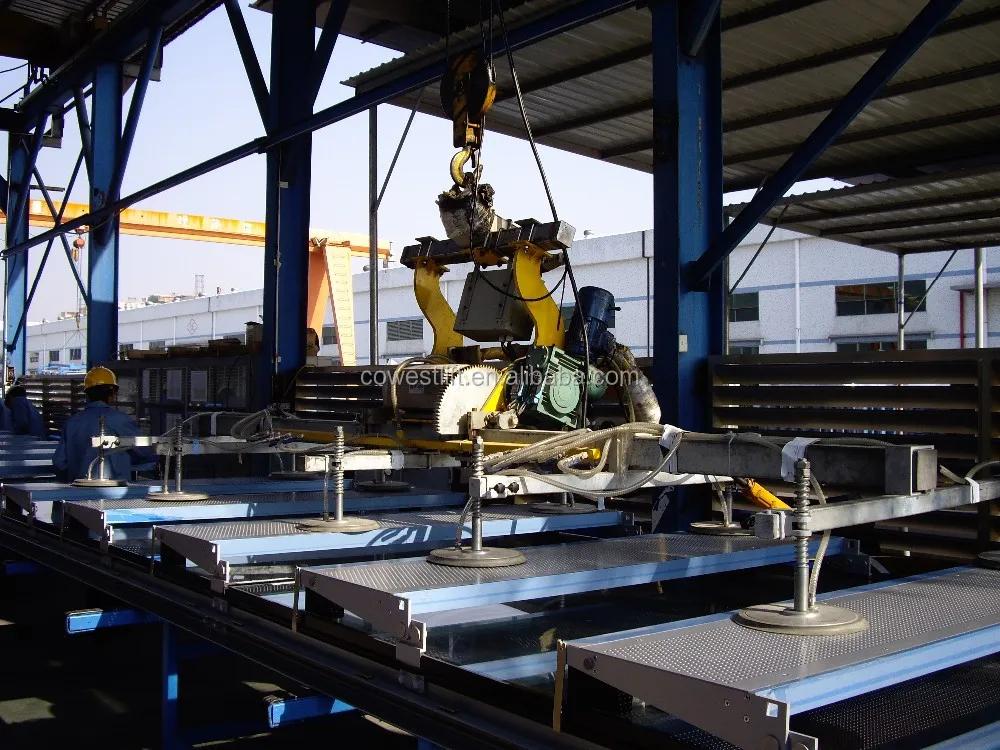

The EPD series was all driven by electric motor, the tilting unit could be by gear or linear screws with motor,the EPD was mainly
for tempering machine and curtain wall assembly
Electric tilting(EPD-ET) :
Model | EPD-300/4-90E | EPD-500/6-90E | EPD-750/8-90E | EPD-1000/10-90E |
Loads(kg) | 320 | 500 | 750 | 1000 |
Diameter of pad | 290 | 290 | 310 | 310 |
Pad number | 4 | 6 | 8 | 10 |
Power supply | 220/380V | 220/380V | 220/380V | 220/380V |
Vacuum flow | 4m³/hour | 8m³/hour | 14m³/hour | 14m³/hour |
Circle number | 1-circle | 1-circle | 1-circle | 1-circle |
Tilting methods | Linear screw | Linear screw | Gear | Gear |
Tilting degree | 0-90° | 0-90° | 0-90° | 0-90° |

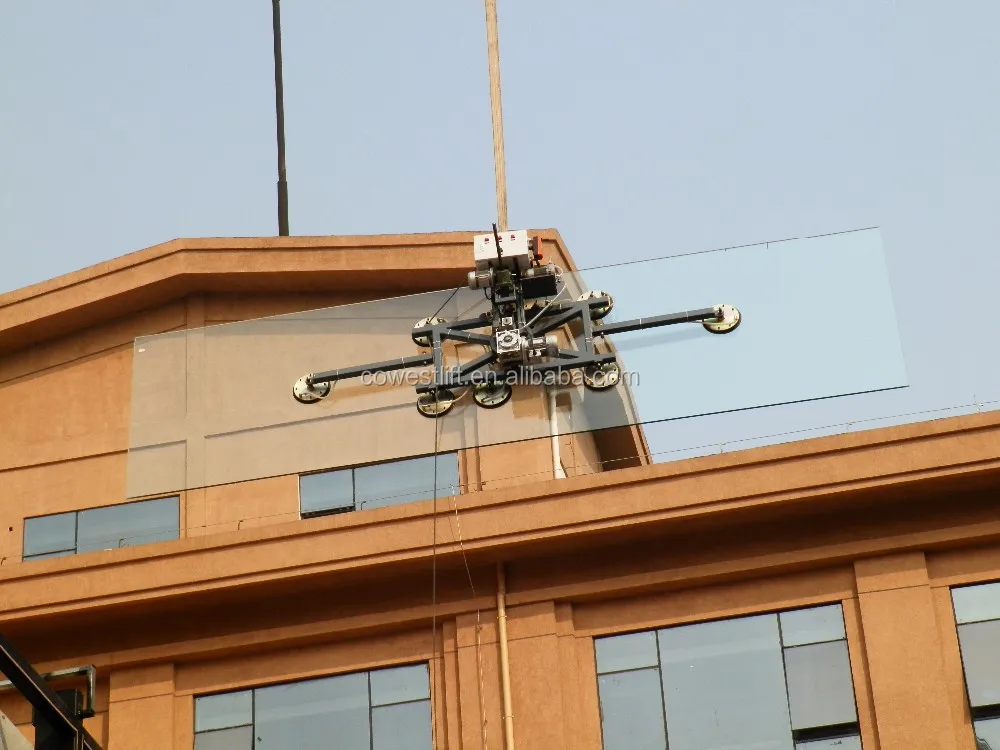

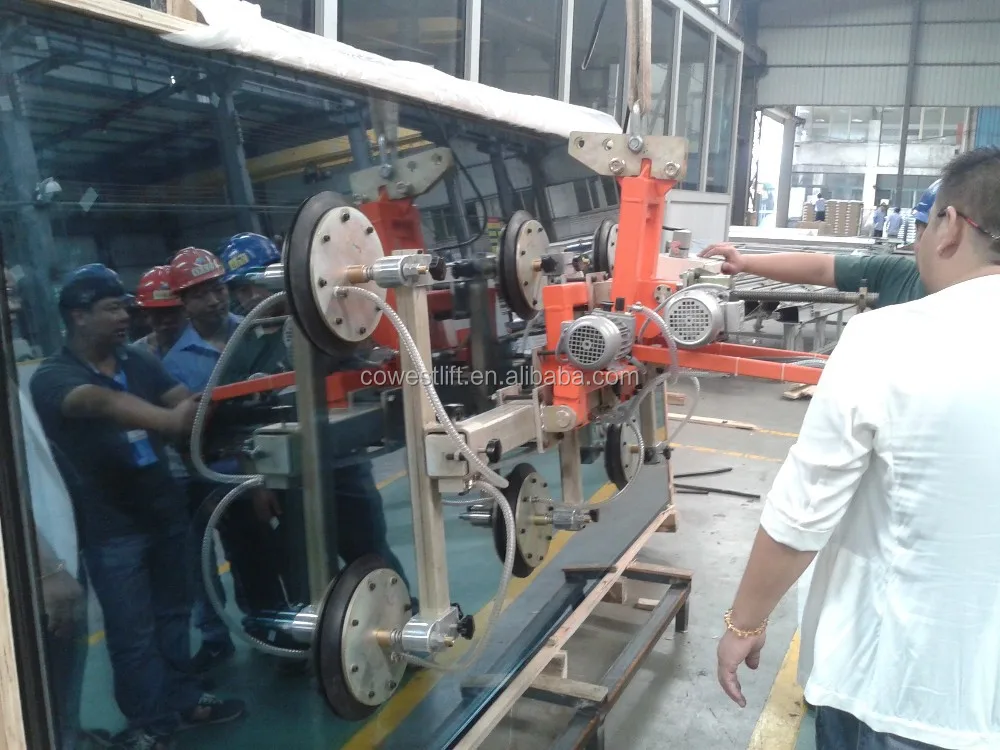

Electric tilting and rotation: for big sized glass panel handling in workshop as well as glazing outdoors
Model | EPD- VEB4RC | EPD- VEB6RC | EPD- VEB8RC | EPD- VEB12RC |
capacity(kg) | 400 | 600 | 800 | 1200 |
Dia. Of pads | 290 | 290 | 310 | 310 |
Pads number | 6 | 8 | 10 | 12 |
Power supply | 220/380V | 220/380V | 220/380V | 220/380V |
Vacuum flow | 4m³/h | 4m³/h | 8m³/h | 10m³/h |
Tilting method | motor screw | motor screw | motor screw | motor screw |
Tilting degree | 0-90° | 0-90° | 0-90° | 0-90° |
Rotation method | Motor gear | Motor gear | Motor gear | Motor gear |
Rotation degree | 0-360° | 0-360° | 0-360° | 0-360° |
Control method | Remote control | Remote control | Remote control | Remote control |
