Product Overview
Description
Specifications:
JYJR series of high vacuum web coating machine: mainly used in various films (PET, BOPP, CPP, DVC), etc., and special treatment through the paper surface metallization treatment for decorative, security, reflective packaging, clothing and other industries . Equipment can cover the range of 650 ~ 2400mm in width.

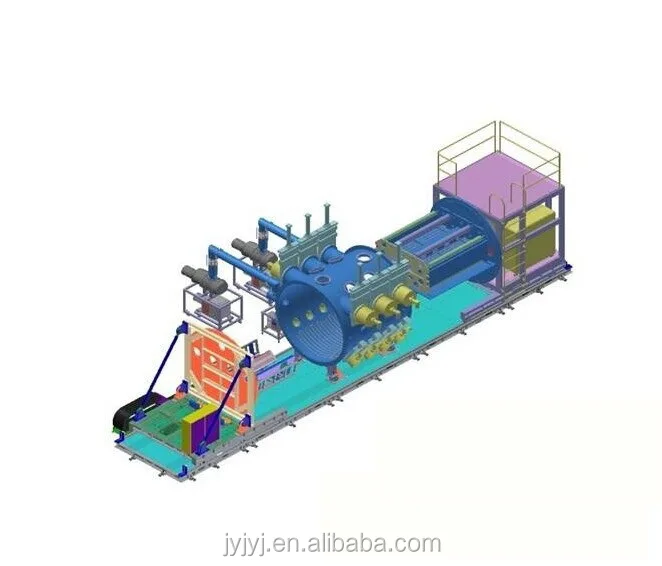

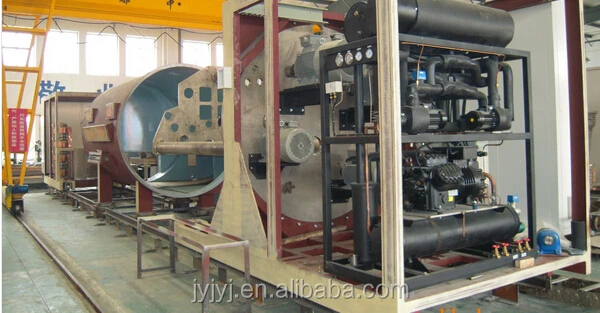

The device combines high-tech talent, use of modern high technology development, set vacuum technology, refrigeration technology, mechanical drive technology and control technology, and stable equipment quality, reliability, high efficiency, low requirements for operational and technical personnel; equipment consists of vacuum chamber, rack, winding system, vacuum system, evaporation systems, refrigeration and heating systems, refrigeration exhaust systems and electrical control systems and other accessories. Winding system and the evaporation system can be removed from the vacuum chamber, easy maintenance; device is equipped with a fast and reliable vacuum system, pumping speed, large displacement, high vacuum. Vacuum process can achieve manual / automatic operation, the vacuum chamber is divided into winding chamber and the evaporation chamber, a vacuum system is independent; equipment using HMI and PLC control, fully functional, clear interface, crisp, and various operating parameters can be set realized on the touch screen, reducing the complexity of the operation panel, the control device, operating more simple, accurate, and humane.
I give full play to the advantages of military manufacturing, high-precision manufacturing equipment, smooth operation, the evaporation rate, the overall system design is optimized for low energy consumption, high efficiency, users can bring high economic efficiency.
JYJR2400 Model | |
Max.Rolling Dia. (mm) | 1200mm |
Effective film width( mm) | 1000mm—2400mm |
Evaporation Transformer( set) | 11—23(set) |
Eavaporation Boats (piece) | 11—23(piece) |
Wire Feeding Speed (m/min) | 0—4 |
Pumping Time (pa/min) | ≤15min |
Ultimate vacuum degree( pa) | 8X 10-3pa |
Working vacuum degree (pa) | 10-1—10-2pa |
Working Speed (m/min) | 84—840m/min |
Rolling Tension (nm) | 0—350 |
Design Power(kw) | 500 |
Working Power(kw) | 395 |
Filming Material | PET,,OPP,CPP,PVC, paper, counterfeiting,laser, dielectric film |
Vapor Material | Al, Ag , Sn,, Medium (Purity≥99.8‰) |
Machine weight (t) | About 47 |

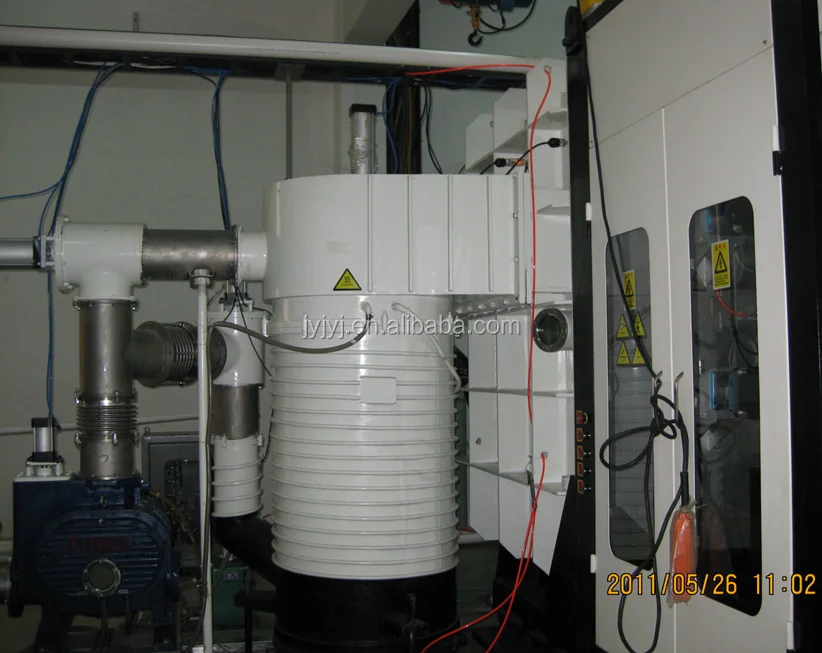

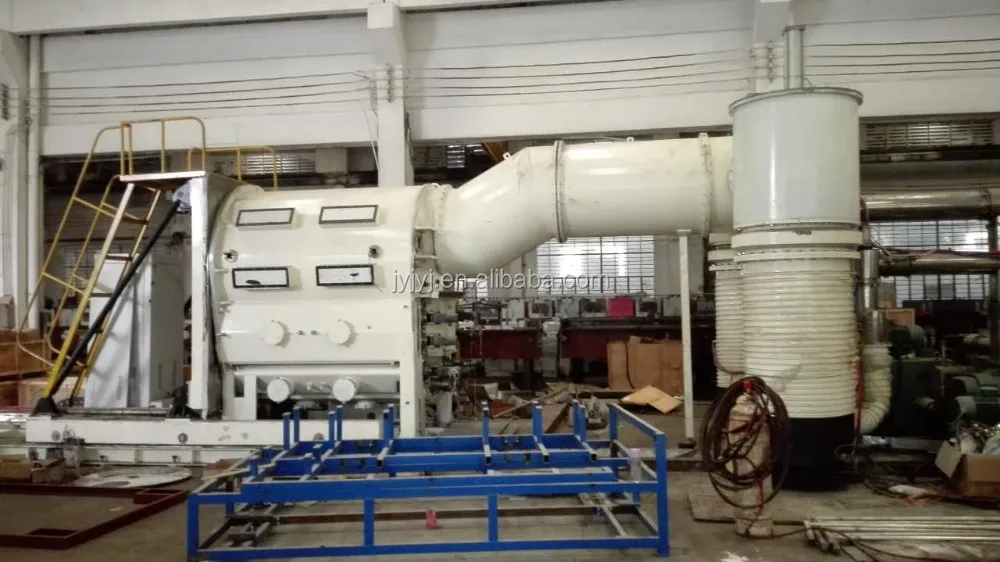

High speed high vacuum metallizer with the advantages of high efficiency, stable, reliable and high cost-effective, is suitable for direct metallizing of tobacco package paper, hologram, hot stamping materials, high grade print-package metallizing, fully compatible media film. Double door vacuum system use high quality international standard pump and valve and with optional ultra-low temperature water catcher,it can be used in all kind of climate and environment with the stable, reliable and high performance as well as energy saving.
With computer network technology control, remote monitoring on the Internet control, two monitor graphics display system, the overall control operation, the coating machine can work with high speed high stability .

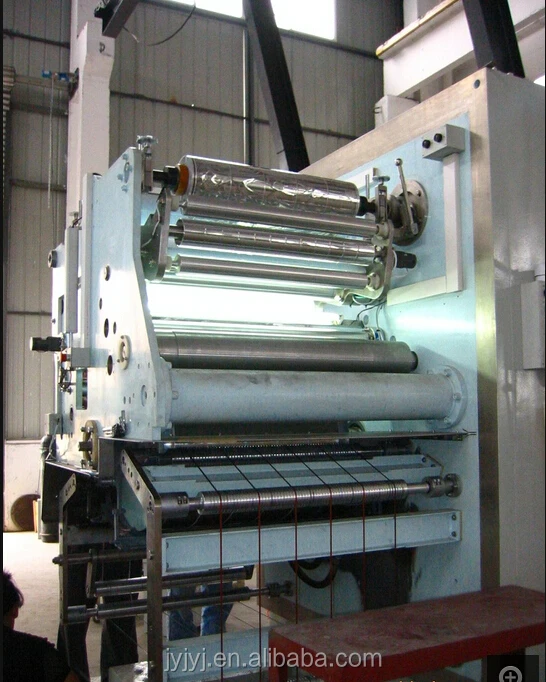

The usage of German angle adjustable expanding roller, air inflation technology and resistance-free guiding roller technique guarantee the roll of film without scratches; the cooling roller designed to be the second tension roll, so that films can be better cooled; thickness of the close-loop control circuit; coating drum of -20 °C cooling and heating systems to prevent films heat injury; Max winding speed reach to 900 m / min, thereby greatly increasing the production efficiency . Top-folder evaporation boat installation makes it compatible of media coating; optional multi-channel non-contact thickness measurement system can be installed to measure the resistance of the film ,optical density so that the quality of the products can be rapidly and accurate analysized. Vacuum system can be configured according to user's needs corresponding imports of equipment (such as the POLYCOLD cold trap LEYBOLD proliferation of wells pump lights). Full-floating style and drum metallizer can also be offered according to user's requirements. The metallizer is widely used in tobacco package paper, hologram, hot stamping materials, high grade print-package metallizing.
Equipment application range image:

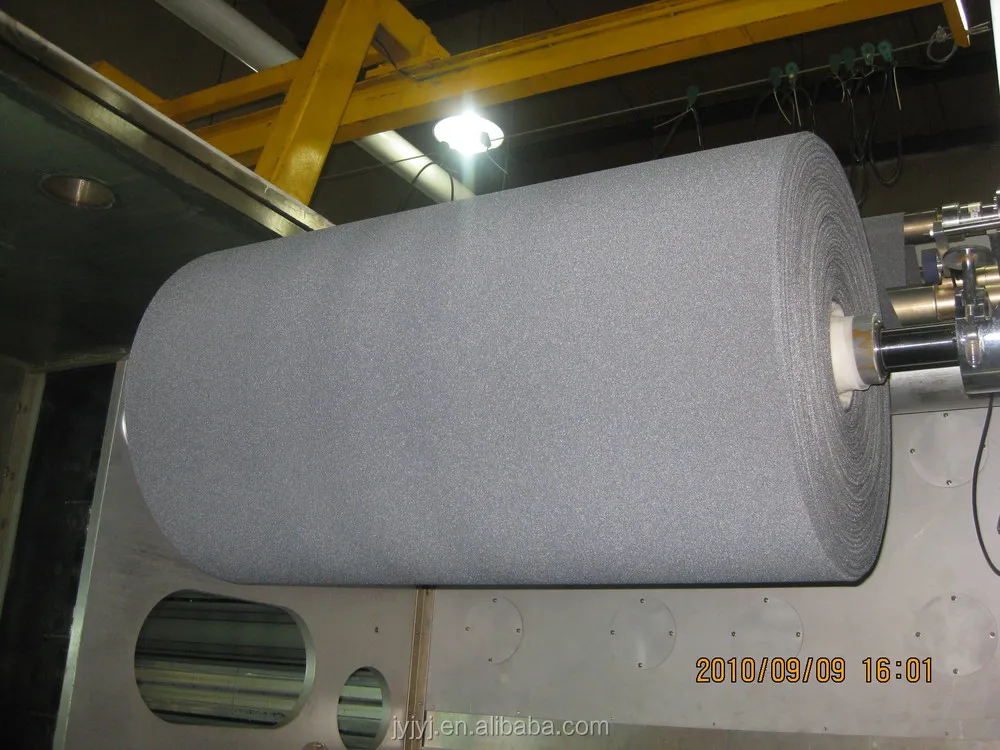

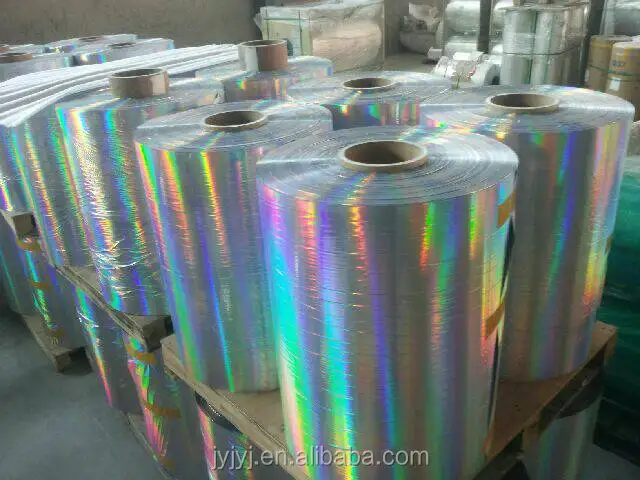

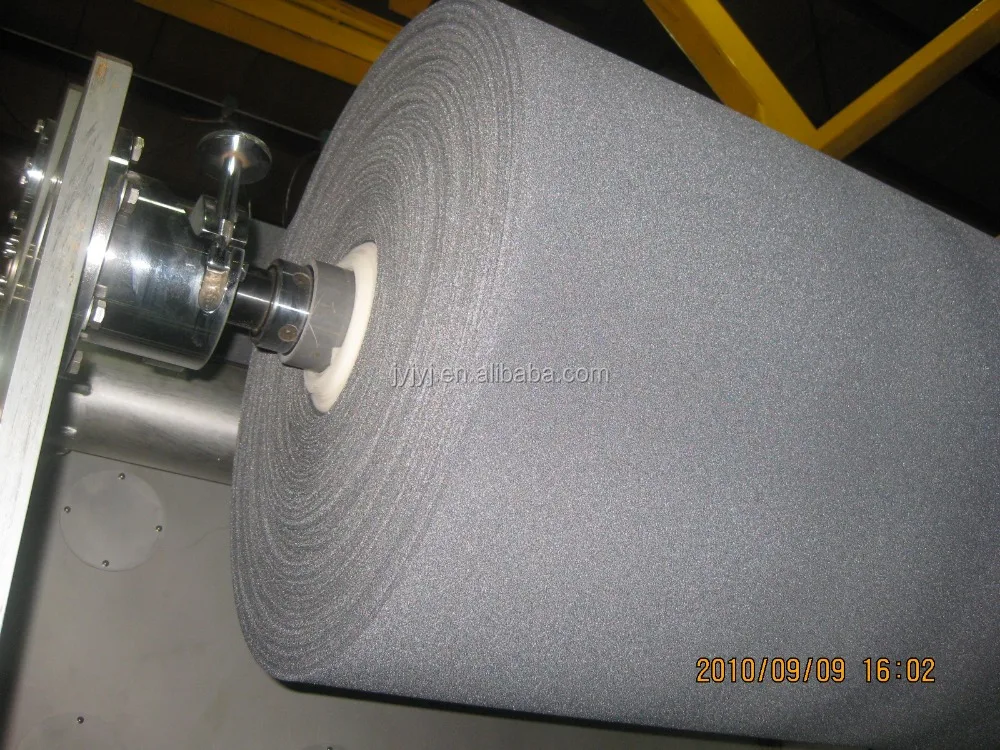

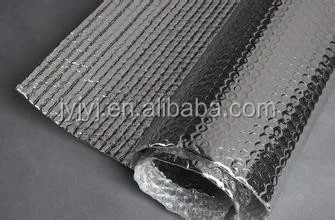

OPP, CPP, PE, PET, gold foil, copper foil paper, Cloth; knitted line, ITO conductive film ;
Product introduction
The use of special process on the plastic film surface plating a thin layer of metal aluminum and form a kind of composite flexible packaging equipment.
The performance parameters
Mainly include polyester aluminum plating film VMCPP VMPET and CPP aluminum plating film. The role of the aluminum plating thin film surface is shading, prevent ultraviolet irradiation, extend the shelf life of the contents, and improve the brightness of the film, from a certain extent, instead of aluminum foil, also has a low price, beautiful and good barrier properties
Other instructions
Company independent research and development of SBD series winding type vacuum coating machine, multi-function cutting machine, coating machine in practical technology design, technological level, continuous improvement and innovation, with high benefit and low energy, low price, simple operation, automatic control multi-functional characteristics and good reputation, and perfect after-sales service, won the recognition of the broad masses of users, after years of efforts to improve, coating machine has been identified as the national patent products, national ISO9001 quality management system certification, at the same time by the national approval for import and export enterprises, products exported to southeast Asia, the Middle East and other countries and regions, welcomed by foreign companies.
Best regards;Looking forward to your reply!
Wechat: nbjunying
