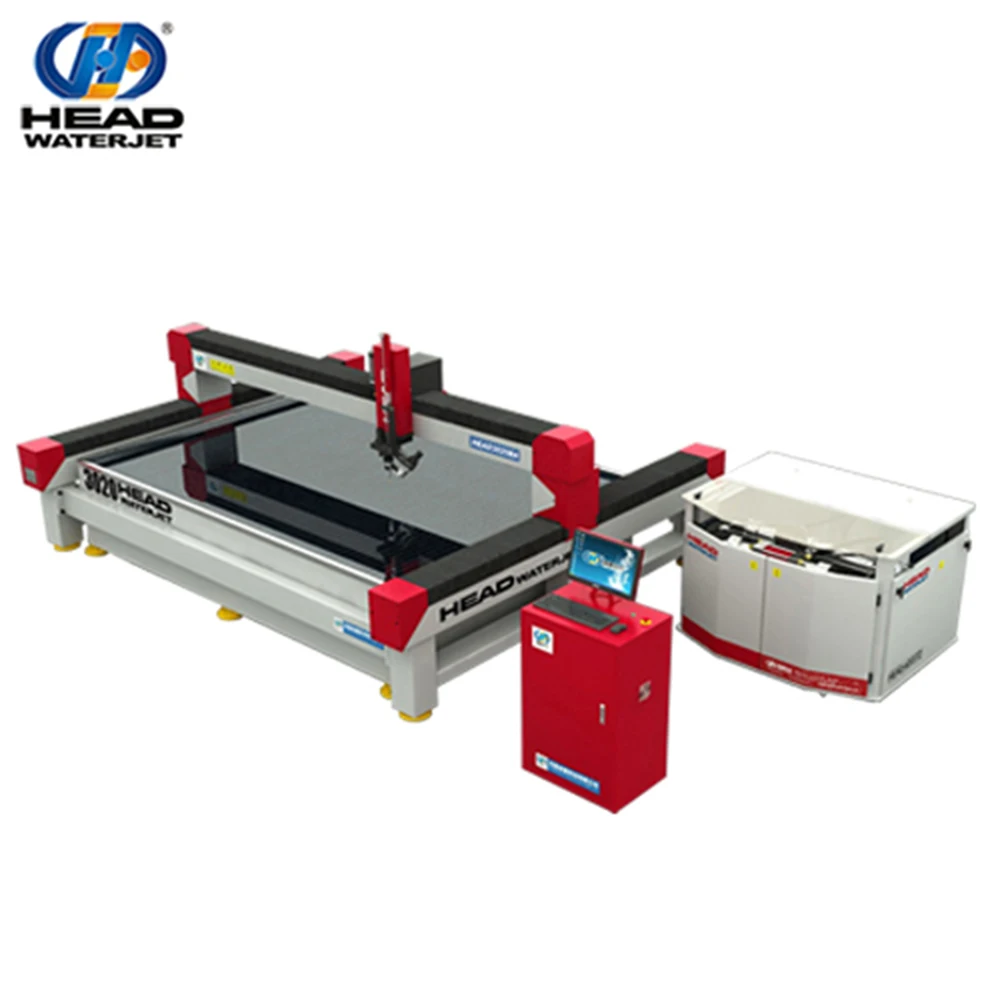

cnc 5 axis water jet marble granite ceramic cutting machine

Product Overview

Description

     Tap water is impressed to 200-400Mpa by UHP Intensifier, and then a waterjet with high speed of 800-1000m/s is made through a small gem nozzle with bore size of 0.1-0.35mm. This waterjet has high energy and it can cut soft materials such as paper, rubber, sponge, etc. Furthermore, if mixed proper quantity abrasive, it can cut all kinds of soft and hard materials such as glass, marble, ceramics, stainless steel, etc.

TECHNICAL DATA

Main technical parameter of waterjet cutting machine

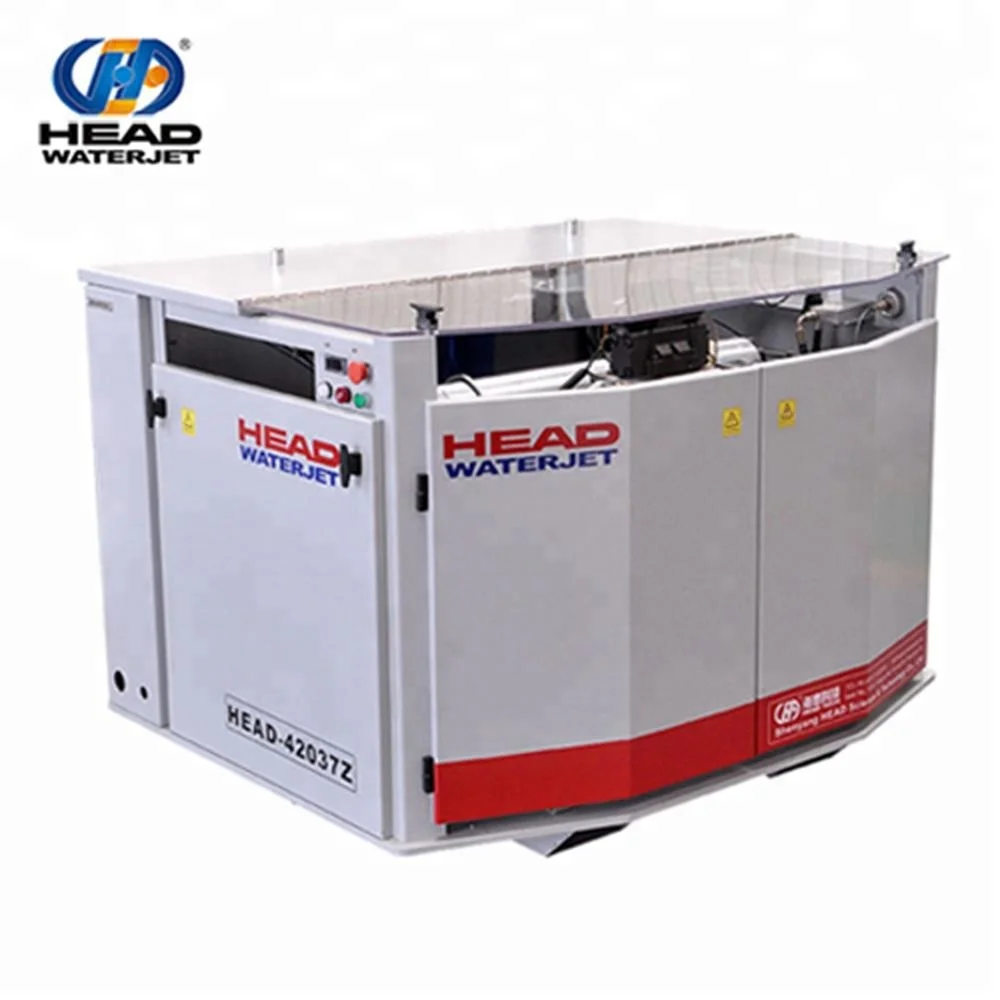

Intensifier Pump	Item	Parameter
	Model	HEAD42037Z
	Brand	from USA
	Method of Direction Regulation	Electronic Direction Regulation
	Pressure Range	300-420MPA
	Maximum Flow of Hydraulic Pump	106L/min
	Maximum Discharge Capacity	3.8L/min
	Maximum Diameter of Gem Nozzle	0.33mm
	Power of Master Motor	37KW(50Hp)
	Power Source	380V/50HZ
Cutting Table	Item	Parameter
	X axis characteristic	One-off extrusion forming aluminum alloy
	Y axis characteristic	Cast iron used as foundation base
	Z axis characteristic	double linear guide and four sliding block
	Driving system	Z axis automatic controll,3axis association process
	Ball screw,linear guide	ABBA Taiwan
	Table structure	Separated body
	Driving way	Servo drive system
	CNC system	Ncstudio ,Fagor
	Servo motor	YASKAWA/FUJI
	Cutting head	Casting structure and concrete structure
	Sealing way	Whole piece sealing
	Loading weight water tank	Wall thickness is 5mm,using fluorocarbon coating

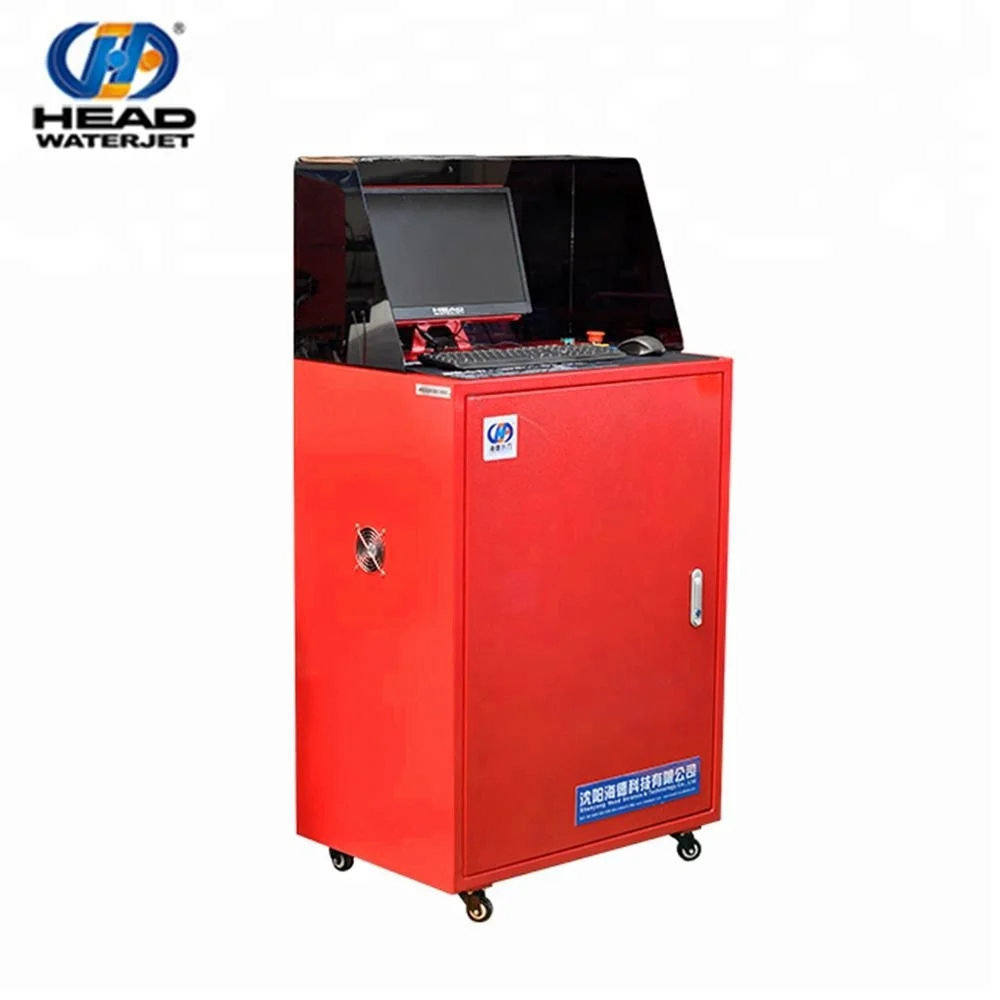

CNC Controller	Item	Parameter
	Control Method	CNC
	Display Size	19inch LCD
	Model of Cutting Text	DXF
	Model of Computer	Industrial Control Computer
	Operating System	Windows 8
	PLC	OMRON
	Cutting software advantage	Auto save and transfer common parameter
	Controller displace	Can be fit to suitable place at own will

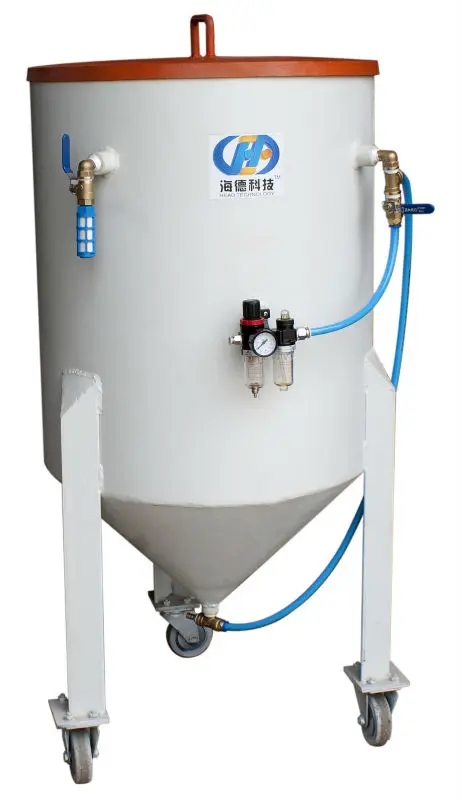

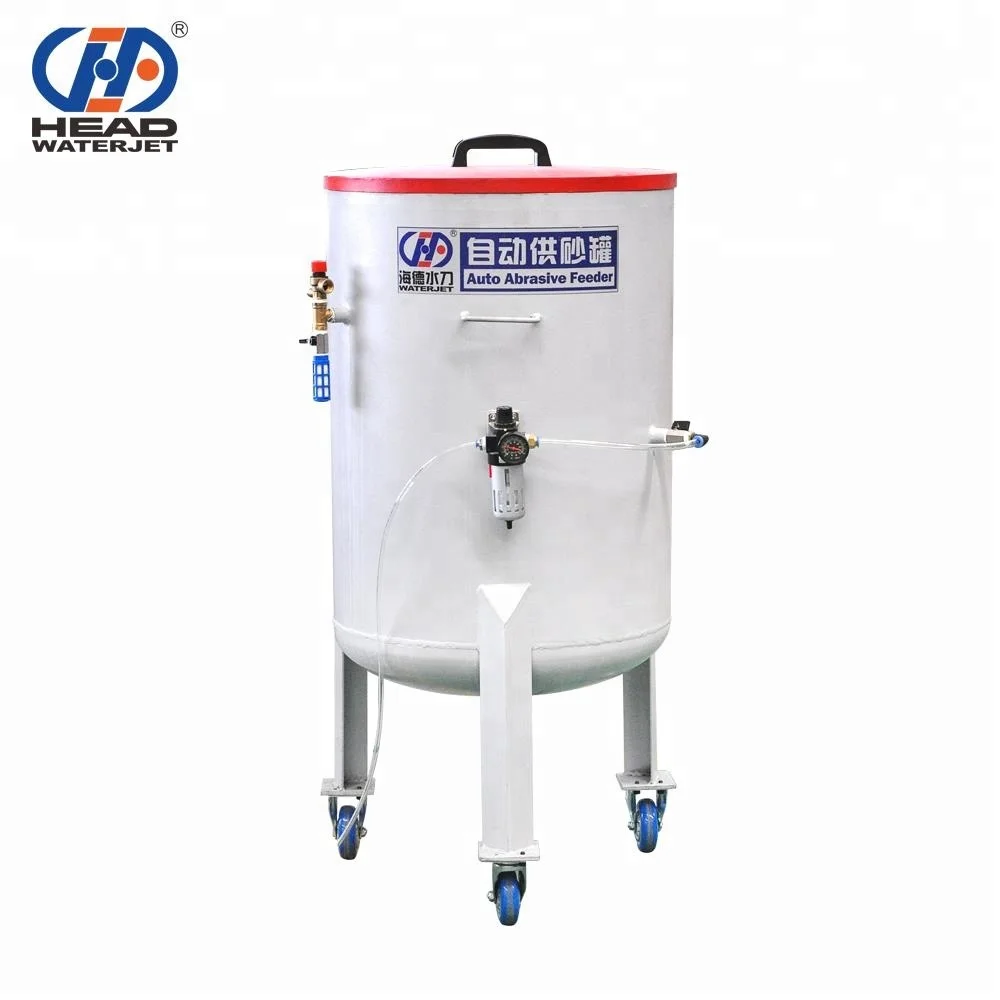

Automitic Abrasive Feeder	Item	Parameter
	Founction	Sand storage and sand delivery
	Operating	No need electrocnic control,sample operation
	Capacity	200 liters for 8 hours
	Pressure	Less than 0.2Mpa compresses gas pressure
	Level	Standard equipment of HEAD waterjet
	It can supply the sand quantity according to the adjustable sand level location tube in the sand bin, without any electrical connect units,more safe and reliable .

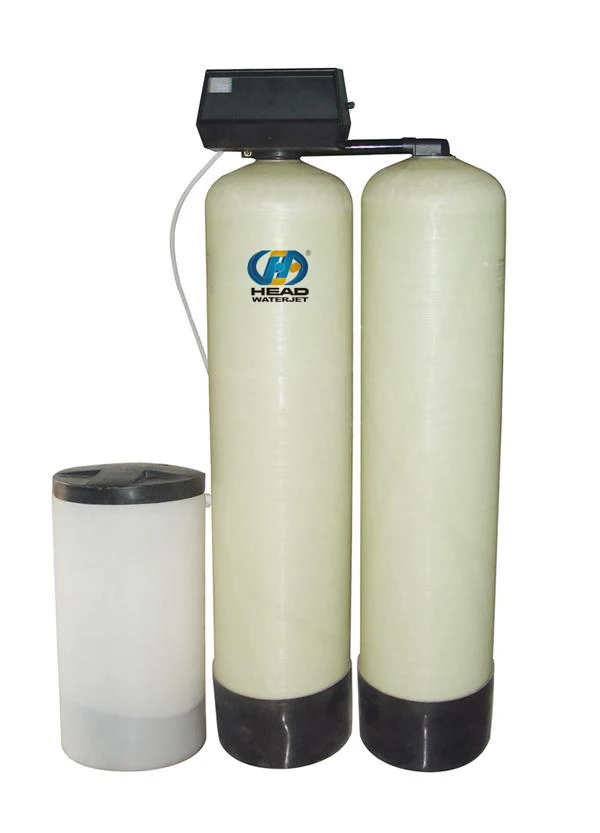

Deionization System	Item	Parameter
	Founction	Softening water
	Operation	Simple operation
	advantage	Inmproving useful life of other parts
	Groundwater,minerals contained is very high, will cause the problem of cutting accuracy after long time using.
Wireless Handel	Item	Parameter
	Founction	Wireless controlling waterjet
	Display	Real- time display condition of X,Y,Z axis
	Settings	Zero point, on/off valve set, X,Y,Z axis moving
	Technology	Advanced technology
	Special designed for HEAD water jet control system, it could realise wireless controling water jet and it can control long-distance material processing,improving work efficiency.







To ensure high quality machine, our engineers will check every machine quality before delivery. Engineer is responsible for his checking machine quality. ONE MACHINE FOR ONE ENGINNER

ONE: UHP pump testing:

1.every intensifier pump will be tested by our engineers including ultra high pressure stable, continuous pressure time etc.

2. Servo motor data adjustment to ensure machine to operate perfectly in our customer factory.

TWO: Cutting table accuracy testing:

1. every detail including loadbearing table,liner guide accuracy etc will be checked by our engineers.

2. We introduced laser interferometer to ensure cutting table high accuracy.

Every machine will be strictly tested by our works and engineers before delivery.



Quality control device,we use different inspection device to test device during diffirent processing procedure.





Advantage of  marble waterjet cutting machine

1.Cold cutting without thermal influences.

2.Flexible processing of virtually all materials with consistent high quality.

3..Material-saving production due to reduced cutting width and the nesting of several parts on a single sheet.

4.Maximum degree of material utilization due to the smallest of part separation distances (partially free of burrs) and part-in-part production.

5.Tension-free processed parts due to minimal cutting force.



For the large granite format panel  , we recommand our floor-type loading system.

The cutting table adapts latest loading design, the max overturn angle is 85,the distance between loading material and ground is only 100mm,max loadearing is 1000KG ,hydraulic lifting and some other designs can meet the requirement of marble cutting .The situation many personnels are needed for loading material is changed , nowadays only 1 person is needed for the whole loading process .simple,convenient ,greatly reduce the labor cost and minium the marble breakage.This cutting table structure is 1st time adapted in domestic.It gains high praise once used by lots of marble processing clients.
