Durable & Reliable Warehouse Used 5 Ton Overhead Crane price
- Category: >>>
- Supplier: Shaanxi Keliyuan Crane Equipment Co. Ltd. [Shaanxi China]Shaanxi
Share on (60118607607):
Product Overview
Description

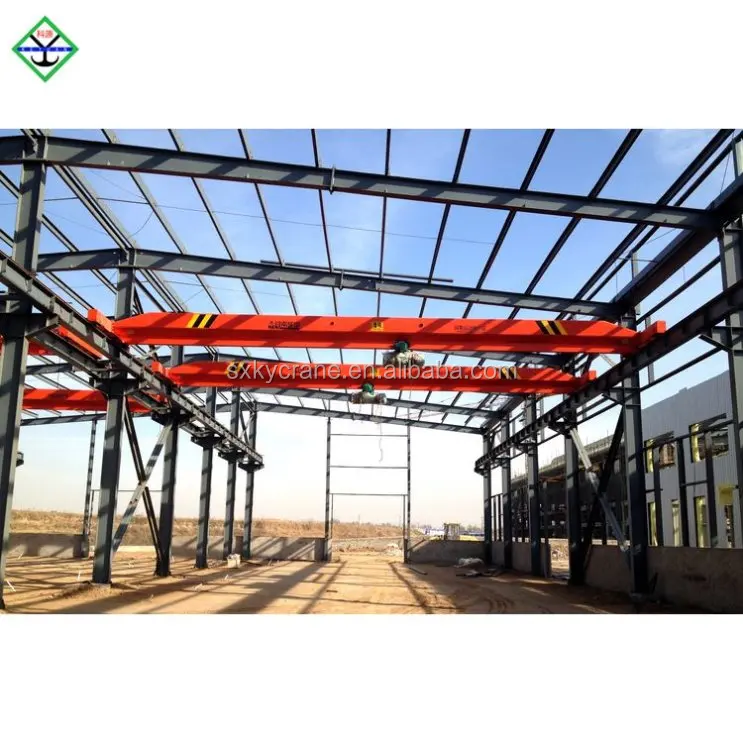

| Widely used heavy duty light weight overhead crane is used when heavier loads,wider spans or higer working frequency are required. This kind of crane is widely used in plant, workshop and warehouse for material lifting and moving. |

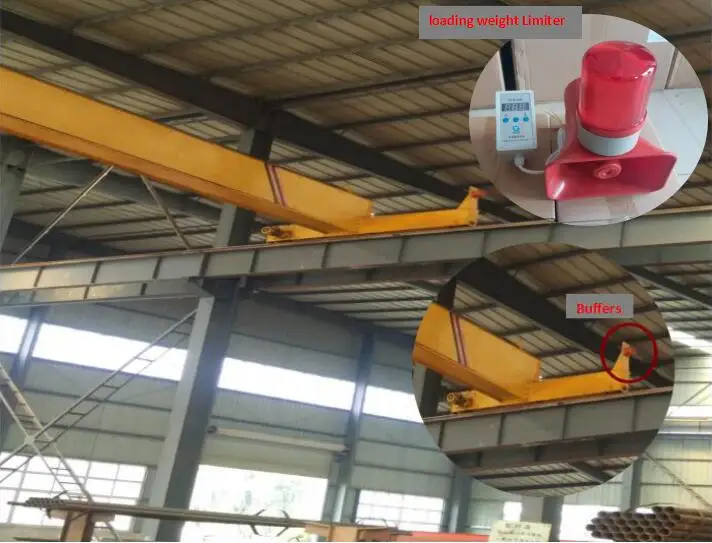

| Safety Features | Advantages |
|
|
| No. | Item | No. | Item |
| 1 | Limit Switch | 1 | Short-circuit protection |
| 2 | Interlock protection device | 2 | Uner-voltage protection |
| 3 | Buffer | 3 | Zero protection |
| 4 | Rail tongs,Anchor device | 4 | Motor overhead protection |
| 5 | Rail clear plate | 5 | Emergency stop system |
| 6 | Protective cover | 6 | Current overhead protection |
| 7 | Bus bar preventer plate | 7 | Security chain protection |
| 8 | Anti-collision device | 8 | Ground protection |
| 9 | Overhead Limiter | 9 | Main isolating switch |

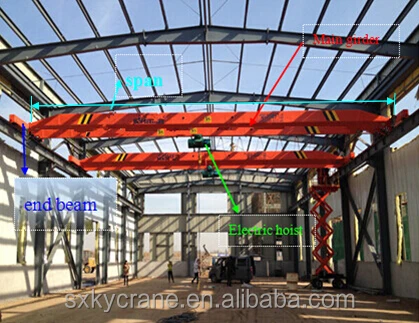

| Main Girder and Carrier beams |
|
Technical date (1-10 ton electric single girder bridge crane)
| Crane traveling mechanism | Traveling speed m/min | 20 | 30 | 45 | 60 | 75 | |
| Speed rate | 58.78 | 39.38 | 26.38 | 19.37 | 15.88 | ||
| Motor | Model | ZDY21-4 | ZDR12-4 | ||||
| Power kw | 2*0.8 | 2*1.5 | |||||
| Rotation speed | 1380 | ||||||
| Lifting mechanism (electric hoist ) | Model of electric hoist | CD1 MD1 | |||||
| Lifting speed m/min | 8 0.8/8 | ||||||
| Lifting height m | 6.9.12.18.24.30 | ||||||
| Trolley traveling | Traveling speed m/min | 20/30 | |||||
| Model of traveling motor | Taper sqirrel-cage | ||||||
| Working duty | A3-A5 | ||||||
| Power supply | 3ph 380v 50hz | ||||||
| Wheel diameter mm | 270 mm | ||||||
| Track surface width | 37-70mm | ||||||
Refer product
If you need more details , pls kindly inquiry me !
We will quote you a very detail solution with in 24 hours.
Our addvantage :
Customizing according to every client .
Our cranes are exported to all over the world
Double girder overhead crane in Hongkong,Bangladesh,Tunisia ,Saudi Arabia,in Uzbekistan,
JIb crane project in Australia ,Hungary,Bahrain
Single girder overhead crane in USA ,India ,Kazakhstan,Malta
Lifting equipment in Pero ,Ireland,Holland ,Malta ,Singapore,Philippines,Argentina,Paskistan ,in Georgia
Cast heavy duty double bridge crane in Bangladesh . in Georgia
Crane parts in Saudi Arabia ,Indonesia,Vietnam,UAE ,
Gantry crane project in indonesia,kenya,Tanzania ,Lraq .Iran
