MEMS stable and reliable single axis tilt angle sensor inclinometer analog could be customized
General description

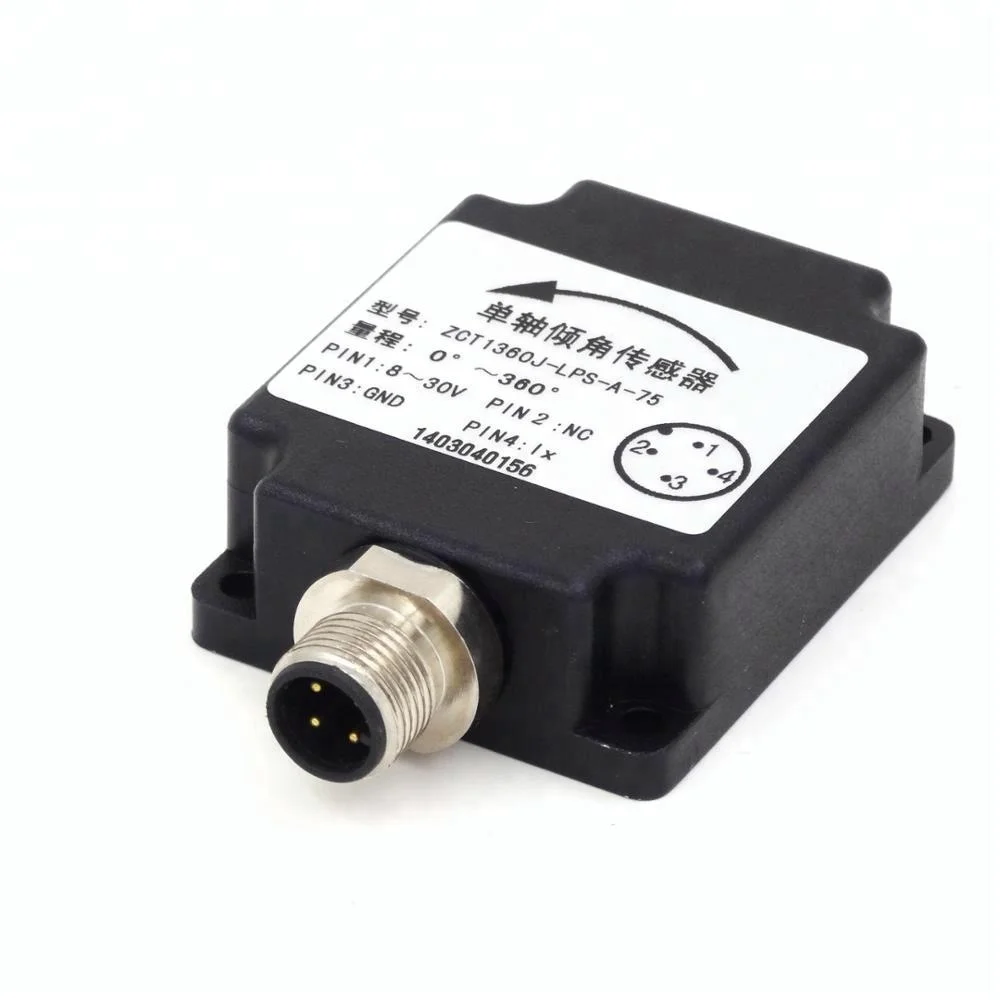

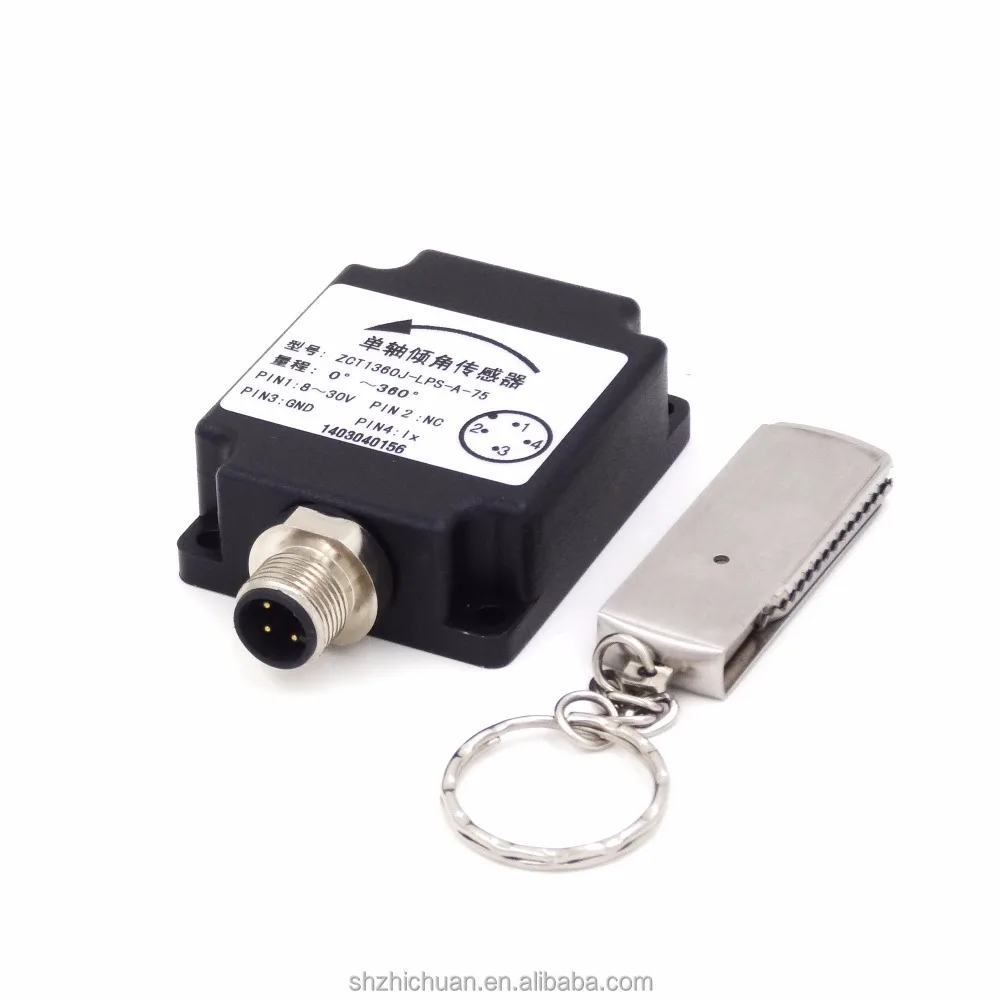

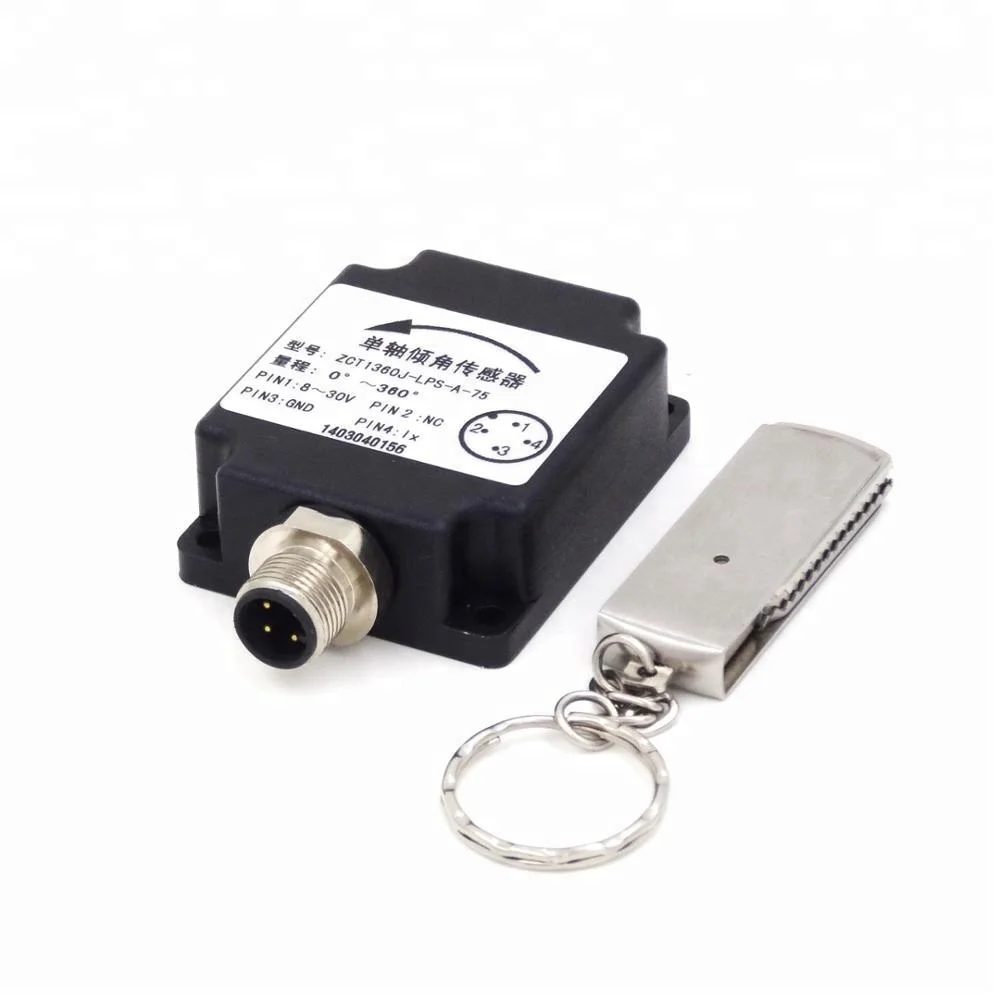

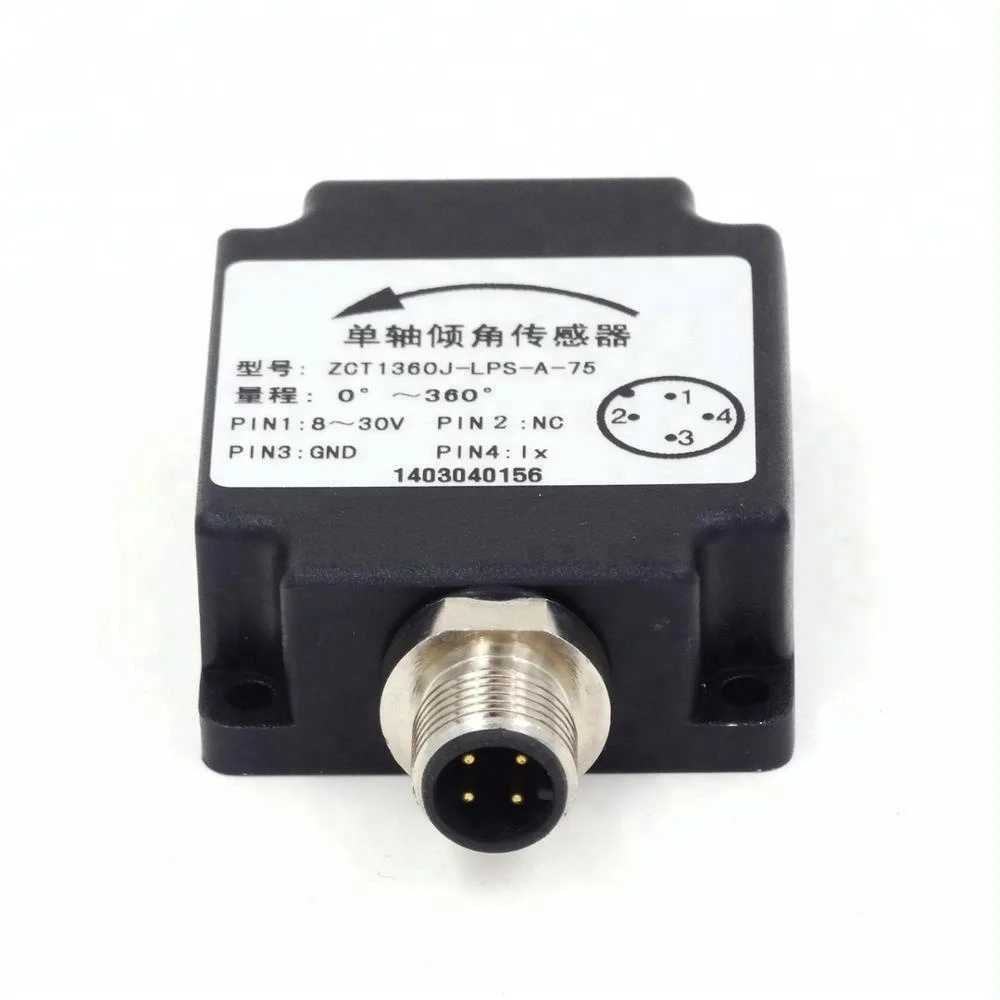

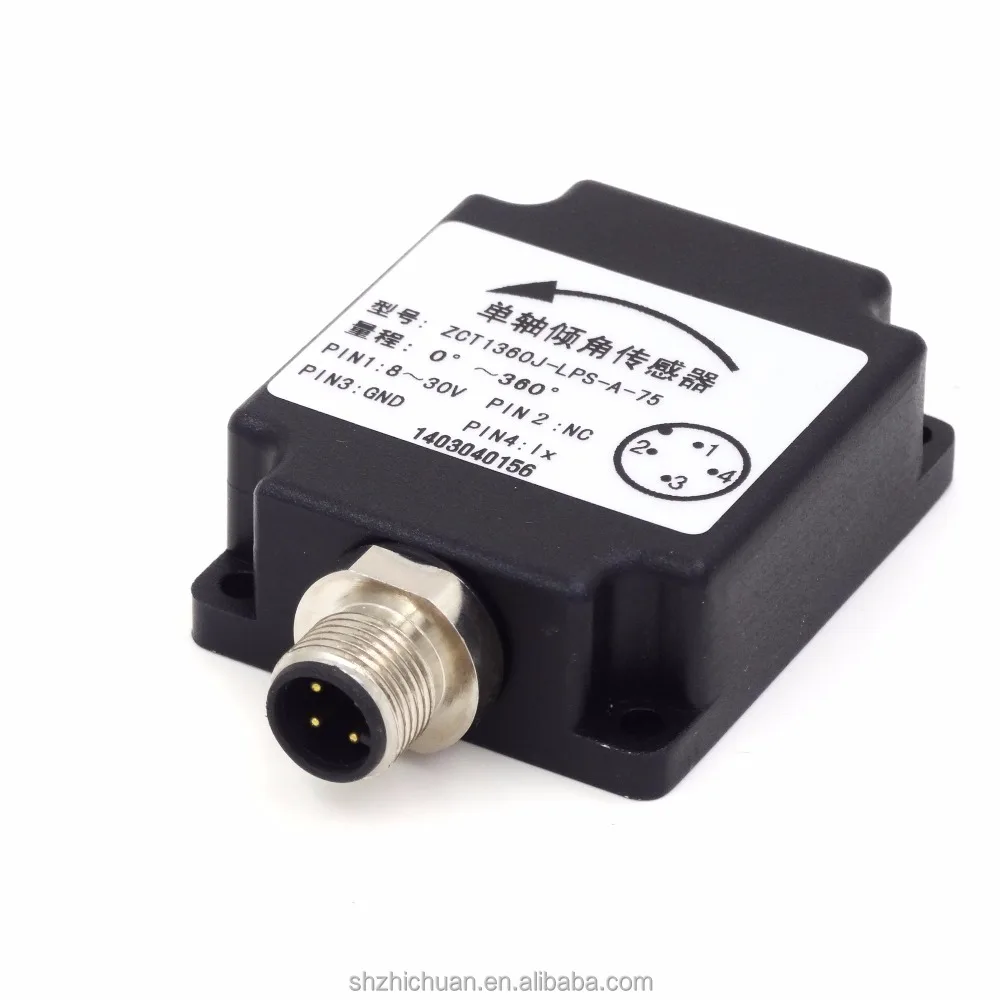

ZCT1XXJ-LPS-A-7X is current type one axis single axis tilt angle sensor inclinometer analog, with range from 0-360 deg, output standard 4-20mA. It is anti-jamming characteristic, adapt to long distance signal transmission.
Features
1.Standard 4-20mA.
2.IP67
3.Shockproof
Applications
1.Angle measurement of machine arm
2.Load moment limiter
Technical data
Supply voltage
8
30
quiescent state current output
Vcc=24V,without
11
15
Load resistance
VCC=24V
600
Operating temperature
-40
+85
Waterproof
IP67
Response frequency
optional
0.5
2.5
20
Housing size
54*44*18
Measuring range
Single axis
0
360
Zero current output
4
20
Resolution
0.1
Non-linearity
method of the minimum squares
25°C
±0.15
±0.3
-10°C~+60°C
±0.3
±0.6
-40°C~+85°C
±0.4
±0.7
Sensitivity
ZCT1180J-LPS-A-7X
87.89
88.89
89.89
Zero current output
3.92
4
4.08
Zero temperature drift
-10°C~+60°C
±0.5
±0.8
-40°C~+85°C
±0.8
±1

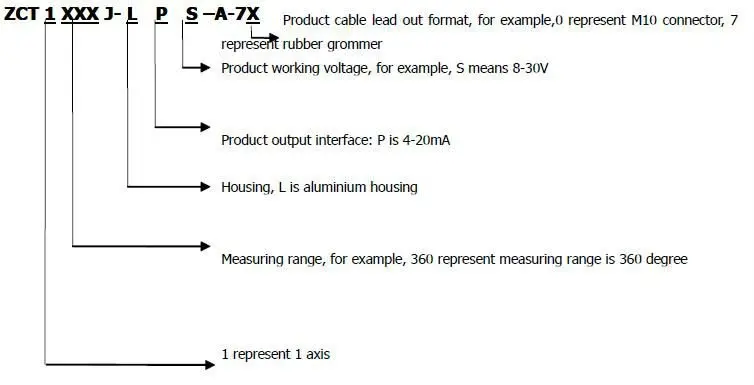

Part# definition

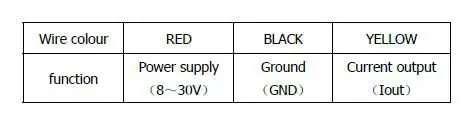

Wire connection

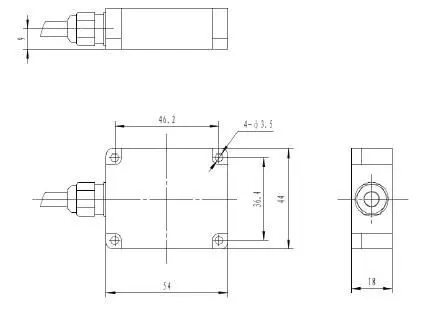

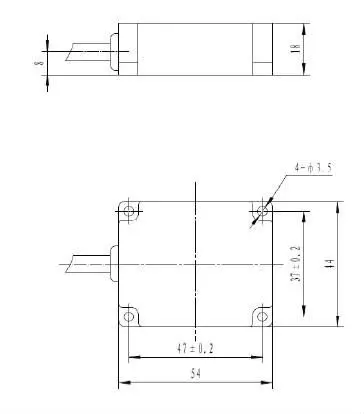

Installation and housing dimension
1. ZCT1XXXJ-LPS-A-70 size:
2. ZCT1XXXJ-LPS-A-77 size :
Our service
1.Experience staffs answer all your question in fluent English.
2.Customizde design is available.OEM are welcomed.
3.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers
Company and product information related
we are the manufacture of tilt sensor in shanghai china.Our sensor is based on MEMS technology and the core chip is from VTI.As a professional manufacturer of tilt sensor in China, we can provide following service for you:
