Product Overview

Description

WENLING YOUNIO WATER METER CO.,LTD



APPLICATION

Measuring the volume of cold potable water passing through the pipeline



WORKING CONDITION

Water temperature: ≤50°C for cold water meter

                                    ≤90°C for hot water meter

Water pressure: ≤1MPa or 1.6MPa optional

(10bar or 16bar optional)



MAXIMUM PERMISSIBLE ERROR

In the lower zone from Q_min inclusive up to but excluding Q_t is ±5%

 In the upper zone from Q_t inclusive up to and including Q_s is: cold water meter ±2%, hot water meter ±3%.

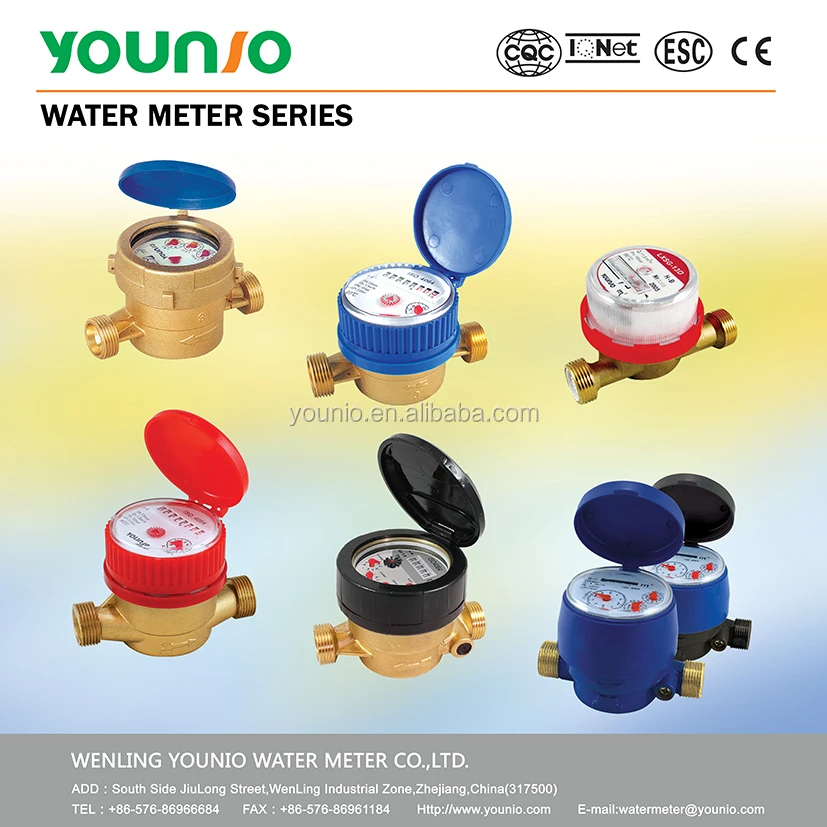

LXSG-13D7 ~20D7  CLASS C



Features

Small,light.

For cold water

Dry-dial,magnetic drive, protected against external magnetic tampering

Vacuum-sealed register, frost resistant, keeps clear reading for long time

Register can be rotated in any direction for convenient reading

Brass body or plastic body, optional

Brass body can be painted or nickel coated

High accuracy;

The meters conform to ISO4064 Standard Classs C

Installation: Horizontal



Technical data

DN/Q	Q4=1.25Q3	Q3	R=Q3/Q1	Q2=1.6Q1	Q1	R=Q3/Q1	Q2=1.6	Q1
	l/h			l/h			l/h
15	3125	2500	80	50	31.25	100	40	25
20	5000	4000	80	80	50	100	64	40





Nominal size DN(mm)	Class of measurement	Overload flow-rate qs(m/h)	Permanent flow-rate qp(m/h)	Transitional flow-rate qt(l/h)	Minimum flow-rate qmin(l/h)
15	C	3	1.5	22.5	15
20	C	5	2.5	37.5	25





Overall dimensions and weight

Type	Size (mm)	Length (mm) L	Width (mm) W	Height (mm) H	Connecting Thread D	Weight (kg)
LXSG(R)-13D7	15	115	79.5	91.5	G3/4"B	0.64
LXSG(R)-20D7	20	130	79.5	91.5	G1"B	0.7





Company's Advantages



Cheast prices than any other water meter companies in China.

Our goal is to help your business buy what money can not.

Choice us is your smart,sensible and wise choice.



OEM Service can be offered.





Packing list
ITEM NO.	PACKAGE			PCS/CTN	N.W.	G.W.
	L(cm)	W(cm)	H(cm)		(KG)	(KG)
LXSG-13D	37.5	32.0	21.5	20	13	14
LXSG-20D	44.5	30.5	20.0	20	18	19



27/9/2011, The Water Meter Production Base of Zhejiang Younio ( Zhejiang Younio Water Supply Equipment Co., Ltd) standed alone and set up a wholly-owned subsidiary - Wenling Younio.(Wenling Younio Water Meter Co.,Ltd), whose registered capital is RMB30 million.

08/12/2011,Zhejiang Younio signed an official agreement with Jiangxi Sanchuan which state that Jiangxi Sanchuan will be controlling shareholder and bring Wenling Younio going public.

01/01/2012,Wenling Younio start to run And we are planning to be the biggest water meter export base in China within next three years.



 Wenling Younio. covers an area of more than 5000 square meters with a staff of more than 150,owning design and R&D center,accessories production center, whole machine production center,inspection and testing center.We are now capable of producing about 2 million pieces water meters annual.We have successively passed the certificate of ISO9001:2008 Quality System Certification, the certificate of ISO14001:2004 Environmental Management System Certification and the certificate of GB/T 28001:2001 Occupational health and safety management system certification.With a wide variety and a complete range of specifications.Our products are exported to many countries in the world such as Eastern Europe,South America,Africa and the Middle East,etc.Exports accounted for more than 85%
