garden solar lamp Item Type and IP65 IP Rating led garden solar lamp/10w 20w street light

Product Overview

Description

garden solar lamp Item Type and IP65 IP Rating led garden solar lamp/10w 20w street light



Joysolar, since 1984!

[Configuration Parts]

1. solar panel for supplying power

2. solar battery for energy storage

3. controller for time controlling

4. Led light source

5. Light pole

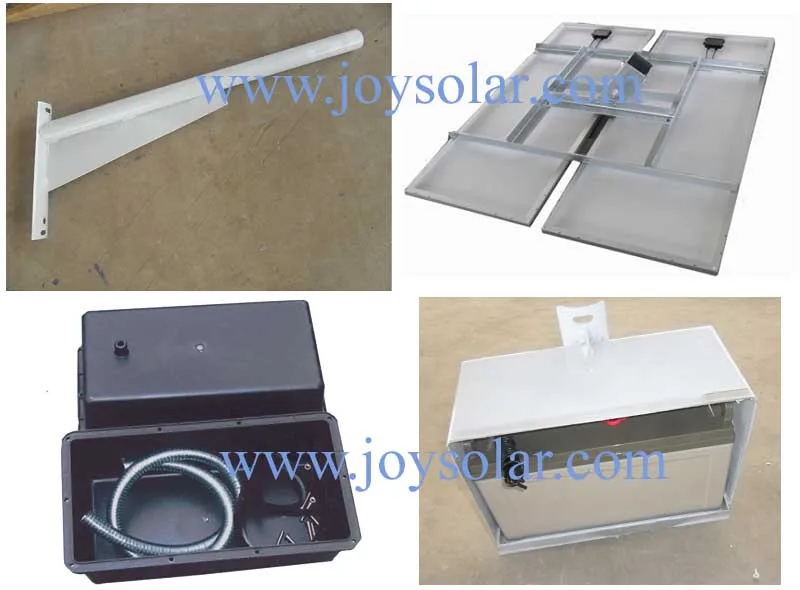

6. Accessories include battery box, panel bracket, underground fixture, wires.

[Normal Configuration for reference]

Model NO.: JYSL-8001   led garden solar lamp
Name	Specification	Quantity	Parameter
Solar panel	180W/12V	1 piece	* Poly / Mono solar cell; * 156x156mm, 36piece. *
Light source	LED50W/12V	1 piece	* Woking Voltage DC12V; * General luminous:6000lm; * LED Luminous Efficiency:120lm/W, * Center illuminance:25lx,Ra>80; * Color temperature:2700-7000K; * Protection Grade :IP65; * Working life ≥ 50000hours.
Controller	20A	1 piece	* PHOCOS CIS Series; * 12V/24VAutomatic identification; * light control and time control, * Protection Grade IP68;
GEL Battery	12V/150AH	1 piece	Advantage: * Small self -discharge rate; * The better deep discharge; * Top charge acceptance; * Large capacity; * Strong start in low; * The good shock resistant and Anti-temperature charge Production
Pole and other steel fitting	8M	Set	Best steel Q235 or Q345; hot dip galvanized and powder coated .
others	Wires, nut and bolt, underground fixture etc.
Packing Quantity	80set/40FT container

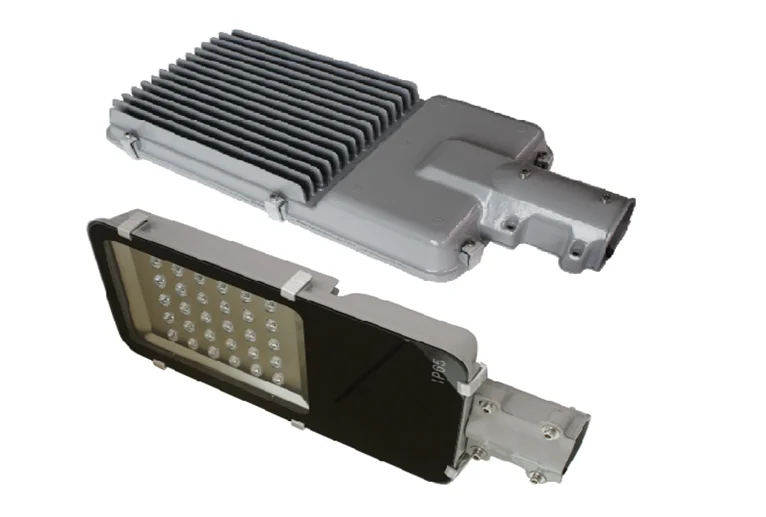

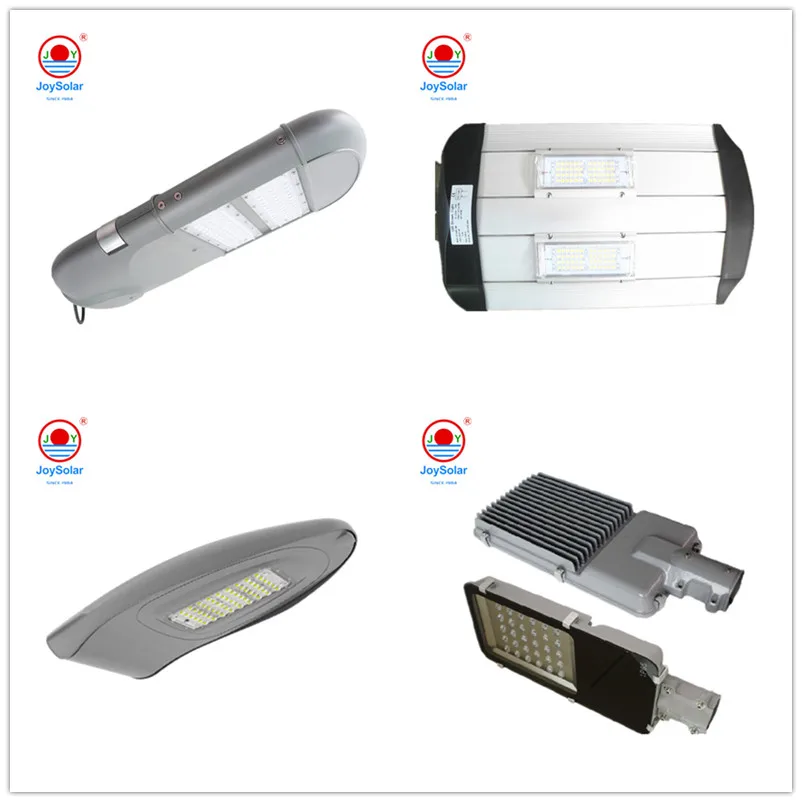

[Advantage--LED light source]

1.Using vacuum coating launcher

2.high purity aluminum reflection cavity

5.high-power LED light source

3.light shell and heat dissipation body

4.high strength of tempered glass cover

5.high-power LED light source

6.efficient constant - current source

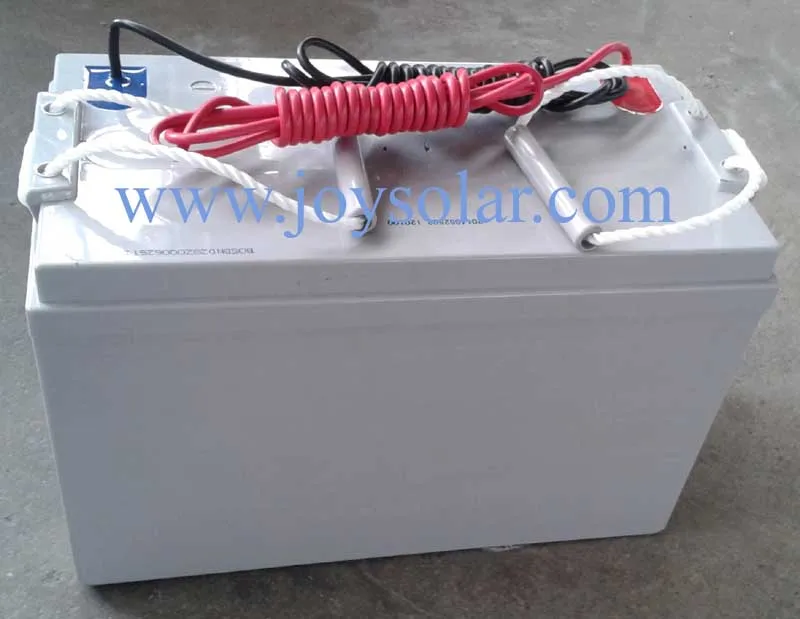

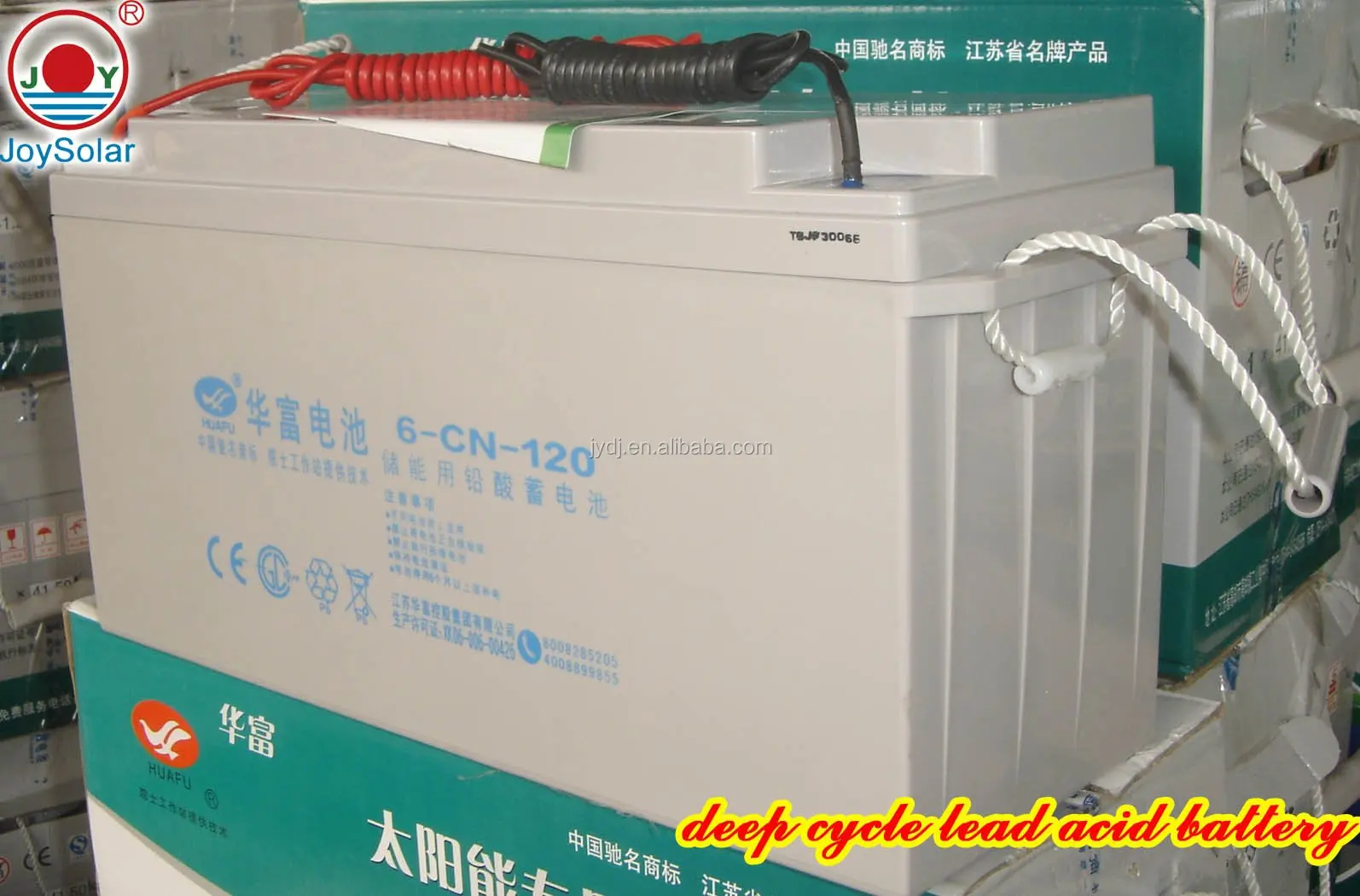

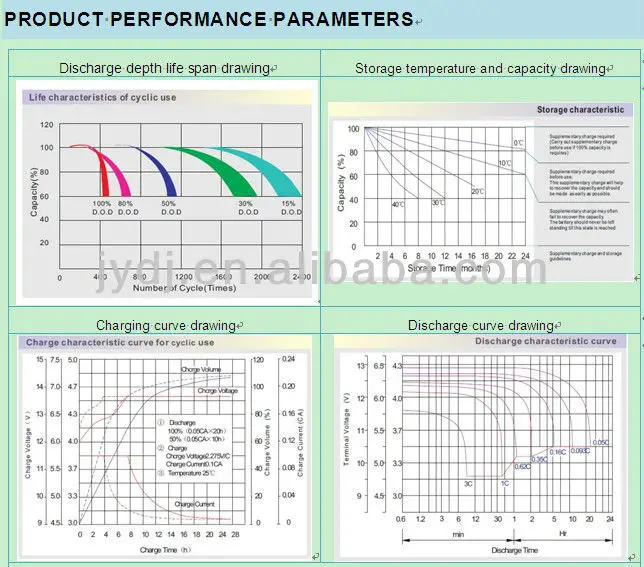

[Advantage--solar battery]

1. good performance of bearing  overfull charge or overfull discharge

2. Long storage life

3. Good performance of resistance to temperature change

4. low temperature starting ability

5. No acid mist, Environmental pollution free

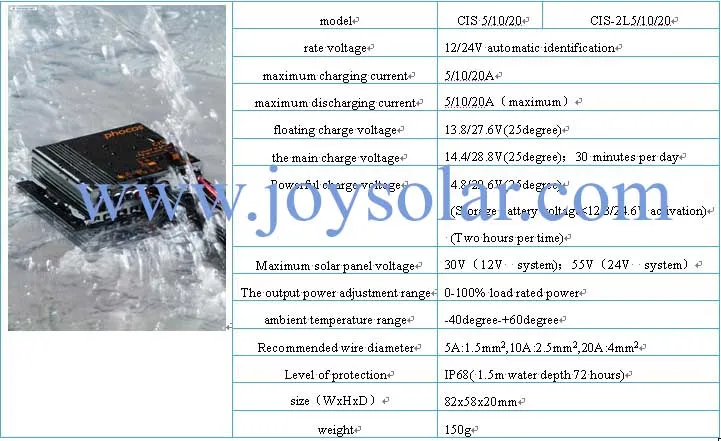

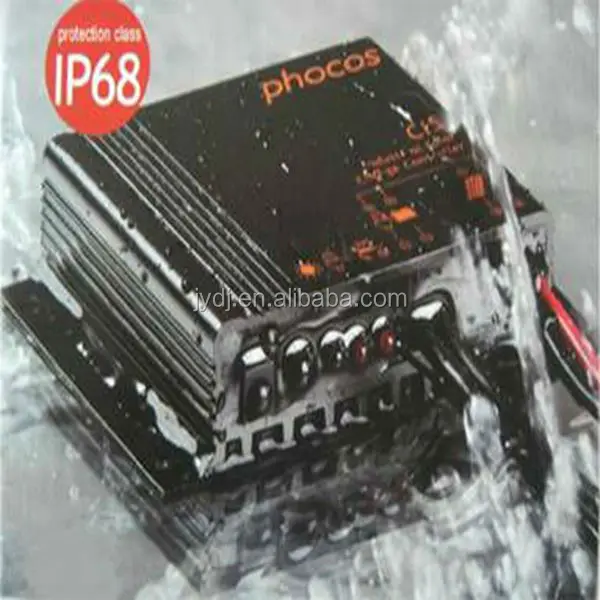

[CONTROLLER DESCRIPTION]

*protection grade: IP68, effective dust-proof and water-proof
*sturdy and durable aluminium alloy case, anti-corrosion
*four stages charge control(main charge,powerful charge,equalizing charge,float charge)
*Single and double street light output contro l flexible
*infrared remote controller (CU) set, simplicity and convenience operator
*LED status indicate

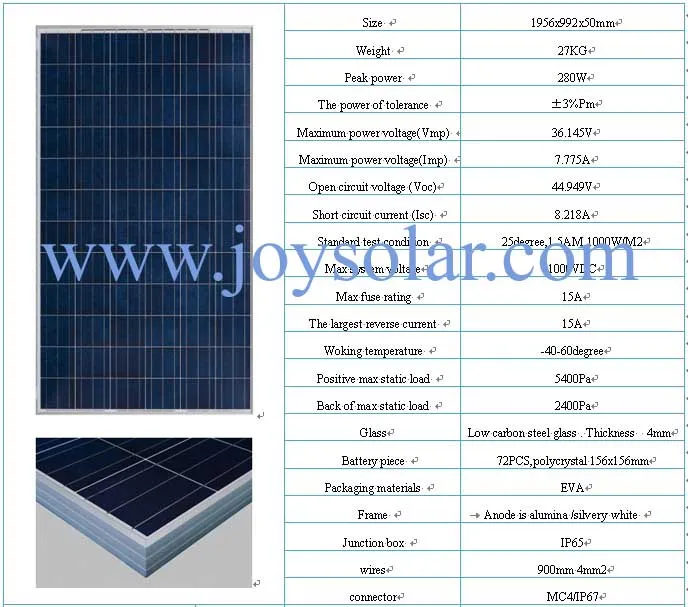

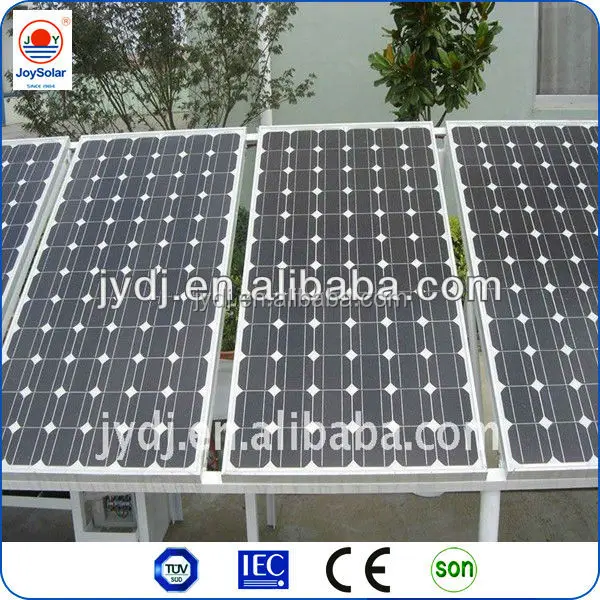

[SOLAR PANEL DESCRIPTION]



1. We could ensure the conversion efficiency of solar panel with high efficiency polycrystalline cells and high transmittance tempering glass.

2. Solar power float ±3% , it could ensure our customer get the power from solar panel, reduce the power loss caused from mismatching power.

3. 5 years’warranty, no less than 90% of standard output power is within 10 years, 80% of standard output power is within 25 years.

4. Product constitution

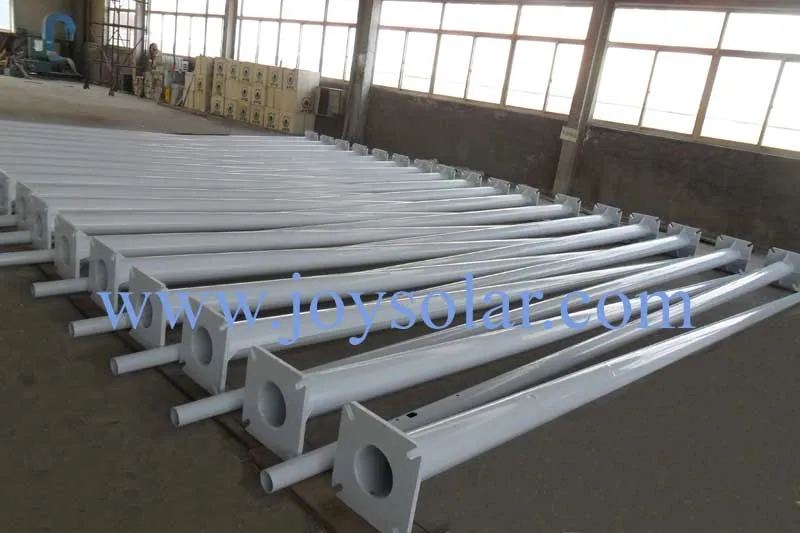

[POLE AND OTHER FITTING]

*** Components surface is sprayed with the powder

*** Hot galvanized anti-corrosion treatment, smooth surface, non-discolouring , no pinhole hang, no flow, no peeling phenomenon ;

*** Galvanized layer thickness is not less than 85 microns, the coating thickness is not less than 100 microns.>





[CERTIFICATE AND PATENT CERTIFICATE]

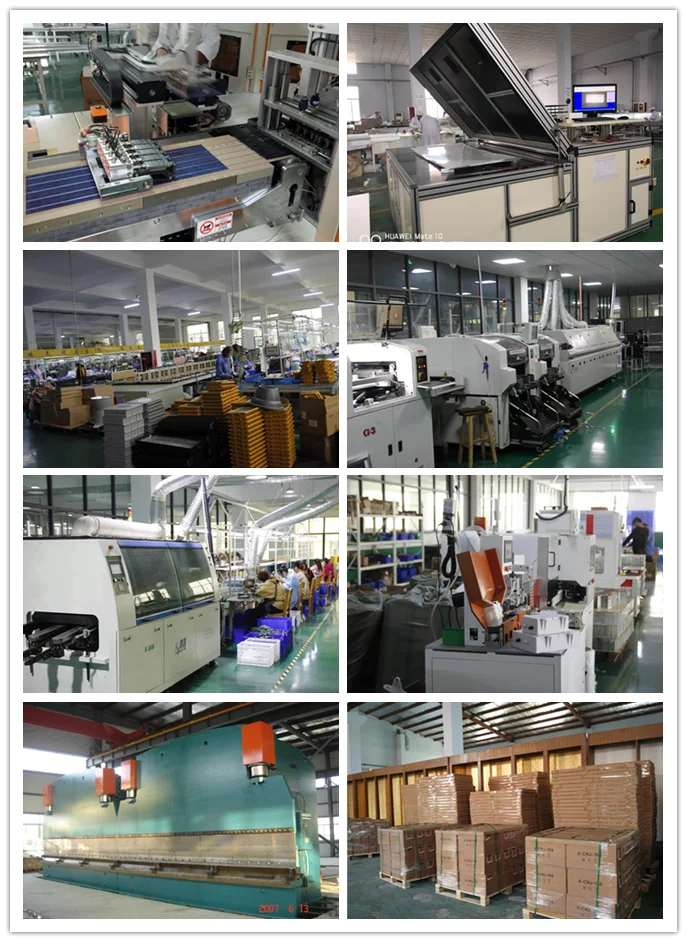

 [PRODUCING PROCESS]

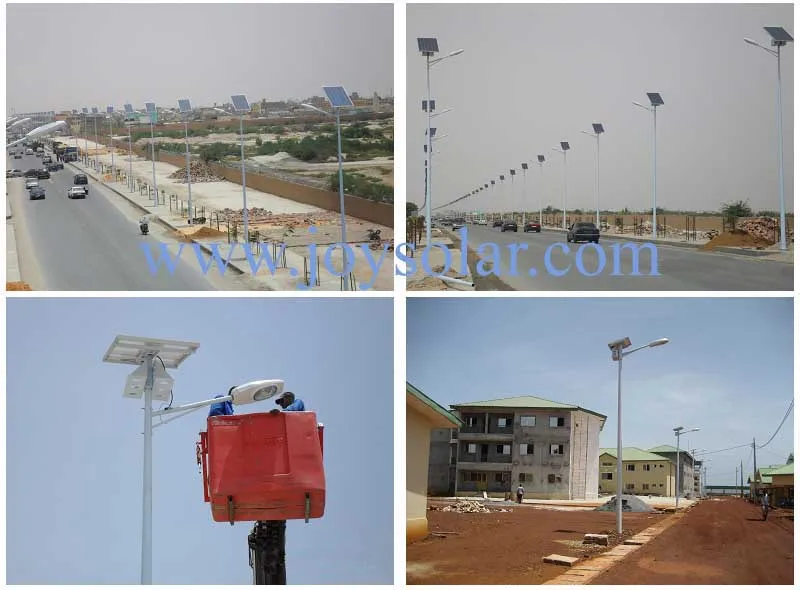

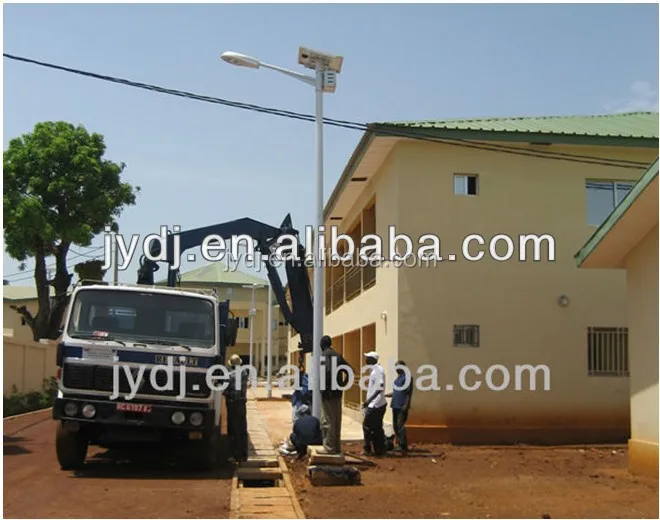

[APPLICATION RANGE AND 20w solar garden lighting garden CASE]





 Our company







FAQ:

[Q:] Why to choose led solar street light?
[A:] LED solar street light has the advantage of energy-saving, environment-friendly, easy to install, maintenance-free, etc.

[Q:] How about the replacement between solar led street light and high press sodium light?
[A:] 50w led solar street light can replace the 150w high press sodium light.

70w led solar street light can replace the 250w high press sodium light.
90w led solar street light can replace the 400w high press sodium light.

[Q:] How to choose solar led street light?
[A:] Our technician will design solar street light according to listed factors:
1. The height of pole
2. The working time of solar street light each night you need
3. The proportion of the rainy and cloudy days in installation place of solar street light

Q:] Can I have the sample of solar street light?
[A:] Suer, you can order the sample for testing the quality of solar street light, but the price of sample is different from the large quantity.

[Q:] Can I have my own logo on the solar street light?
[A:] Yes, OEM service is available for us!



****Low cost****
