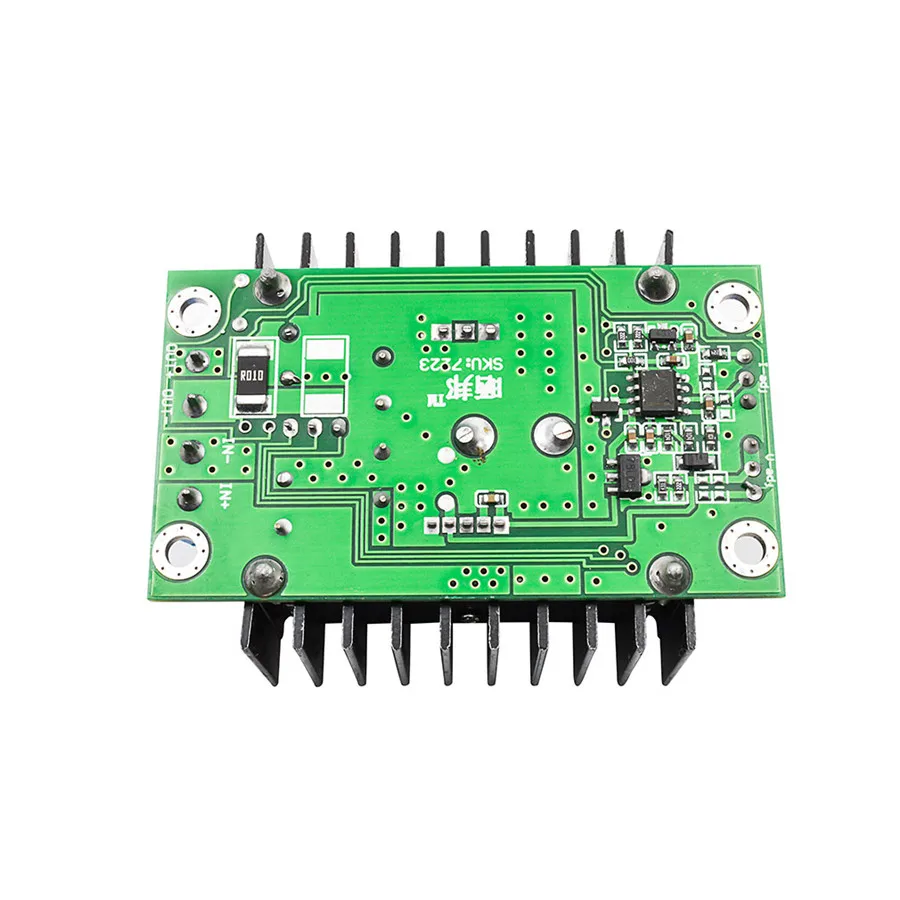

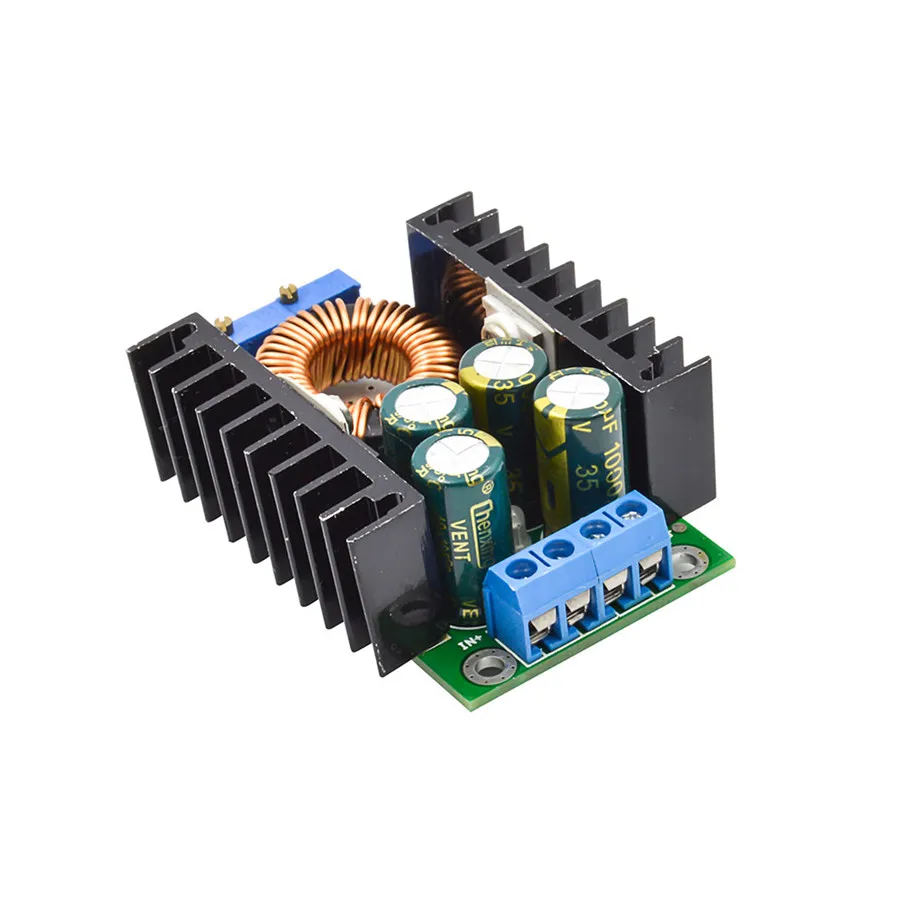

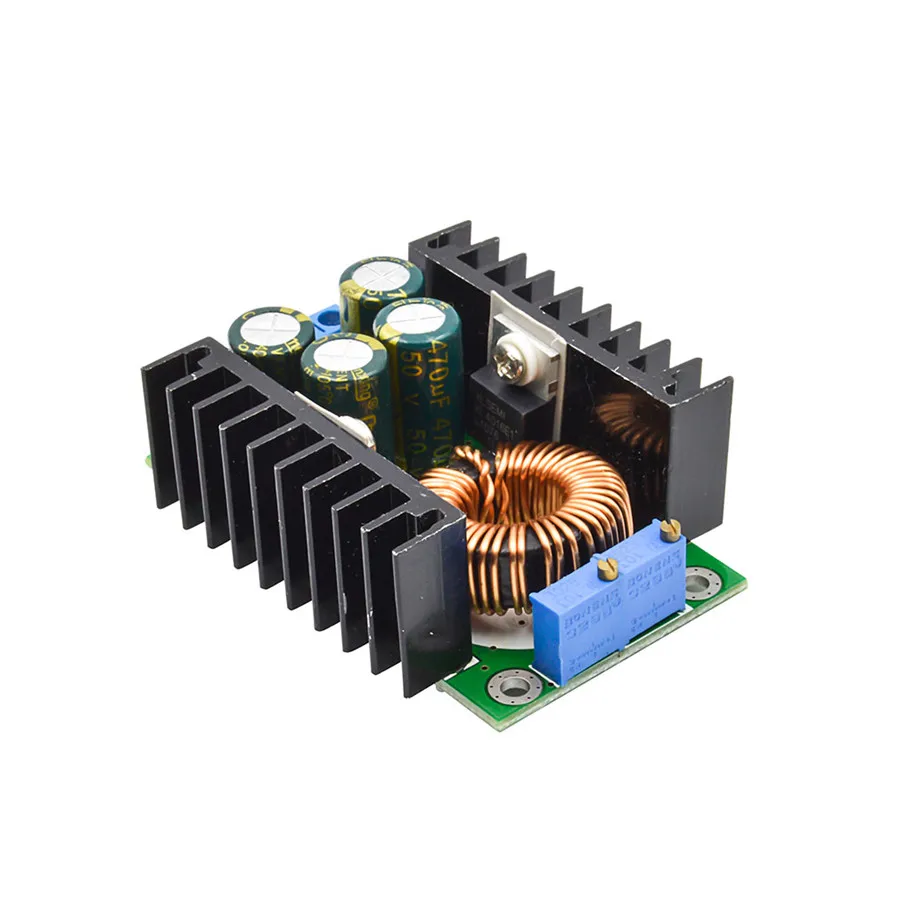

XL4016 DC DC CC CV constant current voltage 300w buck step dowm converter 7 32V to 0.8 28V 12a max

Product Overview

Description

 DC DC CC CV constant current voltage 300w buck step dowm converter 7-32V to 0.8-28V 12a max



Introduction: The peak output current of 12A

The constant current function is very stable, the temperature drift is less than 5%(20-60℃,5A).



Parameters:         Module Properties: non-isolated step-down module, constant current and constant voltage module (CC CV)

Input voltage: DC 7-32V

Output voltage: DC 0.8-28V (continuously adjustable)

Output Current: 12A MAX  (please add cooling fan if power tube temperature exceeds 65℃ )

Constant current range :0.2-12A ( sontinuousely adjustable )

Dropout voltage: 1V         Output Power: Maximum power around 300W

Conversion efficiency : up to approximately 95%

Output ripple : about 50mV when input 24V output 12V 5A

Operating temperature : Industrial grade (-40 ℃ to +85 ℃)

No-load current : Typical 20mA        Load regulation : ± 1% ( constant voltage)

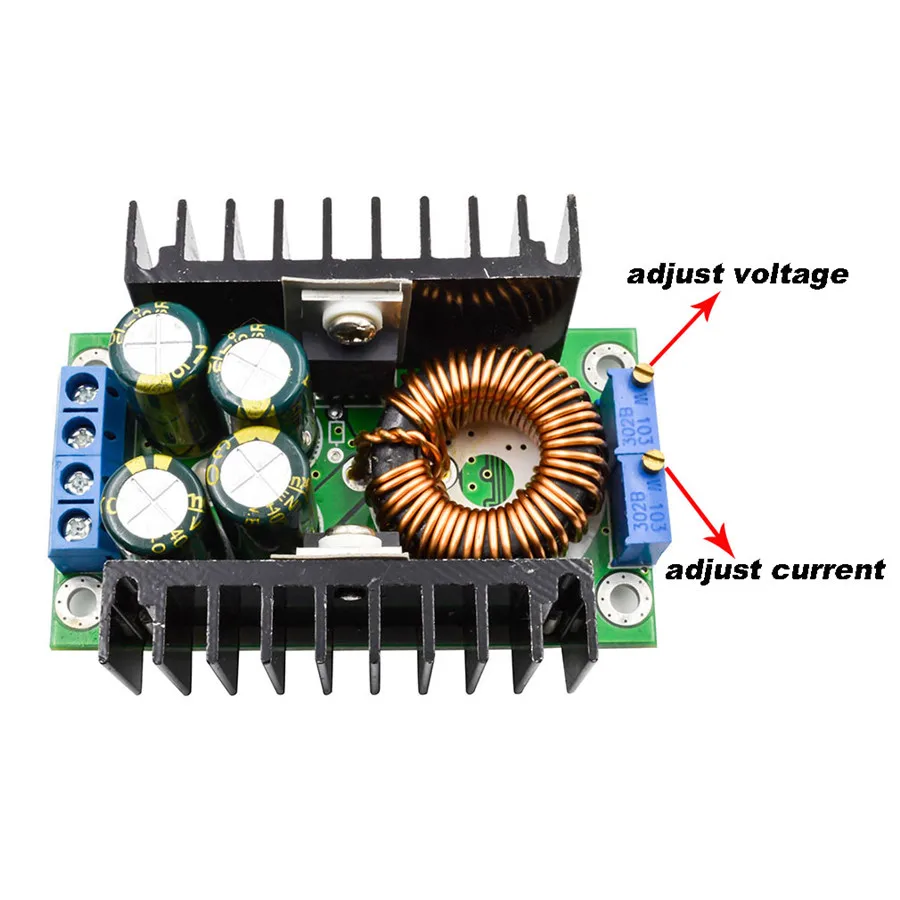

Voltage regulation : ± 1%         Dynamic response speed : 5% 200uS         Potentiometer adjustment: clockwise ( increase ) , counterclockwise ( decrease ). The potentiometer close to the input port is for voltage adjust (CV), the potentiometer close to the output port is for current adjust(CC).

Input Reverse Polarity Protection: No

Output prevent backflow : No



size:about 65*47*23.5mm



Package :

1 X DC-DC power
