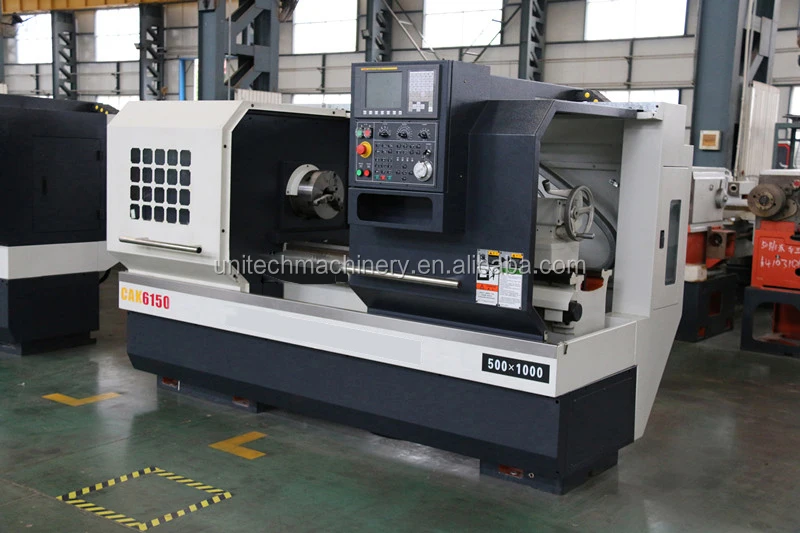

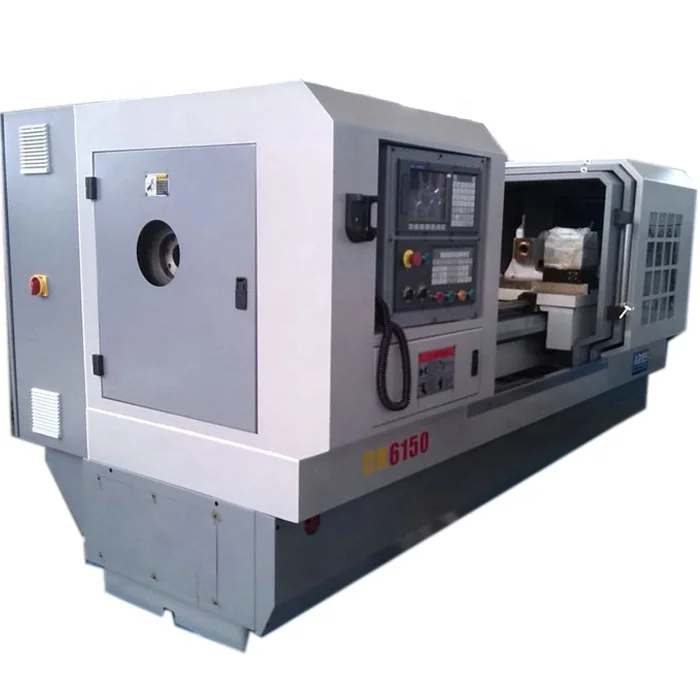

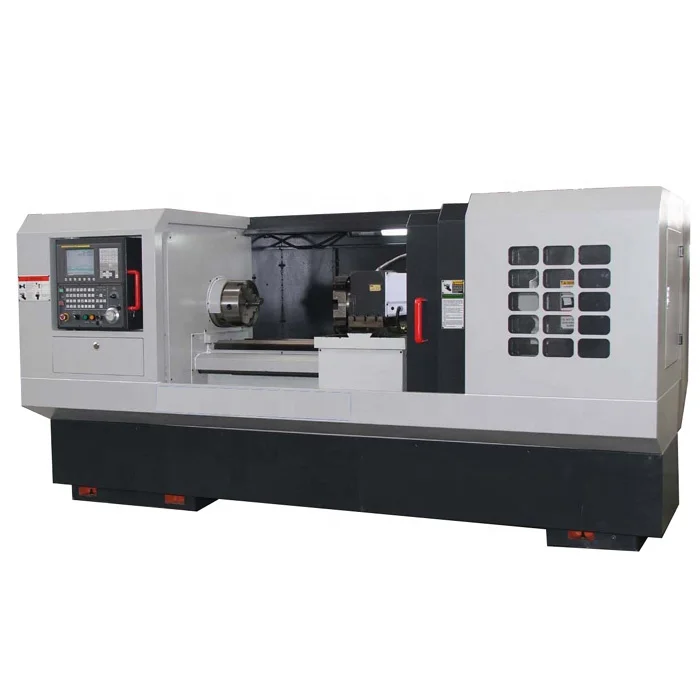

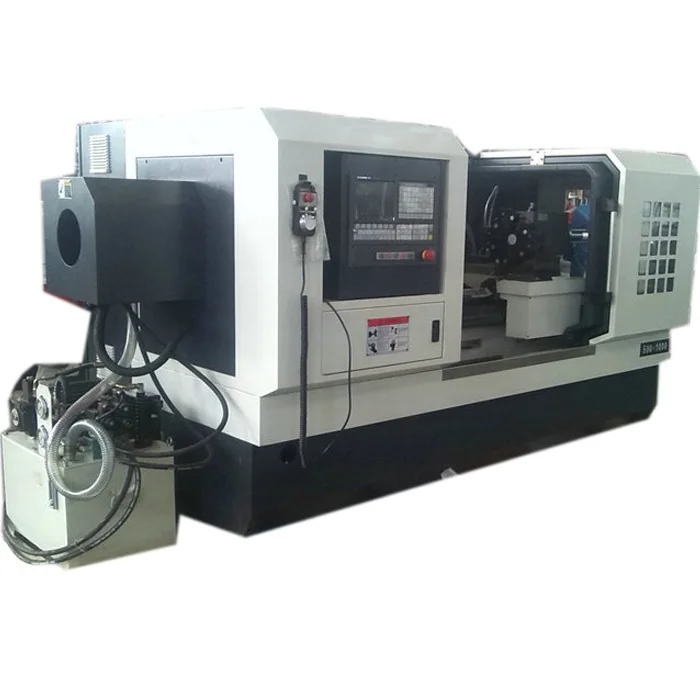

UCK6150 High precision automatic CNC lathe
Product Description
Specifications of High precision CNC automatic lathe :
| Specifications | UCK6150 |
| Max .Swing over bed | 500mm |
| Max.swing over carriage | 300mm |
| Max. Work piece Length | 750/1000/1500/2000/3000mm |
| Spindle taper | MT6(Φ90 1:20) |
| Bed width size | 400mm |
| Max.weight work piece between centers | 300kgs |
| Chuck size | C6 (D8) |
| Thru-hole of spindle | 52mm(80mm B type)(105mm C type) |
| Spindle speeds | 21-1620rpm(I 162-1620 II 66-660 III 21-210) |
| Spindle nose | ISO, C6/D8 |
| Tailstock center sleeve travel | 150mm |
| Tailstock center sleeve taper | MT5 |
| Positioning accuracy | 0.03/1000MM, Max.0.05MM |
| Repeatability accuracy | 0.006mm |
| Flatness | 0.025/300mm |
| X/Z rapid traverse | 4/6 m/min |
| Spindle motor | 7.5kw |
| Rapid moving speed | X-5000mm/min Z--10000MM/min |
| Feeding rate | X:1-2000mm.min, Z:1--2000MM/MIN |
| Z--axis travel | 600/850/1350/2850mm |
| X-axis travel | 260mm |
| Coolant pump: | 90w |
| Coolant pump | 5m |
| Coolant pump fluit | 25L/min |
| Tool holder no. | 4 |
| Tool shank size | 25X25 |
| Packing size (mm) | (L*W*H) |
| Overall dimensions for 750 | 2550*1550*1700 |
| Overall dimensions for 1000 | 2750*1550*1700 |
| Overall dimensions for 1500 | 3250*1550*1700 |
| Overall dimensions for 2000 | 3700*1550*1700 |
| Overall dimensions for 3000 | 4710*1550*1700 |
| Weight (kg) | G.W. N.W. |
| Overall dimensions for 750 | 2120/2900 |
| Overall dimensions for 1000 | 2240/3000 |
| Overall dimensions for 1500 | 2350/3200 |
| Overall dimensions for 2000 | 2740/3400 |
| Overall dimensions for 3000 | 3600/4200 |
Standard accessories
1. GSK 980TDC CNC controller or SIEMENS 808D CNC controller
2. 3- jaw manual chuck diameter 250mm
3.center MS GB9204.1-88
4. Electric Lubrication
5. 4 Positions tool post
6. Work light
7. double ended wrench, hexagonal wrench, square box wrench,hook spanners.
8. screwdriver
9. manual tailstock
10.hand push oil gun
11. foundation bolts
12.English operation manaual of machine, automatic lubrication device instruction,CNC SYSTEM instruction,quality passed testing booklet.
Optional accessories
1. FANUC or SIEMENS CNC controller
2. Spring fastener
3. 6 positions tool post
4. hydraulic tailstock
5. hydraulic chuck

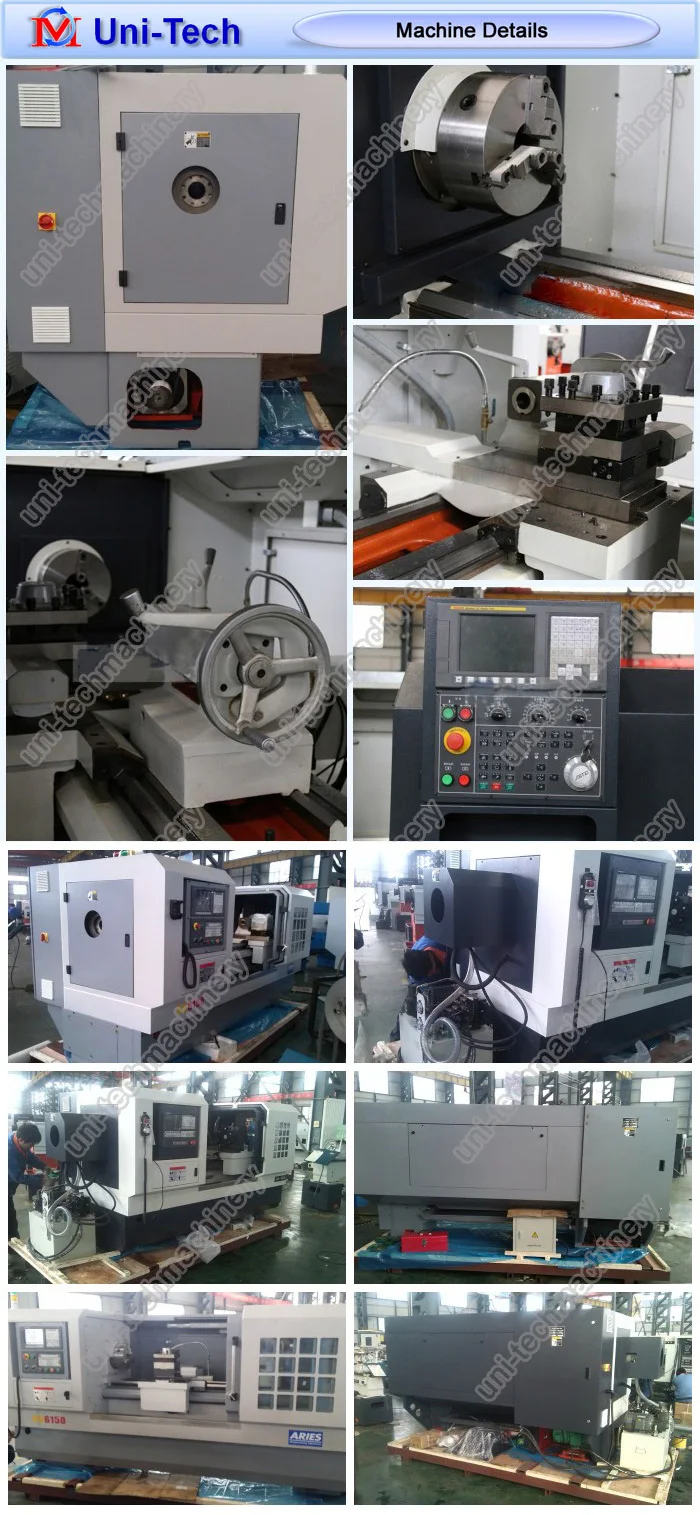

More photos
