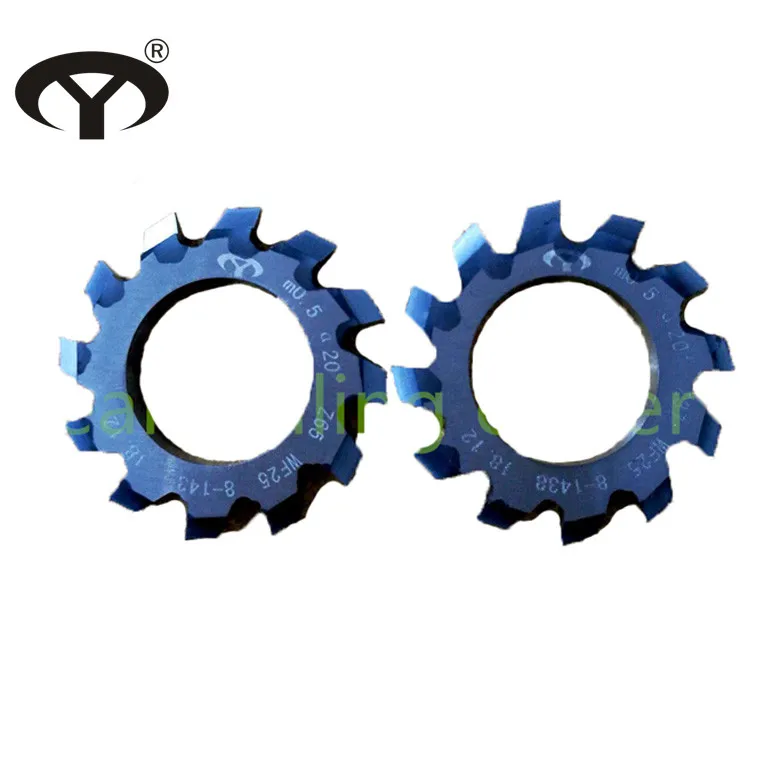

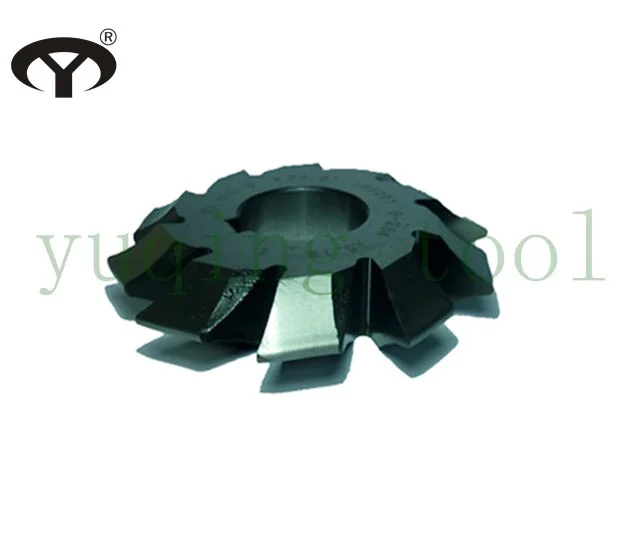

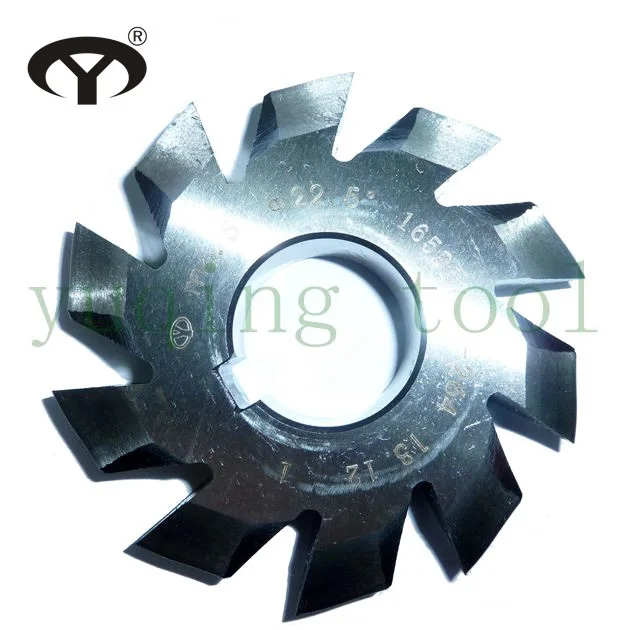

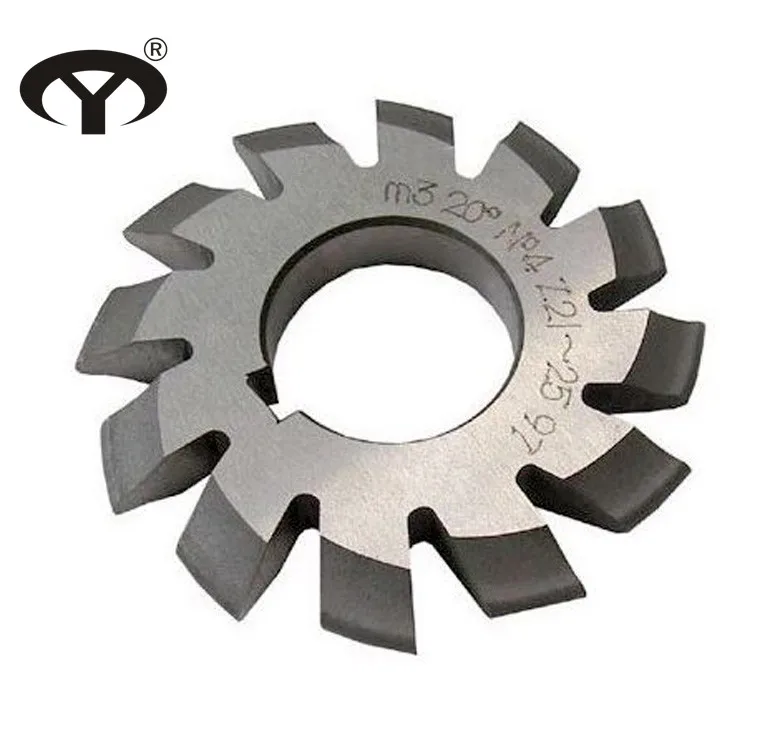

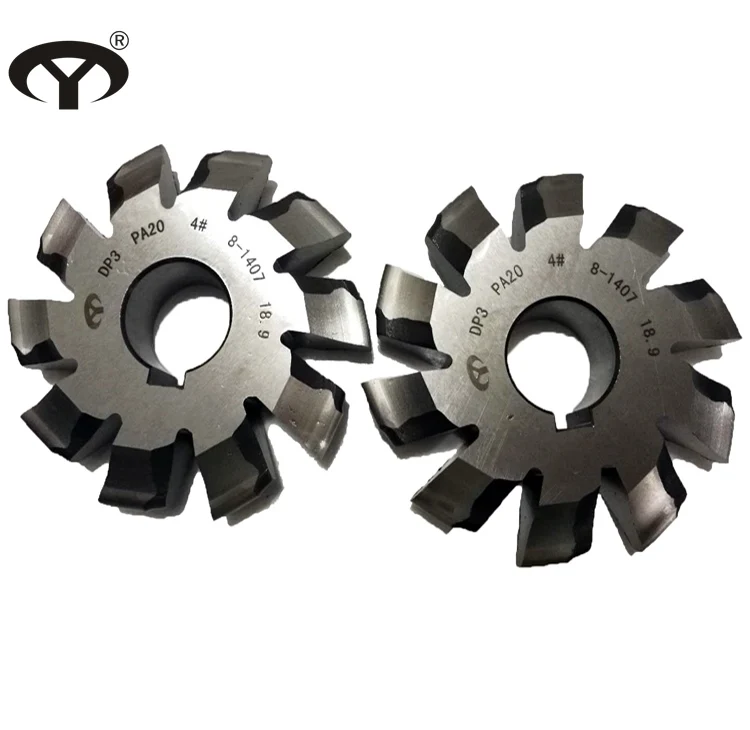

HSS M2 DP gear milling cutter/module gear cutter set 8pcs prompt goods

Product Overview

Description

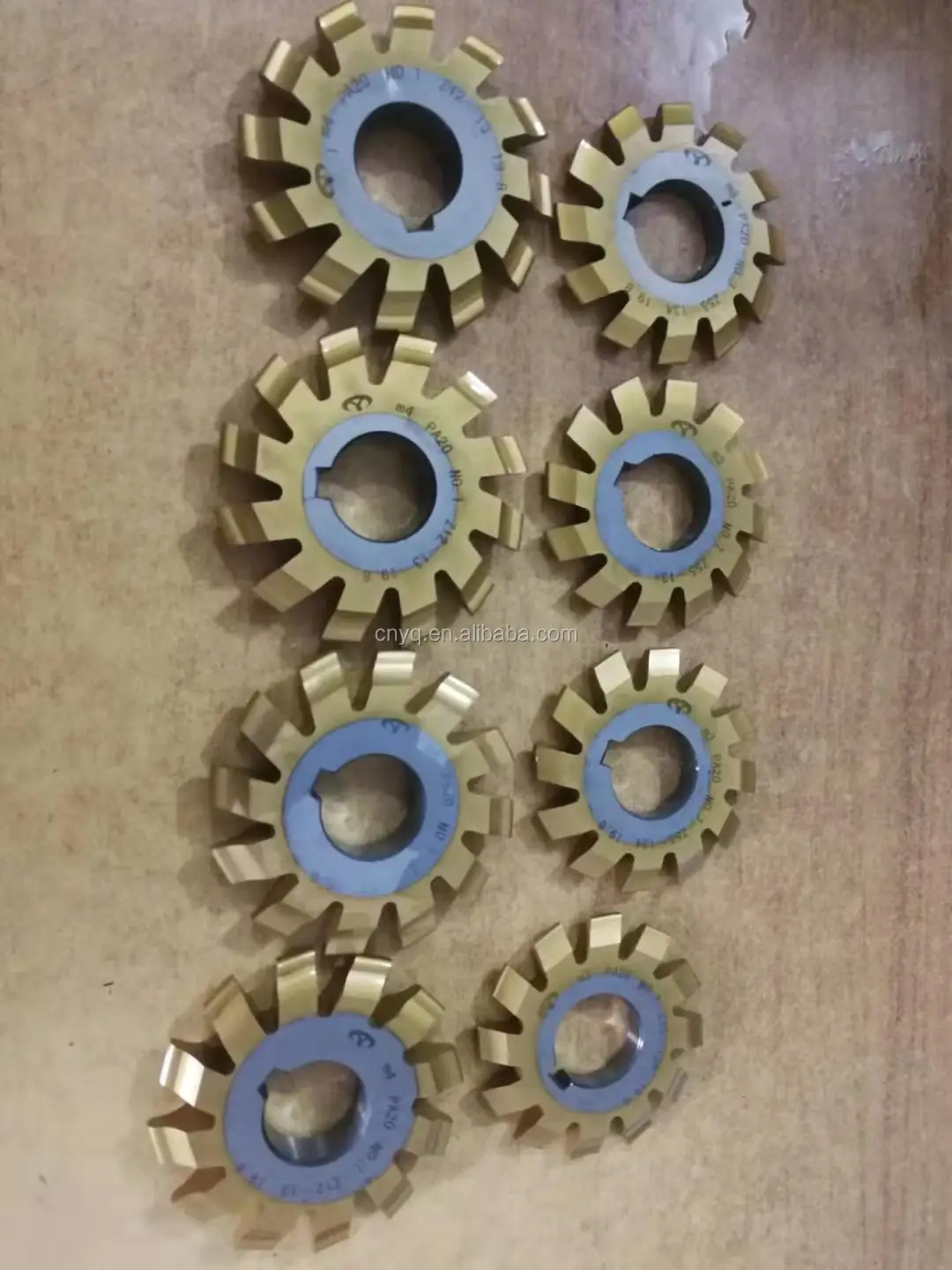

HSS M2 tool gear milling cutter/module gear cutter set 8pcs prompt goods



Specification table of module gear milling cutter:



Module	Outside Dia.	Hole Dia.	No. of Teeth
0.3	40	16	20
0.35
0.4
0.5			18
0.6
0.7			16
0.8
0.9
1	50	22	14
1.25
1.5	55
1.75	60		12
2
2.25
2.5	65
2.75	70	27
3
3.25	75
3.5
3.75	80
4
4.5
5	90	32	11
5.5	95
6	100
6.5	105
7
8	110
9	115		10
10	120
11	135	40
12	145
14	160
16	170

















Milling cutter series :   Shank end mill  , keyway milling cutter , shell end mill , angle milling cutter , cylindrical milling cutter, side and face milling cutter , concave convex milling cutter , rack milling cutter , roller chain sprocket milling cutter, T-slot milling cutter, woodruff keyseat milling cutter and dovetail milling cutter.





The production process of HSS M2 module dp gear milling cutter tool set 8pcs :





Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance



W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
