Price Red Mercury, Grinding Machine, Mill Plant
Ball mill is the key milling equipment after material has been crushed. It is widely used in cement, silicate, new construction material, refractory material, chemical fertilizer, ferrous metal and non-ferrous metal as well as ceramics. It is widely applied to dry or wet grinding for ores and grindable materials.

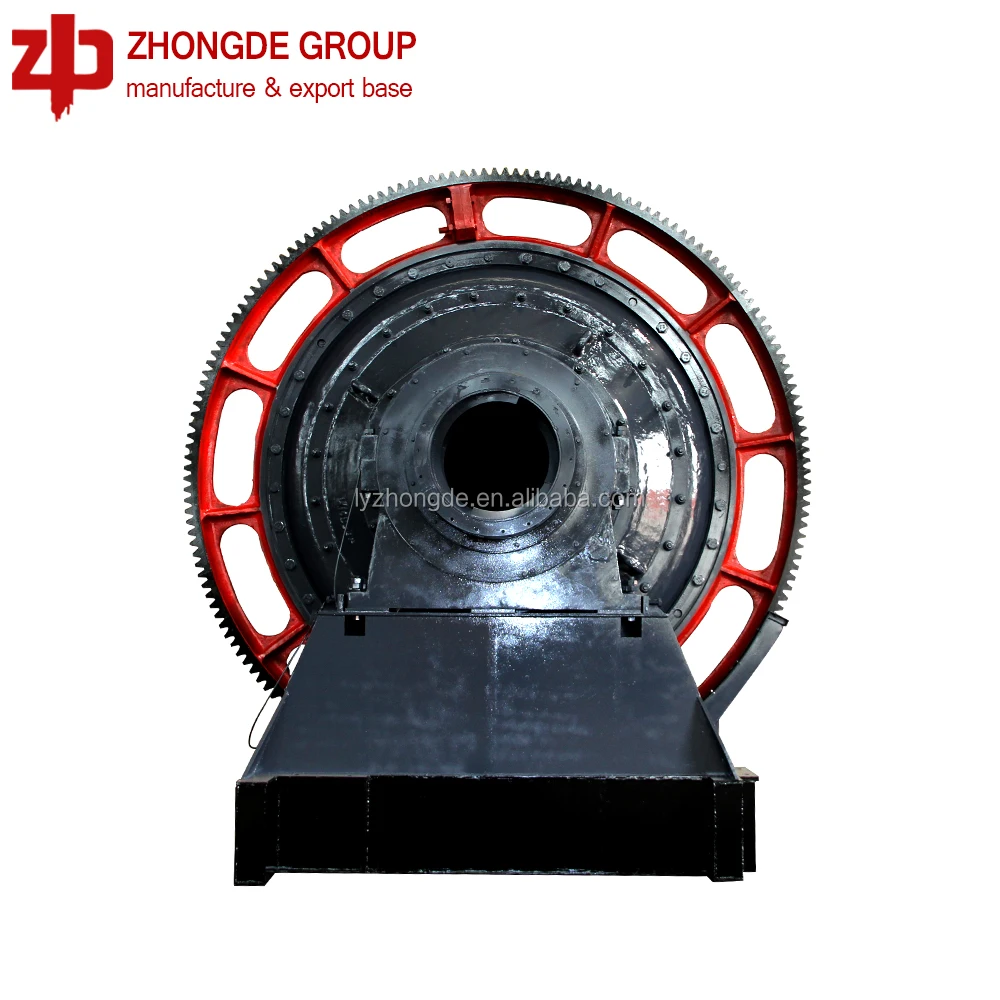

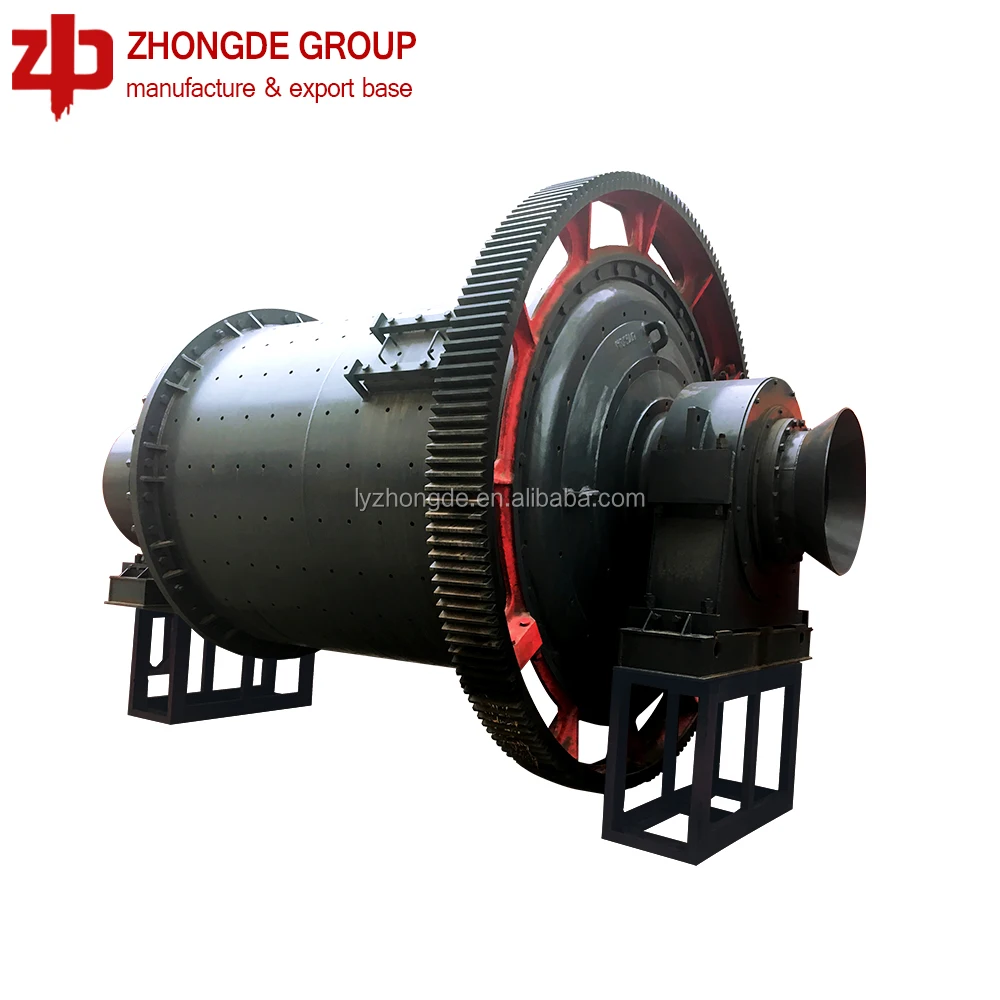

Structure of Ball Mill:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).

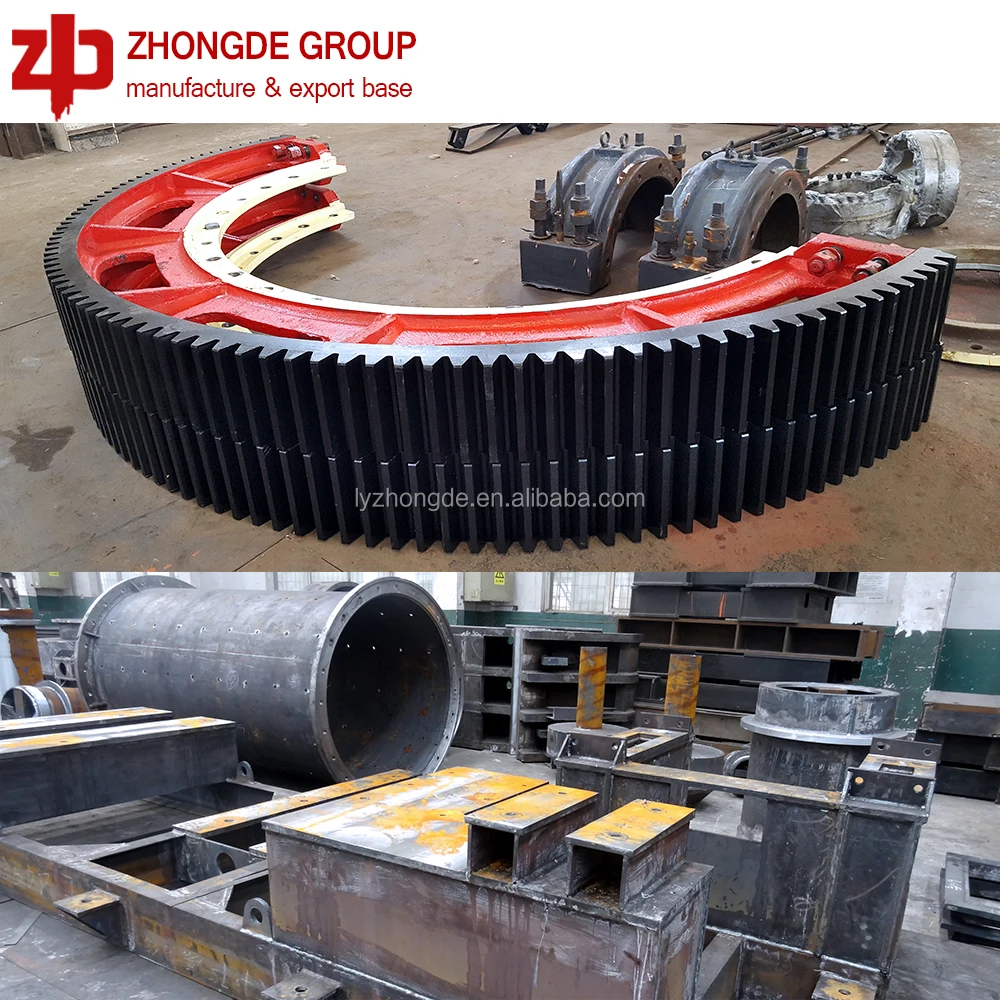

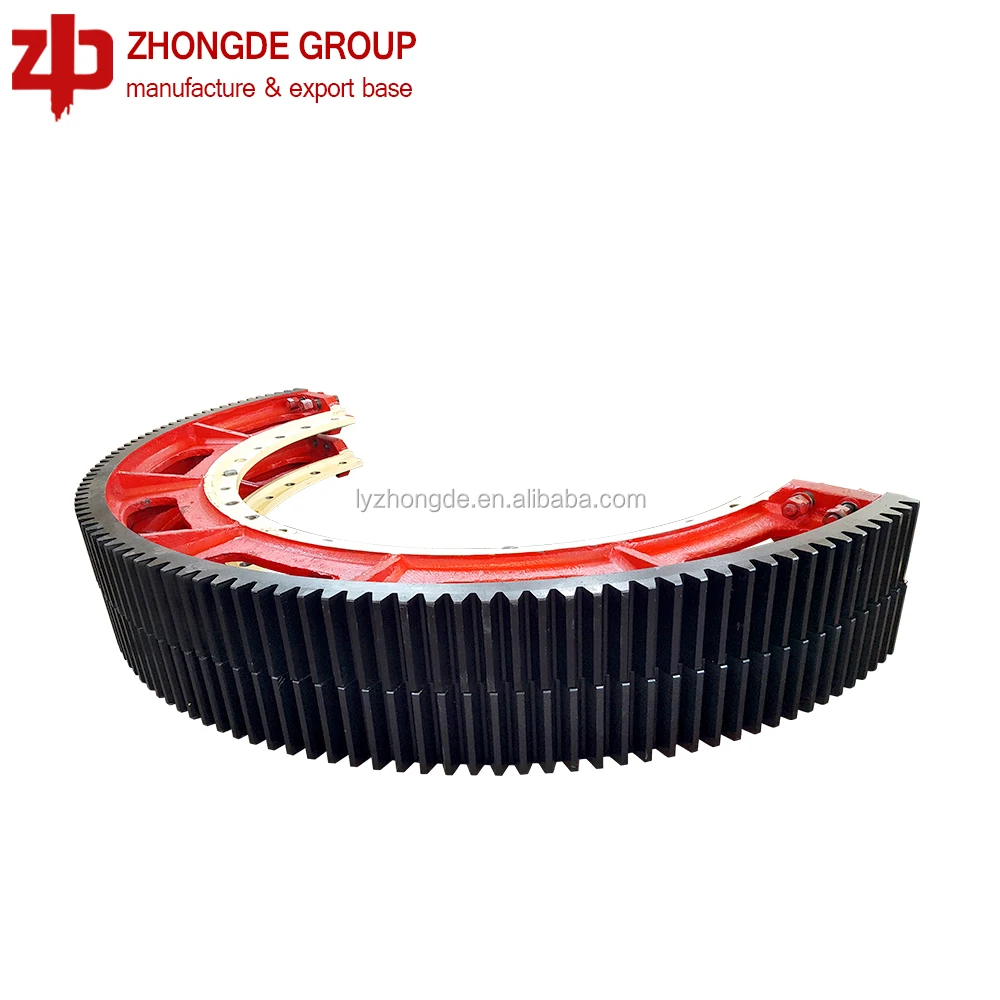

The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance.
Ball mill capacity chart
| Model | Cylinder | Effective volume(m3) | Max.ball loading(t) | Speed(r/min) | Capacity(t/h) | Discharging size(mm) | Main motor(KW) | |
Diameter (mm) | Length (mm) | |||||||
| MQY-1530 | 1500 | 3000 | 4.5 | 8 | 30 | 6.3~2.8 | 0.3~0.074 | 90 |
| MQY-1545 | 1500 | 4500 | 6.7 | 12 | 30 | 9~3.8 | 0.3~0.074 | 132 |
| MQY-1830 | 1830 | 3000 | 6.7 | 12 | 26.6 | 12.5~4.5 | 0.3~0.074 | 130 |
| MQY-1845 | 1830 | 4500 | 10.5 | 19 | 26.8 | 15.5~6 | 0.3~0.074 | 180 |
| MQY-2130 | 2100 | 3000 | 9.2 | 16 | 23.8 | 18~5.8 | 0.3~0.074 | 210 |
| MQY-2136 | 2100 | 3600 | 11 | 20 | 23.8 | 22~6.8 | 0.3~0.074 | 210 |
| MQY-2145 | 2100 | 4500 | 13.8 | 25 | 23.9 | 25~8 | 0.3~0.074 | 280 |
| MQY-2230 | 2200 | 3000 | 10 | 18.5 | 21.3 | 23~6.9 | 0.3~0.074 | 210 |
| MQY-2245 | 2200 | 4500 | 15.2 | 28 | 21.3 | 26.8~8.5 | 0.3~0.074 | 280 |
| MQY-2430 | 2400 | 3000 | 12 | 22 | 21.3 | 26~7 | 0.3~0.074 | 245 |
| MQY-2436 | 2400 | 3600 | 14 | 26 | 21.3 | 33.5~8.8 | 0.3~0.074 | 280 |
| MQY-2445 | 2400 | 4500 | 17.8 | 30 | 21.6 | 42~11 | 0.3~0.074 | 320 |
| MQY-2460 | 2400 | 6000 | 24 | 44 | 21.7 | 56~14.5 | 0.3~0.074 | 480 |
| MQY-2736 | 2700 | 3600 | 18 | 33 | 20.7 | 54~11.7 | 0.3~0.074 | 400 |
| MQY-2740 | 2700 | 4000 | 20.6 | 38 | 20.7 | 60~13 | 0.3~0.074 | 400 |
| MQY-2745 | 2700 | 4500 | 23.2 | 43 | 20.7 | 67.5~14.5 | 0.3~0.074 | 480 |
| MQY-2750 | 2700 | 5000 | 25.8 | 48 | 20.6 | 75~16 | 0.3~0.074 | 500 |
| MQY-2760 | 2700 | 6000 | 31 | 57 | 20.6 | 90~19.5 | 0.3~0.074 | 630 |
| MQY-3040 | 3000 | 4000 | 25.7 | 47 | 19 | 78~16.5 | 0.3~0.074 | 500 |
| MQY-3064 | 3000 | 6400 | 40.2 | 74 | 19 | 125~26 | 0.3~0.074 | 800 |
| MQY-3245 | 3200 | 4500 | 32 | 59 | 18.2 | 95~21.6 | 0.3~0.074 | 630 |
| MQY-3254 | 3200 | 5400 | 38 | 73 | 18.2 | 114~25.9 | 0.3~0.074 | 800 |
| MQY-3270 | 3200 | 7000 | 50.6 | 93 | 18.2 | 148~30.2 | 0.3~0.074 | 1250 |
| MQY-3645 | 3600 | 4500 | 40 | 75 | 18 | 136~24.3 | 0.3~0.074 | 1000 |
| MQY-3650 | 3600 | 5000 | 46 | 86 | 18 | 151~28.1 | 0.3~0.074 | 1250 |
| MQY-3660 | 3600 | 6000 | 54 | 102 | 18 | 181~32.4 | 0.3~0.074 | 1250 |
| MQY-3685 | 3600 | 8500 | 79 | 131 | 18 | 256~45.8 | 0.3~0.074 | 1800 |
| MQY-4060 | 4000 | 6000 | 70 | 126 | 16.9 | 226~40.5 | 0.3~0.074 | 1500 |
| MQY-4067 | 4000 | 6700 | 78 | 136 | 16.9 | 252~45 | 0.3~0.074 | 1600 |
| MQY-4361 | 4270 | 6100 | 80 | 144 | 15.7 | 258~46 | 0.3~0.074 | 1850 |
| MQY-4564 | 4500 | 6400 | 95 | 172 | 15.6 | 306~54 | 0.3~0.074 | 2000 |
| MQY-5064 | 5030 | 6400 | 120 | 216 | 14.4 | 386~68 | 0.3~0.074 | 2600 |
| MQY-5083 | 5030 | 8300 | 152 | 266 | 14.4 | 500~88 | 0.3~0.074 | 3300 |
| MQY-5585 | 5500 | 8500 | 187 | 338 | 13.8 | 615~108 | 0.3~0.074 | 4500 |
Packaging & Shipping
- The ball mill will be delivered in 30 days after payment.
- The machine will be packed in export container.
- Motors and small parts will be packed in new strong wooden cases suitable for long distance ocean transportation.
- Zhongde promise that your goods will be shipped to destination timely and safely.
Company Information
Luoyang Zhongde Heavy Industries Co., Ltd.
Luoyang Zhongde Heavy Industries Co.,Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
Over the past fifty years, it has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company.

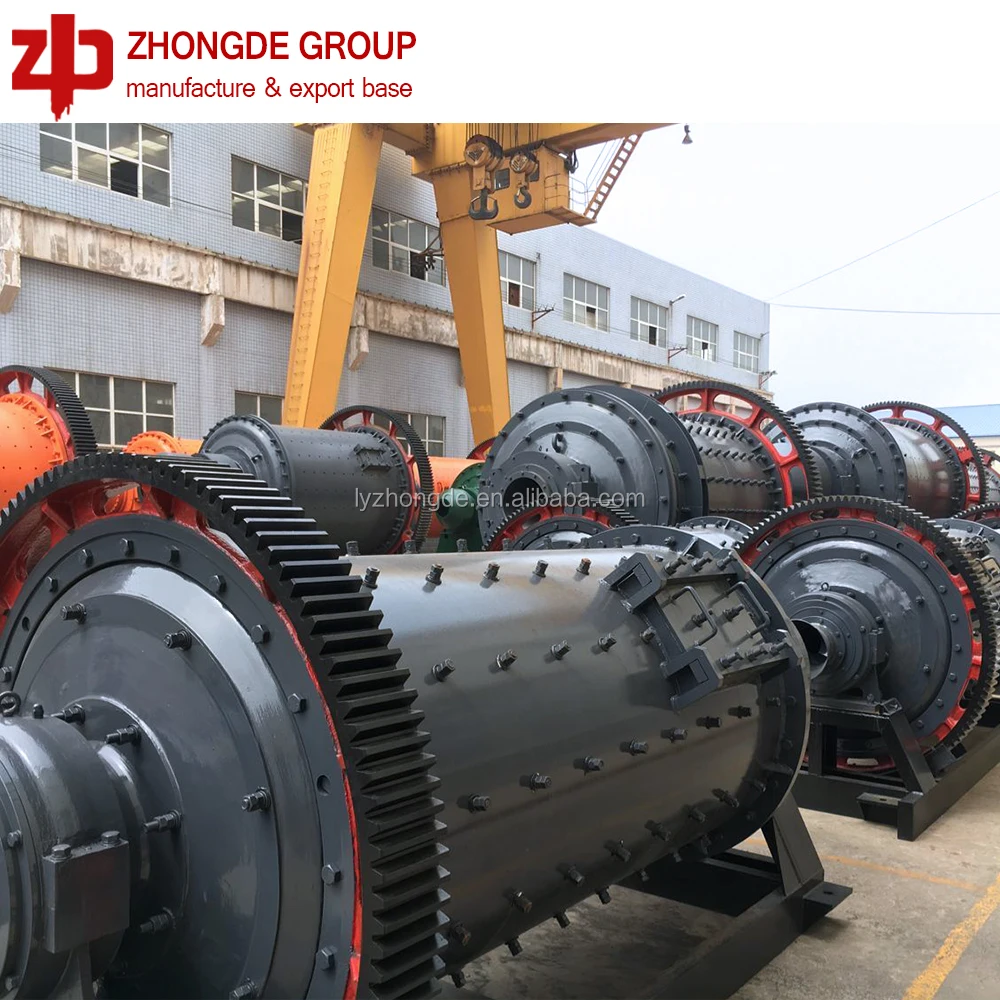

In 2006, the old factory relocated into the large modern industrial workshop in Louxin Industrial Park. It covers an area of 98000m2, which includes 62000m2 modern heavy industrial workshops with employees over 2800. It is the manufacturing and export base for heavy mining machinery in China.
Zhongde has nine series of equipments, including crushers, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine and concentrator. Meanwhile, we can provide customers with project design, technical process flow design, standard and non-standard design and manufacturing.
Zhongde has equipment installed throughout the world in areas such as Russia,Uzbekistan ,Thailand, Sri Lanka, Laos, Saudi Arabia, Chile, Brazile, Peru, Africa, Europe, Australia, and the United States.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price. You will be satisfied with our machines and services.
If you are interested in our machines, please wirte your requirements in message box here as belows ⇓⇓⇓ or contact me at+86-13721665412(Whatsapp).
