item | value |
Condition | New |
Positioning Accuracy (mm) | 0.03mm |
Number of Axes | 2 |
No. of Spindles | Single |
Working Table Size(mm) | 1300×2500 |
Machine Type | CNC Router |
Travel (X Axis)(mm) | 1300mm |
Travel (Y Axis)(mm) | 2500mm |
Repeatability (X/Y/Z) (mm) | 0.02mm |
CNC or Not | CNC |
Place of Origin | China |
Shandong | |
Brand Name | EXCITECH |
Voltage | AC380/3P/50HZ |
Dimension(L*W*H) | 3.2*2.1*1.7M |
Weight (KG) | 1480 |
Warranty | 12 months |
Key Selling Points | High-accuracy |
Applicable Industries | Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Other, wood machine, cnc machine |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Bearing, PLC, Other, Gearbox |

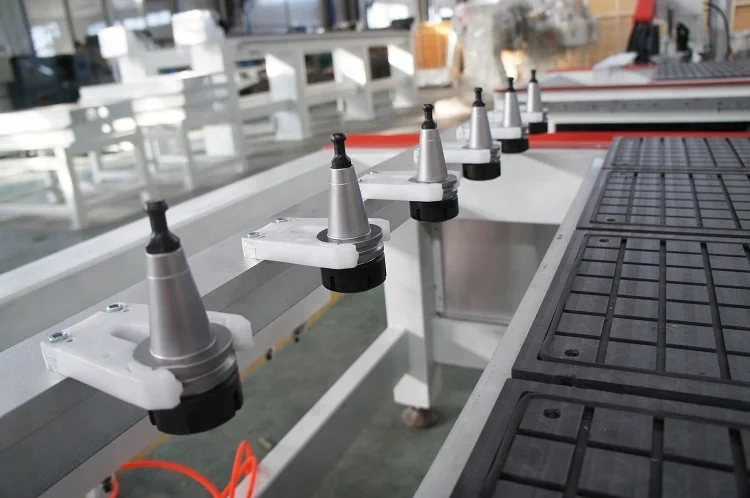

Product name | EXCITECH wood craving cnc router with auto linear tool change |
Working size | 2480*1230*180mm |
Transmission | X Y axis rack and pinion transmission, Z axis ball screw transmission |

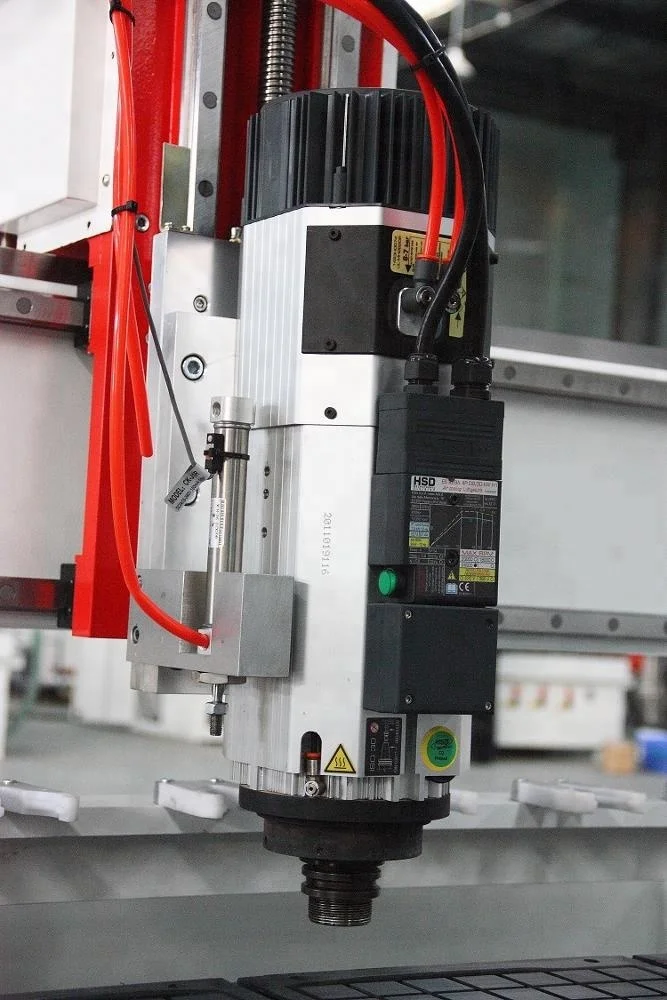

Spindle power | 9.6kw HSD |
Motor and driver | Japan Yaskawa |
Controller | Syntec/ OSAI |
Spindle speed | 24000r/min |
Table structure | T-slot and Vacuum table |
Rail guide | Japan THK rail guide |
Working speed | 18m/min |
