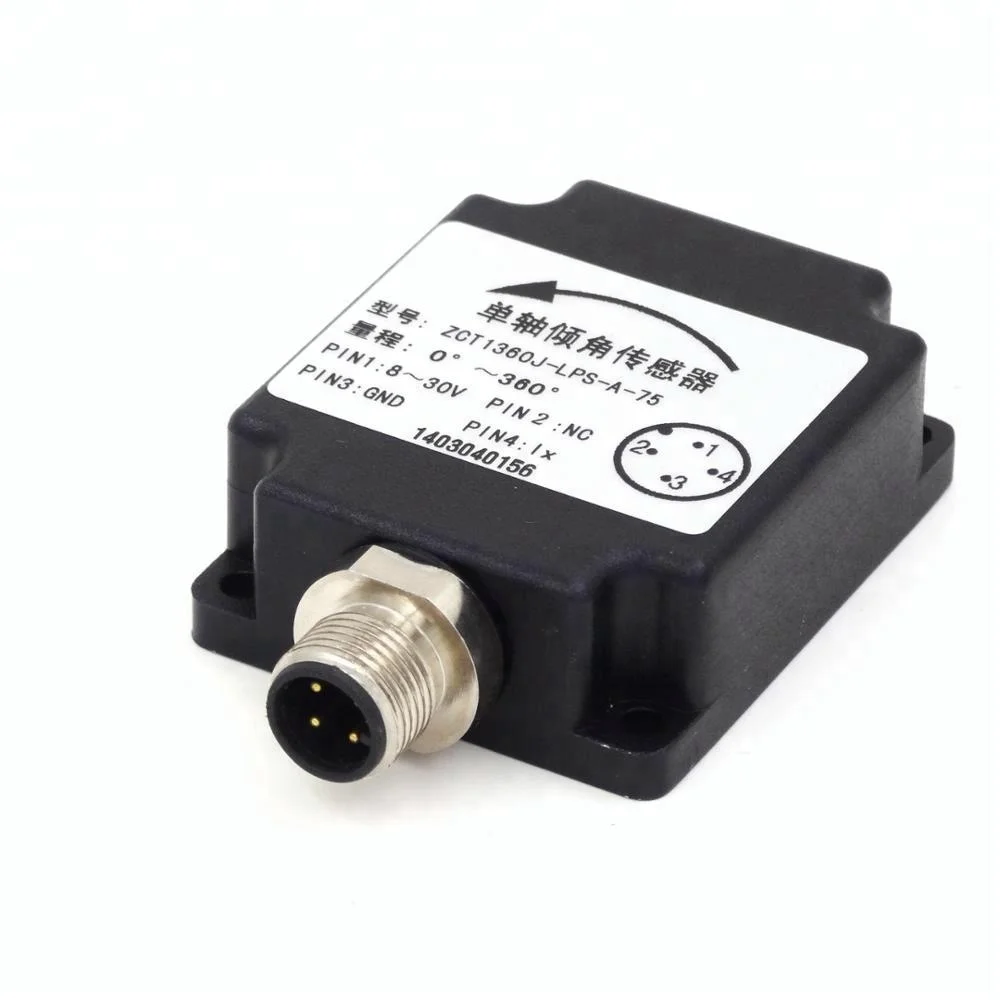

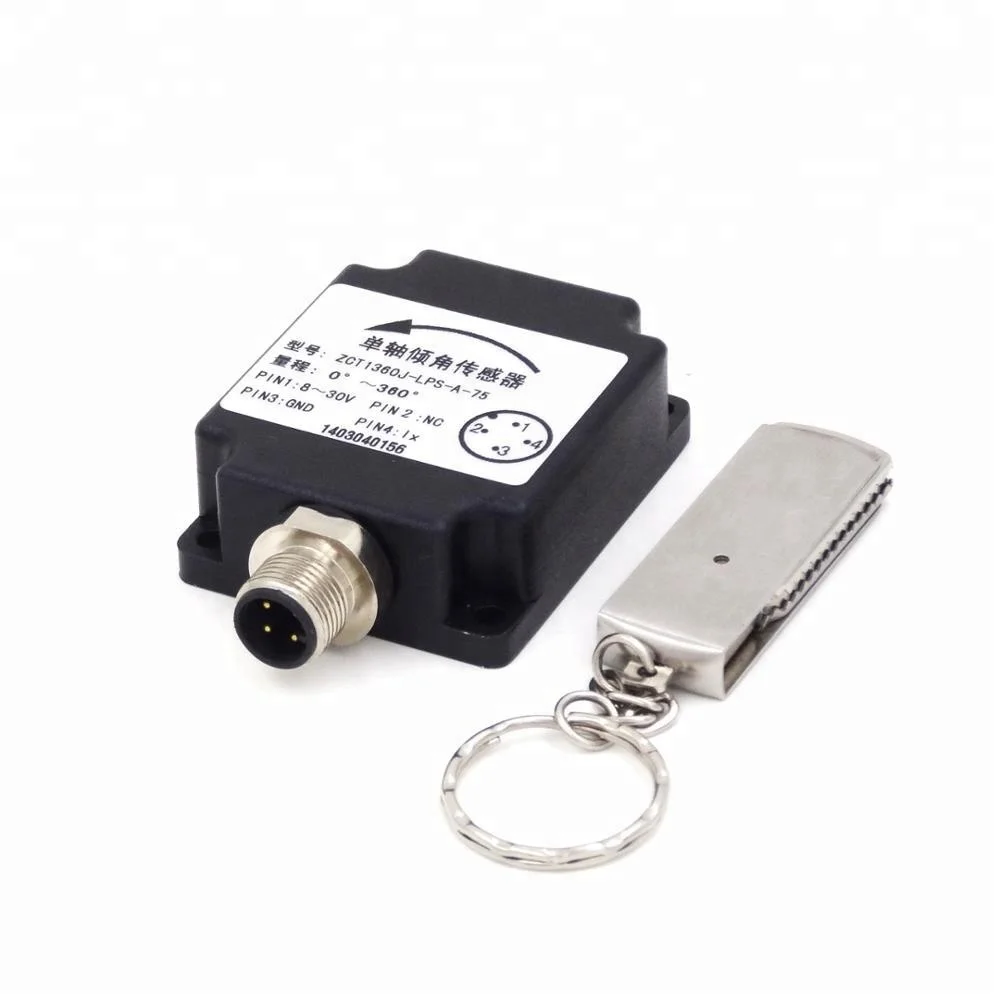

ZCT1XXXJ LPS A 7X Series CE Certificate One Axis Analog Current Output Inclination Sensor With Measuring Range 0~360 Degree
ZCT1XXXJ-LPS-A-7X Series CE Certificate One Axis Analog Current Output Inclination Sensor With Measuring Range 0~360 Degree
ZCT1XXXJ-LPS-A-7X Series CE Certificate One Axis Analog Current Output Inclination Sensor With Measuring Range 0~360 Degree
ZCT1XXXJ-LPS-A-7X Series CE Certificate One Axis Analog Current Output Inclination Sensor With Measuring Range 0~360 Degree

ZCT1XXXJ LPS A 7X Series CE Certificate One Axis Analog Current Output Inclination Sensor With Measuring Range 0~360 Degree

Share on (60120663112):


Price:RUB 3,807.00 - RUB 9,136.79

Quantity:


Product Overview

Description

I. General description

ZCT1XXJ-LPS-A-7X is current type one axis digital accelerometersensor, with range from 0-360 deg, output standard 4-20mA. It is anti-jamming characteristic, adapt to long distance signal transmission.



II. Features

1. Standard 4-20mA.

2. IP67

3. Shockproof



III. Applications

1. Angle measurement of machine arm

2. Load moment limiter



IV. Technical data

Supply voltage



8



30

Quiescent state current output

Vcc=24V,without



11

15

Load resistance

VCC=24V





600

Operating temperature



-40



+85

Waterproof







IP67

Response frequency

optional

0.5

2.5

20

Housing size





54*44*18



Measuring range

single axis

0



360

Zero current output



4



20

Resolution





0.1



Non-linearity

method of the minimum squares

25°C



±0.15

±0.3





-10°C~+60°C



±0.3

±0.6





-40°C~+85°C



±0.4

±0.7

Sensitivity

ZCT1180J-LPS-A-7X

87.89

88.89

89.89

Zero current output



3.92

4

4.08

Zero temperature drift

-10°C~+60°C



±0.5

±0.8



-40°C~+85°C



±0.8

±1





V. Part# definition






VI. Wire connection





VII. Installation and housing dimension



1. ZCT1XXXJ-LPS-A-70 size:


2. ZCT1XXXJ-LPS-A-77 size :
