AMD 357 CNC turret punching machine,stamping punch press machine
- Category: >>>
- Supplier: Qingdao Amada Numerical Control Machinery Co. Ltd.
Share on (60121075363):
Product Overview
Description
AMD-255 CNC turret punching machine,stamping punch press
Product Description
AMD-255 CNC turret punching machine,stamping punch press performance features as follows:
| 1. | economy type built-out flywheel CNC turret punching machine,adopts Germany advanced numerical control special system ,equipped with digital AC servo motor ,speed is more faster and stability is higher |
| 2. | .adopt imported brand servo motor ,guide rail , screw ,electrical component and penumatic component |
| 3. | adopt imported clutch,brake in time ,top and bottom dead point positioning accuarcy |
| 4. | adopts AMADA standard casting intergrated type thick turret mold disc and AMADA standard thick turret interntional molds |
| 5. | adopt full float type penumatic clamp ,punching ,sheet can float up and down together ,effectively eliminate stampling spare capacity ,improve processing precision. |
| 6. | equipped with concentrated lubricating device ,reduce kinematic pair friction ,improve service life |

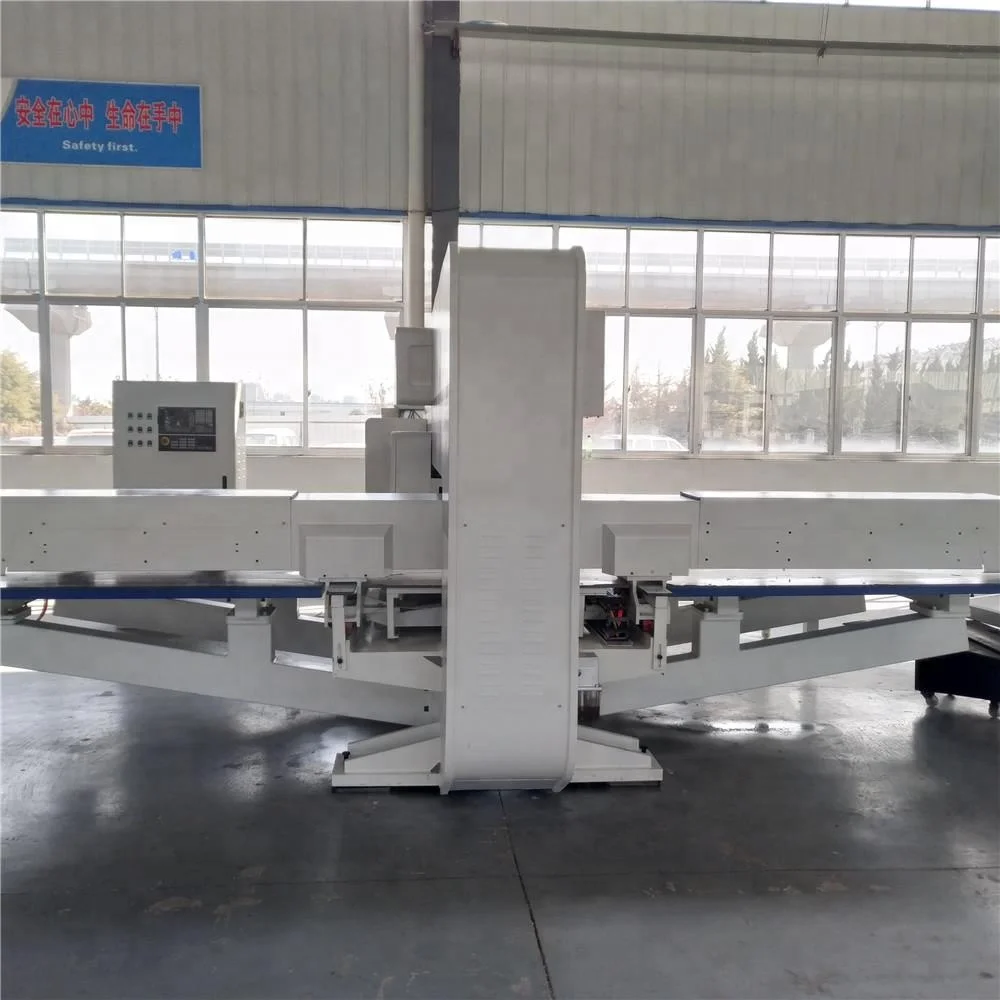

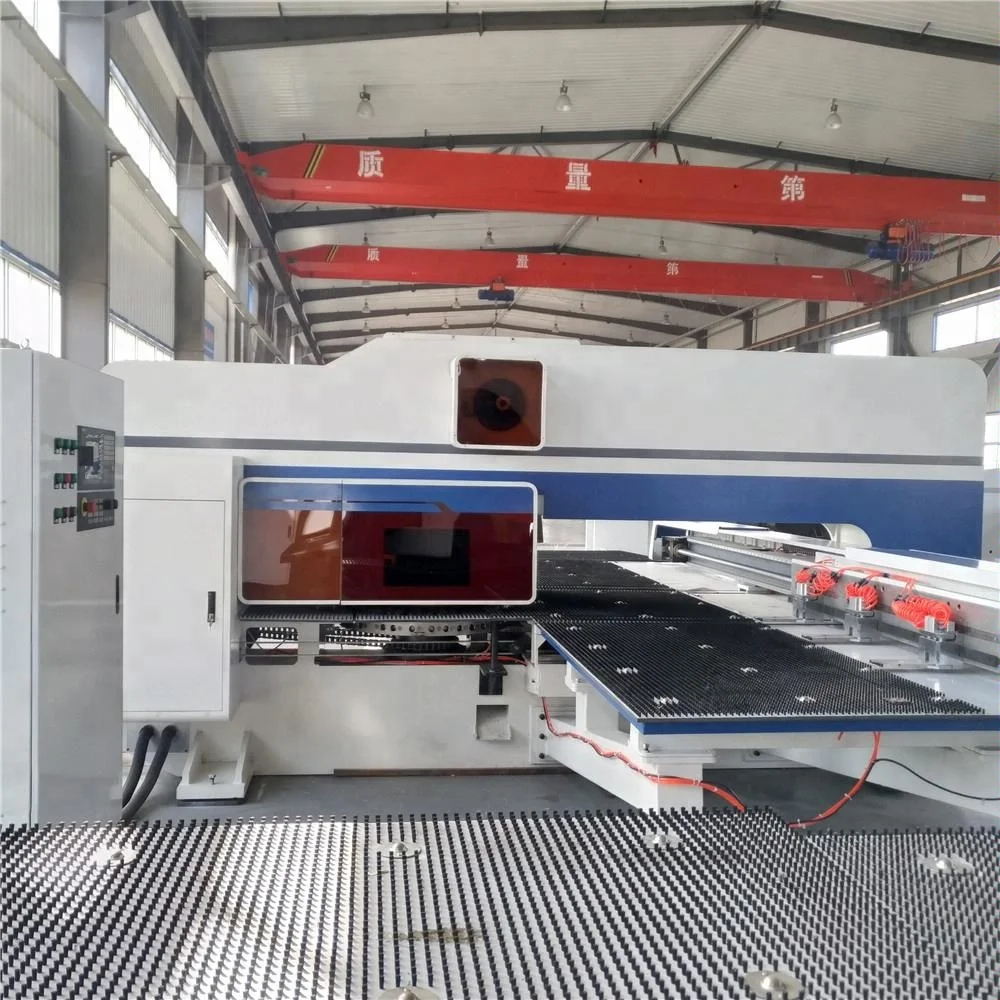

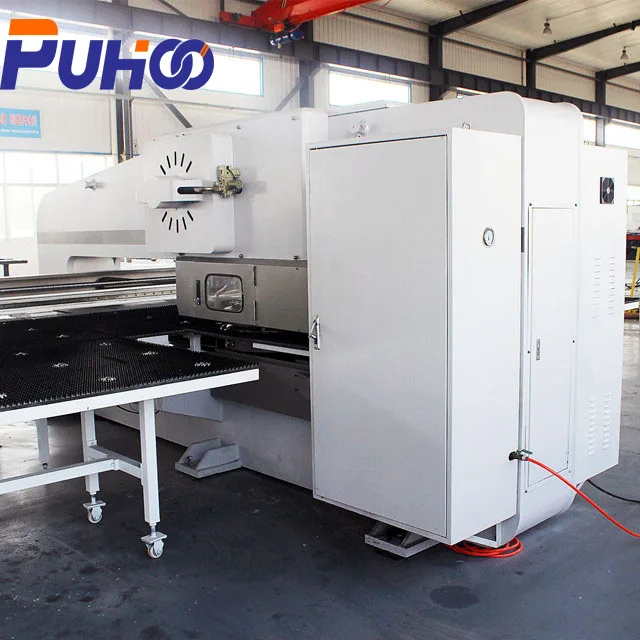

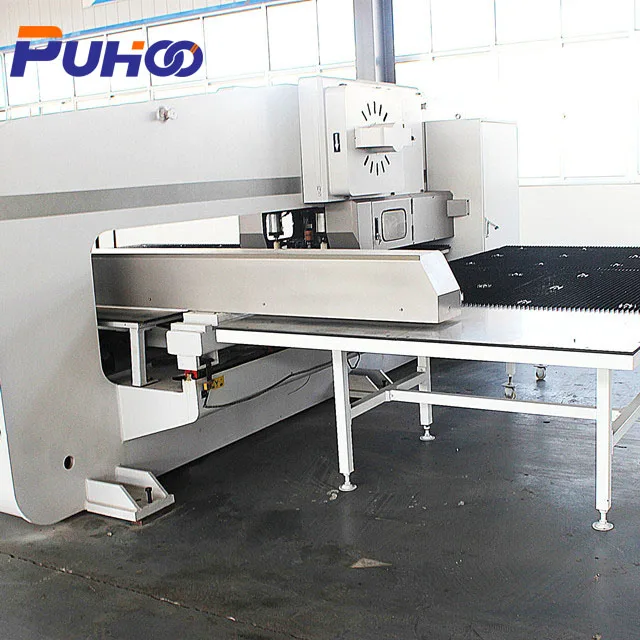

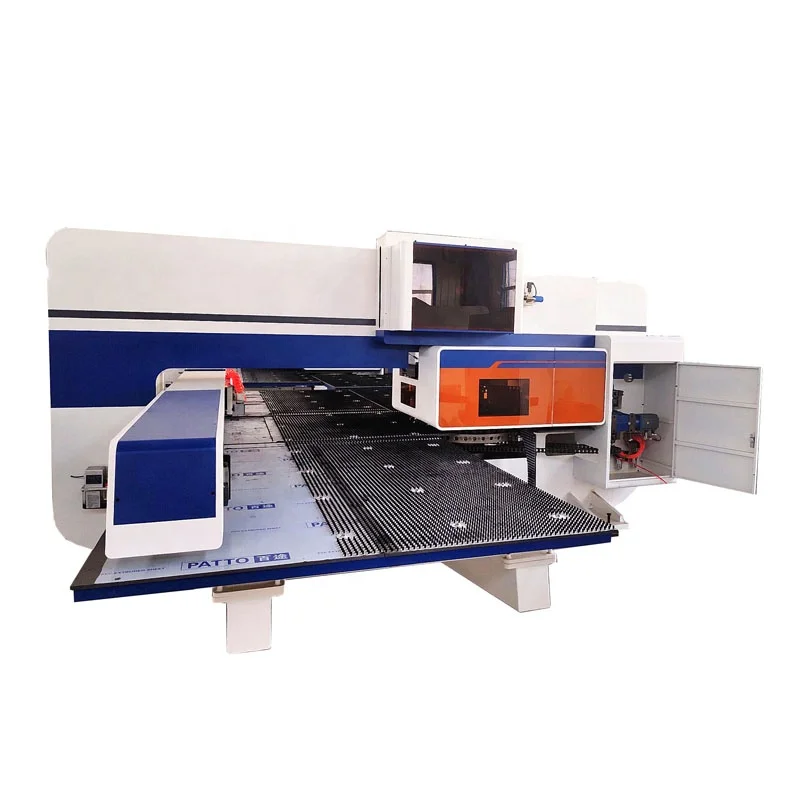

AMD-255 CNC turret punching machine,stamping punch press picture:
AMD-255 CNC turret punching machine,stamping punch press technical parameters:
Specification | Unit | AMD-255 |
Punch force | KN | 250 |
Processing sheet size | mm | 2500*1250 |
Processing sheet thickness | mm | ≤3 |
Max.punch diameter | mm | Φ88.9 |
Sheet moving speed | m/min | 60 |
Punching frequency | hpm | 270 |
Power rating | kw | 11 |
Voltage rating | v | Apply to you |
Hole Accuracy | mm | ±0.1 |
Number of stations in turret | no. | 16/24 |
Turret speed | rpm | 30 |
Controlled axis | no. | 3 |
Air pressure | mpa | ≥0.8 |
Outline dimension | mm | 4910*3300*2225 |
Machine weight | t | 7.5 |
punching sheet sample :
Main components
Siemens control system and digital servo motor make fast speed and high steady:
AMADA standards casting integrated thick turret mold disc:
Full float type clamp ,sheet can float down and up together,avoid plate during processing:
16/24/32 stations can choose make perfect punching :
A--D STATIONS DIAMETER AREA:
A station: 1.6mm--127.mm
B station: 12.8mm-31.7mm
C station: 31.8mm--50.7mm
D station: 50.8mm--88.9mm
Adopt universal ball work table make good performance:
Installation
Amada company while delivering the equipment to the customer on time, send technical service engineers on-site installation. Under the conditions are ripe for user installation conditions, technical service engineers will be within the specified time ordered the equipment installation is completed for users
Amada offers free technical support, installation is completed at the user site, the free operator training on the user side.
Advantages
AMD-255 CNC turret punching machine,stamping punch press :
1. Labor-saving: run and feed feeding automatically , automatic calculate time.
2. Computing time-saving: realize the conversion process about the CAD graph automatically.
3. Positioning time saving: pneumatic gripping,powerful,no line deflection.
4. Replacing moulds time saving: using the configuration of convenient replacing moulds.
5. Enhance productivity: compared with common punching machine,the CNC punching machine with 95-100min Stamping frequency which improve the efficiency.
6. Enhance the ratio of safety: the machine works automatically, which can put an end to safety accidents.
Our Services
About AMD-255 CNC turret punching machine,stamping punch press
what we will do for you
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5.Special discount and protection of sales are provided to our distributor.
6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfied drawing and parameters.
Company Information
AMADA CNC company professionally research ,develop,manufacture,and sell CNC turret punch machine,auto CNC punch machine,thick plate special CNC punch ,CNC punch tape feeder,CNC cutting machine,CNC bending machine ,CNC flame cutting machine ,CNC laser cutting machine and so on which are optic mechanical integration CNC complete machining equipment .They are widely used in green energy ,power grid equipment ,automobile industry ,engineering machinery ,construction machinery and other fields ,replacing the import of similar products effectively ,and having an advantage of high cost performance.
We are Alibaba 4 years gold supplier ,and china leading CNC turret punching machine manufacturer .Our products are inspected by the inspection of bureau veritas certification. 100% QC inspection before shipment .our punching machine have best quality &best price with competitive price.
Also ,you can choose other kind punching machine from our company !!
AMD-357 mechinical or hydraulic CNC punching machine
AMD-2510 CNC punching machine
AMD-3510 CNC punching machine
AMD-H thick plate punching machine
AMD-P platform CNC punching machine
Trade terms
PRICE: EXW,FOB,CIF
PAYMENT:30% advanced deposit, balance paid before delivery.
PACKAGE: in 20' open container apply to the machine
DELIVERY:we will arrange shipment for you within 30 days after receving the payment.
welcome to contact us or visit our company !
