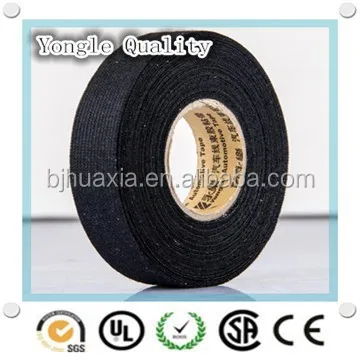

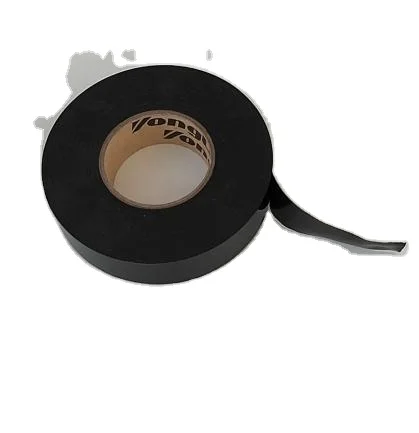

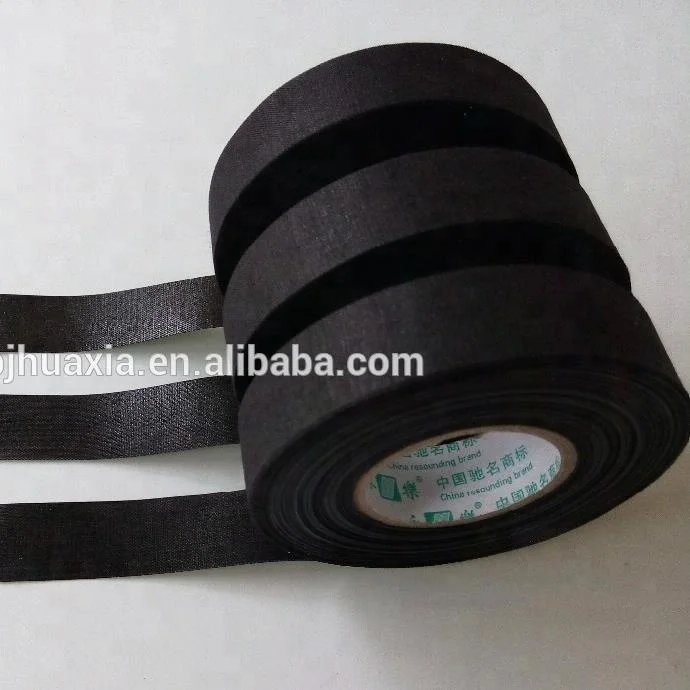

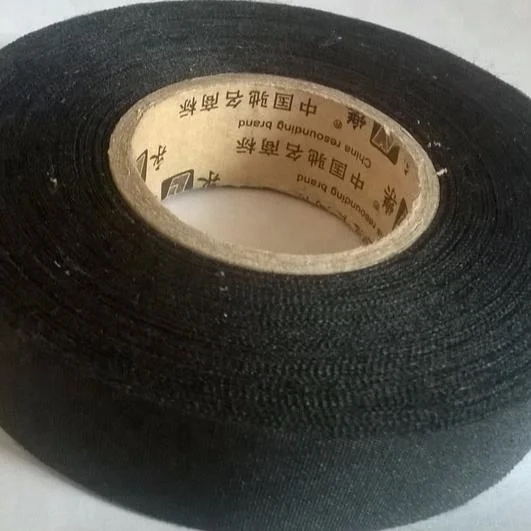

HX9531 Automotive wire harness tape strong adhesive cloth tape

Product Overview

Description

1.Product introduction



HX9531 Automotive Polyester Fabric Tape



DESCRIPTION:

High quality polyester fabric of high media resistance,in combination with a strong rubber based adhesive.



Specification:



HX9531 Automotive Polyester Fabric Tape
SPECIFICATIONS: HX9531
PROPERTY	VALUE	UNIT	TEST METHOD
Total thickness	0.30	mm	ASTM-D-1000
Tensile Strength	20	N/cm	ASTM-D-1000
Elongation at break	10	%	ASTM-D-1000
Adhesion Strength
To steel	2.5	N/cm	ASTM-D-1000
Unwind force	2~5	N/cm	ASTM-D-1000
Temperture resistance	-40~105	°C	VW60360(LV312)
Other sizes and cores are available. Consult factory.
Code: HX9510  HX9523  HX9523A HX9525 HX9531 HX9595
Color: Black
Advantage: -high adhesion -free of critical substances -stable against rotting -high tear resistance and stability -very high noise reduction effect -extremely soft surface -high abrasion resistance -flexible and easy to handle -low temperature stability -high media resistance -flame resistance corresponds to FMVSS 302,BMW GS 95008-3
RECOMMENDED USES:
HX9531 is especially designed for cable harnessing in the automotive industry.Because of the high temperature stability,the extremely robust backing and the excellent media resistance,it is ideal for use in the engine area.



2.Application & using method





HX9510 is especially designed for cable harnessing in the automotive industry.Because of the high temperature stability,the extremely robust backing and the excellent media resistance,it is ideal for use in the engine area.

3.Features



 4.Packing



5.Company

Our factory Locates in Zhuozhou Development Area,Hebei province;Shanghai Songjiang Development Area;and Beijing Economic&Technological Development Zone(BDA),It is the biggest adhesive tape production base in the world.Our annual turnover is 188 million US dollars.We have more than 20 high speed coating line, 16 rolling line,one-step service,exporting to more than 60 countries.



History:
1985 Company founded
(One of the earliest BOPP tape manufactures in China)

1991 Started manufacturing PVC tape
(One of the earliest BOPP tape manufactures in China)

1995 Huaxia Research and Development Center established

1997 UL listed

1998 ISO9002 certified

1999 CE listed

2000 CSA listed

2002 QS9000 and VDA 6.1 certified

2002 BSI certified

2004 ISO/TS 16949 Quality system certified

2005 ISO 14001 certified

2006 Rated one of the most growth-oriented enterprise by Forbes Asia

2006 HUAXIA GROUP participate in the drafting PVC tape industry standards of China

2007 "Yongle"awarded as China Resounding Brand

2007 "Yongle Tape"awarded as China Top Brand

2009 UPC approved

2010 VED approved
