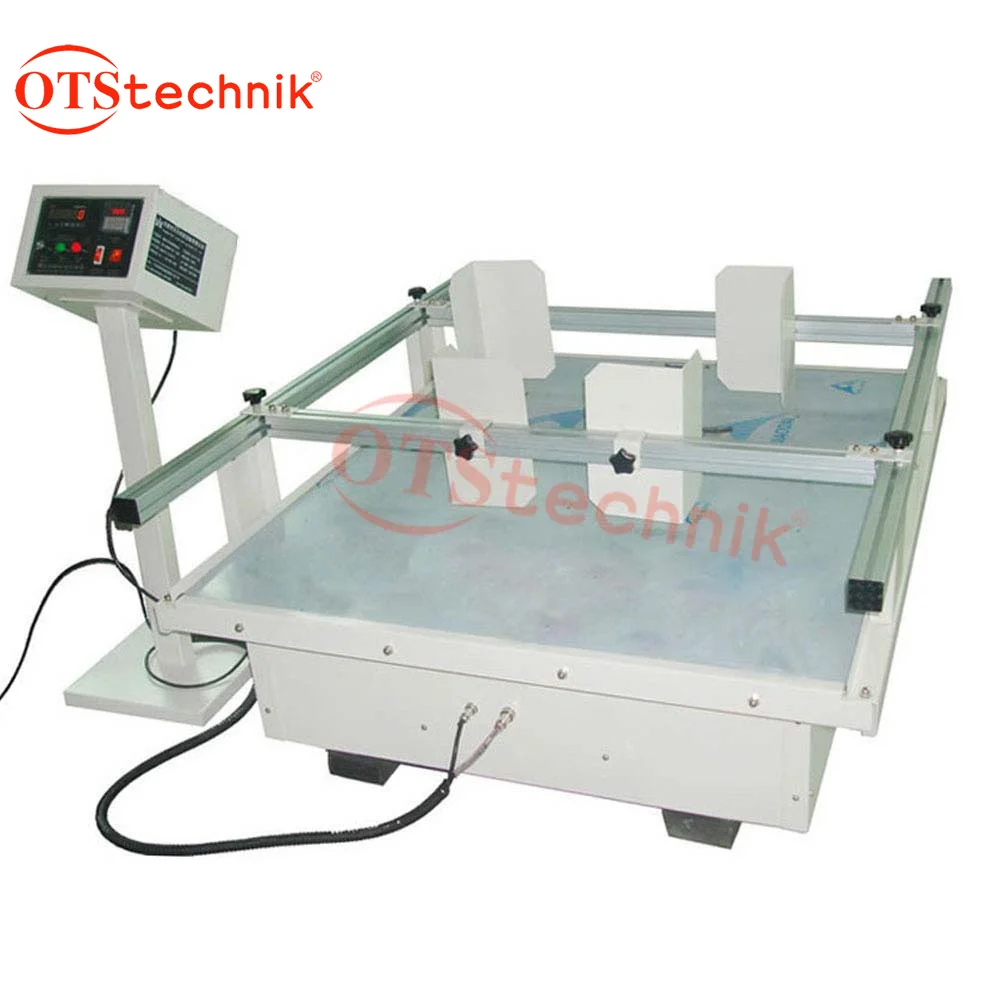

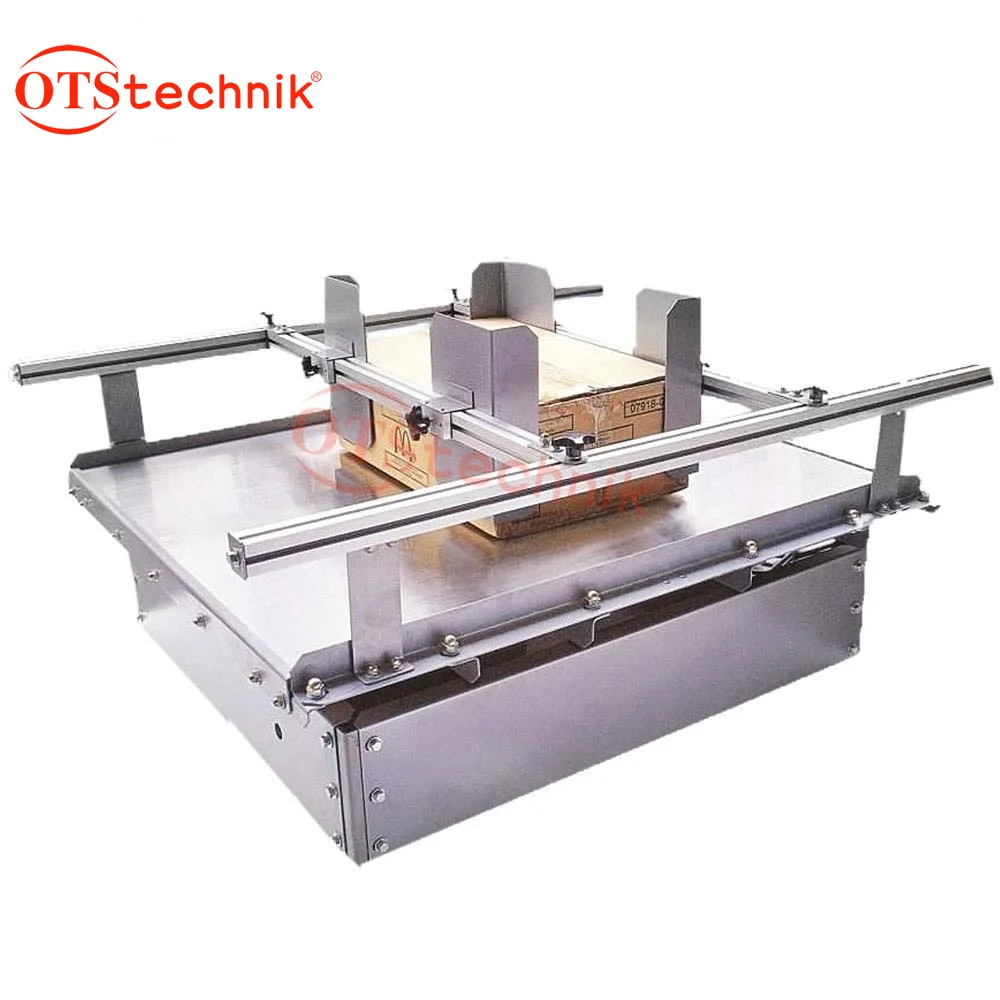

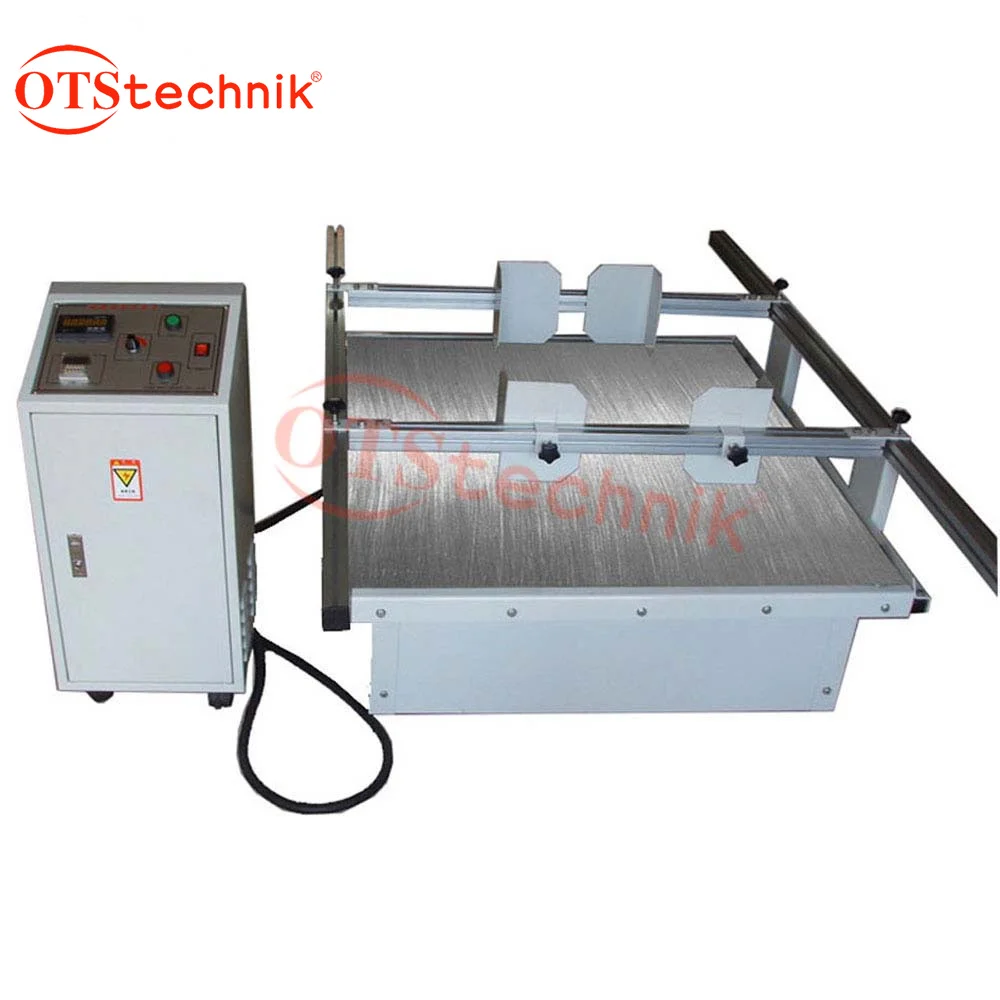

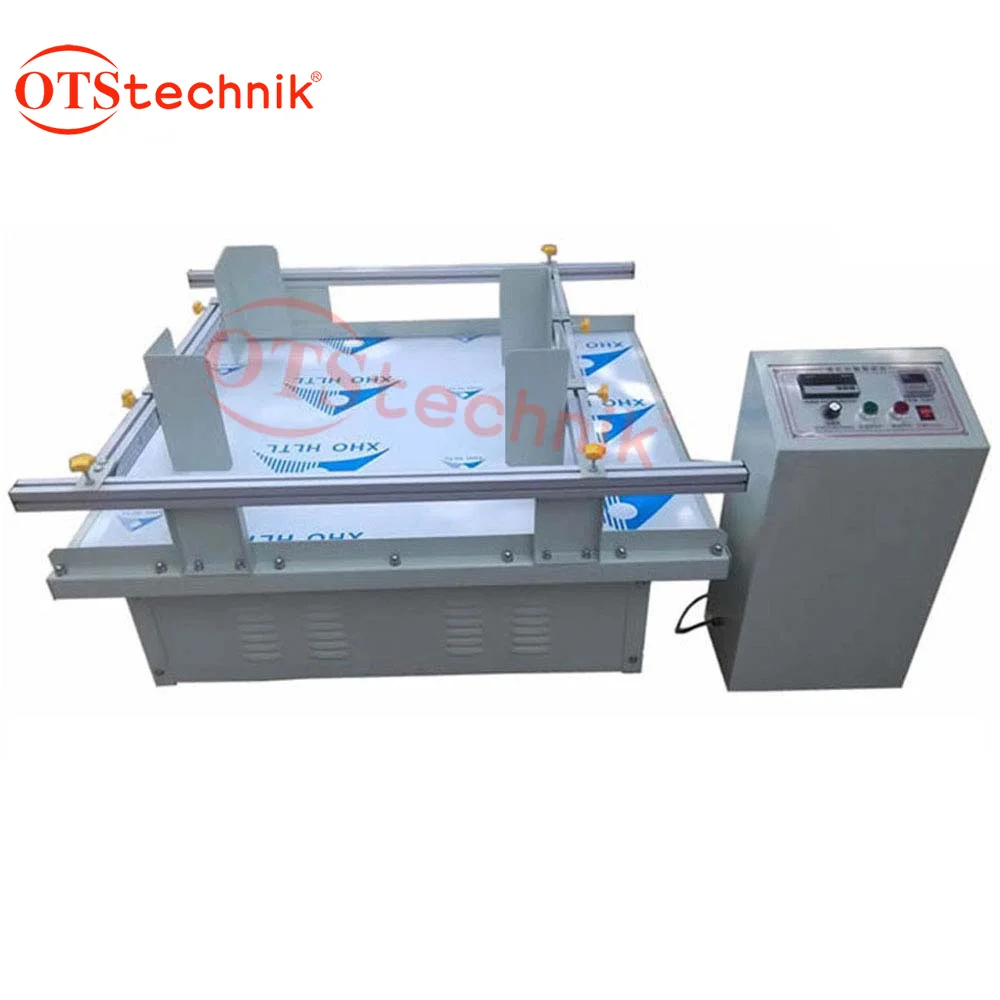

Carton Package Simulation Transport Vibration Table / Vibration Tester / vibration test equipment
- Category: >>>
- Supplier: Dongguan Xinbao Instrument Co. Ltd.
Share on (60121396966):
Product Overview
Description

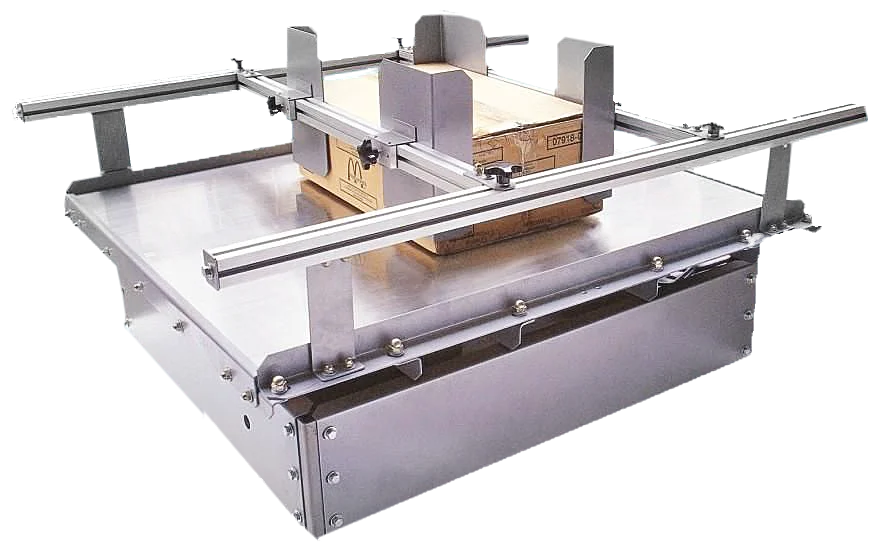

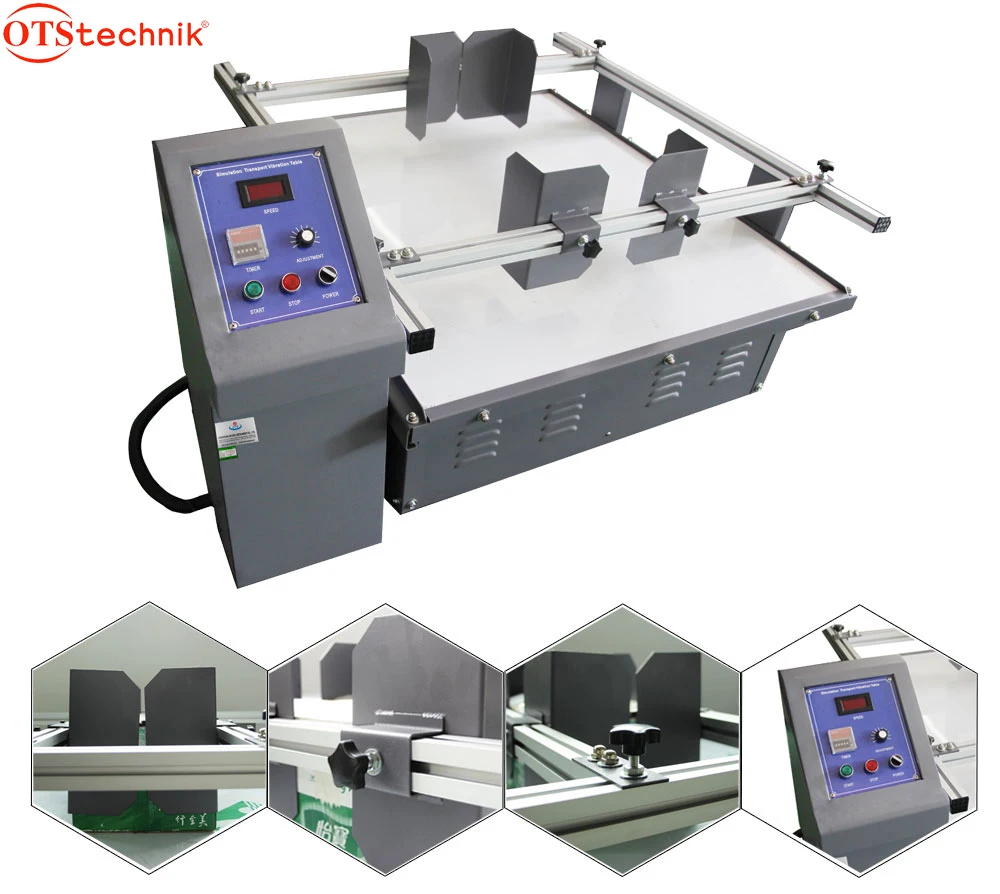

Simulation Transport Vibration Table
This product is for a variety of packaging materials, PC boards, electrical products . as well as the simulated transport vibration test of the packaged products, to assess the degree of vibration-resistance.... simulate the transport process Caused damage because of the vibration force, the test results can be used as the reference of the design packaging.
Features：
1. Low price, the price is only 10% of similar products in the United States;
2. Digital instrument display vibration frequency;
3. Synchronous mute belt drive;
4. The specimen is clamped with rail, easy to operate, safe;
5. The base of the machine adopts heavy-duty trench with damping pad, easy installation, smooth operation, no need to install the foot screw;
6. DC motor speed, smooth operation, strong load capacity;
7. Rotary vibration (commonly known as racing), in line with European and American transport standards;
Design standards: ASTM, ISTA
1. Low price, the price is only 10% of similar products in the United States;
2. Digital instrument display vibration frequency;
3. Synchronous mute belt drive;
4. The specimen is clamped with rail, easy to operate, safe;
5. The base of the machine adopts heavy-duty trench with damping pad, easy installation, smooth operation, no need to install the foot screw;
6. DC motor speed, smooth operation, strong load capacity;
7. Rotary vibration (commonly known as racing), in line with European and American transport standards;
Design standards: ASTM, ISTA
Frequency range | 60~300RPM cycle/min (Adjustable) | |
Vibration mode | Rotary vibration (Vertical and horizontal) | |
Amplitude range | 25.4mm(1 inch) meet ISTA/EN71 | |
Max .Load | 100KG | |
Accuracy Grade | 0.5 | |
Simulation speed | 25 ~ 40km / h | |
Working Table size (L*W, mm) | 1000*1200 mm | |
Digital speed | Accuracy is not greater than ± 3 rev / min | |
Work time setting range | 0~999H99M | |
Speed display accuracy | 1RPM cycle/min | |
Motor Power | 1HP | |
Max.current | 5A | |
Power | 1 phase 220V 50Hz/60Hz | |
Overall dimensions | 1255*1070*660 mm | |
Machine weight | 125kg | |
Environmental conditions | temperature: 5 ~ 40 ℃, relative humidity ≤ 85% | |
Speed control mode | DC speed control or AC frequency control | |
*** Standard: ASTM-D999(A1&A2) ISTA PROJECT 2A | ||
Analog Transport Vibration Test Bench Test Standard Requirements for Equipment:
1. ISTA test standard is the American Transportation Association standard
2. ASTM test standards are American Materials Association standards
Two standard requirements for simulated transport vibration are:
1. Amplitude is 25.4mm (1 inch, fixed)
2. Frequency 1.5-5Hz (or 100-300 r / min adjustable)
3. The test basis is: T = 14200 / CPM (based on the total number of vibration is 14200 times)
1. ISTA test standard is the American Transportation Association standard
2. ASTM test standards are American Materials Association standards
Two standard requirements for simulated transport vibration are:
1. Amplitude is 25.4mm (1 inch, fixed)
2. Frequency 1.5-5Hz (or 100-300 r / min adjustable)
3. The test basis is: T = 14200 / CPM (based on the total number of vibration is 14200 times)
ISTA / ASTM standards related test methods table:
Test Speed (CPM) | Corresponding frequency (Hz) | testing time (M) |
150 | 2.5 | 95 |
180 | 3.0 | 79 |
210 | 3.5 | 68 |
240 | 4.0 | 59 |
270 | 4.5 | 53 |
300 | 5.0 | 47 |
