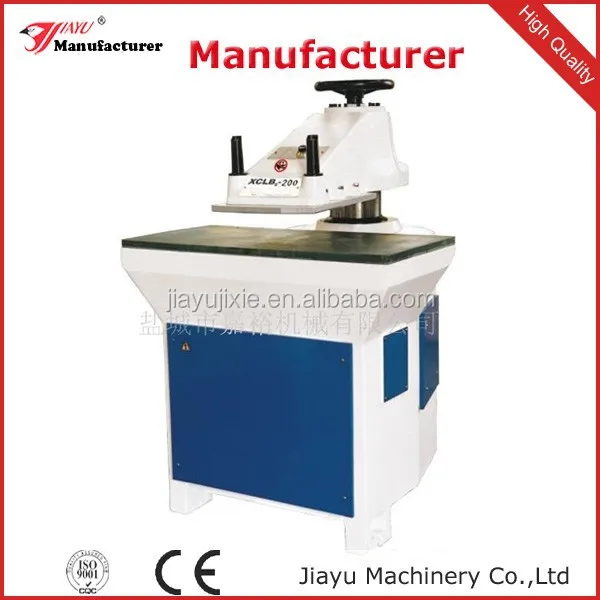

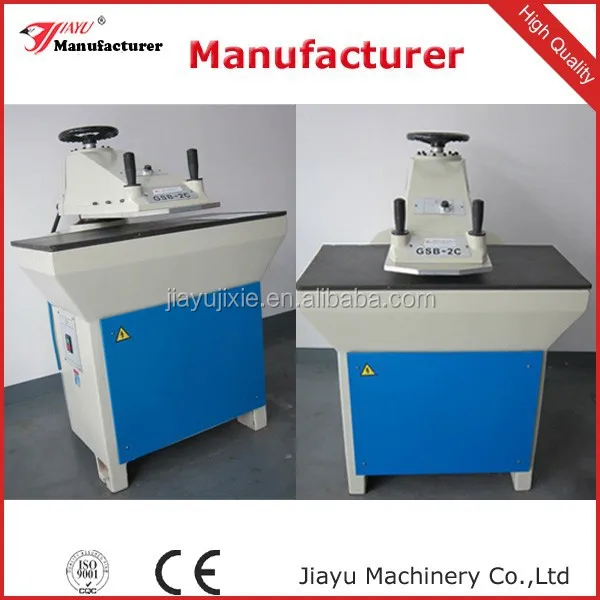

hydraulic swing arm shoe machine

Product Overview

Description

hydraulic swing arm shoe machine



Description:







GSB-2C Series Hydraulic Swing Arm Cutting Machine







Use And Character:







Used to cut up plastic boards, leather, fiber, cotton fiber, paper cartons and other similar materials.







1) Safe, two-hand trip operation; the sway arm can swing freely. Best operation line of sight.



2) Used to cutting plastic boards, leather, fiber, cotton fiber, paper cartons and other similar materials; especially suitable for shoe industry.



3) Equipped with lubricating system to lessen wear and prolong service life.



4) Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality shoes.



 5) People can adjust height of sway arm from table by simple handle, convenient, stable.







Main Technical Parameters:







Model	GSB-2C/20
Cutting Force	20 Tons
Sway Arm Size	350x550mm
Stroke Adjustment	5-75mm
Distance Between Upper Table And Lower Table	65-150mm
Table Area	1000x500mm
Electric Supply Voltage	3x440/415/400/380/220/200V, 50/60 Hz
	Single phase 240/220V,50/60Hz
Motor Power	1.5kw
Packing Size(LxWxH)	1100X1100X1700mm
Weight	1000Kg
Hydraulic oil (46#)	65 Liters

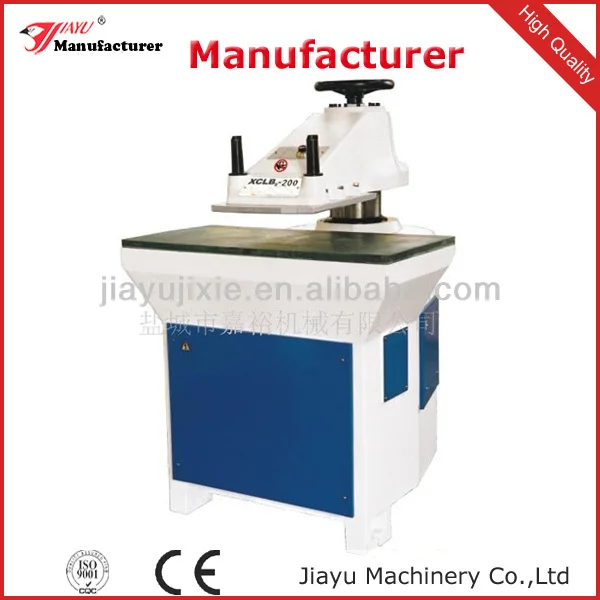

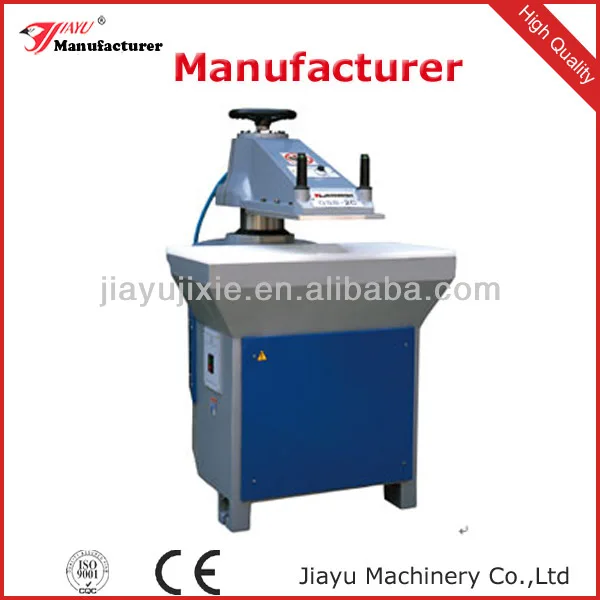

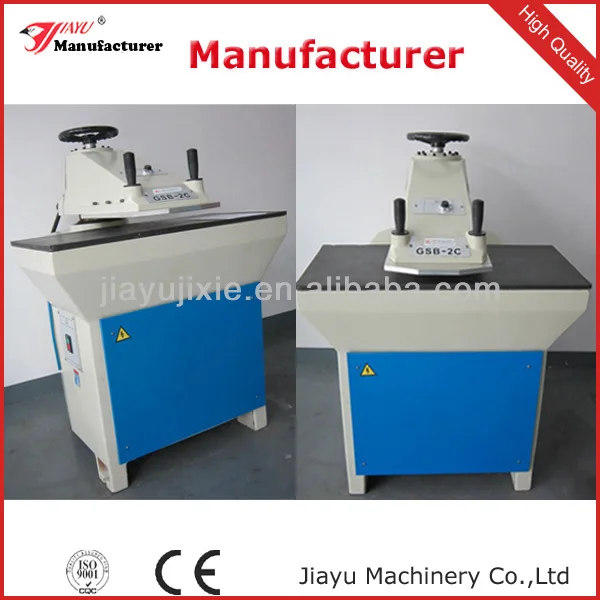

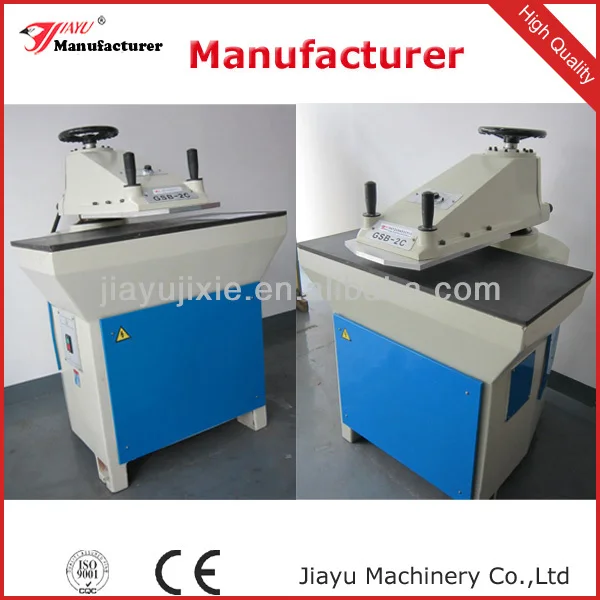

Product Pictures:





















Contact Information:

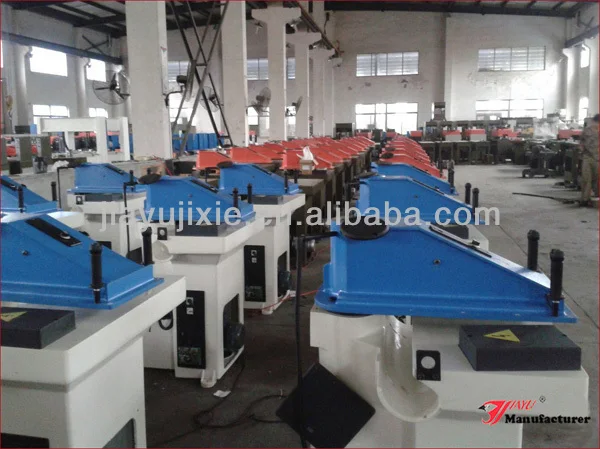

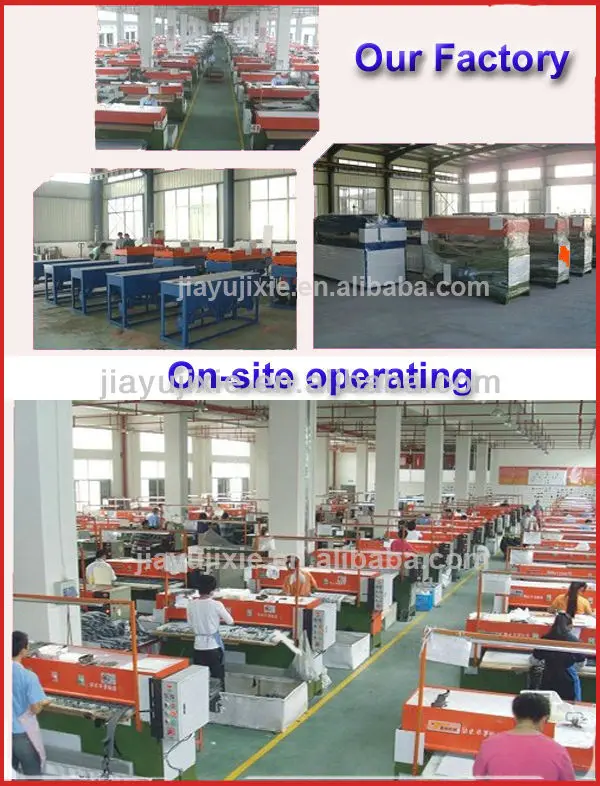

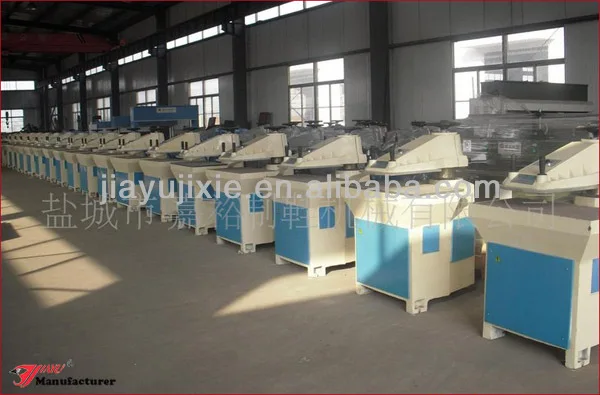

Welcome to visit our factory.

















Note:







1.Payment Terms: 30% deposit, balance paid before shipment(T/T or L/C or Escrow). It is best that examine the quality before shippment.







2.Delivery: 10-30working days after order confirmed .







3.Packaging: First wrapped with PE film, then packed in wooden cases. That would suitable for long-distance sea transportation and various types of weather conditions.







4.Debug and installation: If you require, our engineers can go to the site, and the costs incurred by you bear. We offer a free tutorial onsite.







5.Guarantee: One-year warranty.















We'll offer you the quotation as soon as possible once receive your inquiry,so please don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.







Factory direct sale; Guarantee Period one year.
