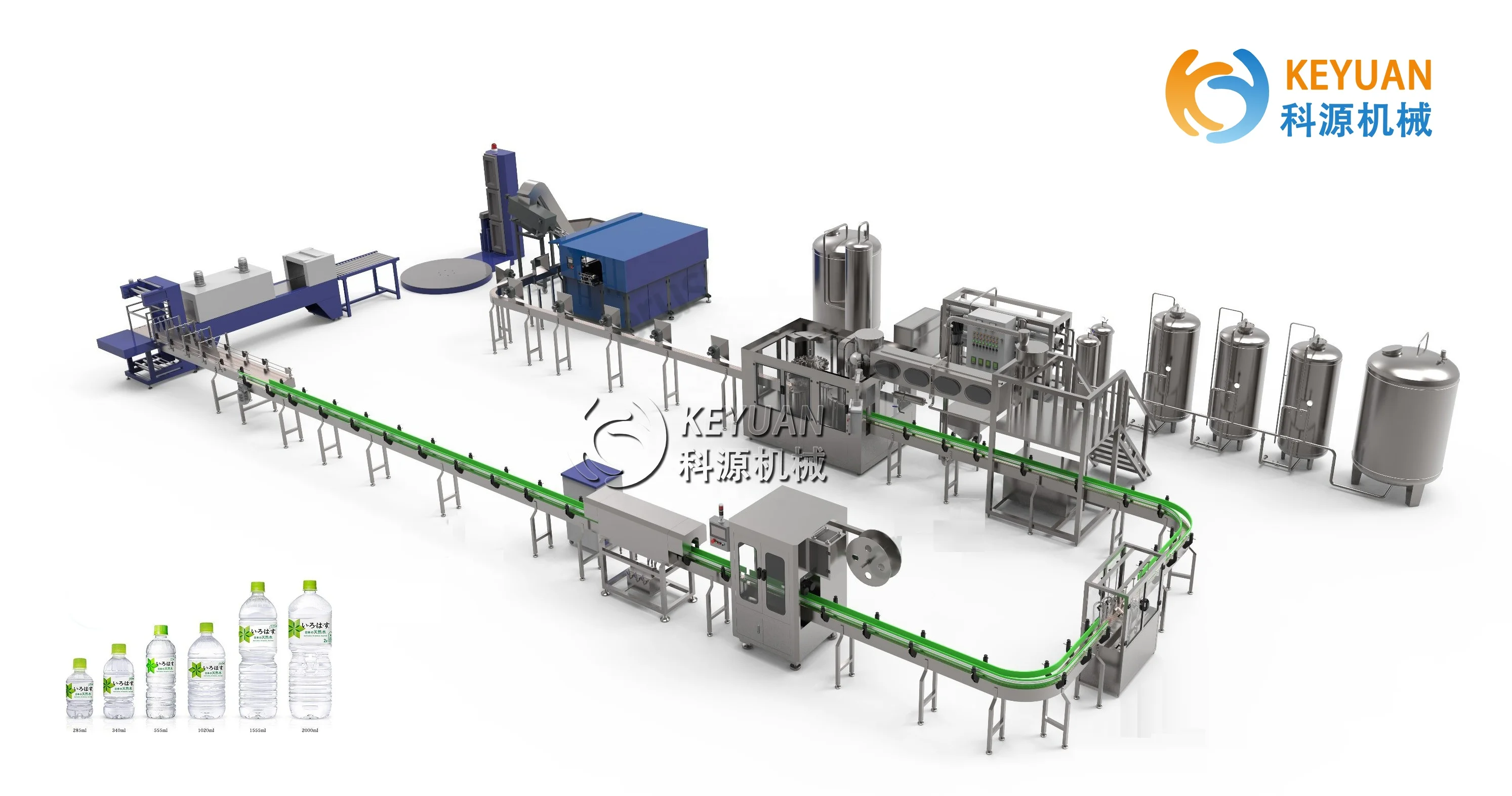

Automatic bottle washing filling capping machine,drinking water factory,evian mineral water filling line

Product Overview

Description

3-in-1  water filling machine



The water filling line contains washing, filling and capping with complete automation. It is suitable for filling all kinds of beverage drinks into polyester bottles and PET bottles. The bottleneck blocking makes the process of changing  bottles easily by only adjusting the height of the conveyor chain. The filling process adopts micro-pressure technology, which makes filling process faster and more reliable.



Technical Parameters:



Model:	XGF18/12/6	XGF18/18/6	XGF20/20/6	XGF32/32/8	XGF40/40/10	XGF48/48/12
Production Capacity:500ml(B/h)	4000	6000	7000	14000	17000	20000
Suitable Bottle Standard:(mm)	150-300	150-340	150-340	150-340	150-340	150-340
Suitable Cap Standard:(mm)	φ50-φ110
Filling Pressure:(Mpa)	0.2-0.3
Filling Model:
Installed Capacity:(L)	3.13	3.84	3.84	5.6	6.3	7.3
Filling Temperature:	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature
Overall SizeL×W×H(mm)	2400×1670 ×2350	2470×1970 ×2350	2500×2170 ×2350	3700×2570 ×2350	3800×2950 ×2400	4500×3400 ×2400
Total Weight:(kg)	2500	3000	3500	5000	6000	7000

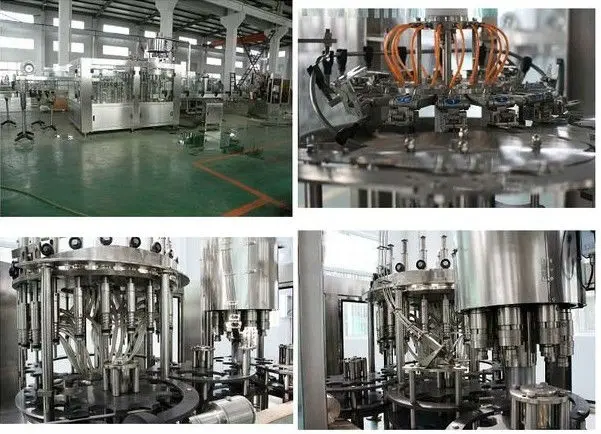

Production Detail:

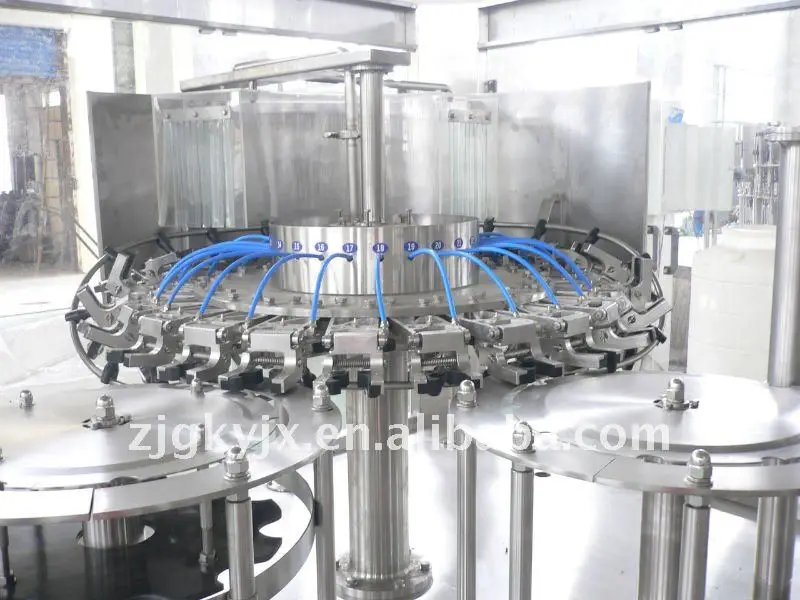

washing



 filling

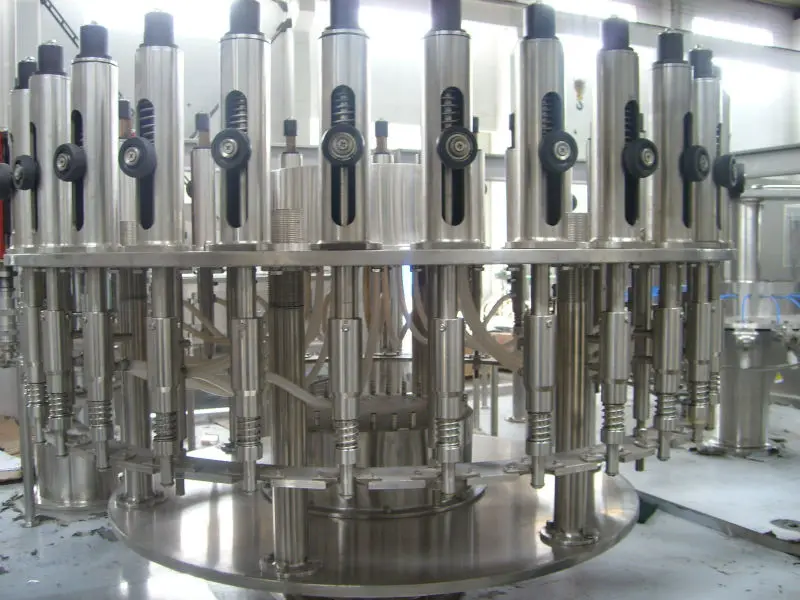

capping







  Production technical flow chart
