electric hydraulic wheelchair lifts with foldable platform for vans with CE certificate

Share on:


Price:$2,433.00 - $3,000.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description



WL-D series Dual-Arm wheelchair lift provides an easy access for the people in wheelchair to get in/out of vehicles. The platform can move smoothly, reliably and safely, whose loading capacity can be up to 350kg.

There is electrical &hydraulic control system in WL-D series wheelchair lift, which can operate lift to extend, stow, lift and lower down. Lift performance is controlled by standard controller which can be wire control or remote control. Moreover, there is manual equipment for manual operation.

Maintenance free bearing is used at hinged joint, so that this lift is easy to maintenance. This lift will take up little vehicle space because of the exquisite and compact design and completely steel structure.

The WL-D Series wheelchair lifts are fully hydraulic in operation, for both the fold/unfold and up/down cycles. Lift operation is controlled by the standard hand-held control, the on-lift controls, or the optional remote control.

This DN-880U automatic wheelchair lift offers you dependable accessibility while its trim, compact design maximizes valuable interior space. The lift also features a strong durable steel frame built to give you years of dependable service.



model
DN-880U-1150
DN-880U-1250
platform width A
720 mm
820 mm
platform length B
1140 mm
1240 mm
gross height C
1200 mm
1200 mm
max lifting height D
880 mm
880 mm
geoss width E
1137 mm
1237 mm
door net width F
1150 mm
1250 mm
door net height G
1230 mm
1330 mm
depth H
490 mm
490 mm


SPECIFICATIONS
voltage
12Vdc or 24Vdc
operation
wired remote control
power
800 w
own weight
135-145 kg
Loading capacity
350 kg
packing size
1300*600*1400mm




Main Features

¨ Automatic Inboard and Outboard Rollstops

¨ Equiped with foldable platform;
¨ powerful hydraulic pump ensure smooth, stable operation for heavy wheelchairs and scooters
¨ all-steel frame features convenient handrails for increased comfort and security
¨ stable, non-skid platform with automatic inboard and outboard rollstops accommodates most wheelchairs and scooters
¨ pre-lubricated bearings at all major pivot points offer long-term durability
¨ high gloss, polyester powder coat finish resists corrosion
¨ built in manual backup system
¨ Compact design, quiet and smooth operation
¨ Easy to maintain

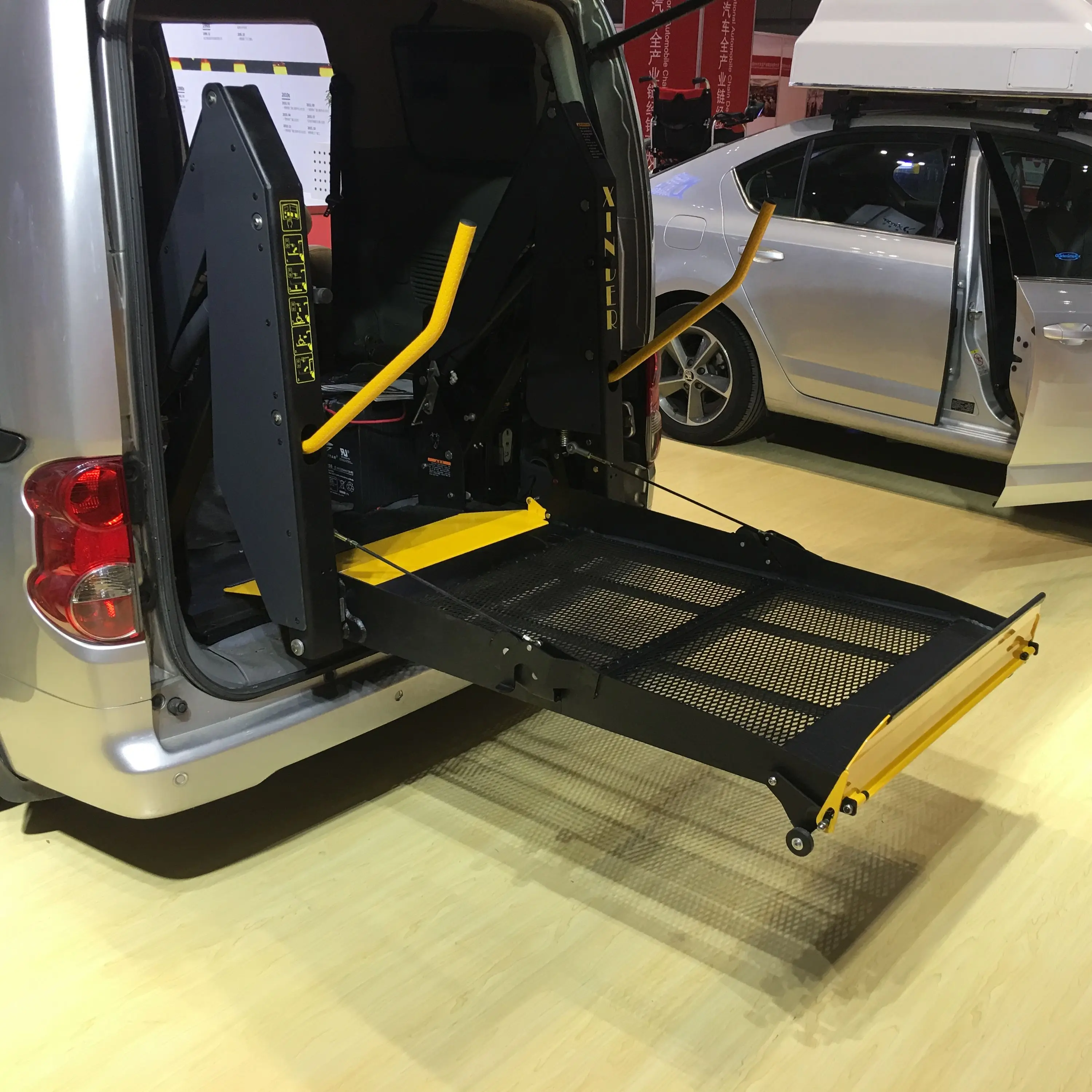

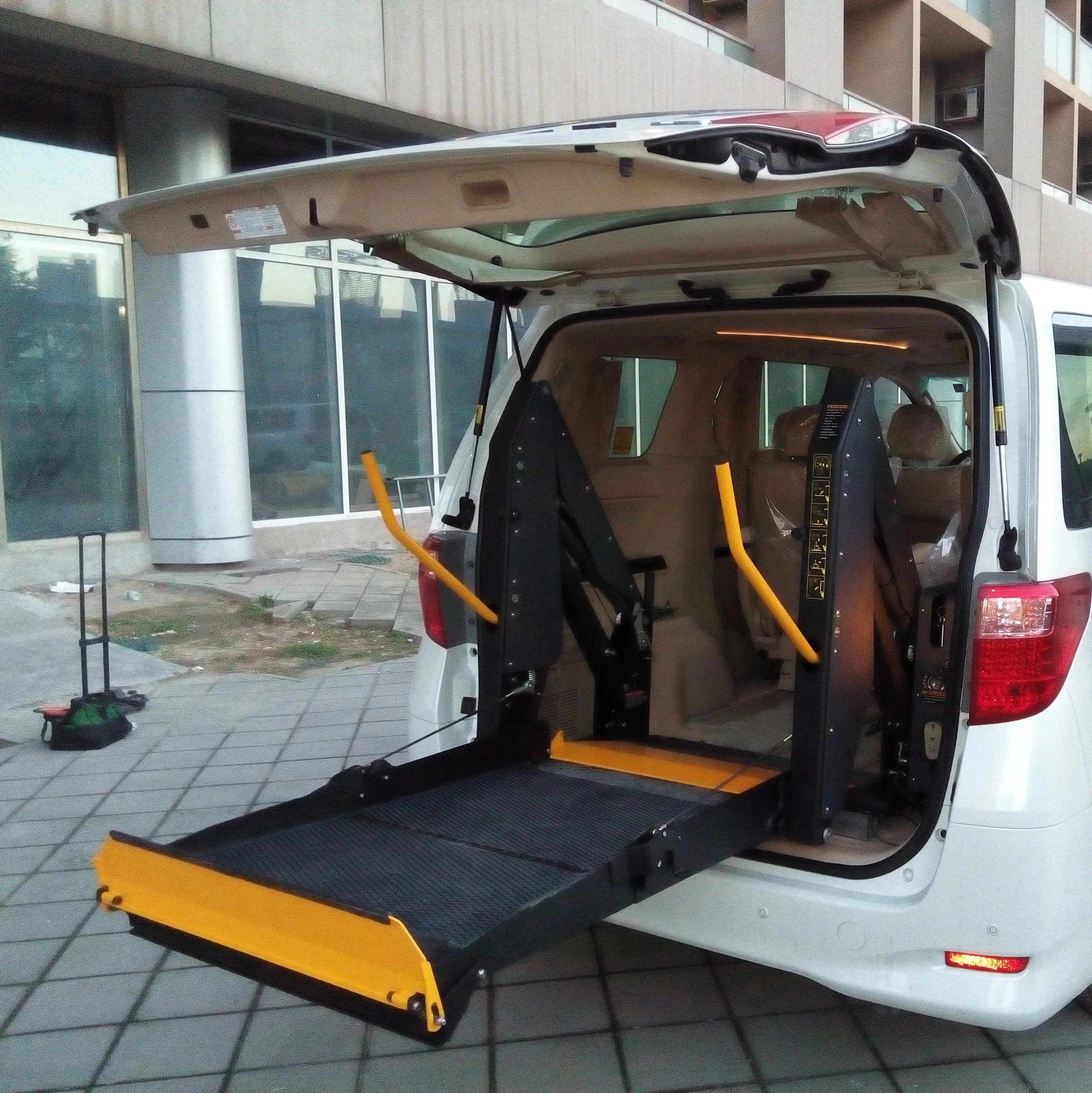

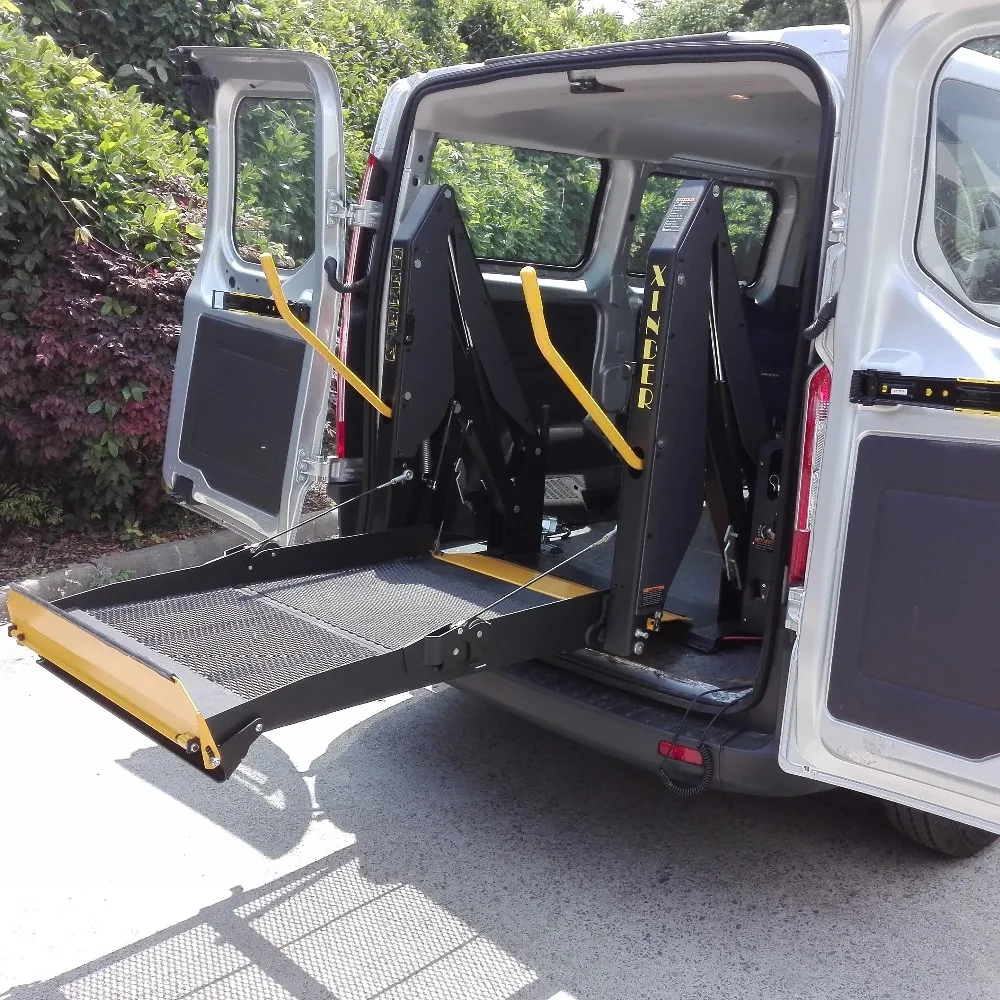

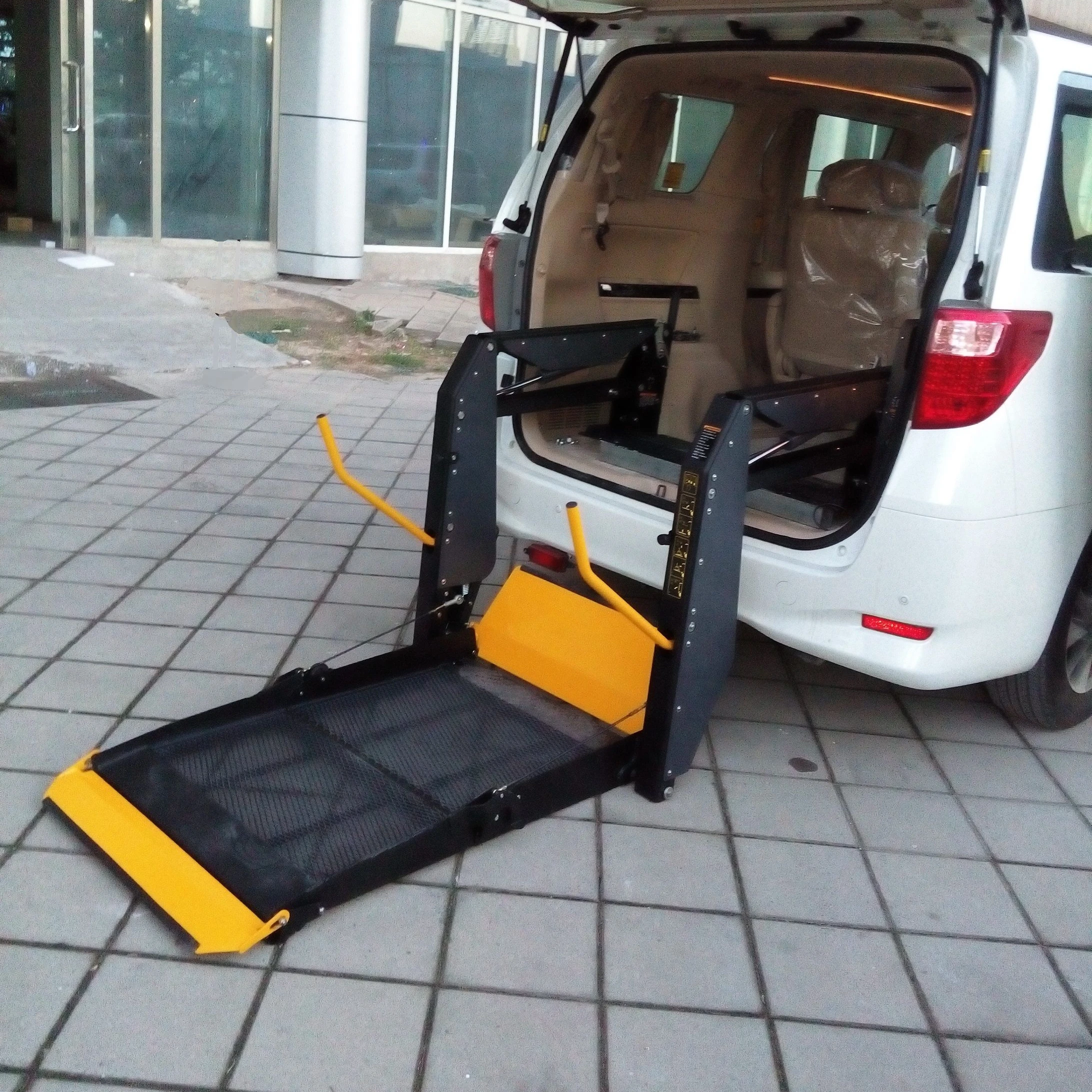

Detailed Images



anti-skip platform;

mechanical automatic front and rear rollstops;

standard two handrails;

lable shows max loading 350 kg

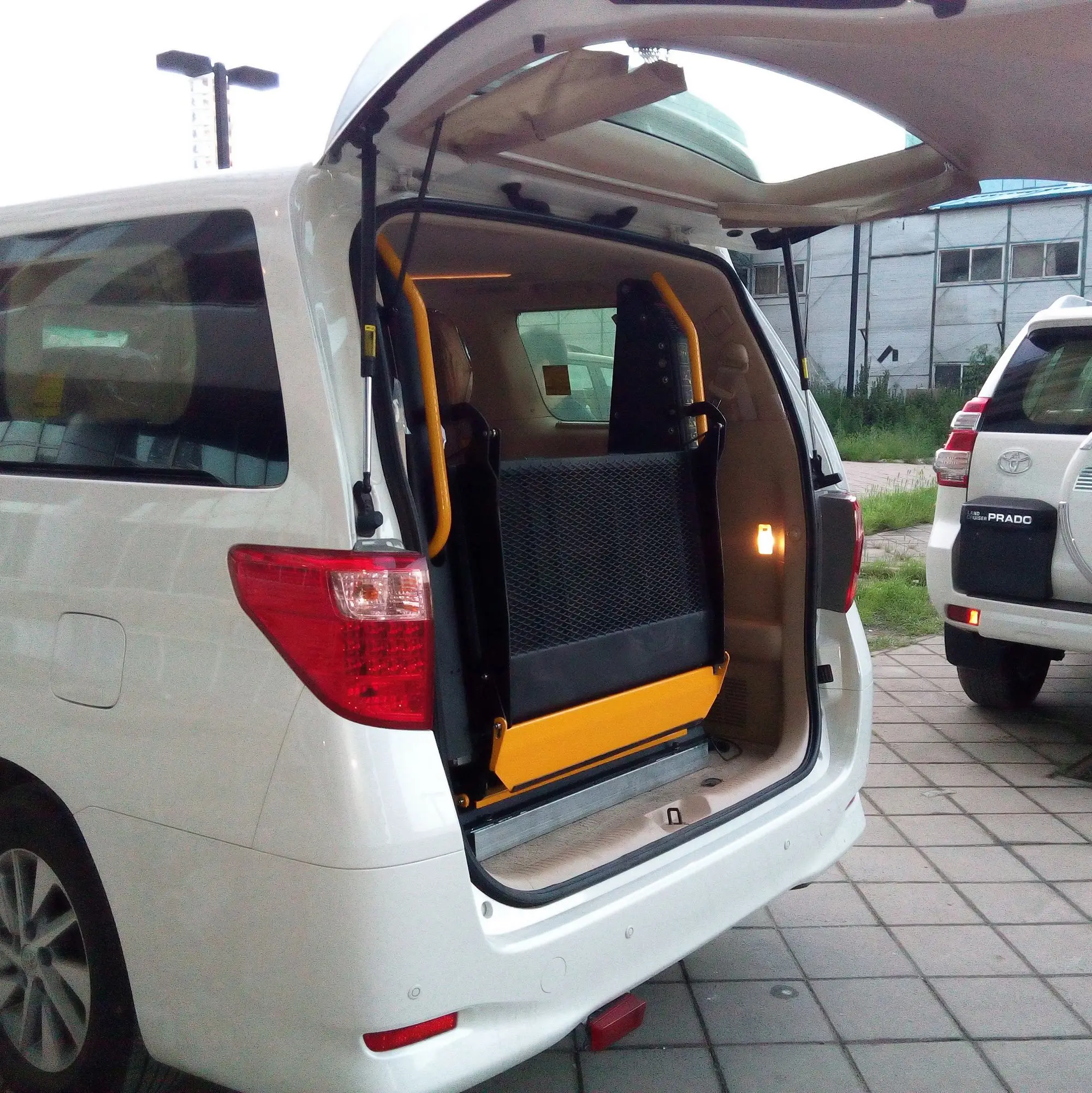

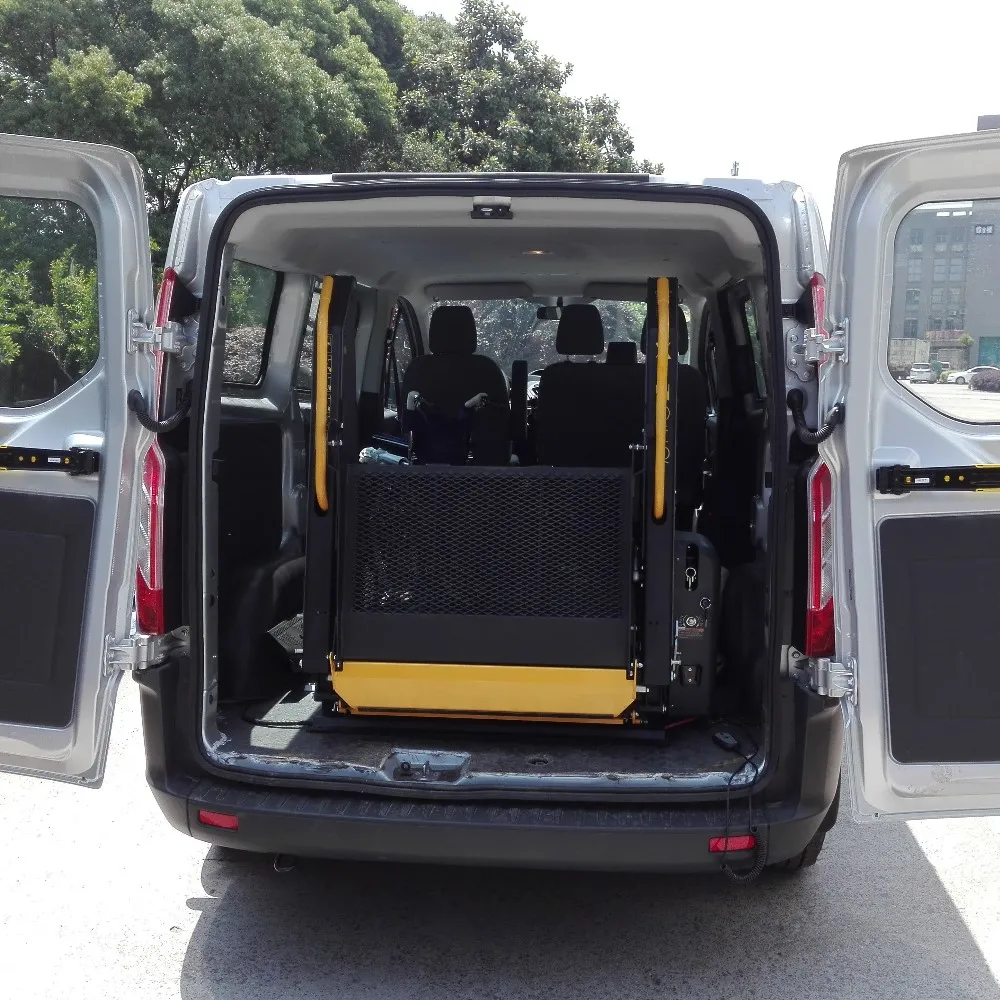

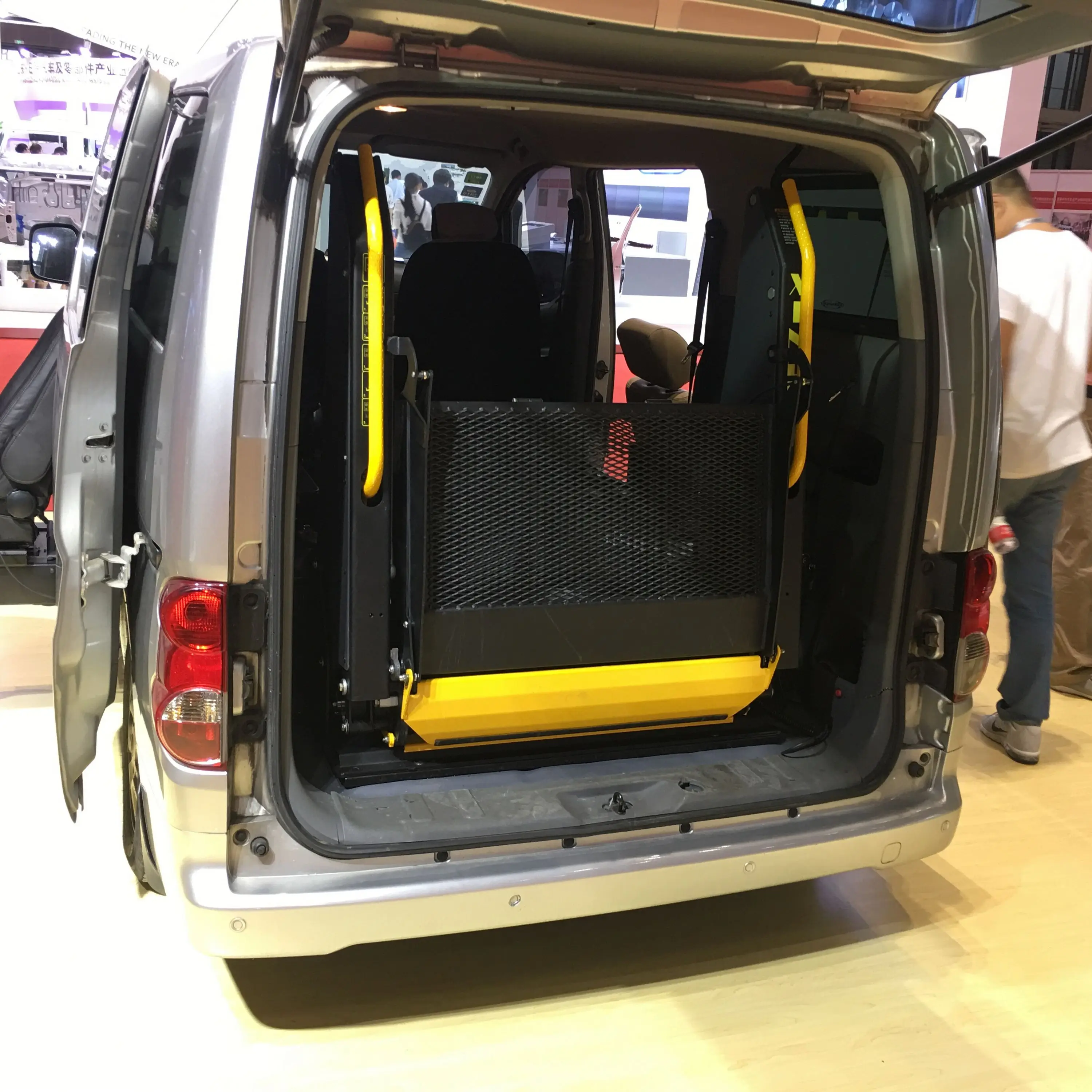

Main Features

can be used for van rear door;

equiped with fold platform;
fully automatic operation;



Machine Features

operated by the wired remote control;

a key to control the power supply;

this lift can be operated manully for emegency;



Main Features

locking device at two sides:

to avoid platform falling down to broke vehicle door;





Packing & Delivery


1-2 units/package

professional plywood case

international transportation service



QTY/package
packing size (mm)
net weight (kg)
gross weight (kg)
1 set
1200*600*1400
140
198
2 sets
1200*1080*1400
280
260
