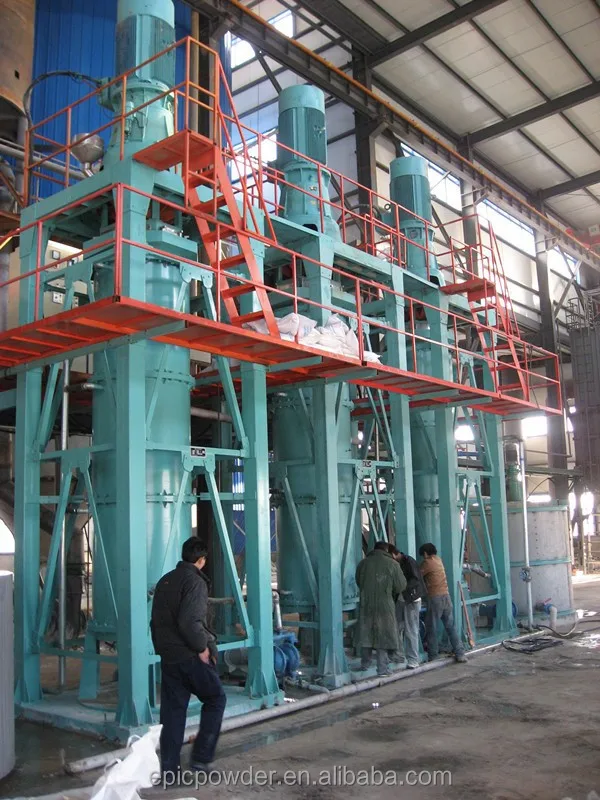

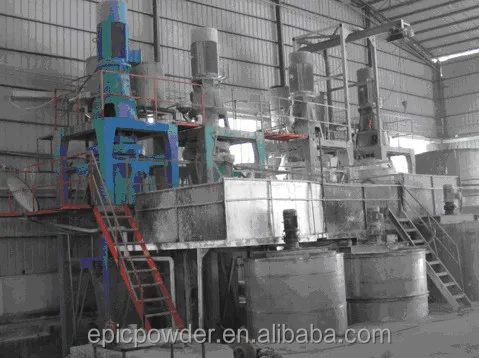

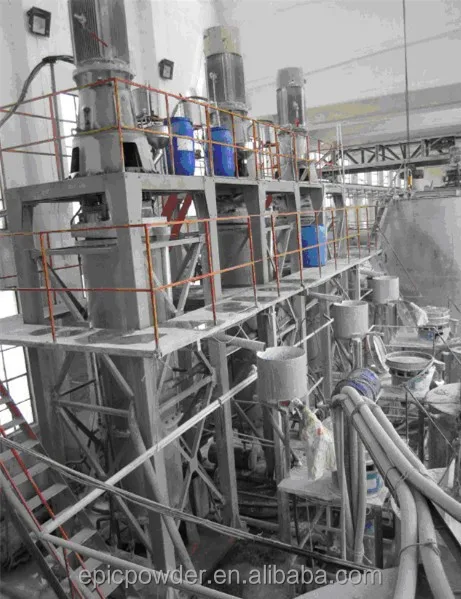

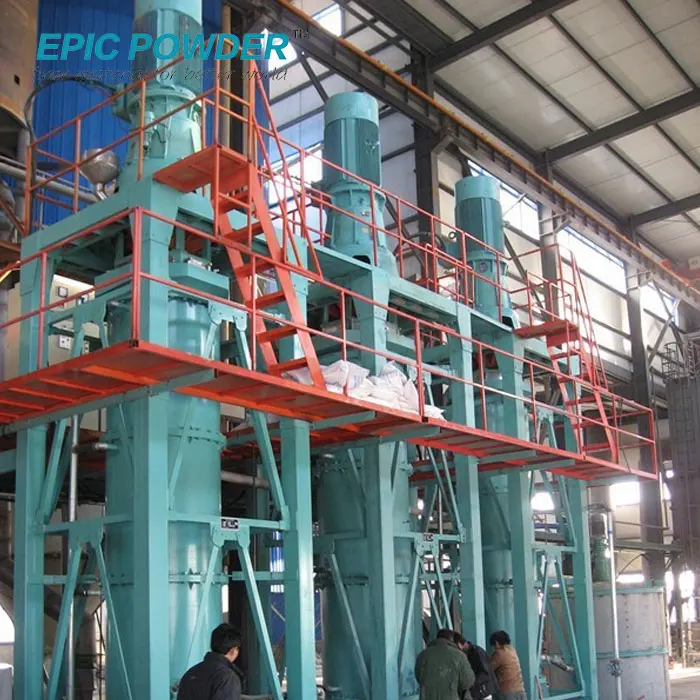

Grinding d98 2 micron Powder grinder machine Wet Stirred Mill
- Category: >>>
- Supplier: Qingdao Epic Powder Machinery Co. Ltd.
Share on (60122203902):
Product Overview
Description
This powder production line is for product fineness down to 98 % < 2 µm, Wet Stir Mill System is the best choice. Dry grinder machine is not able to achieve this product fineness with economical energy efficiency.
1. Good combination of different grinding balls makes coarse partiles stay in down part of grinding chamber.
2. Small grinding balls shear the particles in the middle part of grinding chamber.
3. Fine particles will flow up from gaps between grinding balls and then come out of grinding chamber.
4. The grinding chamber is so long that there is enough time for slurry to stay inside the grinding chamber and be ground. So the slurry flow is stable, product quality is stable and the particle size distribution is uniform.
5. Reasonable linear speed of mixer makes round shape of fine powder particles.
6. Special heat distribution technology helps keep good whiteness of product during the grinding.
7. Energy saving, at least 70% lower than traditional machine.
8. Wet grinding machine has no dust emission problem and also waste problem.
9. Machine stable and reliable. The running efficiency can be up to 95%, and no vibration and low noise.
Technical Data
grinder machine Model | WR1500 | WR4000 | WR500X3 | WR1500X3 | WR4000X3 | WR6000PX2 | WR6000PX3 |
Mill Motor (Kilowatt) | 160KW | 250KW | 45KW*3 | 160KW*3 | 250KW*3 | 355KW*2 | 355KW*3 |
Product Fineness (Slurry Product) | D90: 2um | D90: 2um | D98: 2um | D98: 2um | D98: 2um | D90: 2um | D98: 2um |
Milling Capacity (Solid Weight) | 0.8MT/h | 2MT/h | 0.5MT/h | 1.2MT/h | 2.5MT/h | 3.5MT/h | 2.8MT/h |
Packaging & Shipping
grinder machine ,
Steel frame or wooden box;
Container for ocean shipping;
We can satisfy the special packing requirements if customer need.
Product Application
Our grinding mills and classifiers can be used in kinds of industries:
1. Crushing and grinding ore granules into fine powder for mineral processing industry.
2. Classifying powder into different grades according to particle size for mineral processing industry.
3. Powder coating for chemical or mineral processing industry.
4. Powder coating or grinding for medicine industry.
5. Other powder or fine required processing in other industries.
We devote ourselves to the micron powder grinding and classifying development field.
We are your best partner in powder processing business.
Our Services
We can supply below services for grinder machine :
1. New Material Processing Test
2. Project Design &Engineering
3. Automation Engineering Plan
4. Machine Design and Manufacture
5. Project Management
6. Test Running
7. Staff Training
8. Existed factory Improvement
9. Overseas installing and maintenance supporting
We are the best partner if you do business in mineral powder processing field.
What EPCI does?
| Ⅰ. EPC Contracting | ||||||||||
| i. | Technology | Hosokawa Alpine technology and Omya technology | ||||||||
| ii. | Experts/Consultant | Mr. H. Horlamus -- former engineer-- Hosokawa Alpine | ||||||||
| Mr. Victor Evele -- former engineer-- Omya | ||||||||||
| iii. | Experience | over 20 years | ||||||||
| iv. | Application | Minerals, Chemicals, New Materials, Pharmaceutical Materials, Food/Health Care Products, Recycled Materials | ||||||||
| v. | Supply | consultancy, testing, project design, machines, commissioning and training service. | ||||||||
| Ⅱ.Machine Supplier | ||||||||||
| i. | Fluidized Bed Jet Mill | ix. | Turbo Classifier | |||||||
| ii. | Spiral Jet Mill | x. | Multi-wheel Classifier | |||||||
| iii. | Air Classifier Mill | xi. | Dynamic Classifier | |||||||
| iv. | Impact Mill | xii. | Jet Classifier | |||||||
| v. | Vibration Mill | xiii. | Particle Surface Coating Machines | |||||||
| vi. | Ball Mill | xiv. | Particle Shape Modification System | |||||||
| vii. | Grinding System | xv. | Waste PCB Recycling System | |||||||
| viii. | Wet Stir Mill System | xvi. | Waste Tire Recycling System | |||||||
1) What are our main products?
- We design and manufacture various powder grinding mills, classifiers, coating machines, mixing machines, etc.
2) What service do we supply?
- We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
- We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
- We supply project engineering, automation engineering and civil engineering.
- We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
3) How long time is our delivery?
- 60 to 90 days after the down payment received.
4) What payment terms do we offer?
- 30% by T/T as down payment;
- 70% by T/T before shipment or irrevocable L/C at sight.
5) What kind of shipment can we do?
- For complete machines, standard containers or frame containers by sea.
- For spare parts, wooden Case and pallet for delivery by air.
6) What service can we supply for machine installation and test run?
- We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
7) What is our warranty policy?
- We offer warranty of 12 months after installation or 18 months after the delivery.
- We offer lifetime service for our machine products after the delivery, and will follow up the machine status with our clients after the successful machine installation in our clients’ factories.
For details, please contact our project consultants, thank you.
