Pipe Mounting Clamp Spray Nozzle,Clamp Water Spray Nozzle,Plastic Water Jet Nozzle

Share on (60122237691):


Price:RUB 38.34 - RUB 76.68

Quantity:


Product Overview

Description

Pipe Mounting Clamp Spray Nozzle,Clamp Water Spray Nozzle,Plastic Water Jet Nozzle




Product Description



Feature:
1.Can be quickly and accurately adjust the injection direction;and you can installed it without any other tools,just by hands;
2.Resistance to chemical corrosion and wear,very suit for phosphoric acid,acid,solvents and other caustic washing;
3.The spraying parttern diversification;
4.Humaized design.



Application:
1.Plating pretreatment cleaning;
2.Painting and coating before chemical treatment;
3.Spray coating before electrophoresis processing;
4.Steel plate pretreatment spraying;
5.Cleaning vegetables and fruits;
6.Degreasing and phosphating in surface treatment;
7.Other chemical treatment and low pressure applications.

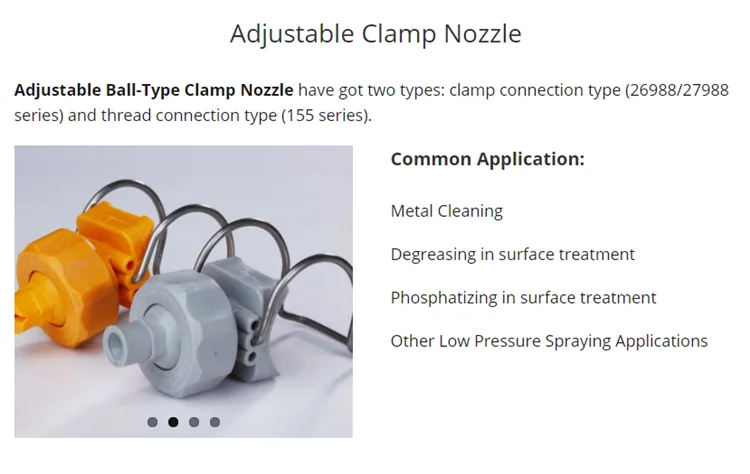

clamp (1).png



Clamp Nozzle Specification:

Type Clamp Size Clamp Outer Dia.(mm) Pipe Orifice Dia. (mm)
26988 1 32-35 14
1-1/4 38-43 16
1-1/2 44-51 18
2 54-60 20
27988 1/2 21 14
3/4 27
2 54-60



Threaded Nozzle Specification:

Type Connection Thread Size (inch)
155 1/8
1/4
3/8
1/2

The clamp connection type nozzle is positioned on the pipe with spring clamp while the thread connection type nozzle is positioned by the way of thread connection.

Adjusting Ball-type nozzle provides hollow cone spray pattern, solid cone spray pattern and flat fan spray pattern. It could meet various needs by directly connecting ball spray tip or by indirectly connecting spray tip with threaded ball or quick dismantling ball. It permits accurate alignment and convenient nozzle positioning with out disturbing pipe connection.

clamp (2).png
