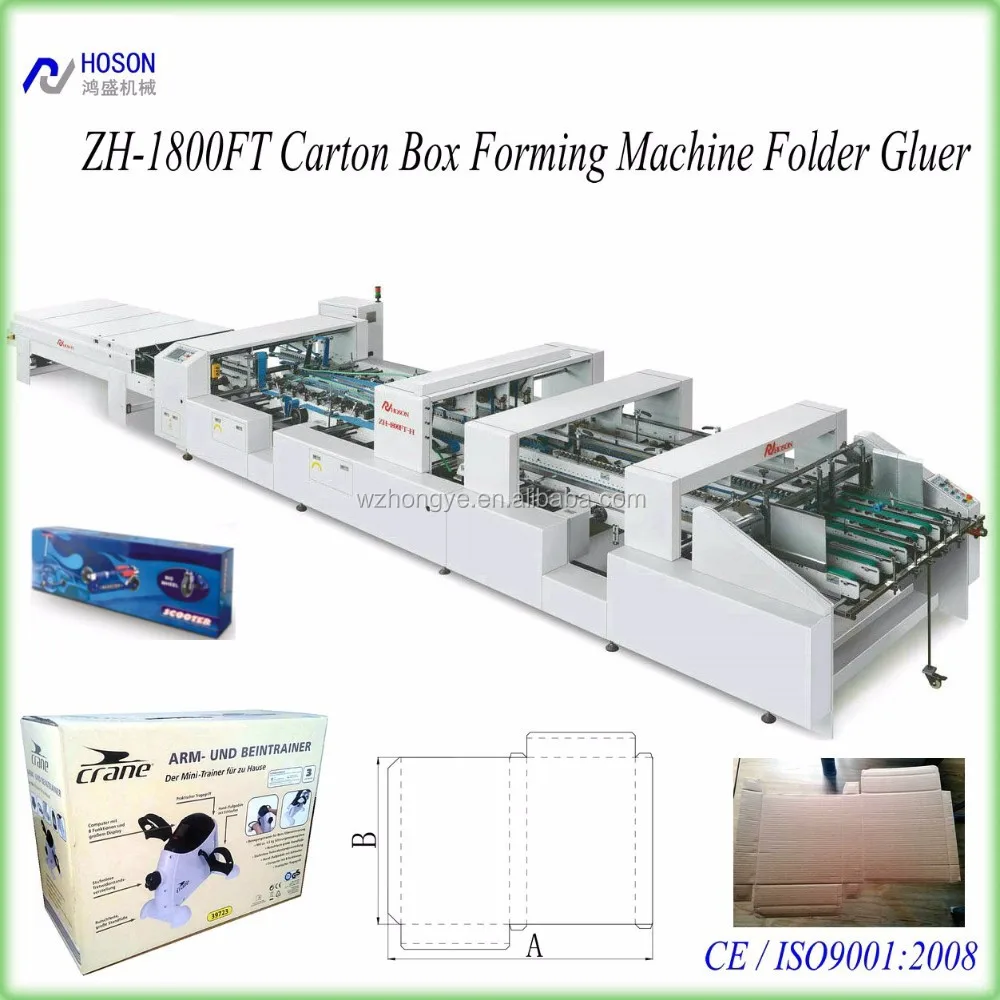

ZH 1800FT Automatic Folding Corrugated Carton Box Folding and Gluing Machine

Product Overview

Description

ZH-1800FT Automatic Folding Corrugated Carton Box Folding and Gluing Machine





Model/ (mm)		ZH-880FT	ZH-1000FT	ZH-1300FT	ZH-1400FT	ZH-1600FT	ZH-1800FT
A	Max	580	700	1050	1150	1380	1600
	Min	110	200	300	300	300	350
B	Max	580	600	780	850	900	900
	Min	90	150	300	300	300	500





ZH-1800FT Automatic Paperboard Carton Box Folder and Gluer Machine

1.Paperboard

2.Corrugated (E/B flute)



Parameters:

Box	Picture	A Max	A Min	B Max	B Min
Straight line box		1600-350mm		900-500mm







































Feature:

1) This model is a designed with correction unit for Corrugated Box ,also available for paperboard box.

2) It is equipped with good parts:  Schneider /Transduder/PLC, Japanese Belts, Japanese Bearing ,Continential timing belts etc

3) PLC system and touch screen for easy operation.

4) The machine is running steady with strengthened driving system, and easy for maintenance.

5) Feeding is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and automatic with this system.

6) Grinder are provided on both side of machine, make gluing stable and firm.

7) Pressing unit equipped with pneumaitc design. And the upper belt is able to work separately.
