FC 2600 Photoelectric Labeling Sensors Fork Shaped Sensor Suitable For Auto Packing Machine, labeling machine system
- Category: >>>
- Supplier: F&C Sensing Technology(Hunan) Co. Ltd.
Share on (60122353568):
Product Overview
Description

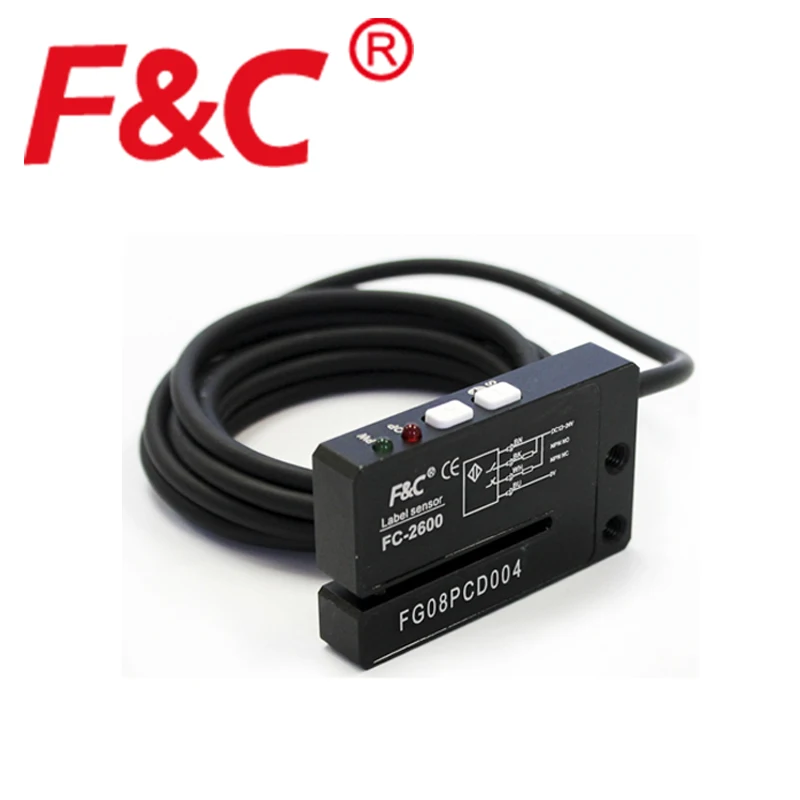

FC-2600 Photoelectric Labeling Sensors Fork Shaped Sensor Suitable For Auto Packing Machine, labeling machine system.
Product Description
| Wiring method | Cable Type | Connector Type |
| Model | FC-2600 FC-2600P | FC-2600D FC-2600PD |
Emitting light | RedLED:640nm | |
Operating voltage | DC:12~24V±10% (Ripple P-P:10%Max) | |
Current consumption | 15mA Max | |
Load current | 100mA Max at DC 24V | |
Output type | N=NPN.NO.NC / P=PNP.NO.NC | |
Protection circuit | Reversed supply ciruit protection,short citcuit protection output | |
Response time | 50υs Max | |
Operation mode | NO.NC selectable | |
| Operation current | DC 1.1mA no-load | |
Operating temperature | -20°C~+55°C(No freezing allowed) | |
Ambient hunidity | 35%~95%RH | |
Storage temperarure | -20°C~+55°C(No freezing allowed ) | |
Storage hunidity | 35%~95%RH | |
Material | AL shell | |
Wiring method | φ4×2M/4-wire / φ4×2M / M8(4Pins) | |
Protection degree | IP66 | |
Weight | -- | |

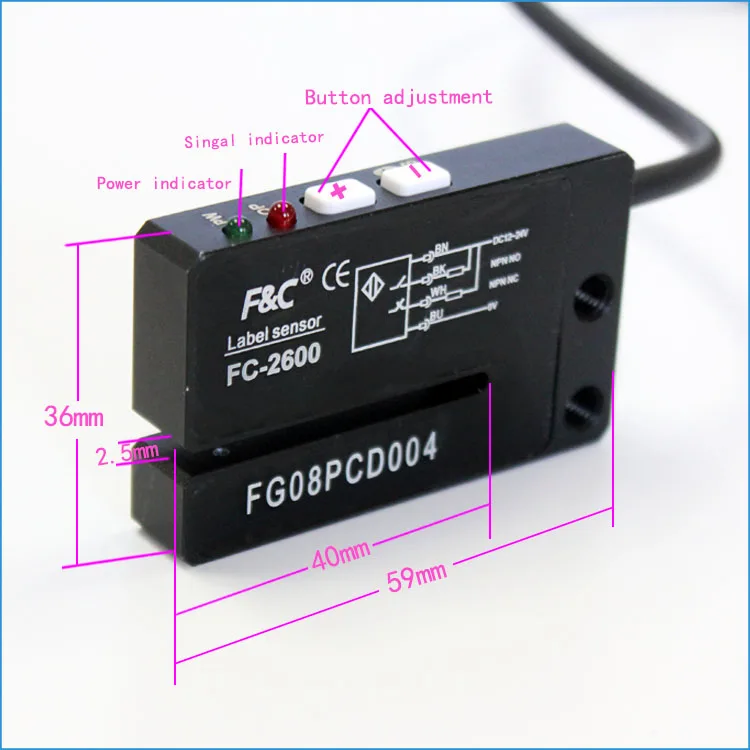

Diagram
