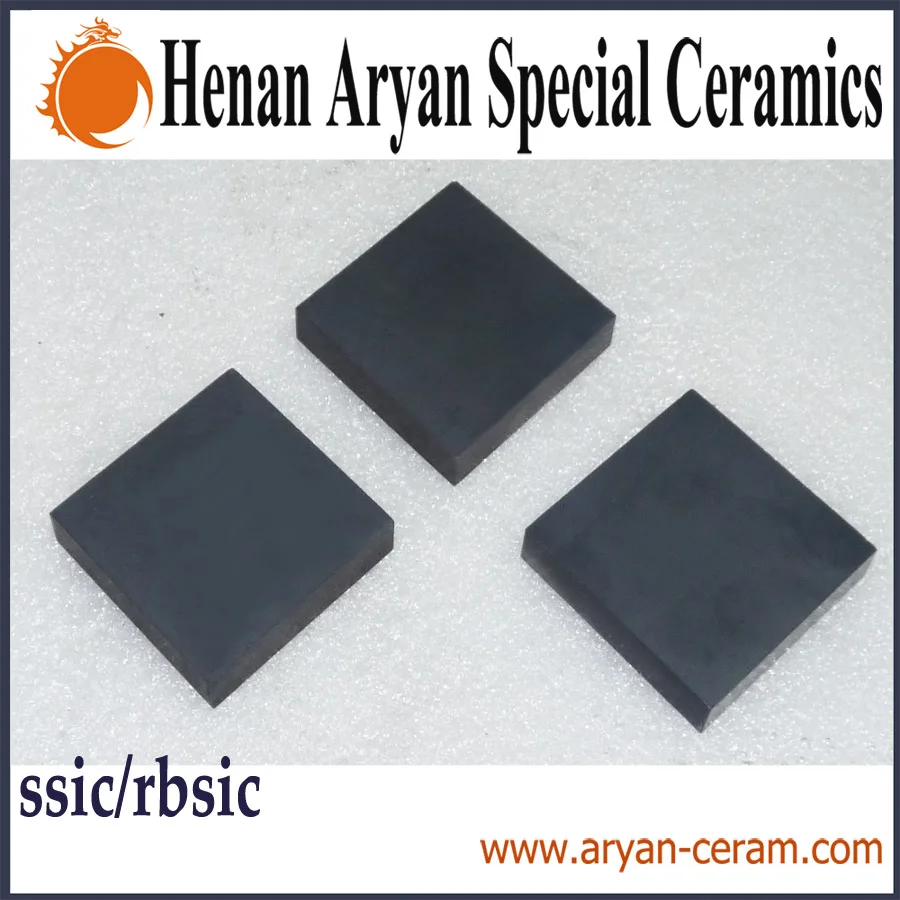

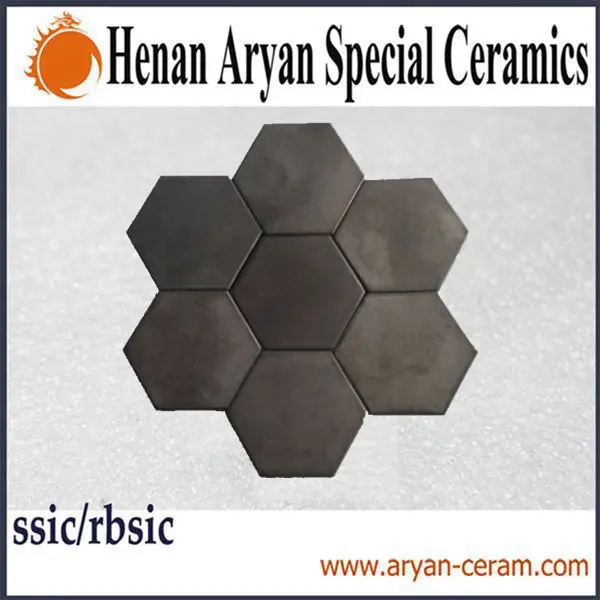

bulletproof armor / ballistic armor / bullet resistant armor ceramic

Product Overview

Description

   bulletproof armor  / ballistic armor / bullet resistant armor ceramic

Excellent  low density ,high hardness and also provide customized production.

Parameter	SSiC	RBSiC
Purity( % )	>98	>90
Hardness( HRA )	≥92	≥90
Grain Size( um )	0.5~0.7	8~20
Density( g/cm3 )	3.10~3.15	3.03~3.08
Bend Strength( MPa )	400-580	350-450
Compressive Strength(MPa)	>2200	>2000
Fracture Toughness( MPA )	3.05-4.6	4.3
Elastic Modulus( GPa )	>400	>360
Thermal Conductivity(W/M.K)	100~120	50~100
Coefficient of heat Expansion( L/°C )	4.02x10-6	4.3x10-6
Poisson Ratio	0.14	0.15







1.Introduction of   silicon carbide  :



 Silicon carbide is an inorganic non-metallic materials with high hardness, high wear resistance, low coefficient of friction, oxidation resistance, good thermal stability, low thermal expansion coefficient, thermal conductivity and thermal shock and great resistance to chemical corrosion, etc. excellent characteristics, can be used for a variety of requirements for abrasion, corrosion and high temperature mechanical equipment. Engineering and technical staff after years of unremitting efforts, has greatly improved the performance of silicon carbide. Now, silicon carbide has become an important engineering materials. Widely used in the field of machinery, metallurgy, petrochemical, shipbuilding, military equipment, etc., such as mechanical seal friction, plain bearings, nozzles, cutting tools, etc.





2.Features of   bulletproof armor  / ballistic armor / bullet resistant armor ceramic   :



body armor will fit in Plate Carriers capable of accepting up to Medium and Large SAPI plates
Outlasts Ceramic, Dyneema, and UHMWPE constructed body armor
Rugged, Reliable, and Stress Fracture Resistant
Multi-Hit capable and Stand-Alone
Level III Rifle threat rated for calibers up to 7.62x51 (.308 Winchester) at 2,780fps
Advanced Shooters Cut (ASC) - Patent Pending
PAXCON (Line-X) Military grade anti-spall & fragmentation protective coating
Fully sealed design protects from Liquids, Chemicals, and Harsh Elements
Certification, Independent, and In-House Ballistic Resistant Testing & Quality Control
Designed to be used as a front or back plate
Maintenance Free
Ultra Low Profile





  3.why chose us?

Our advantages	High quality
	Competitive price
	Strict delivery time
	Good after-sales service
	Professional producer for 10 years
	Gold supplier 3th year
	Strict quality control





 4.Applications of   bulletproof armor  / ballistic armor / bullet resistant armor ceramic   :



silicon carbide ceramic  body armor provides ballistic armor protection and bullet resistant  composite armour for military personal, vehicles, aircraft and police.


High performance, lightweight ceramic materials for composite armor protection applications.



Proven Performance In Demanding Armor applications

Hexoloy Ceramics’ armor protection history includes the delivery of more than 46,000 variable armor system vests to US Army soldiers in Vietnam during the late 1960s. Since then, we have developed numerous SiC armor protection systems with superior ballistic protection capability for defeating high
velocity projectiles for a full range of ballistic
protection applications including:

• Transport Aircraft Armor Protection
• Helicopter Armor Protection
• Land Vehicles Armor Protection
• AC-130U Gunships Armor Protection
• Body Armor: XSAPI, ESAPI, SAPI for military and  police protection









5.production lines:



Granulation-compression moulding-sintering-grinding -finishing and fining



 the inspection for each step of the production is conducted strictly.













  6   Factory real landscape





7.contact us:







If you are interested in any producta, please send your detail request by email , by skype or QQ or Mobile. We will quote you the competitive price with the superior standard professional technology .



We specialize in   bulletproof armor  / ballistic armor / bullet resistant armor ceramic  .



If you are interested in our cooperation, please send us samples or drawing for further check.including  Dimension, Tolerance, Surface Roughness, Concentricity, Perpendicularity and other specification are upon your requirements.



And we warmly welcome friends from all over the world to visit our factories for business.



Send your Inquiry Details in the Below, Click "Send" Now!
