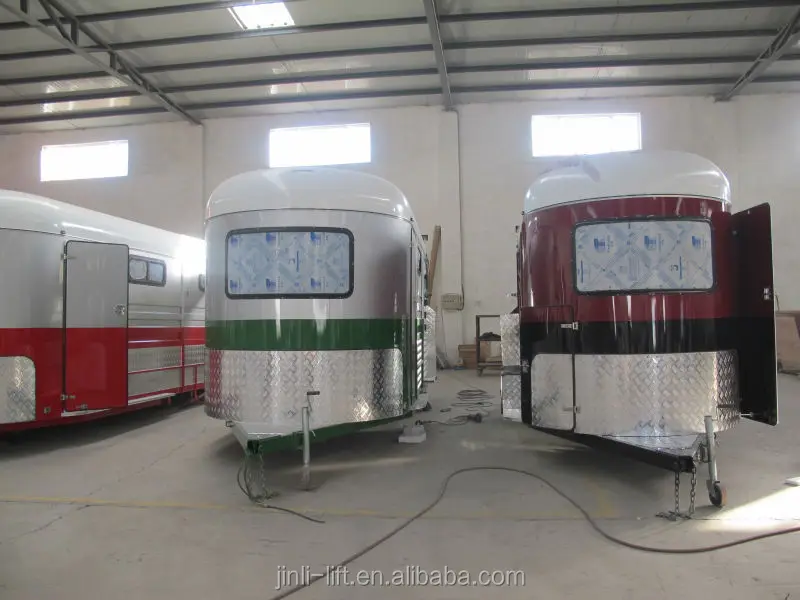

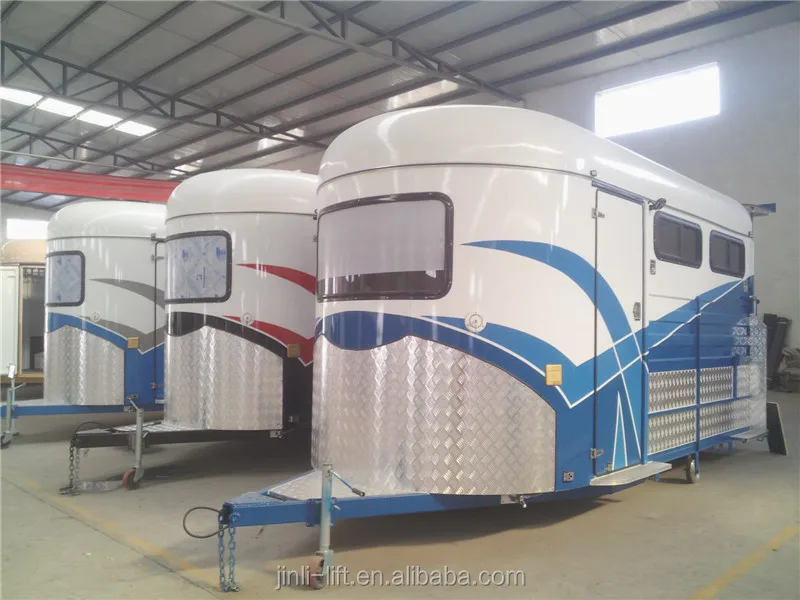

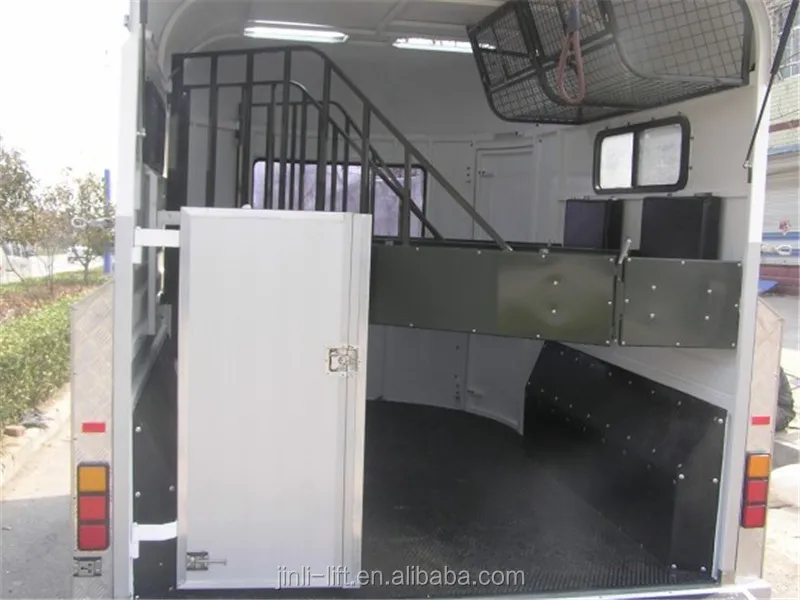

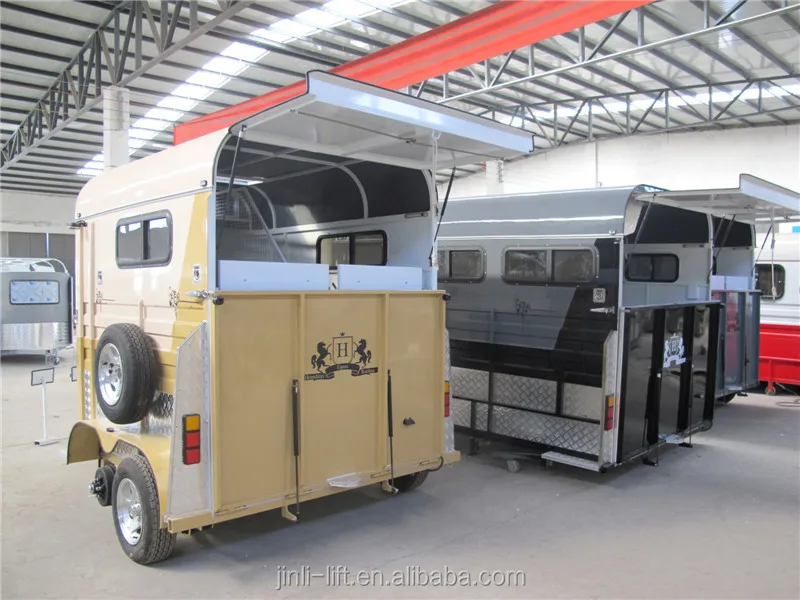

horse trailer for 2 horse standard promotional car trailer

MODEL:2HAL- S

1.TRAILER MATERIALS

1.1 CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm)

1.2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm)

1.3 BODY PANEL galvanized (1.2mm)

1.4 ROOF special molded FRP 3260*1980

1.5 NUTS &BOLTS stainless steel

2.WHEELS & TYRES

2.1 WHEEL RIM 14'' aluminium alloy rims

2.2 TYRES 185R14C

2.3 SPARE WHEEL one

3.AXLES & SUSPENSIONS

3.1 AXLES two special trailer axles

3.2 LEAF SPRINGS roll rocker tandem spring suspension 5 plates

3.3 BRAKE SYSTEM single axle electric brake with break-away systems

4.WINDOWS & DOORS

4.1 FRONT WINDOW 1220*610

4.2 SIDE WINDOWS two sliding windows,one each side

4.3 VENTS two

4.4 SIZE OF SIDE DOOR 1755*615

4.5 REAR UPPER DOOR 2020*1065

4.6 RAMP DOOR 2020*1210

4.7 REAR UPPER & RAMP DOOR STRUT high-intensity anti-rust strut

4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges

5.DRAWBAR

5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium

5.2 DRAWBAR SAFETY CHAIN two

5.3 BRACING WHEEL one

6.LIGHTS & RETRO REFLECTORS

6.1 TRAILER PLUGS square 7 wick plug

6.2 SIDE LAMPS 6

6.3 REAR LAMPS LED group

6.4 REAR LAMPS STAND aluminum

6.5 RETRO REFLECTORS 8

7.MUDGUARD

7.1 MUDGUARD TYPE compact mudguard

7.2 MUDGUARD CHECKER PLATE 1.2mm aluminium in the front of mudguard

7.3 PEDAL & ALUMINIUM STEP 1.2mm aluminium decoration board

8.INTERIOR & EXTERIOR

8.1 A KITCHEN none

8.2 HORSE PROTECTION FRAME full padded

8.3 HORSE RING four

8.4 RUBBER MATTING FOR RAMP DOOR 10mm rubber matting

8.5 RUBBER MATTING FOR FLOOR 10mm rubber matting

8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting

8.7 WOOD BOARD FOR FLOOR & RAMP DOOR 18mm hardwood plywood

8.8 RUG RACK side

8.9 SADDLE RACK in saddle box

8.10 SADDLE BOX 1200mm height for 2 saddles

8.11 PAINTING single or customized

9.DIMENSIONS

9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 4110*2280*2590

9.2 BODY DIMENSIONS ( L x W x H: mm ) 3260*1980*2230

9.3 INNER DIMENSIONS ( L x W x H: mm ) 3235*1930*2155

optional

Name

Unit price(USD/PC)

Wireless video monitoring system

600

Battery and charger

200

Caravan door

500

Roof lining

250

Internal feed bags

50/unit

Internal socket

15/unit

External light near the door

50

External power output

50

Drawbar tack box

350

Removable horse head divider

50

Adjustable horse divider

100

Fold up bed in horse area

100/unit

Rug rack with lock and gas struts

50

Portable yards- hot dip galvanized (set of 6)

240

Logos(one added at up font and one added rear up door)

150

Special design paint

200

Awning

1000

Air-condition

1000

PPG paint

1200
