2200W mobility scooter,mini golf cart
US $4650-$5650

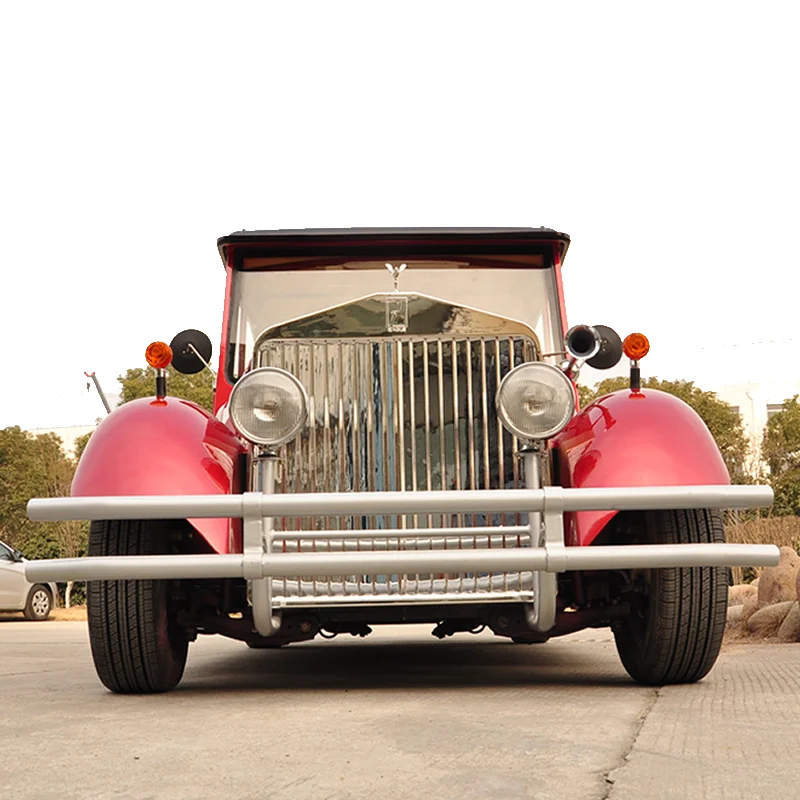

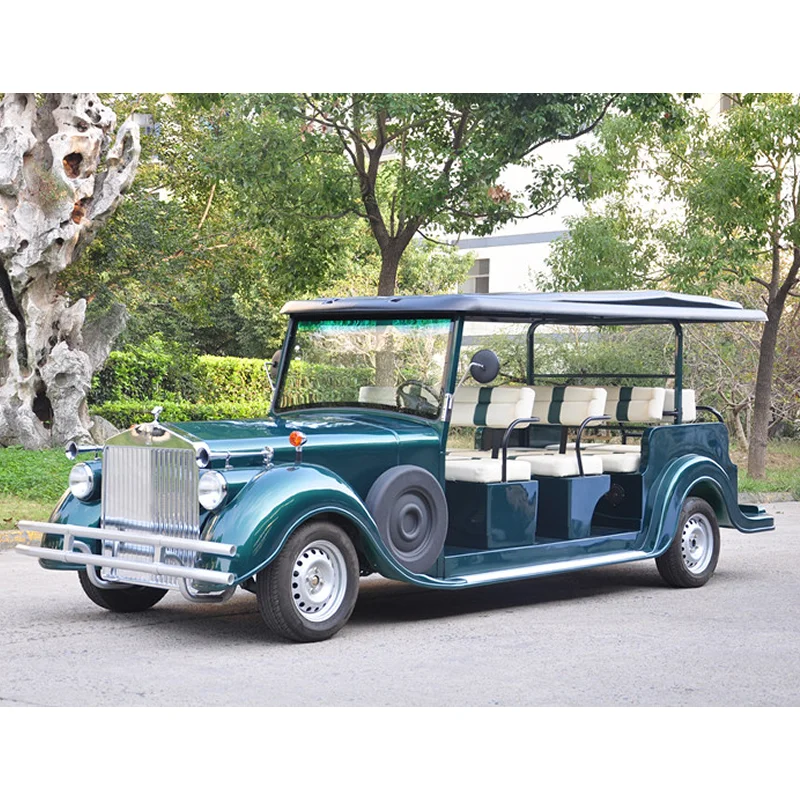

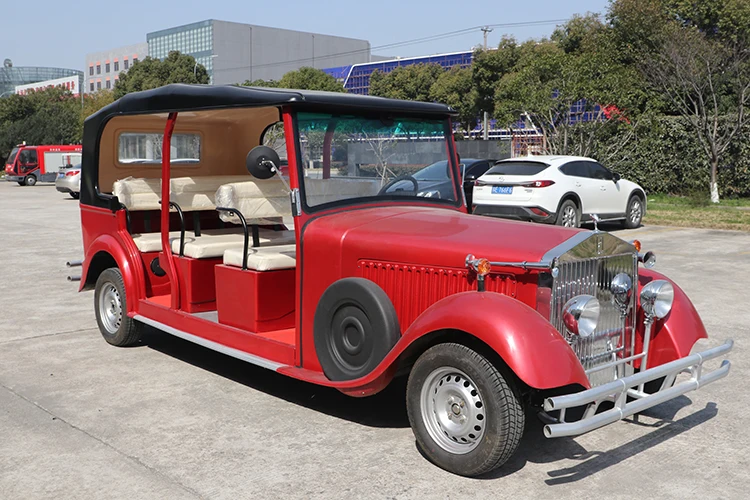

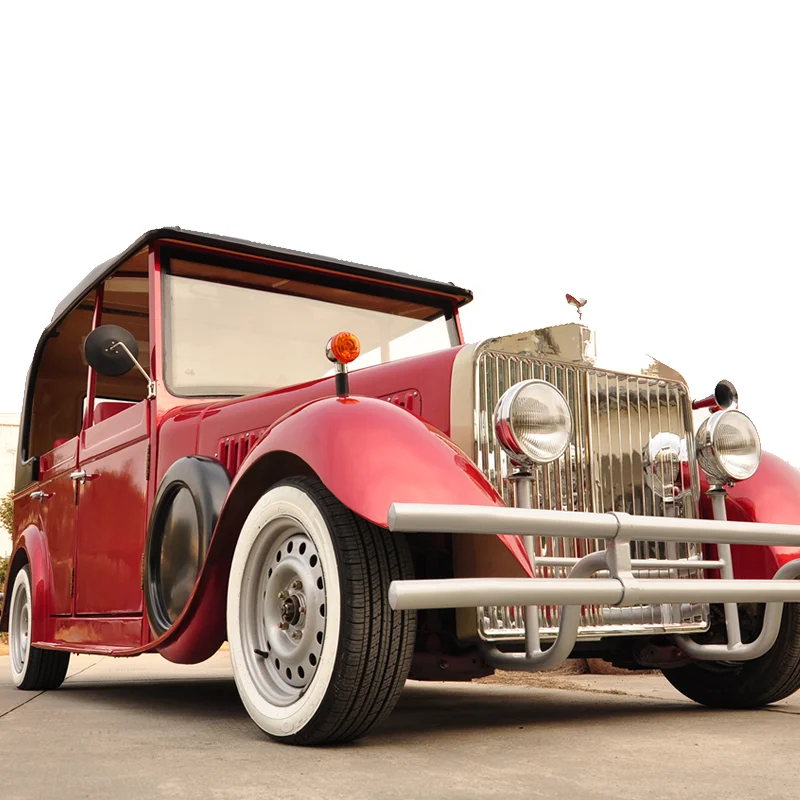

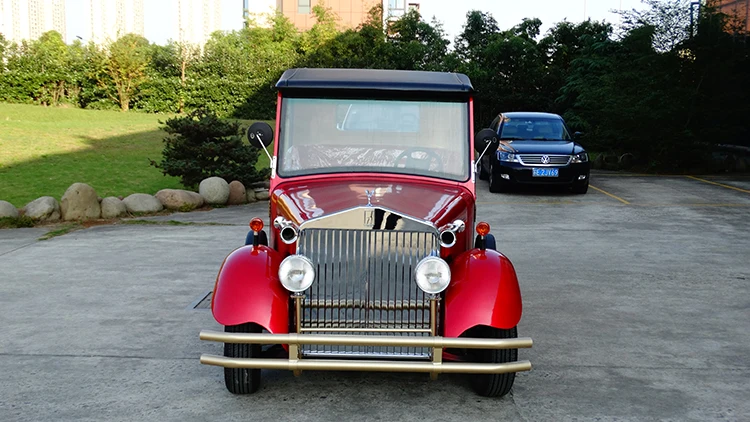

EG buggy vintage golf car electric vintage car for sale
- Category: >>>
- Supplier: Suzhou Eagle Electric Vehicle Manufacturing Co. Ltd.
Share on (60122724768):
Product Overview
Description
Product Description
Key Components
Item | Description |
Controller | Curtis controller, 350A, imported from USA directly |
Motor | Rated power 4KW(5.4HP), Chinese brand |
Battery | Trojan battery, T105+, imported from USA directly |
Charger | High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
Performance
Item | Description |
Passenger Capacity | 6 |
Range (loaded) (km)* | up to 70 |
Max.speed (km/h) | up to 25 |
Min.turning radius (m) | 6.3 |
Max.climbing ability(loaded) | up to 15% |
Max. movement after brake at speed of 20km/h | ≤4m |
Max.loading weight (kgs) | 480 |
Charging time (hour) | 8-10 |
Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
Item | Description |
Overall dimensions (mm) | 4400x1650x1850 (LxWxH) |
Min.ground clearance (mm) | 120 |
Wheelbase (mm) | 2900 |
Front wheel tread (mm) | 1385 |
Rear wheel tread (mm) | 1385 |
Body and Frame
Item | Description |
Frame & Chassis | Welded steel framework with sand blasting and painting |
Body | FRP |
Roof | FRP |
Windshield | Front Laminated glass, rear toughened glass |
Seat | Sponge with super-fibre leather,with wooden bottom |
Floor | Skidproof leather and red carpet |
Side trim | FRP |
Foot step | Aluminum |
Door | Half closed, aluminum, with handle |
Dashboard | FRP, with F/R switch, emergency light switch, speedometer, amperemeter, voltameter, combination switch, etc.. |
Side rear view mirror | 2pcs |
Electric System
Item | Description |
Lights | 12V, headlight, front turning light, 2 front fog light, taillight (brake light and rear turing light) and 1 rear fog light |
Horn | Air-horn |
Reverse buzzer | Electric, 12V |
Combination switch | including switch for headlight, turning light, fog light and horn |
DC/DC converter | 48V/12V |
Digital Meter | Amperemeter, voltometer, speedometer |
Audio system | Radio with MP3 receiver and 2 waterproof speaker |
Steering & suspersion
Item | Description |
Steering System | Single-stage rack and pinion steering system, with automatic compensation function |
Brake System | 4-wheel hydraulic front disc rear drum brake |
Accelerator | Resistance type, stepless speed change |
Front suspension | Independent suspension |
Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
Driving mode | Rear axle two stage deceleration, motor direct driving |
Rear axle | Integrated, steel differential case, 12.49:1 gear ratio |
Wheel & Tyre | 185/R65-15 tire, 6J-15 steel wheel, wheel cap |
Option Accessories
To increase the sales value of our vehicles, we also provide many optional accessories.
Item | Option description |
1 | Emergency stop button |
2 | Chromeplate wheel cover |

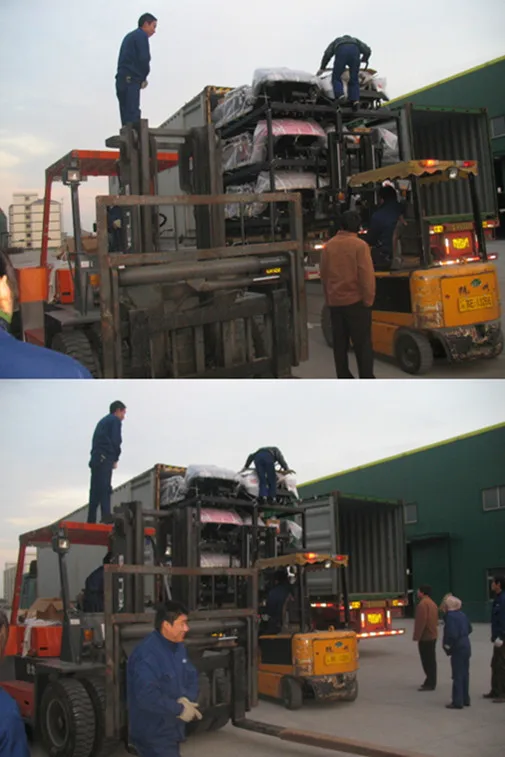

Packaging & Shipping
Our Services
Exhibition and visit
Company Information

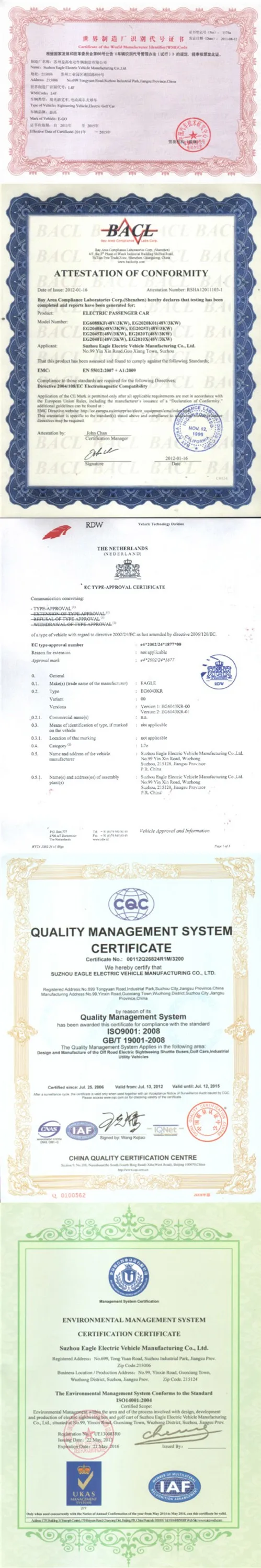

Certificate

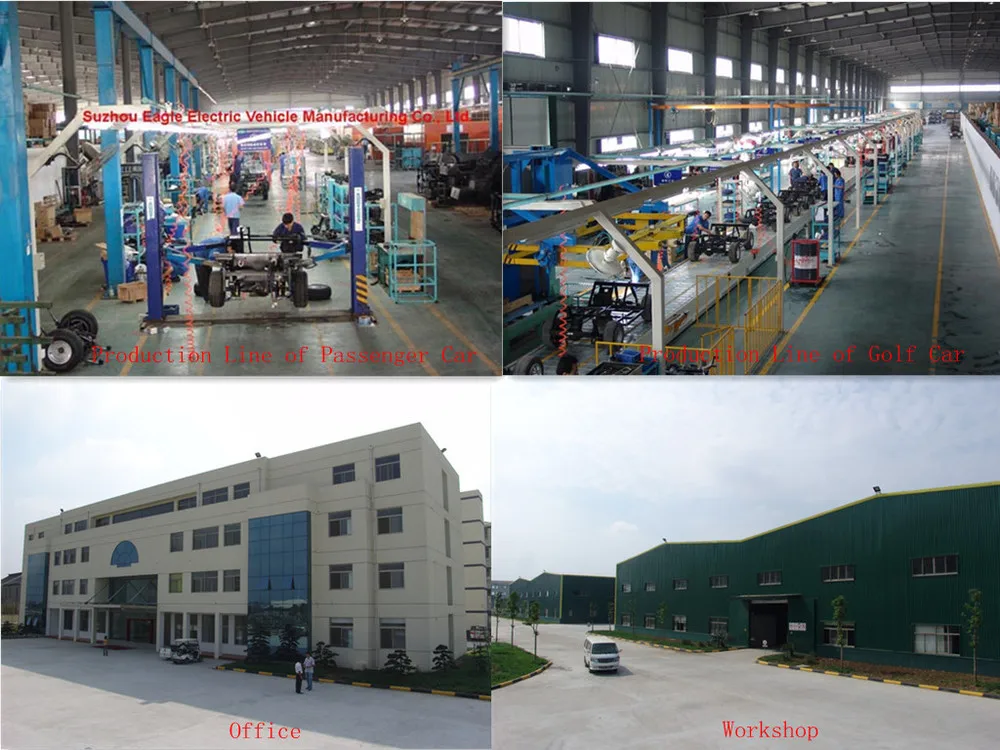

Workshop and production line
