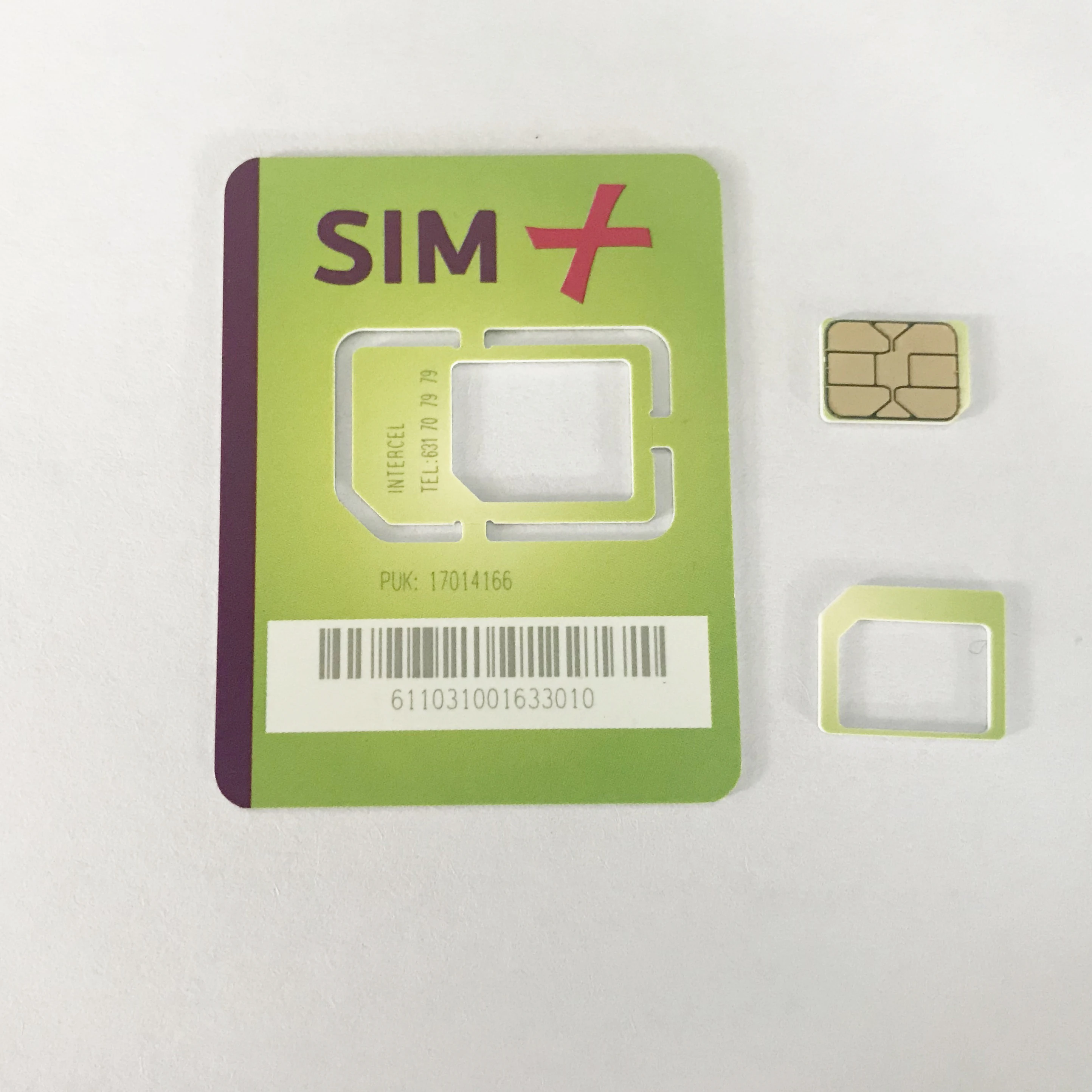

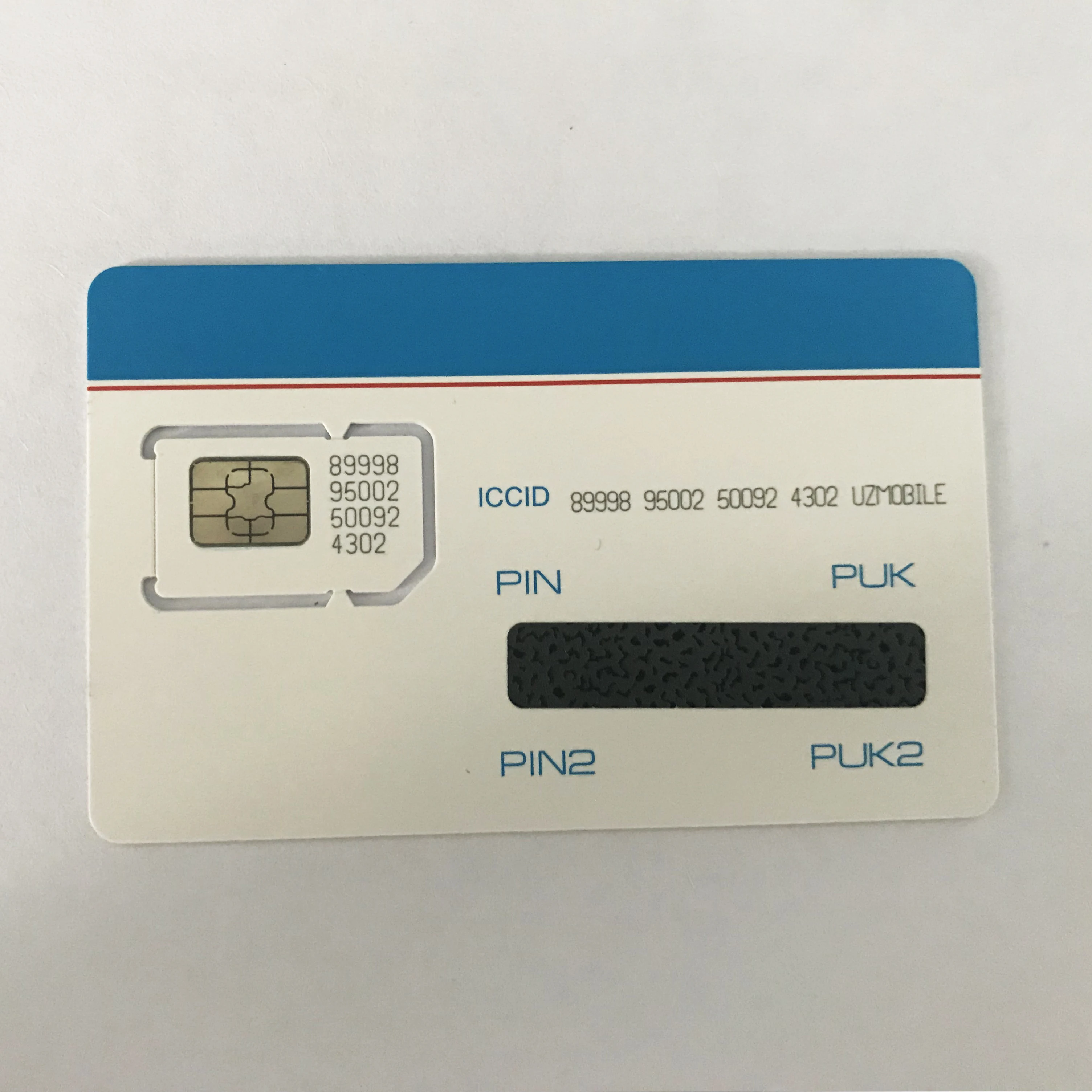

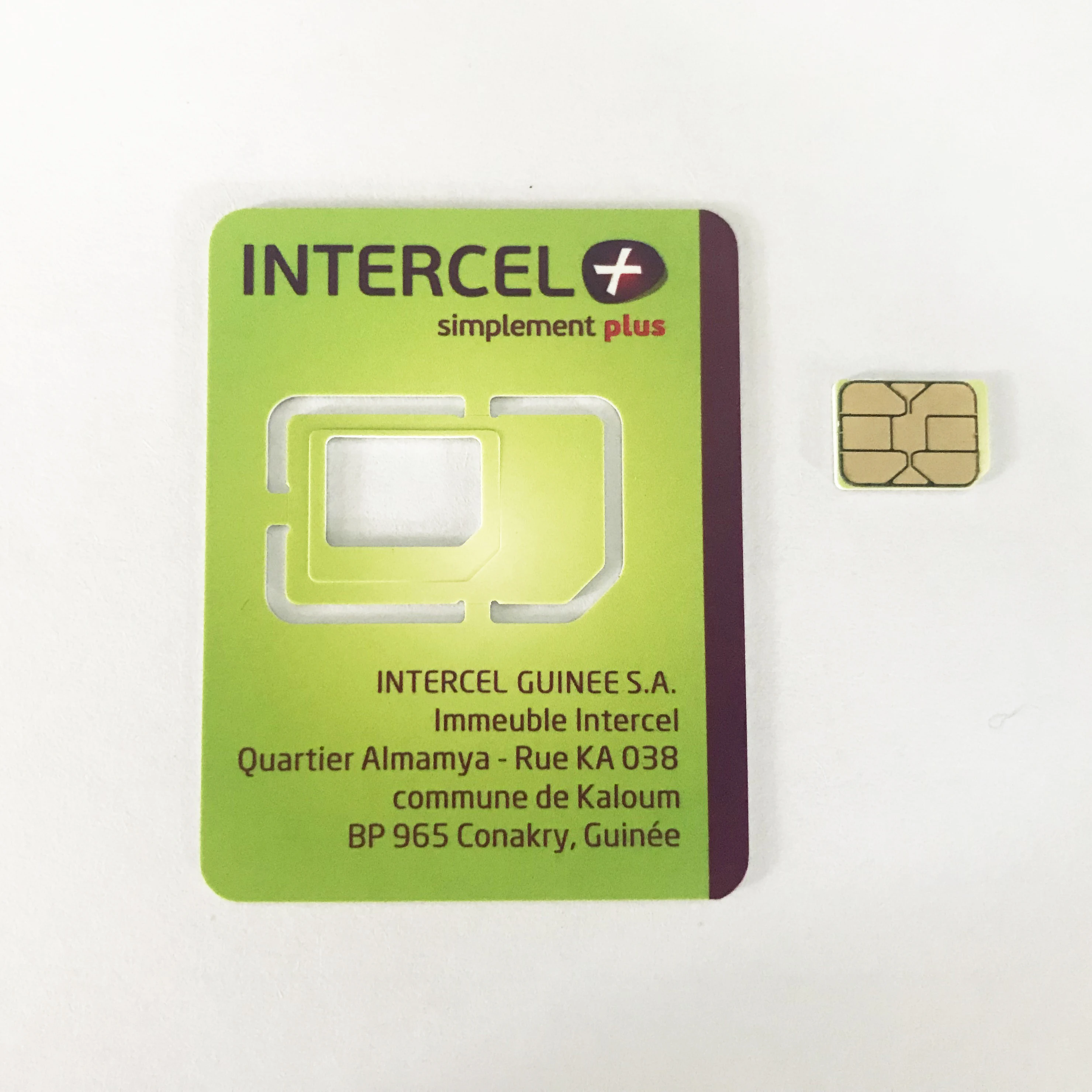

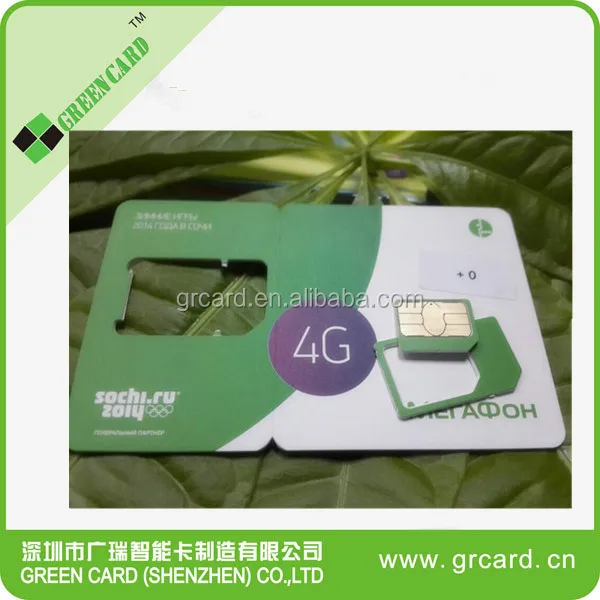

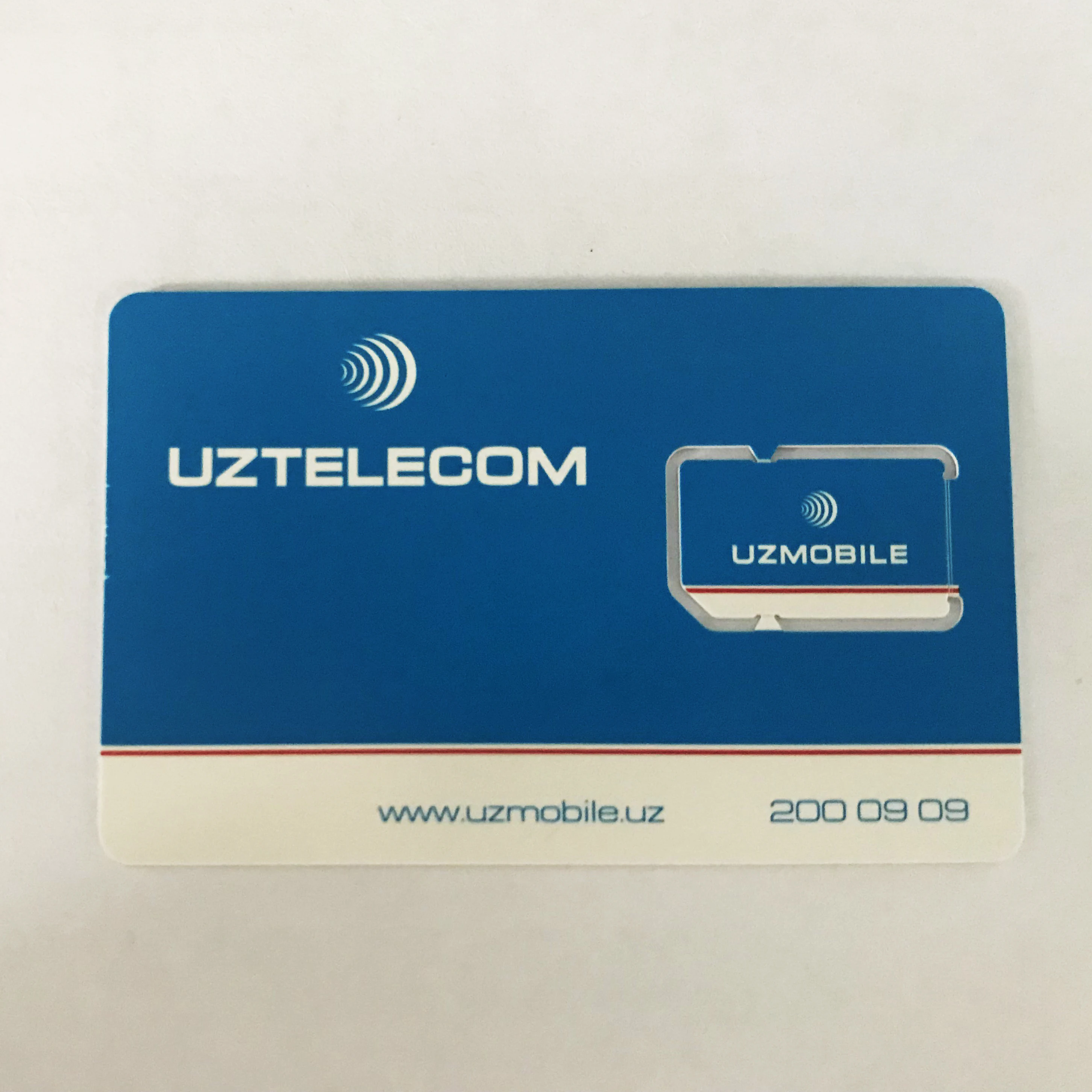

2FF /3FF/4FF GSM SIM Card PVC Card support GSM network Customers' requirements are available
Company Information
Green Card (Shenzhen) Co.,Ltd. is located at 5/F, West, B2 Building, Anle Industrial District, Hangcheng Road, Bao'an, Shenzhen, China. We are professionally engaged in the production of smart cards, IC card systems and IC card readers. Our company's products include contact IC cards, contactless IC cards, paper cards, composite cards, portrait cards, phone cards, barcode cards, magnetic stripe cards, VIP cards and other material cards, as well as contact IC card readers, contactless IC card readers and card printers.
"Customer First" is our belief. We are strict in production design, manufacturing, sale and service to provide quality products and services. Our good reputation has helped us win more customers' trust and support. Our sale and services spread across all parts of the country, and some products sell well overseas. Adhering to taking the market-oriented technological innovation as a lead, we strive to become the leader in the industry. We hope to become your faithful friend and partner, to build up win-win situation for the future.
Product Description
Products Details:
1) Material: PVC or ABS 2) Thickness: 0.30mm - 0.88mm 3) Customers' requirements are available 4) Dimensions: 86 x 54mm
5)Chip memory:16K, 32K, 64K, 128K and so on. 6) Security: UV printing,overprinting,hologram,customize OPP wrapping,fluorescent red/blue anti-counterfeiting technology and so on.
Specifications
GSM SIM Card: 1.OS: Native and Java 2.IC: 32Kb - 512Kb 3. Use for GSM network and mobile phone factory.
10.Compliant to IS-820 Addendum, GSM11.11, GSM11.14, GSM 03.48, GSM 03.40
Support many UTK mobile value added application in the CDMA network
Compatible to both GSM and CDMA network
Support the OTA method of downloading updates of applications
Support expansion of STK services
Security Verification algorithm:
GSM: A3A8 algorithm (COMP128-1/2/3)
CDMA: CAVE algorithm Revision C
DES/3DES: encryption/decryption algorithm
Specifications
1.1. 64k GSM SIM Card 2.Can Write IMSI , ICCID , SID , NID , PIN , PUK AMD , AKEY , SMSC technologial information into card
PVC material GSM SIM card,T-mobile Sim Card
1.1. 64k GSM SIM Card
2.Can Write IMSI , ICCID , SID , NID , PIN , PUK AMD , AKEY , SMSC technologial information into card
--- CPU --- Program memory (ROM) --- Working memory (RAM) --- Data memory (EPROM or E2PROM) --- Serial communication module These five modules must be integrated into an Integrated Circuit (IC), otherwise their safety would be threatened. This is because the chip connections may become illegal access and misappropriation of SIM cards important clues. In practice, there are two different forms of SIM cards with the same functions: (A) Full-size SIM card (commonly known as big card), this form of SIM cards with the IC cards of the ISO 7816 Standard [ISO7816], similar to IC card. The card has since been shrunk to the standard size of 25mm × 15mm. (B) Embedded SIM card (commonly known as small card), the size of only 25 mm × 15 mm, is a semi-permanent packed to the cards in the mobile station equipment. Two cards have installed waterproof, wear-resistant, anti-static contact with high accuracy and reliability characteristics. 2.2 Cryptographic algorithm and secret key in SIM card The most sensitive information of SIM card is the cryptographic algorithm A3, A8, secret Ki, PIN, PUK and Kc. A3, A8 algorithm were written into the SIM card in the producing process, and most people could not read A3, A8 algorithm. HN code could be settled by the phone owners. PUK code is held by the operator. Kc was derived in the process of encryption from Ki. 5 PIN and PUK: --- PIN –Personal Identification Number --- 2 PINs exist (PIN 1 and PIN2) --- Limited attempts on PIN access --- PUK –PIN Unblocking Code --- Resetting PUK, resets PIN and the attempt counter --- Too many attempts on PUK blocks use permanently
--- CPU --- Program memory (ROM) --- Working memory (RAM) --- Data memory (EPROM or E2PROM) --- Serial communication module These five modules must be integrated into an Integrated Circuit (IC), otherwise their safety would be threatened. This is because the chip connections may become illegal access and misappropriation of SIM cards important clues. In practice, there are two different forms of SIM cards with the same functions: (A) Full-size SIM card (commonly known as big card), this form of SIM cards with the IC cards of the ISO 7816 Standard [ISO7816], similar to IC card. The card has since been shrunk to the standard size of 25mm × 15mm. (B) Embedded SIM card (commonly known as small card), the size of only 25 mm × 15 mm, is a semi-permanent packed to the cards in the mobile station equipment. Two cards have installed waterproof, wear-resistant, anti-static contact with high accuracy and reliability characteristics. 2.2 Cryptographic algorithm and secret key in SIM card The most sensitive information of SIM card is the cryptographic algorithm A3, A8, secret Ki, PIN, PUK and Kc. A3, A8 algorithm were written into the SIM card in the producing process, and most people could not read A3, A8 algorithm. HN code could be settled by the phone owners. PUK code is held by the operator. Kc was derived in the process of encryption from Ki. 5
PIN and PUK: --- PIN –Personal Identification Number --- 2 PINs exist (PIN 1 and PIN2) --- Limited attempts on PIN access --- PUK –PIN Unblocking Code --- Resetting PUK, resets PIN and the attempt counter --- Too many attempts on PUK blocks use permanently
