three phase electrical equipment protection device AC 220 SPD/ surge arrester
- Category: >>>
- Supplier: Fatech Electronic (Foshan) Co. Ltd.
Share on (60122976939):
Product Overview
Description
Product Description
1. AC surge protector spd for low-voltage power system Characteristic FV40B+C/3-385(S)
- Class I+II surge protective device onsisting of a base part and MOV plug-in protection modules.
-High energy MOV inside.
-Low residual voltage and quick response.
-Reliable control thanks to Thermo Dynamic Control disconnector.
-With remote signaling contact for control device.
-Fault indication via red mark in the inspection window.
-Protection mode: L1, L2, L3-PE.

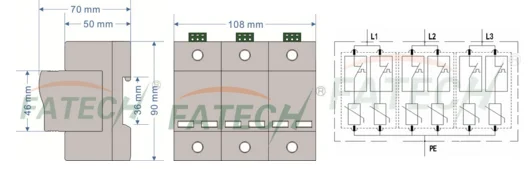

2. AC surge protector spd for low-voltage power system Dimension and Circuit FV40B+C/3-385(S)
3. AC surge protector spd for low-voltage power system Electrical parameters FV40B+C/3-385(S)
| Model No. | FV40B+C/3-385S | |||
| Max. continuous operating voltage | Uc | V AC | 385 | |
| Requirement class to DIN EN 61643-1:2005 | Class B+C | |||
| Rated Voltage | Un | V AC | 220 | |
| Nominal discharge current (8/20μs) | In | kA | 40 | |
| Impuse discharge current (10/350μs) | Iimp | kA | 12 | |
| Voltage protection level (at In) | Up | kV | ≤2.5 | |
| Response time | tA | ns | <25 | |
| Recommended back-up fuse | A | 160 | ||
| Operation temperature range | -40°C~+85°C | |||
| Degree of protection | IP20 | |||
 |  |  |  |
protection photovoltaic system | protection power supply system | Lightning Rods & Surge Counters |
Workshop
→
→
Module assembling Base part producing Finished products tests
↓
←
←
Go to warehouse Packing Impulse current test
Certifications
FATECH Electronic (FOSHAN) CO., LTD. supplies five-years warranty on surge protective devices, and supply maintenance services in lifetime.Products are certified with TUV, CE; UL pending, 90% material are UL approved.
FAQ:
1. Q: Could l know which advantages do you have please?
A: Independent test center, TUV, Patent certifications; 15 years export experience in the overseas market; good technical service and support.
2. Q: Are you a lightning surge protectors factory or trading company?
A: We area manufacturer which is ISO 9001-2008 quality system on R&D, production and sales of surge arrester.
3. Q: Warranty and return?
A: We supply five-years warranty on surge protective devices and own the best after-sale service team, if any
problem happens, our team will do our best to solve it for you.
4. Q: What's the delievery time?
A: It is usually about 15 days after receiving the payment and confirmed the order, but specific time should
be based on the order quantity.
