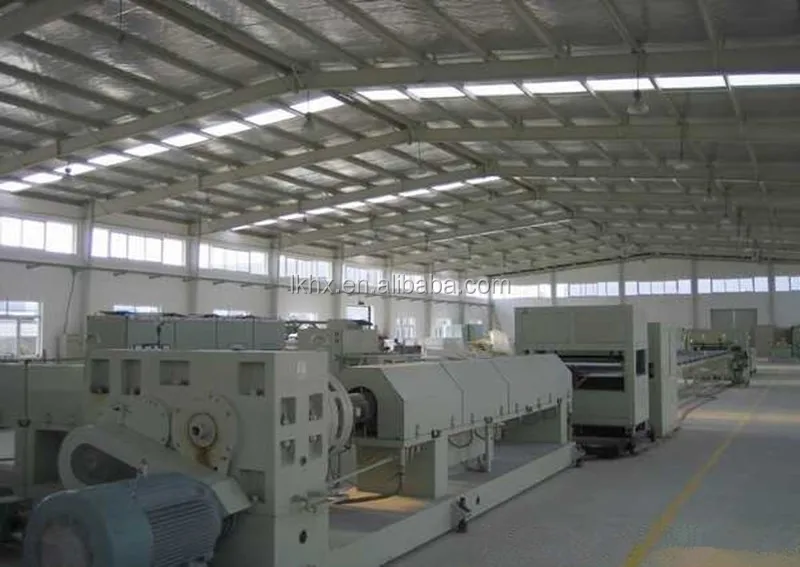

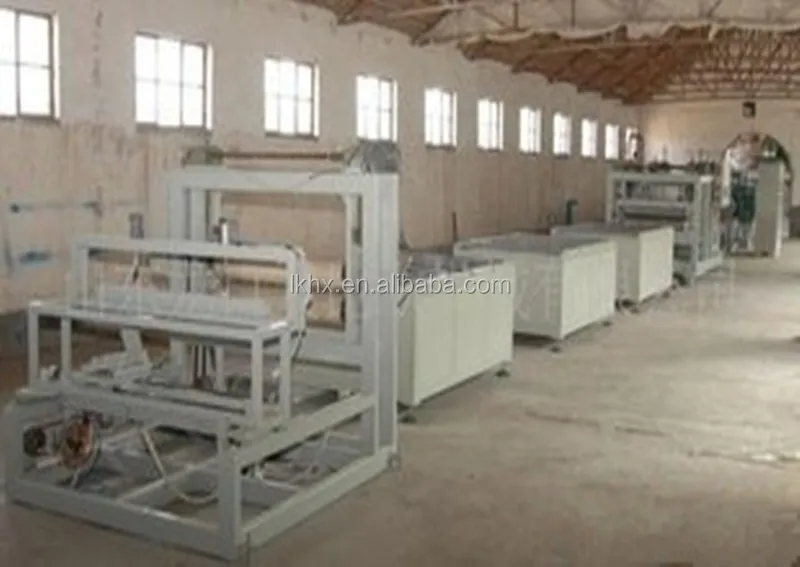

XPS 135/150 Sheet Production Line XPS Foam Machine

Product Overview

Description

XPS 135/150 Sheet Production Line XPS Foam Machine

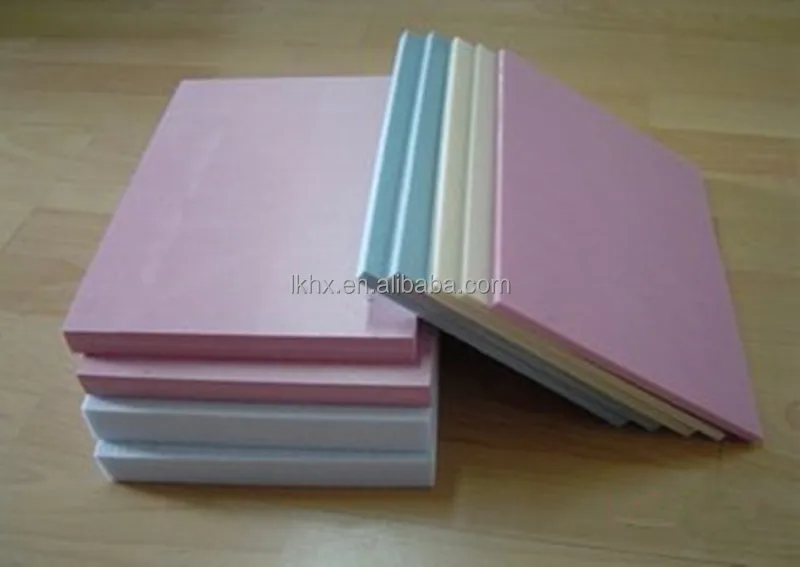

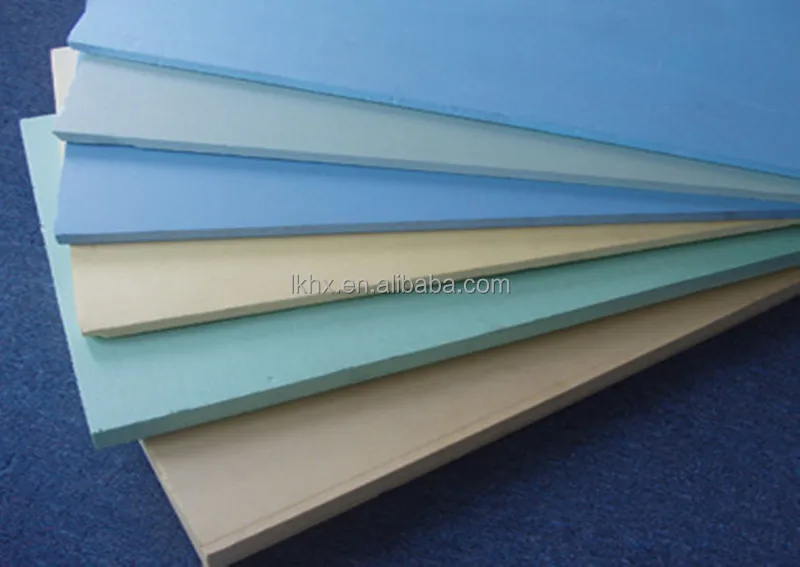

XPS foam board ,named as polystyrene extrusion board(XPS for short)has a flawless closed-pore cell structrue.Its density,water absorption,coefficient of heat conducting and the coefficient of steam pervasion are all lower that those of other board heat preservasion materials and they have the charact eristics of strong intensity,light material,airtight,anticorrosion,aging resistance,low cost,etc.It has been widely used in the fields of heat insulation in the construction indusry,frost resistance of the highway,railway,airport,square and household fitment.It is generally acknowledged the best heat preservation material in the market at present.





For heat preservation of steel structure workshop,iron sheet house and colored ripple tile.

For making up the heat insulation board in the refrigeration storehouse for cold preservation and and waterproofing.

For laying the bedding under the road bed of the highway for butterring and controlling the frost heating of the ground.

For waterproofing and heat preservation of residential building,office building,the factory wall and roof.

For laying the bedding under the floor for the funcitions of heat insulation,dampproof and soundproof.

For heat insulation and heat preservation of the ventilation pipeline of central air conditioner.



Mani Technical Param:

Model	Unit	HXXPS-135/150	HXXPS-150/170	HXXPS-170/200
Screw diameter	mm	135/150	150/170	170/200
heating power	kw	50  52	58  68	78  100
Driving motor power	kw	75  90	90-110	110  132
Thickness of board	mm	20-80	20-100	40-120
Width of board	mm	600,900	600,900,1200	600,900,1200
Length of board	mm	1200,1250,2450,2500	1200,1250,2450,2500	1200,1250,2450,2500
Capacity(approx)	kg/h	280-320	300-360	380-500
total power(approx)	kw	300	380	400
Overall size(L*W*H)	M	35*10*4	38*10*4	40*10*4
Total weight(approx)	t	28	30	33
